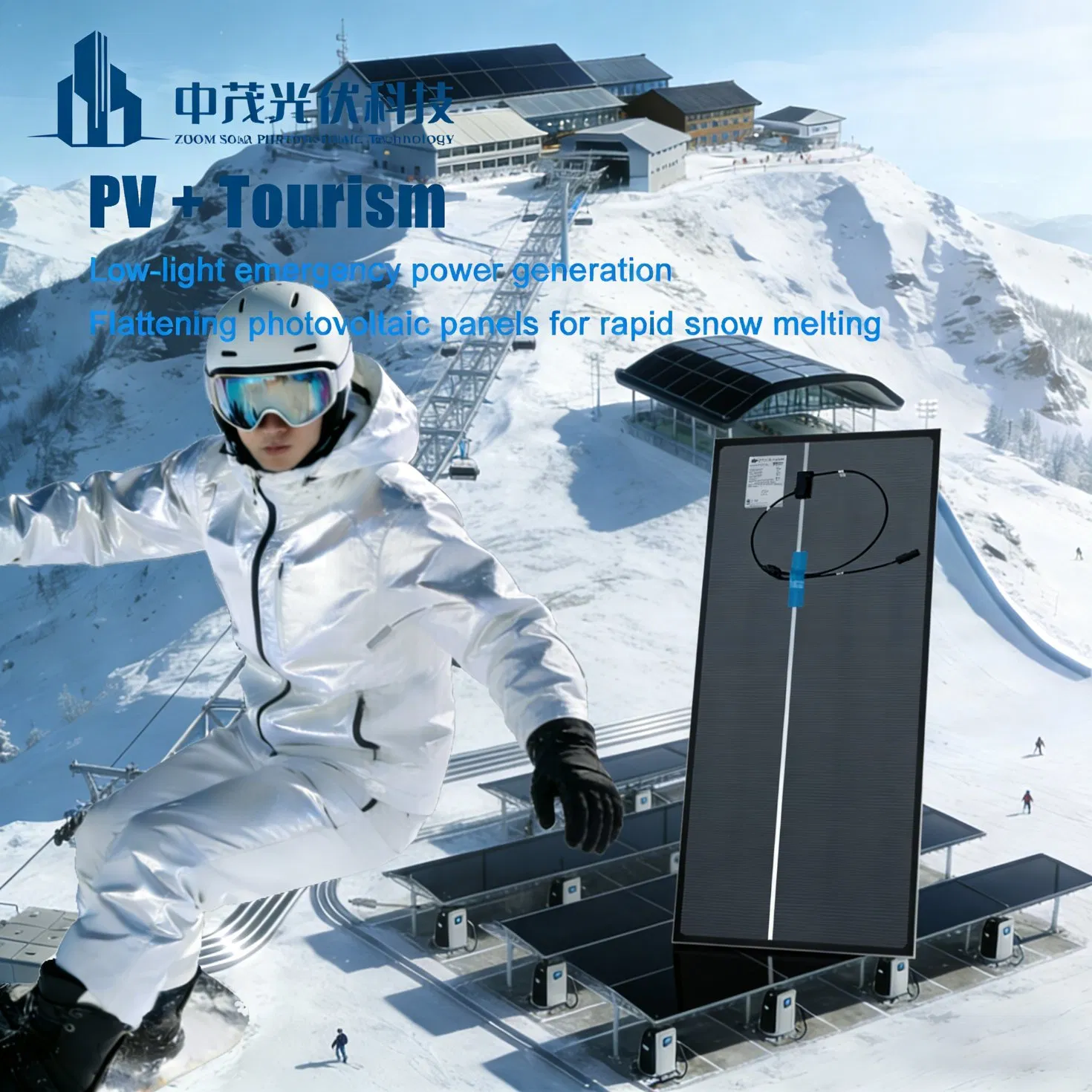

Zoom Solar Low Light Cdte BIPV Panels for Ski Resort Carport System

1 / 5

Zoom Solar Low Light Cdte BIPV Panels for Ski Resort Carport System

Customization:	Available
Material:	Cdte (Cadmium Telluride)
Form of Expression:	Building material Type

Send Inquiry

Product Description

ⓘ

Basic Specifications

Model

CdTe-Series Thin Film

Application

Photovoltaic Venues, Greenhouse, Curtain Wall, Roof

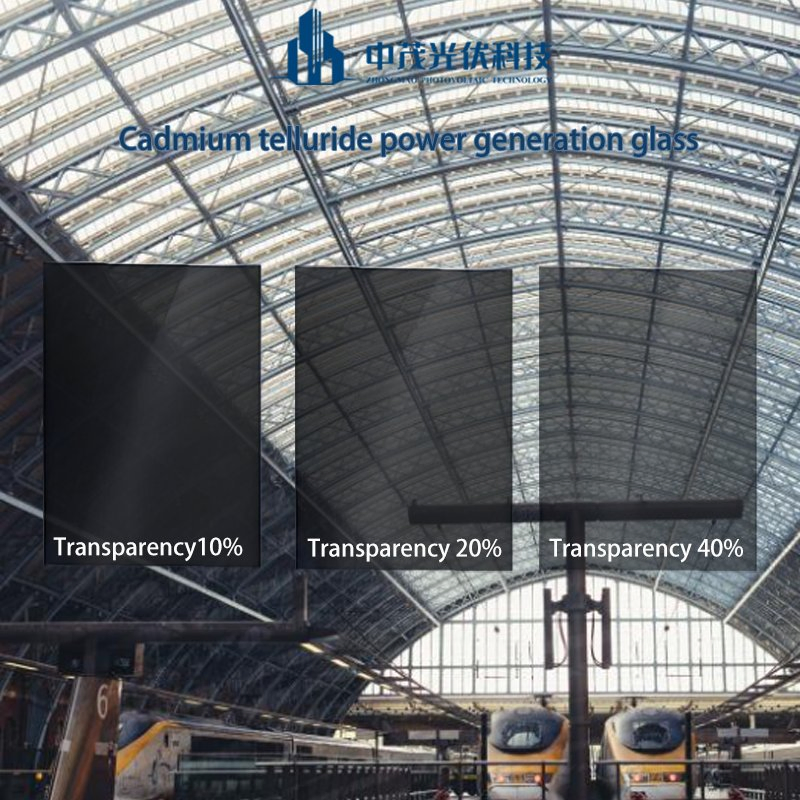

Light Transmittance

10%, 20%, 40%, 50%, 60%

Module Efficiency

14-19%

Open-Circuit Voltage

180V

Power Tolerance

±3%

Encapsulated Glass

Stalinite

Capacity

100MW/Month

☀

Product Description

Specifications	Parameter Range	Applicable Scenarios	Thickness / Transmittance	Power Output
Residential	1200×600mm / 1600×800mm	Roofs / Balcony Railings	10-12mm / 10%-60%	100W-300W/unit
Commercial	2400×1200mm / 3000×1500mm	Factory Walls / Power Plants	22mm / 10%-60%	500W-1000W/unit
Custom	1000-4000mm available	Curtain Walls / Landscape	6-20mm / 10%-60%	Calculated by size

★

Technical Features

Product Structure: The cadmium telluride thin-film solar cell consists of five layers: glass substrate, transparent conductive oxide (TCO) layer, window layer (CdS), absorption layer (CdTe), and the back contact/electrode system.

Weak Light Performance CdTe is a direct bandgap material. Luminous effect in early morning, evening, snow, or haze is significantly better than crystalline silicon cells.

Low Temperature Coefficient Performance remains stable at high temperatures. The coefficient is about -0.21~0.25%/ºC, roughly half that of traditional silicon cells.

High Conversion Efficiency With a 1.47eV bandgap, it absorbs over 90% of visible light with a thickness of only 1μm. Theoretical efficiency potential is 28-29%.

Power Stability No light-induced degradation (LID) characteristics. Spectral absorption is not affected by water vapor in humid climates.

⚙

R&D and Industrialization

Focused on BIPV (Building-Integrated Photovoltaics) and advanced thin-film materials, our enterprise drives foundational research into large-area CdTe and perovskite cells. Our products offer customizable shapes, dimensions, and transparency to replace traditional construction materials.

✓

Quality & Logistics

Frequently Asked Questions

Are you a government-invested enterprise?

Yes, we are a high-tech enterprise focused on developing cadmium telluride and perovskite solar cells, alongside high-purity metal organic compound materials.

Do you provide OEM/ODM services?

Yes. Our core focus is R&D and production. We provide full OEM/ODM services backed by a professional R&D team consisting of global industry experts.

What certifications do your solar products hold?

Our products hold CE, TUV, and CQC certifications. Our manufacturing facility is ISO9001:2015 certified, and every batch includes a test report.

What kind of technical after-sales support is available?

We provide comprehensive support including product customization drawings, installation diagrams, remote technical guidance, and on-site technician support.

Is there a Minimum Order Quantity (MOQ)?

No, we do not have a strict MOQ. Our goal is to expand the reach of green energy and provide value to projects of all scales.

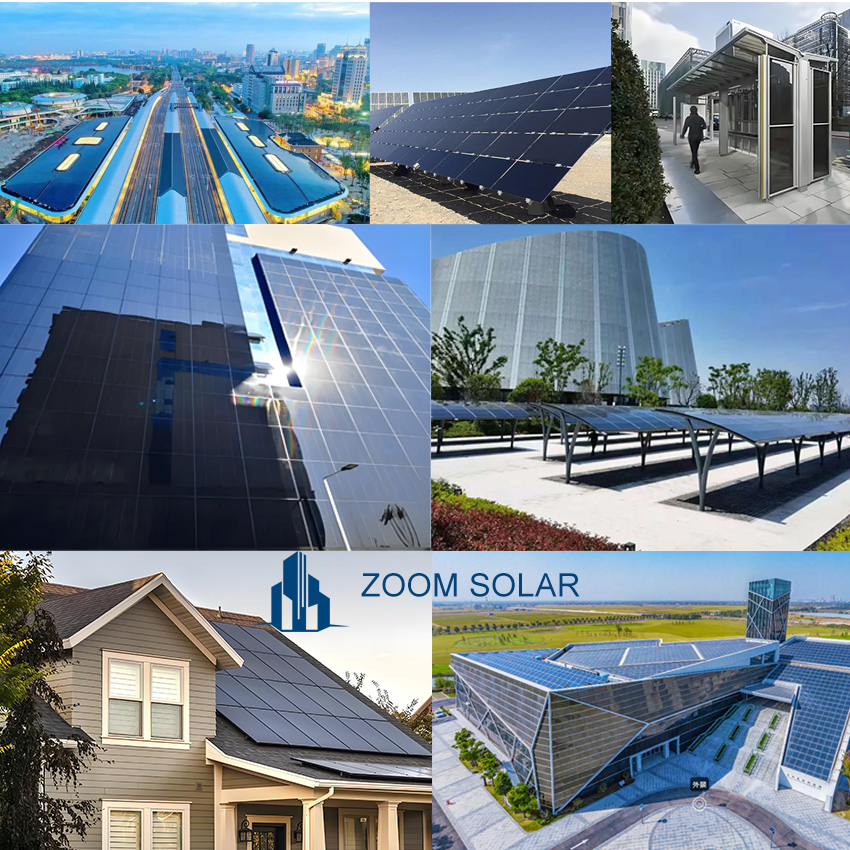

What are the primary applications for BIPV glass?

It is primarily used for architectural curtain walls, industrial rooftops, residential balconies, and integrated energy solutions for smart buildings.
