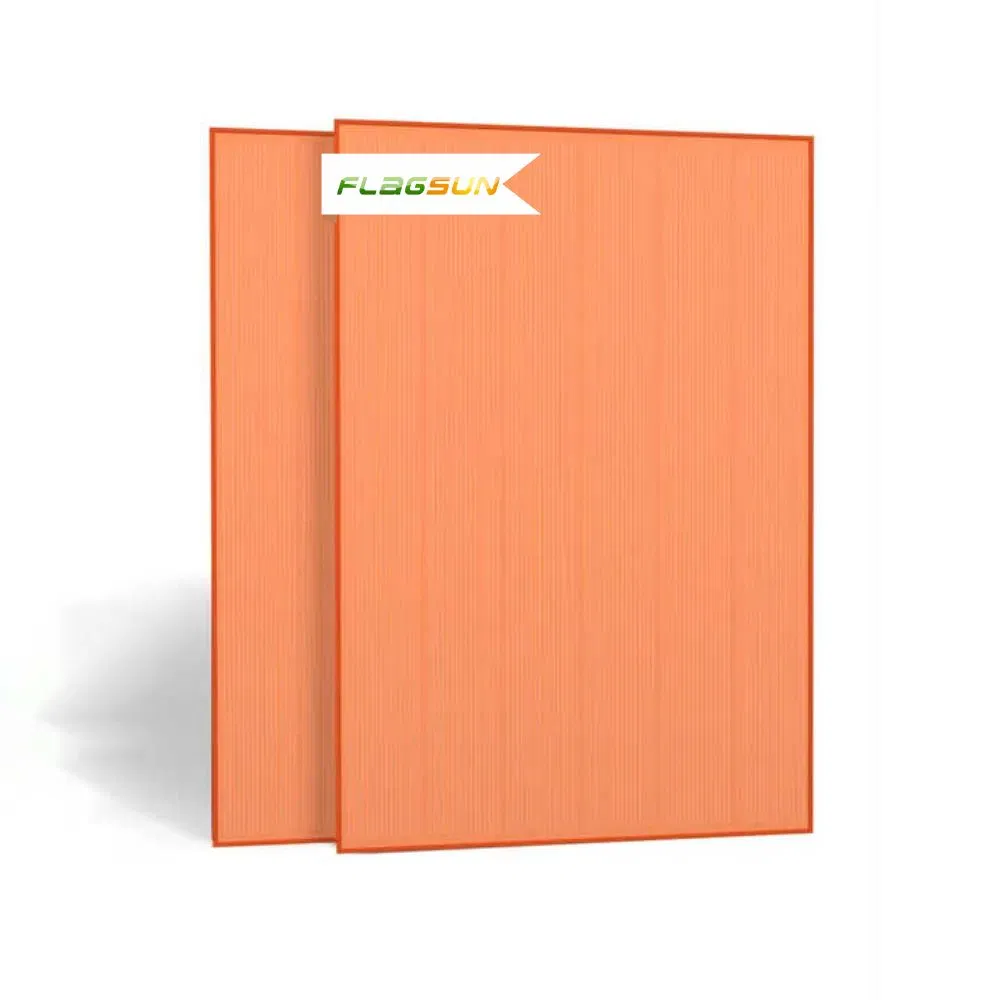

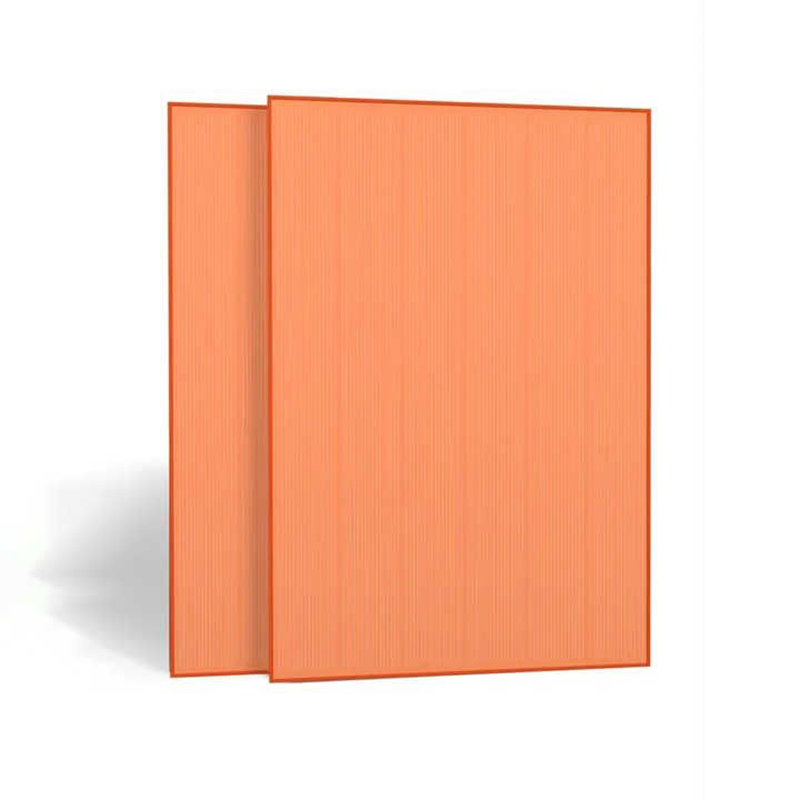

Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
1 / 5
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics
Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics

Aesthetic Orange BIPV Solar Panel Customized Colored PV Module for Home Solar Roof Tiles and Building Integrated Photovoltaics

Send Inquiry

Product Description

BIPV Solar Panel
Specification
TypeFSP430W
Type of Solar CellMonocrystalline Silicon, 156mm×156mm
Number of Cells108pcs
Size of module1724*1038*35mm
Module Weight19.5kg
Junction box/ConnectorTOP, IP68, 1000V DC, TUV certificated
Cables LengthCustomizable
Front Cover Glass3.2mm tempered glass
Maximum Power Pm(W)430W
Power Tolerance+ 3%
Maximum Power Voltage(Vmp)31.73V
Maximum Power Current (Imp)13.55 A
Open Circuit Voltage(Voc)38.3V
Short Circuit Current(Isc)14.37A
Module Efficiency21% above
Maximum System Voltage1000 V
Operating temperature-40℃ to 85℃
Heavy mechanical load5400Pa (meet IEC61215)
Product Description

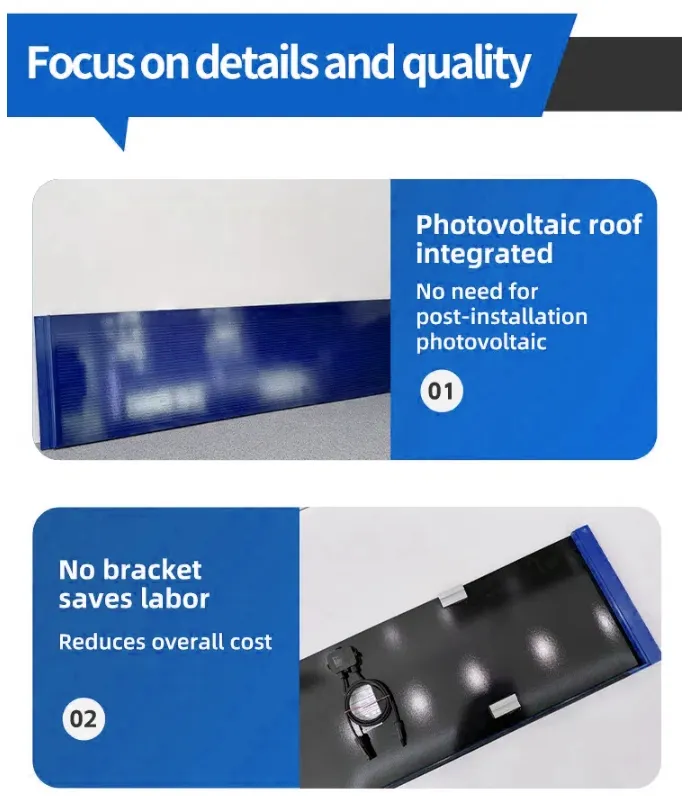

Solar Roof Tiles

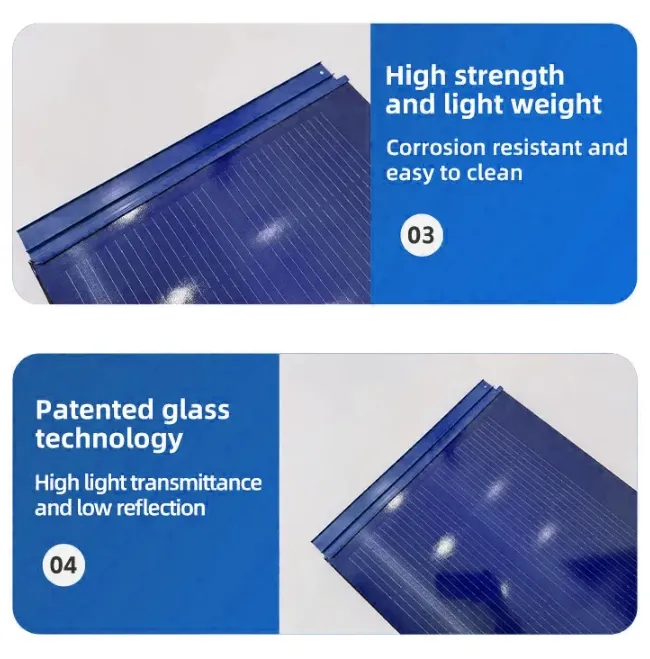

Solar PV Module

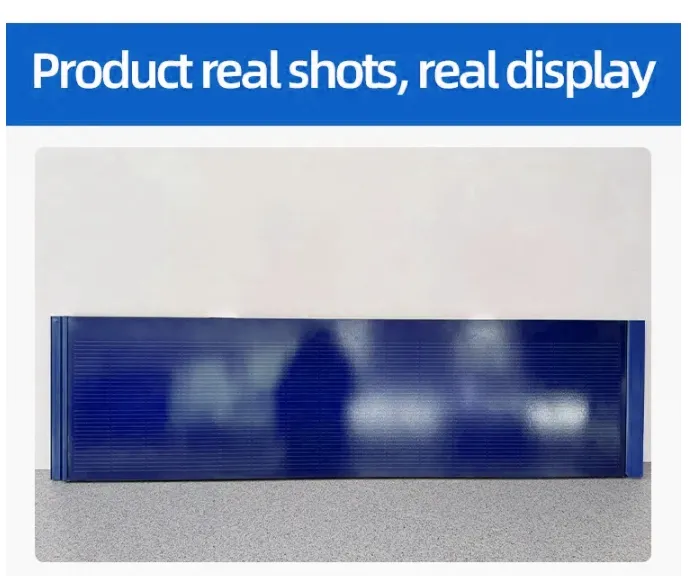

BIPV Solution

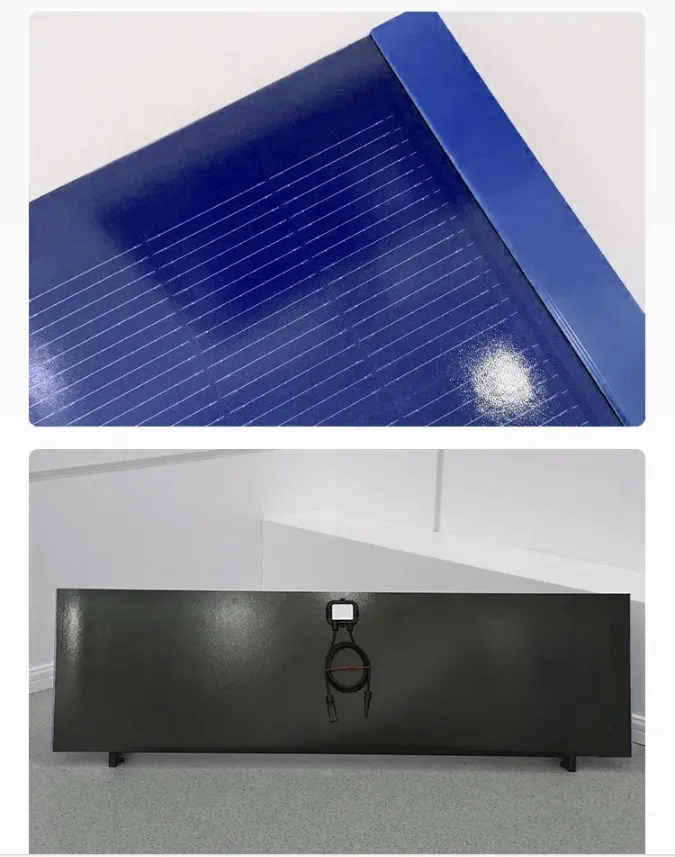

Colored PV Module

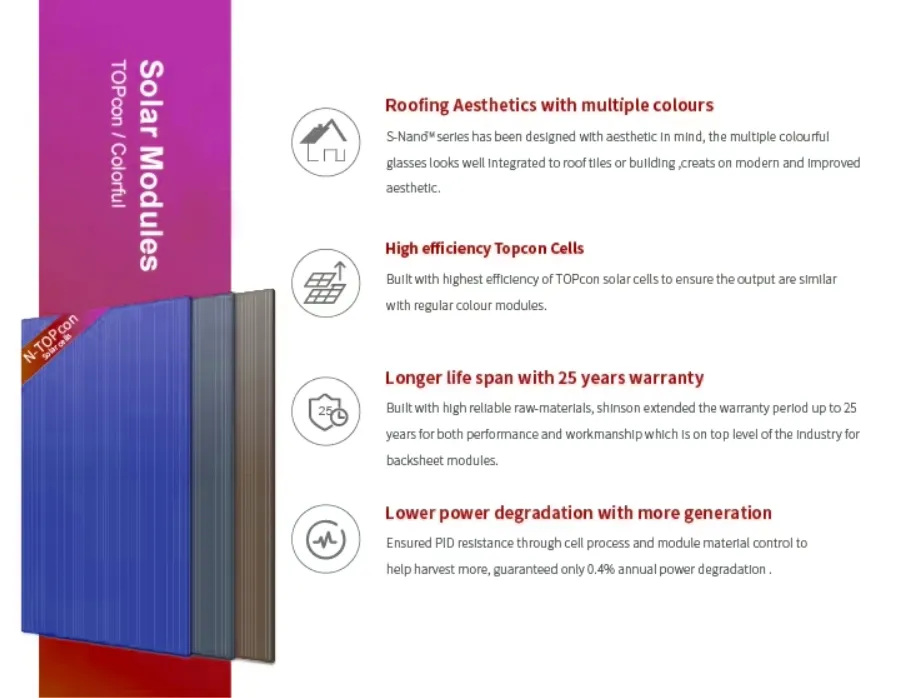

Aesthetic Solar Panel
Detailed Photos
Product Detail 1
Product Detail 2

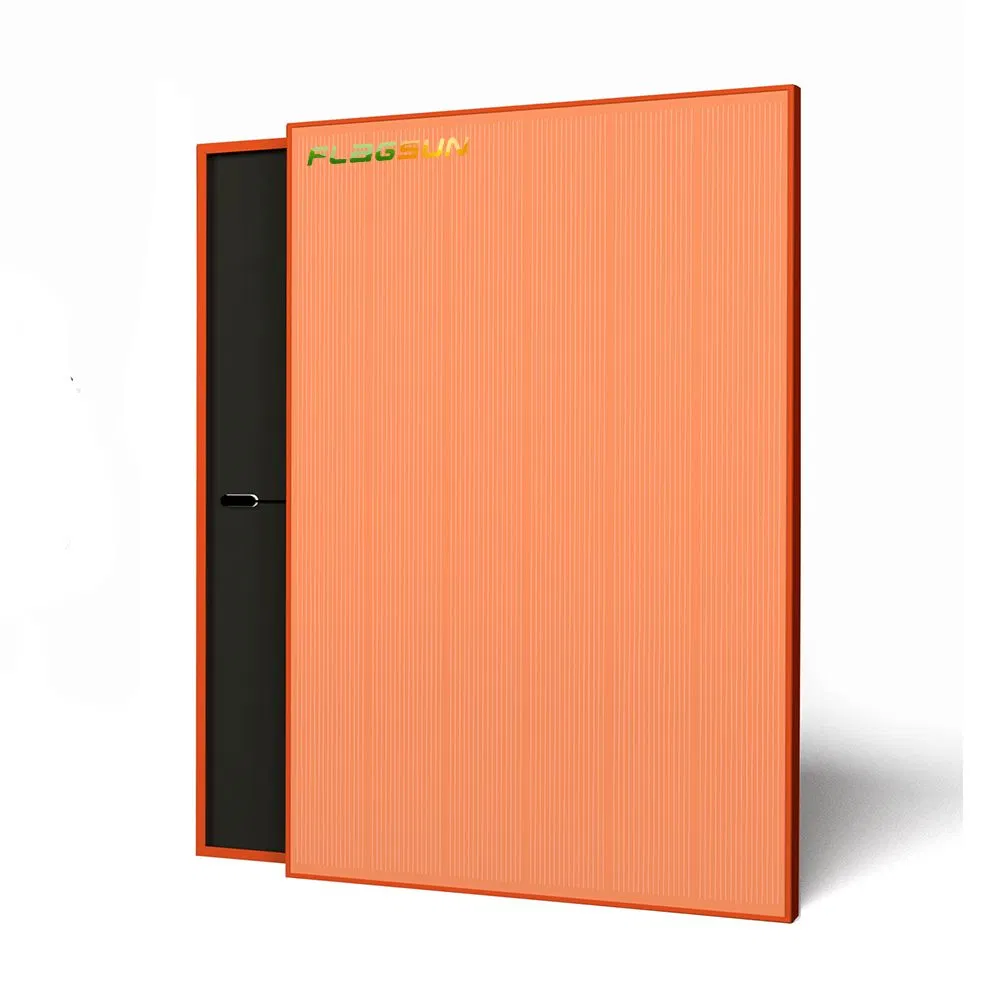

Product Detail 3

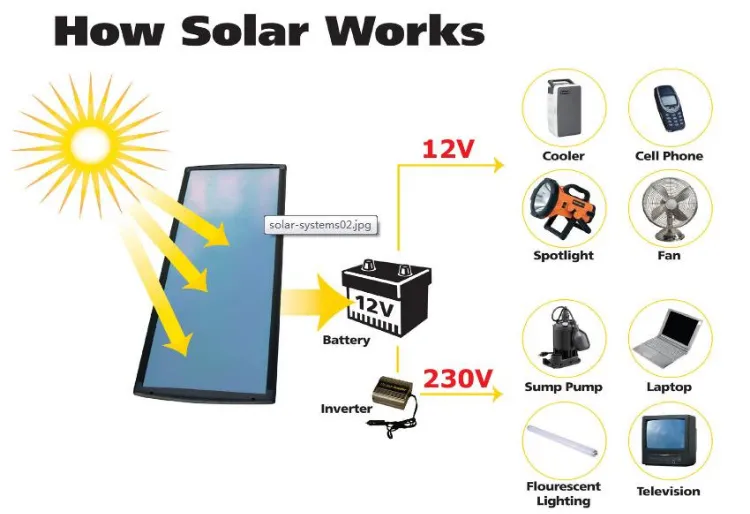

Product Application
Certifications & Related Products

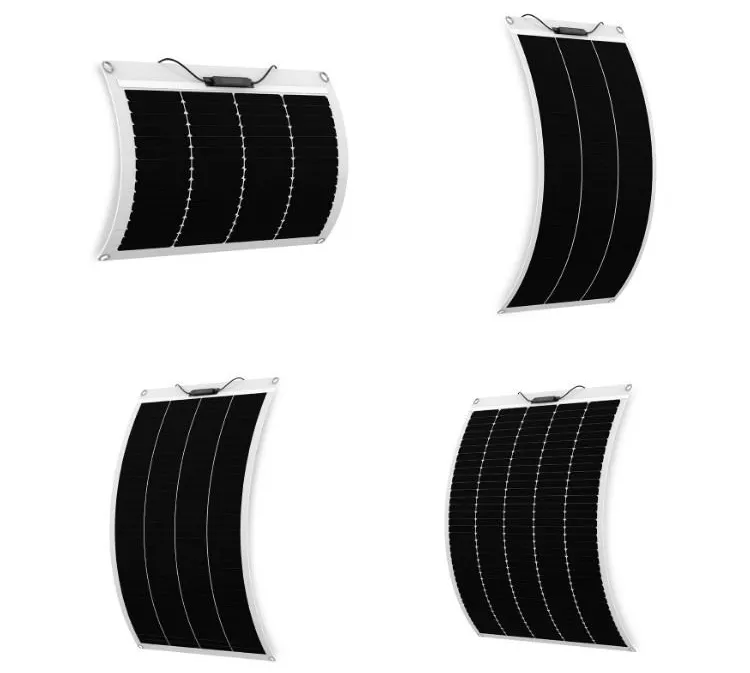

Related Product 1

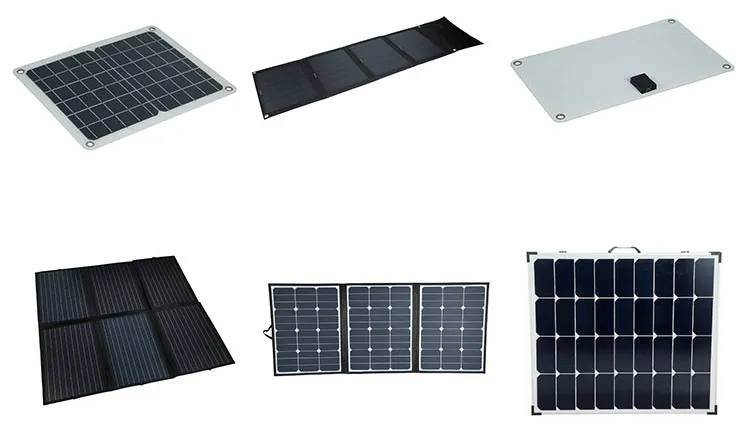

Related Product 2
Certificates
Production Facility
Factory 1

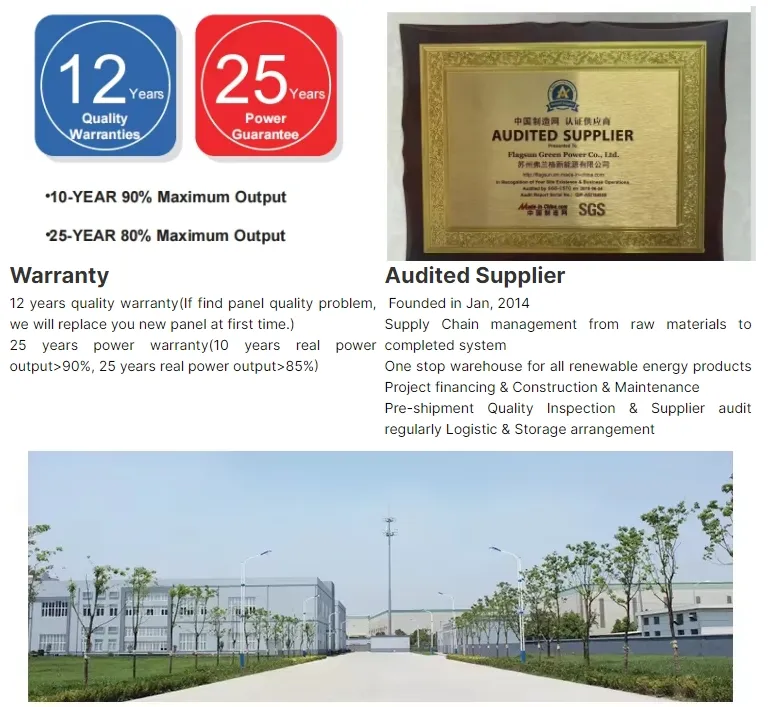

Factory 2

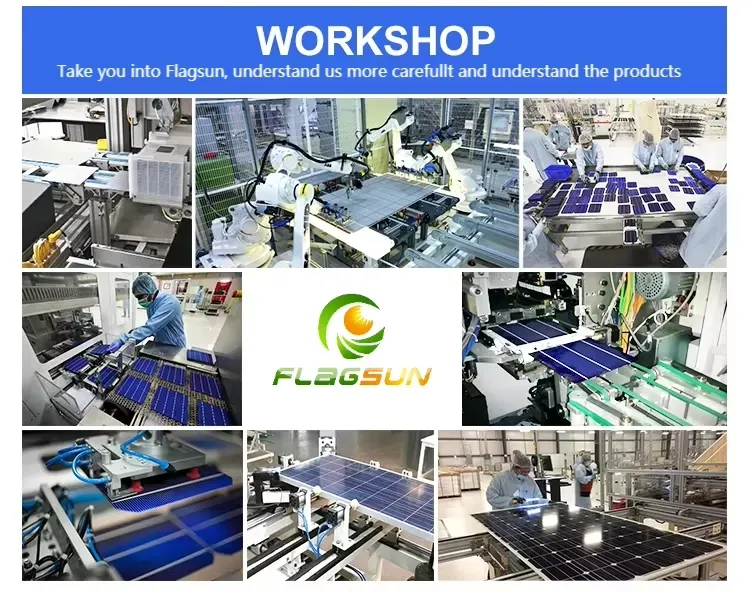

Factory 3

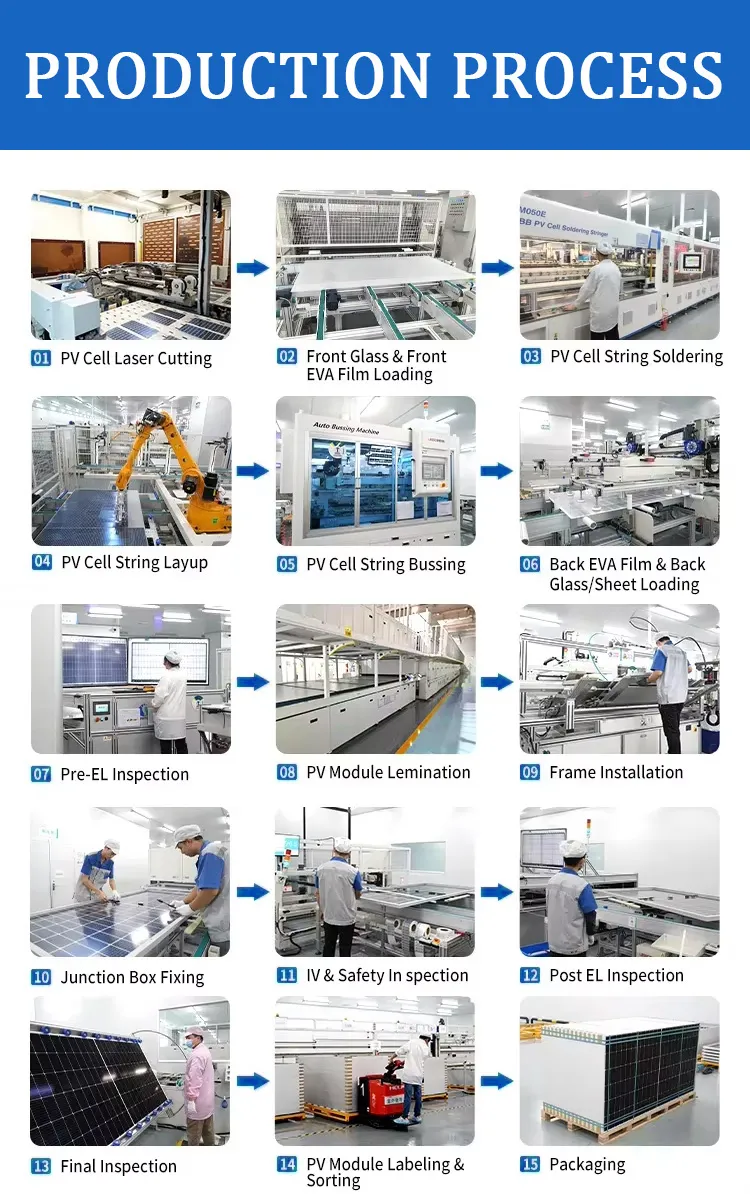

Factory 4
Factory 5
Our Advantages
A
GRADE A SOLAR CELLS: To ensure all modules are high efficiency Grade A solar cells.
Q
HIGH QUALITY: Fully automated production processes, each solar panel is tested strictly.
$
PRICE ADVANTAGES: Competitive pricing achieved through industry chain integration and scale effects.
S
AFTER-SALES ADVANTAGES: 24-hour online service to timely and quickly solve any problems.
F
FACTORY ADVANTAGES: More than 10 years of experience in the PV industry with a 25,000 sqm production base.
Frequently Asked Questions
How can we guarantee product quality?
We always provide a pre-production sample before mass production and perform a final inspection before shipment to ensure Grade A quality.
Why should you choose us over other suppliers?
We are a global solar energy provider with a presence in over 130 countries. More than 1.5GW of our modules have been successfully deployed in residential and commercial systems worldwide.
What is the efficiency of these BIPV solar panels?
Our Aesthetic Orange BIPV modules feature an efficiency of 21% and above, combining visual appeal with high power output.
Can the cable length and connectors be customized?
Yes, we offer customizable cable lengths and use IP68, TUV certified connectors to meet specific project requirements.
What delivery and payment terms do you accept?
Accepted Delivery Terms: FOB, CFR, CIF, EXW. Accepted Payment Currencies: USD, EUR, CNY. Accepted Payment Types: T/T, L/C, Credit Card.
Are the panels durable enough for extreme weather?
Yes, our panels are built to withstand a heavy mechanical load of 5400Pa (IEC61215) and operate in temperatures ranging from -40°C to 85°C.
