| Specifications | Parameter Range | Applicable Scenarios | Thickness / Transmittance | Power Output |
|---|---|---|---|---|
| Home | 1200×600mm / 1600×800mm | Home Roofs / Balcony Railings | 10-12mm / 10%-60% | 100W-300W/unit |
| Commercial | 2400×1200mm / 3000×1500mm | Factory Walls / Large-Scale Plants | 22mm / 10%-60% | 500W-1000W/unit |

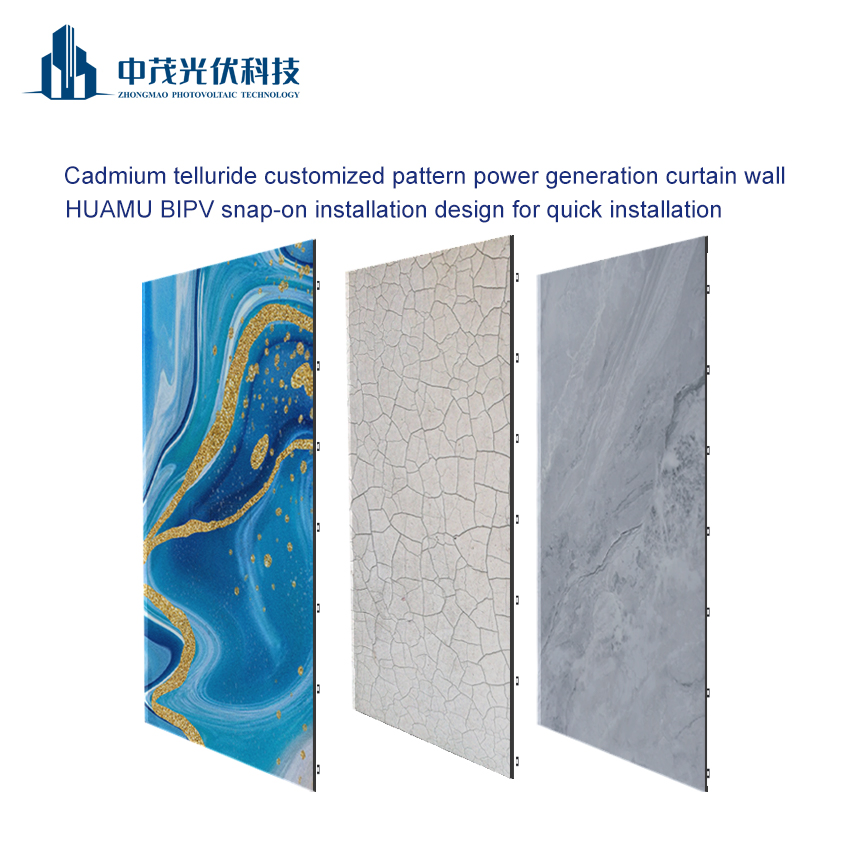

| Custom | 1000-4000mm available | Special Building Curtain Walls | 6-20mm / 10%-60% | By Size |

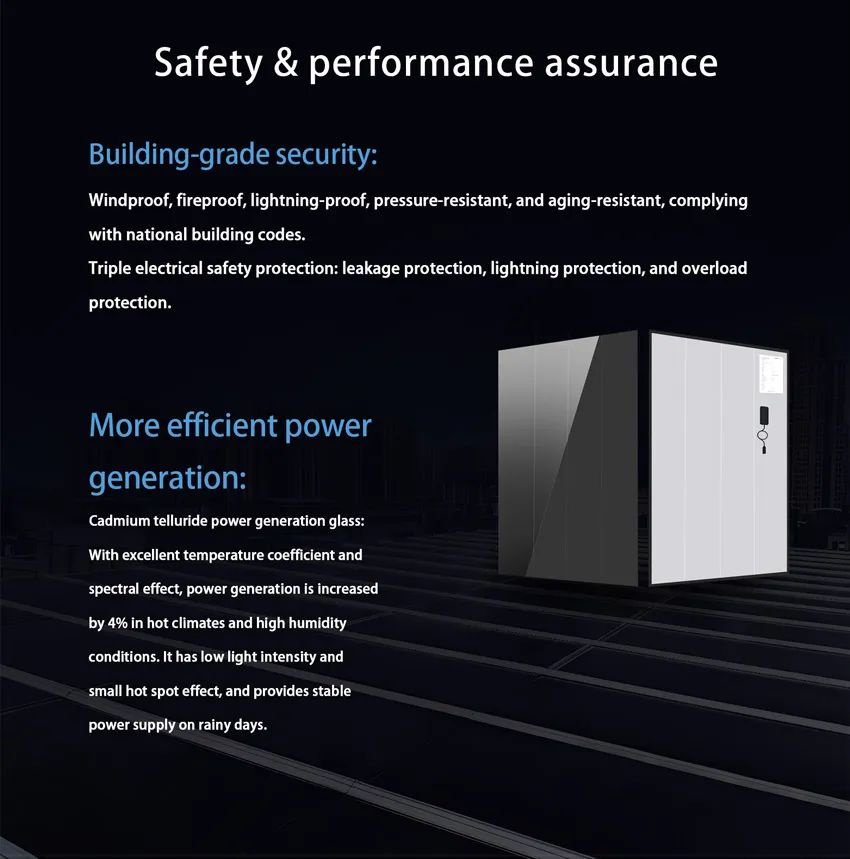

CdTe is a direct bandgap material with excellent absorption. Performance in early morning, evening, or hazy conditions is significantly better than crystalline silicon.
Temperature coefficient is only -0.21~0.25%/ºC, half that of traditional cells. Generates more power in high-temperature environments.
Absorbs 90% of visible light with only 1μm thickness. Technology potential reaches 28-29% theoretical efficiency.
No light-induced degradation characteristics. Maintains stable output in humid climates where other modules might fail.
The cadmium telluride thin-film solar cell consists of five essential layers: Glass substrate, Transparent Conductive Oxide (TCO), Cadmium Sulfide (CdS) window layer, Cadmium Telluride (CdTe) absorption layer, and the back contact/electrode.

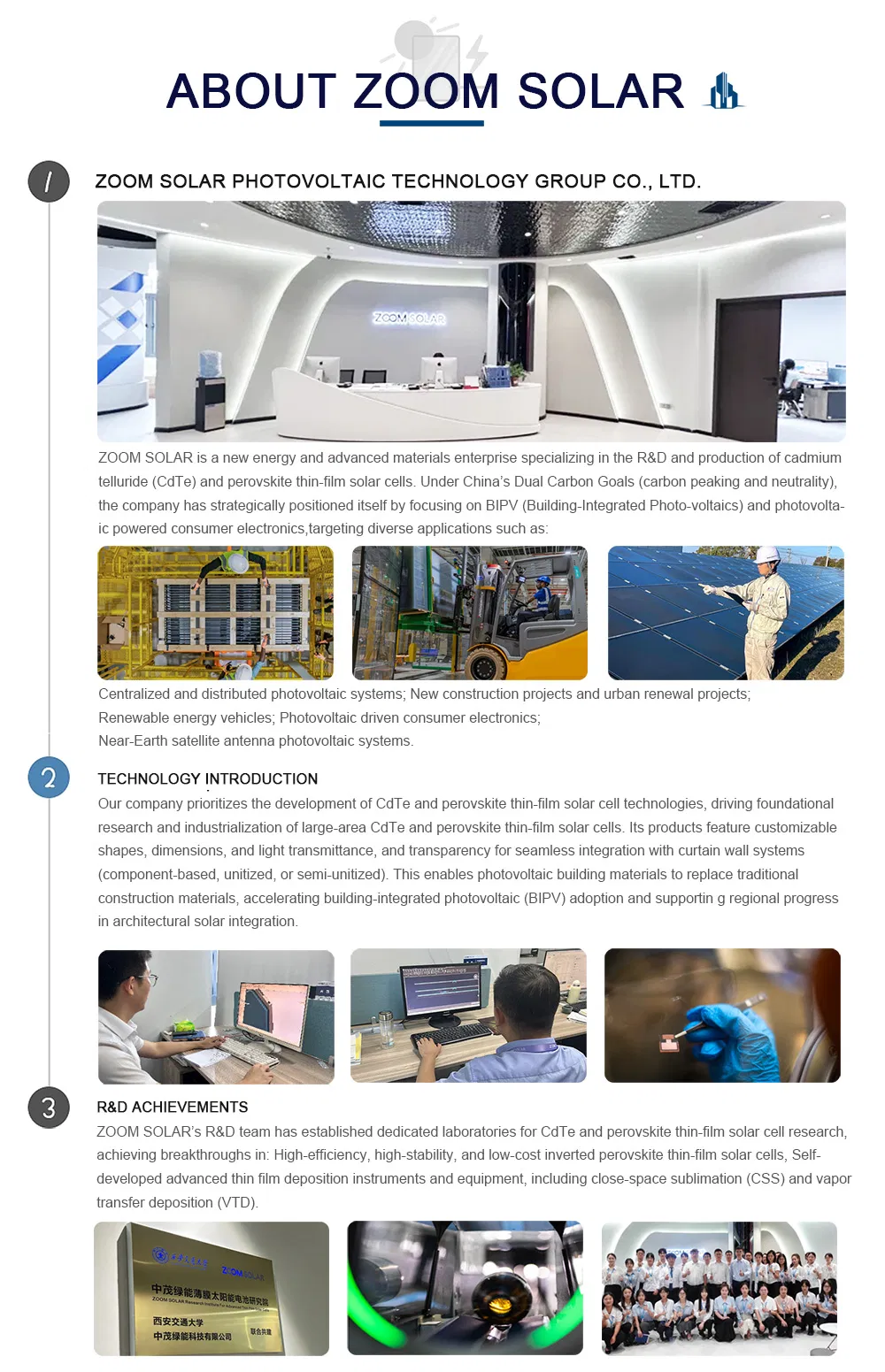

Our R&D team has established dedicated laboratories achieving breakthroughs in high-efficiency, low-cost inverted perovskite thin-film solar cells and advanced deposition equipment like Close-Space Sublimation (CSS).
