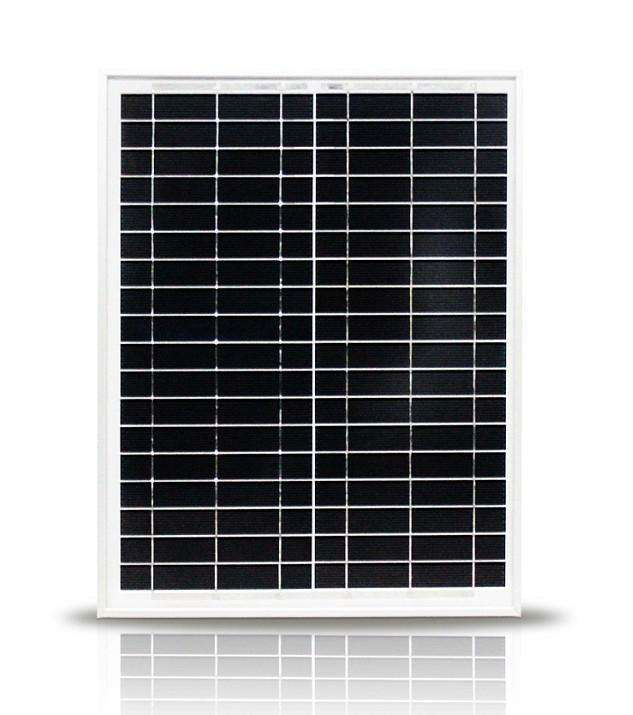

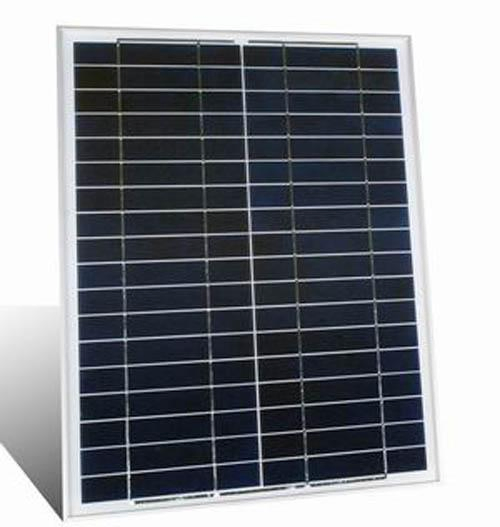

❖ Specification
| Type | FSP-020W |
| Type of Solar Cell | Poly-crystalline, 156mm×156mm |
| Number of Cells | 36 pcs ( 156×12) |

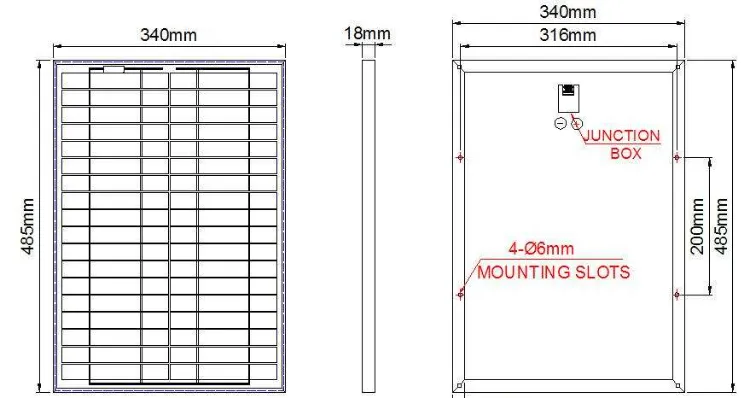

| Size of module | 460×350×25mm ( 156×156mm cell) |
| Module, Weight | 2.8 kg |

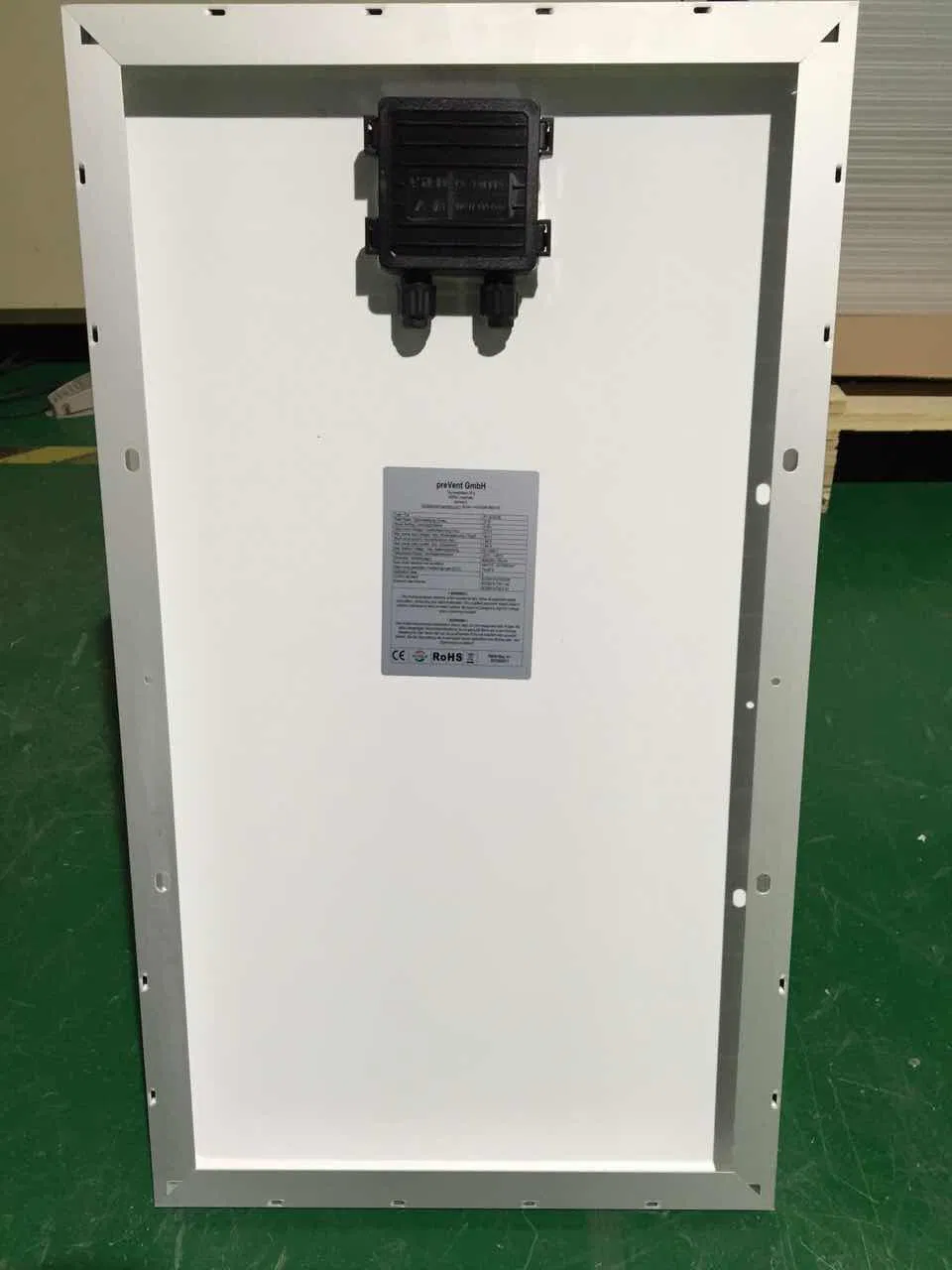

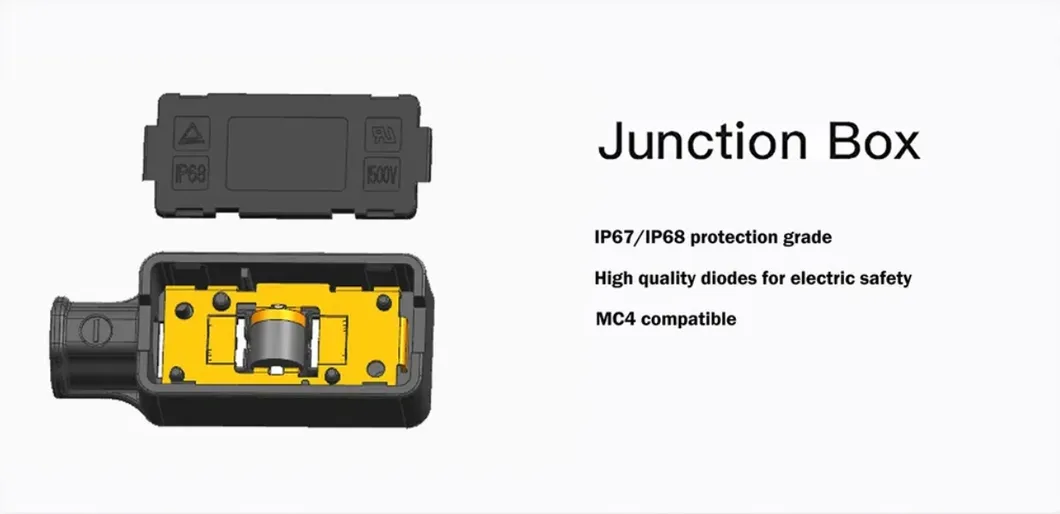

| Junction box/Connector | TOP, IP65, 1000V DC, TUV certificated |
| Cables, Length (+/-) | Customizable |

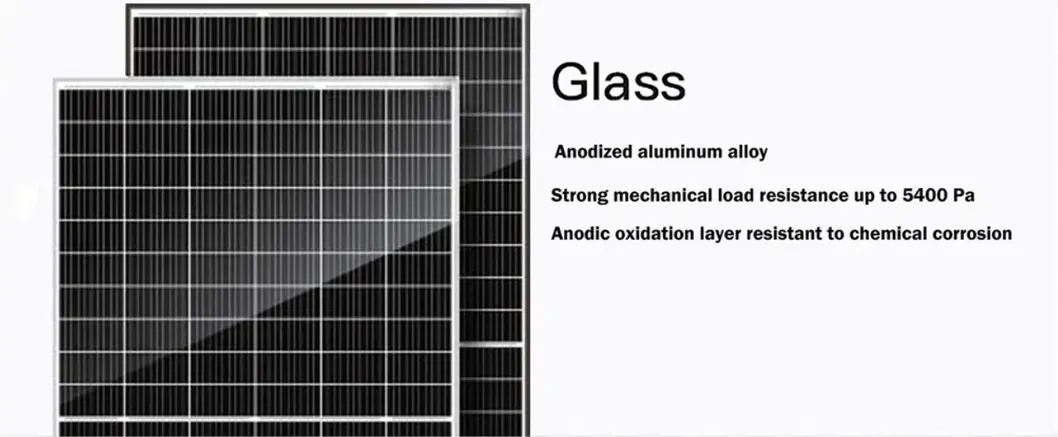

| Front Cover Glass | Tempered glass |
| Front Cover Glass Thickness | 3.2 mm |

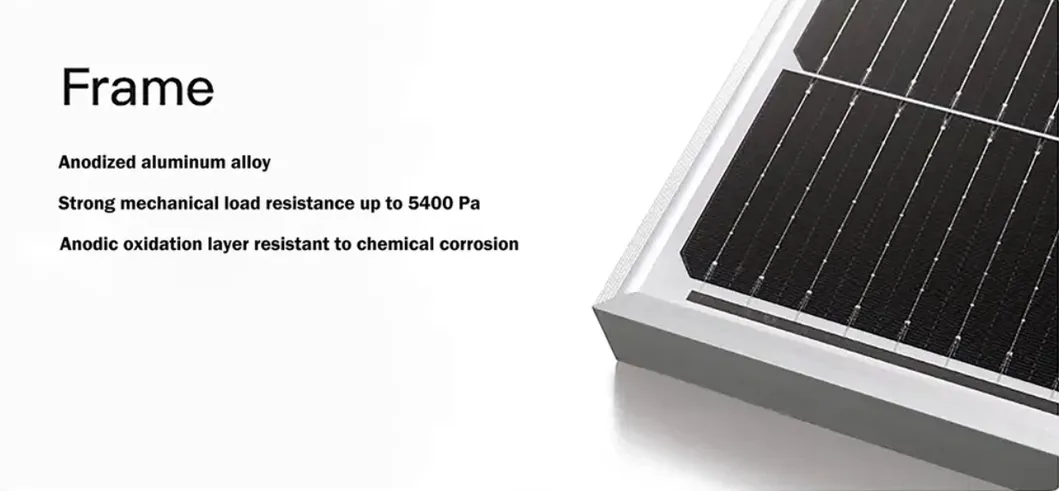

| Frame | Anodized Aluminium |
| Maximum Power Pm(W) | 10 W |
| Power Tolerance | + 3% |
| Maximum Power Voltage(Vmp) | 17.6 V |
| Maximum Power Current (Imp) | 1.13 A |
| Open Circuit Voltage(Voc) | 21.6 V |
| Short Circuit Current(Isc) | 1.23 A |
| Module Efficiency | 14.80% |
| Maximum System Voltage | 1000 V |
| Operating temperature | -40 Degree to 85 Degree |
| Heavy mechanical load | 5400Pa (meet IEC61215) |
❖ Product Overview

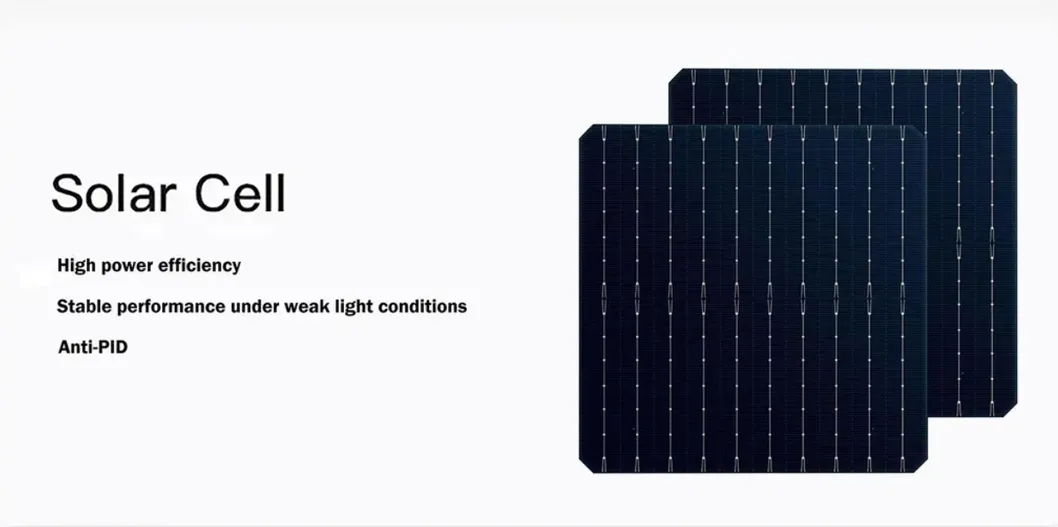

High Efficiency Poly Solar Cells
- ✔ International quality management system with 100% panel power and EL test before shipment.
- ✔ Fire test, Ammonia corrosion test, and Salt mist corrosion resistance approved.
- ✔ Optimized for logistics with proximity to Ningbo or Shanghai ports.
❖ Temperature Coefficients
| Power temperature coefficient | - 0.45 %/ºC |
| Current temperature coefficient | 0.065±0.015 %/ºC |
| Voltage temperature coefficient | - 0.35 %/ºC |
| NOCT (Normal Operating Cell Temperature) | 45±2ºC |
❖ Module Warranty
25 YearsLimited warranty of 80% power output
10 YearsLimited warranty of 90% power output
5 YearsMaterials and workmanship warranty
❖ Certifications & Quality Control
- ★ GRADE A SOLAR CELLS: Ensuring high efficiency across all modules.

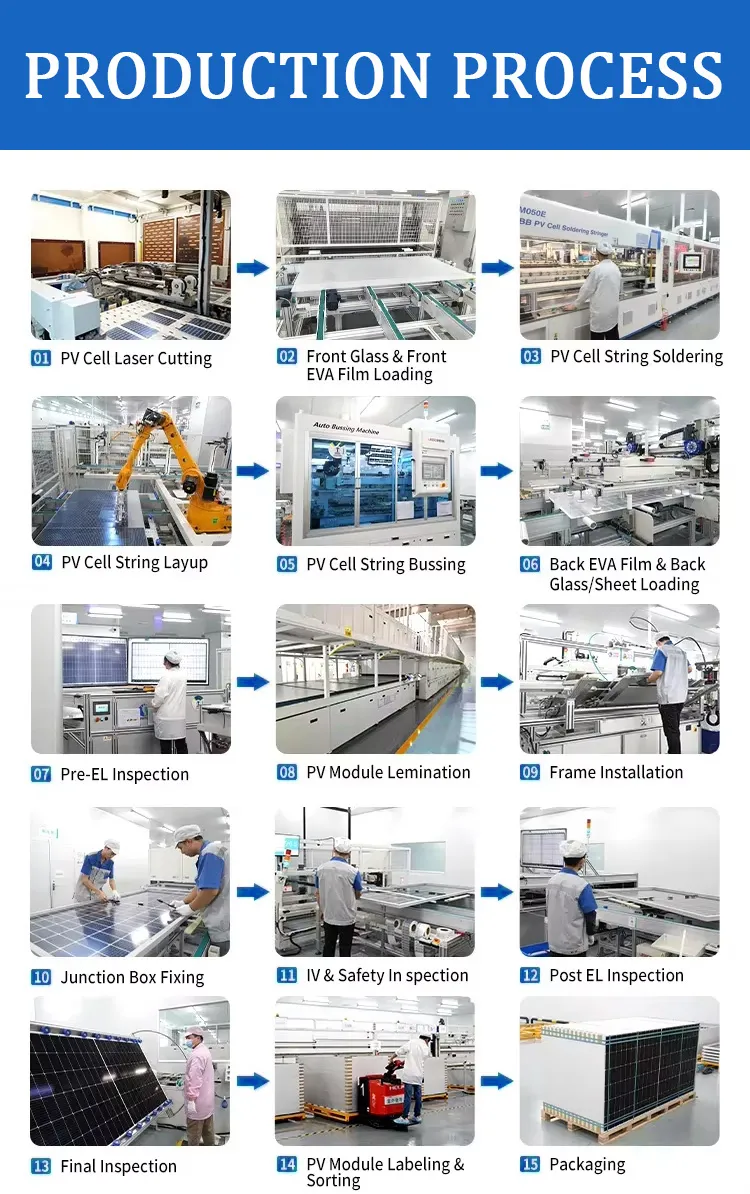

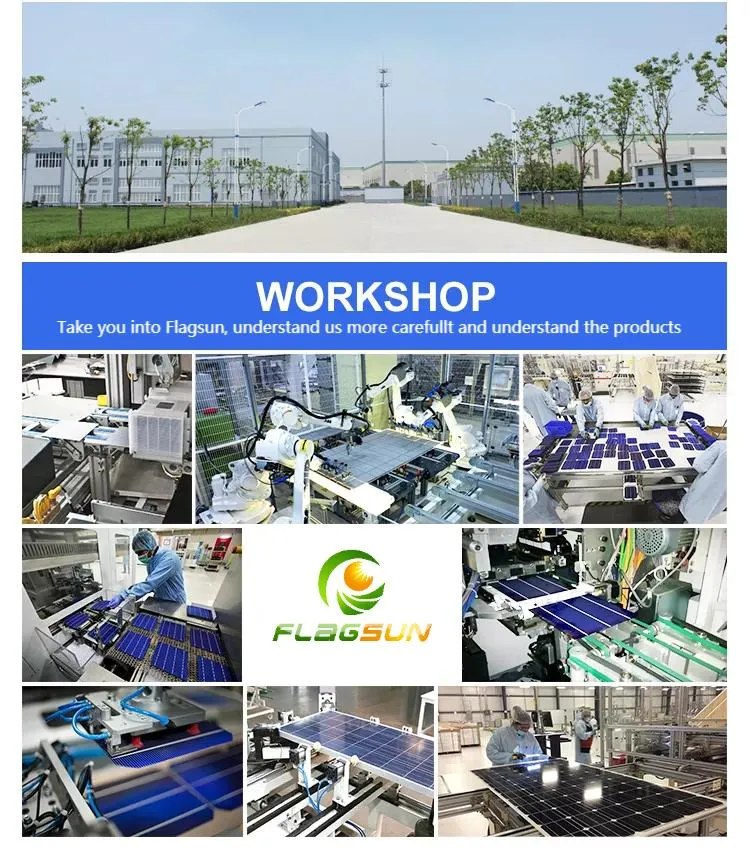

- ★ HIGH QUALITY: Fully automated production processes with strict individual testing.
- ★ PRICE ADVANTAGES: Cost-effective solutions through industry chain integration.
- ★ FACTORY EXPERTISE: Over 10 years in the PV industry with a massive production base.
❖ Frequently Asked Questions
What is the warranty period for these solar panels?
We offer a 10-year product warranty and a 25-year linear power output warranty for our solar modules.
How can I get the best price for my project?
Please provide details regarding your power capacity needs, material preferences, and quantity. This allows us to suggest the most suitable configuration and provide a competitive quote.
Can I request a sample order before a bulk purchase?
Yes, we welcome sample orders to test and verify the quality of our products. Mixed samples are also acceptable.
What is the process for proceeding with an order?
First, share your requirements. Second, we provide a quote. Third, you confirm samples and place a deposit. Finally, we arrange production.
Is logo customization available for the products?
Yes, we can print your logo on the solar panels. Please inform us formally before production begins and confirm the design based on our sample.
How do you ensure the quality of the solar panels?
Our professional quality inspection team ensures a low defective rate. We also provide a complete after-sales support system to take responsibility for our product quality.
