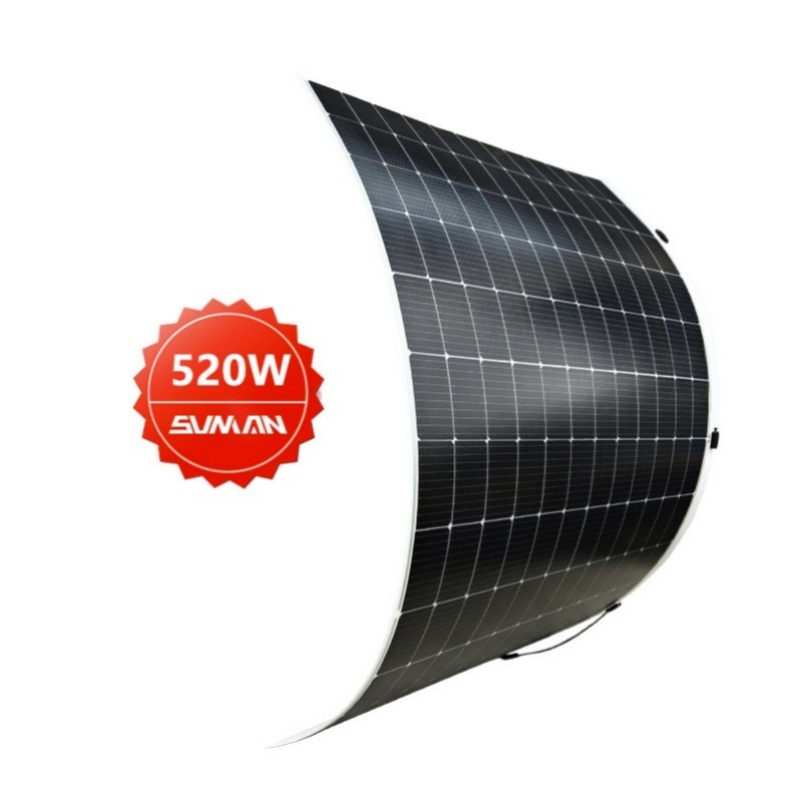

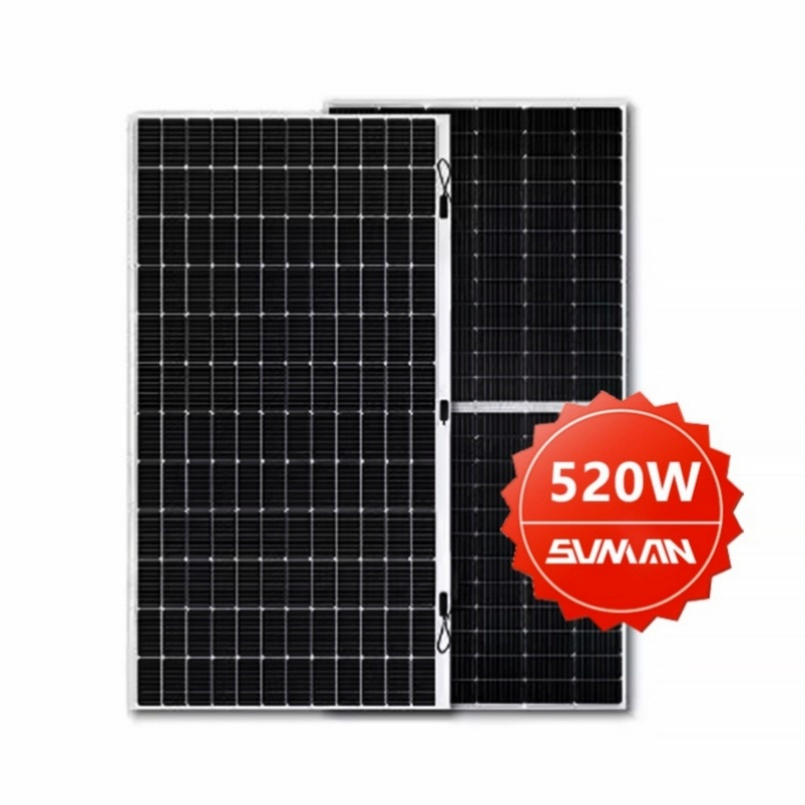

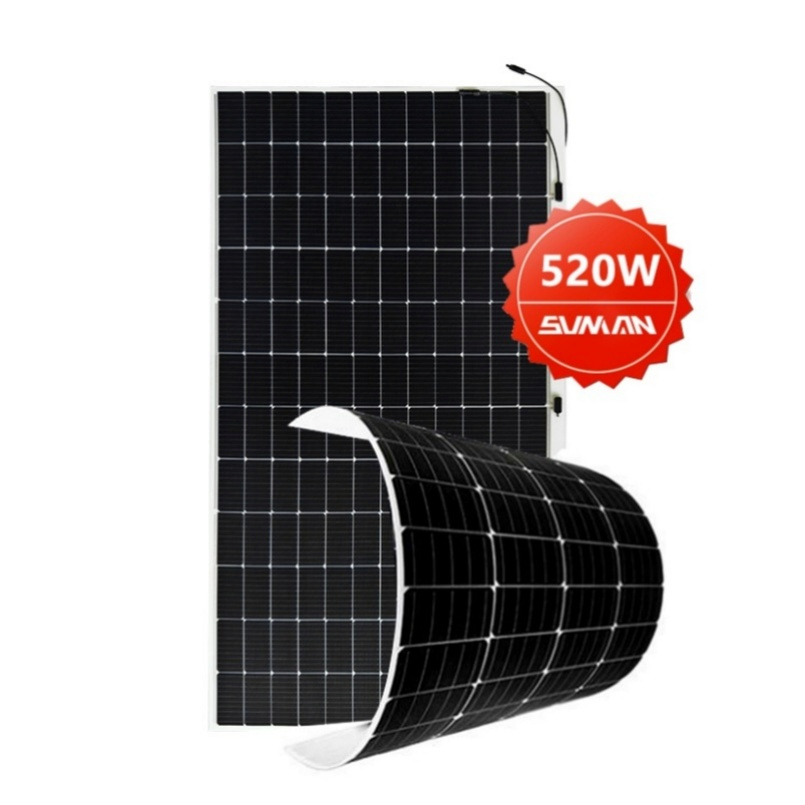

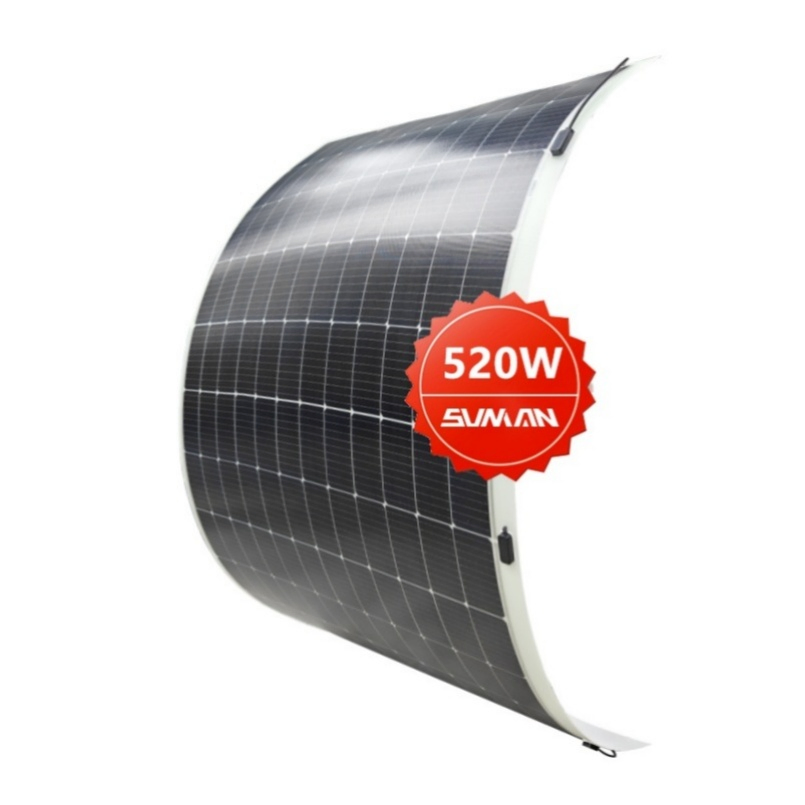

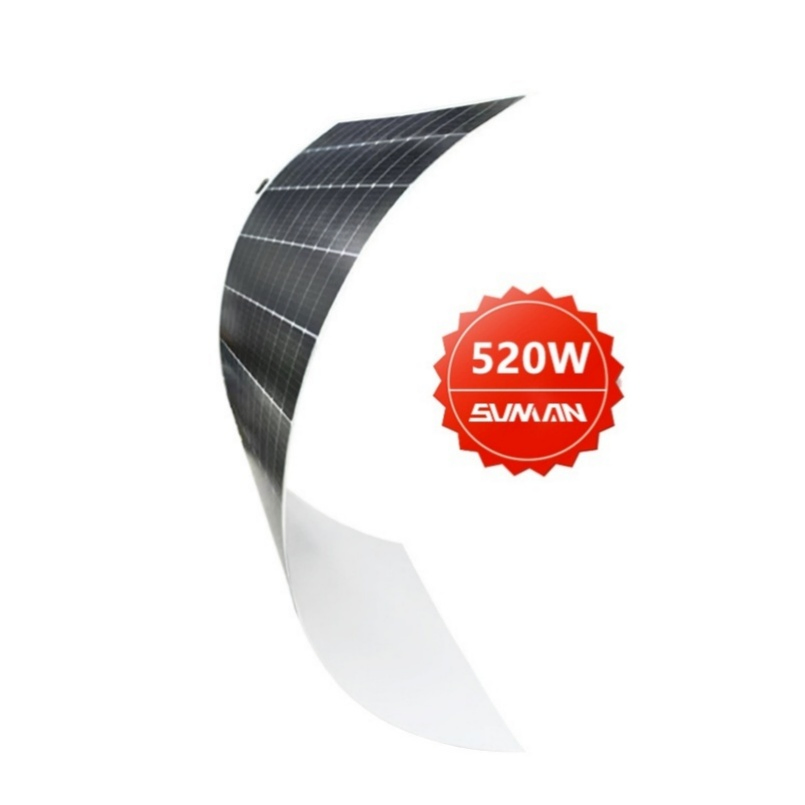

Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
1 / 5
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces
Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces

Sunman Flexible Solar Panel BIPV Panel Price 520W Building-Integrated Photovoltaic Module for Roof/Curved Surfaces

Customization: Available
After-sales Service: Yes
Warranty: 25 Years
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
Flexible Solar Panel
Number of Cells
144cells
Application
Homeuse
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Pmax
520
Vmp
42.3
Imp
12.31
Voc
49.5
Isc
13.56
Module Efficiency
19.3
Maximum System Voltage
1500V DC(IEC)
Maximum Series Fuse Rating
25A
Transport Package
66PCS/Pallets
Specification
2246*1197*2mm
Origin
China
HS Code
8541402000
📦 Packaging & Delivery
Package Size
224.60cm * 119.70cm * 0.20cm
Package Gross Weight
8.600kg
💡 Product Description

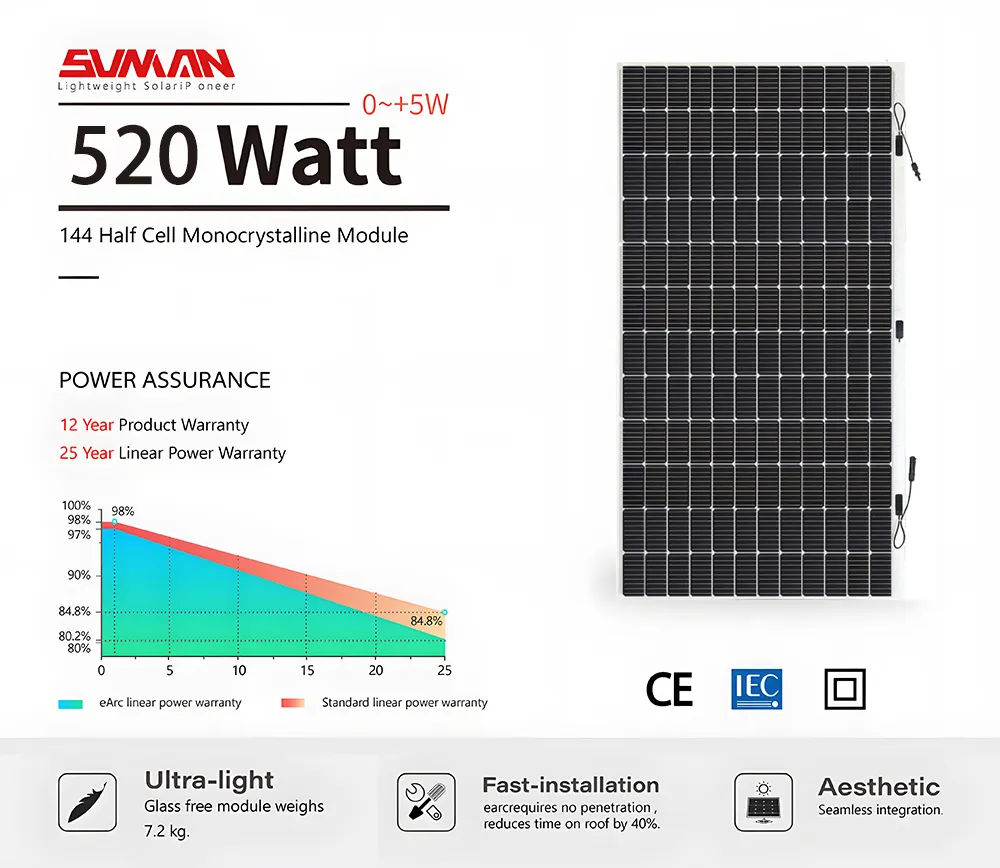

Flexible Solar Panel Description
⚙ Product Parameters
STCSMF520J-12X12UW
Maximum Power ( Pmax )520
Maximum Power Voltage ( Vmp )42.3
Maximum Power Current ( Imp )12.31
Open-circuit Voltage ( Voc )49.5
Short-circuit Current ( Isc )13.56
Module Efficiency (%)19.3
Operating Temperature-40ºC to 85ºC
Maximum System Voltage1500V DC(IEC)
Maximum Series Fuse Rating25A
Application ClassClass A
Power Tolerance0/+5 W
Weight8.6KG
Size2246*1197*2mm
STC: Irradiance 1000W/m2,Cell temp 25ºC,AM=1.5Tolerances of Pmax, Voc and Isc within ±5%

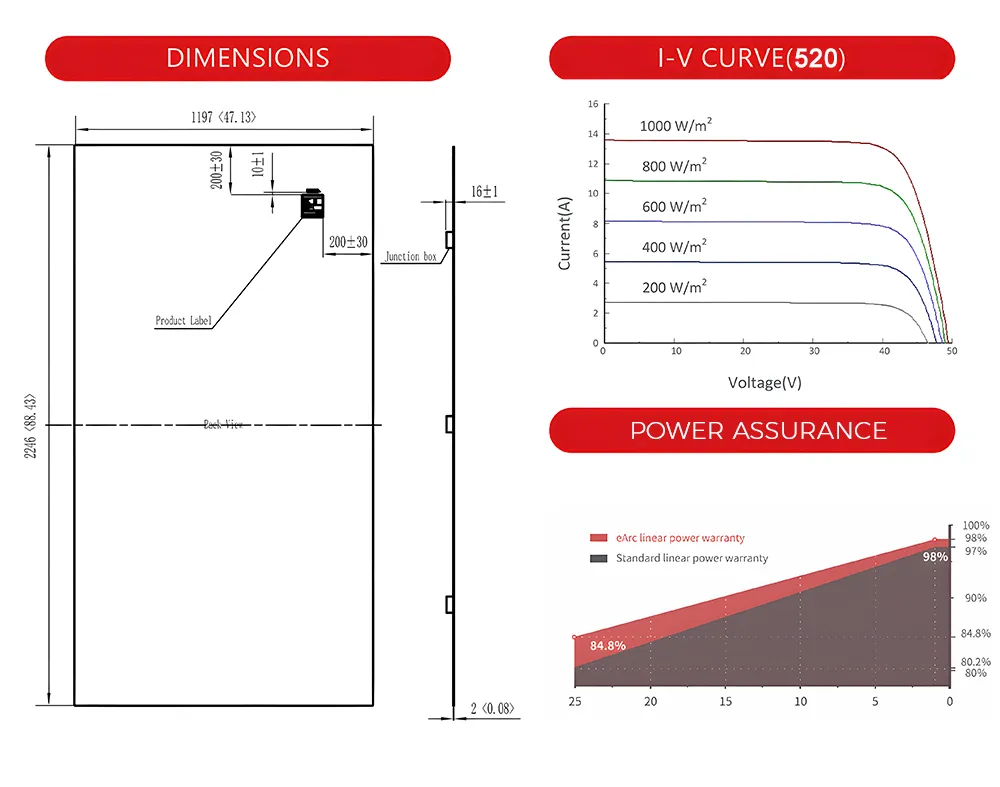

Product Parameters Data
📷 Detailed Photos

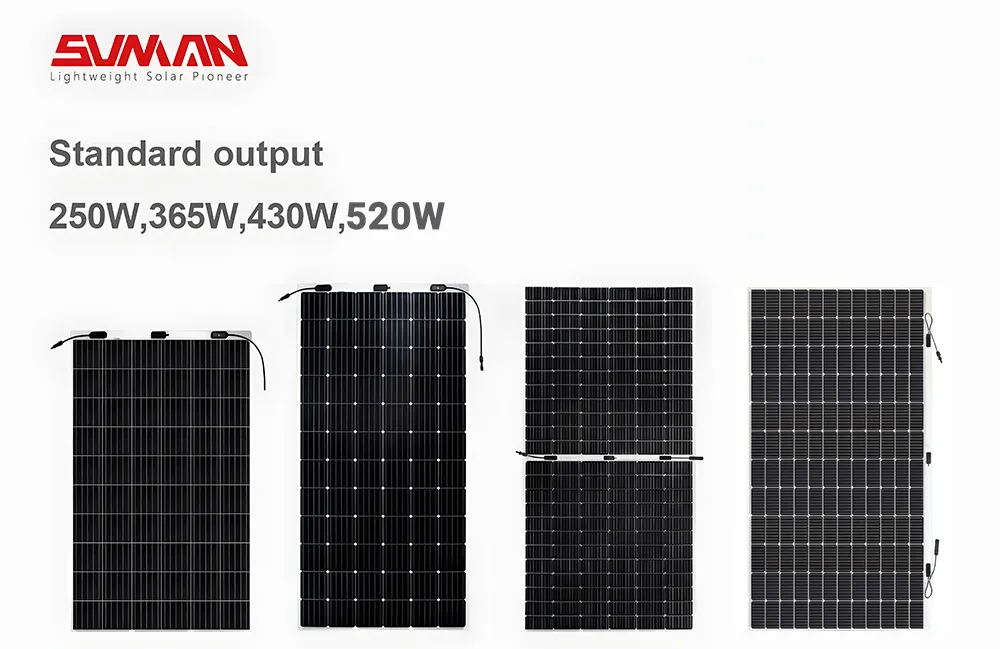

Flexible Solar Panel Detail 1

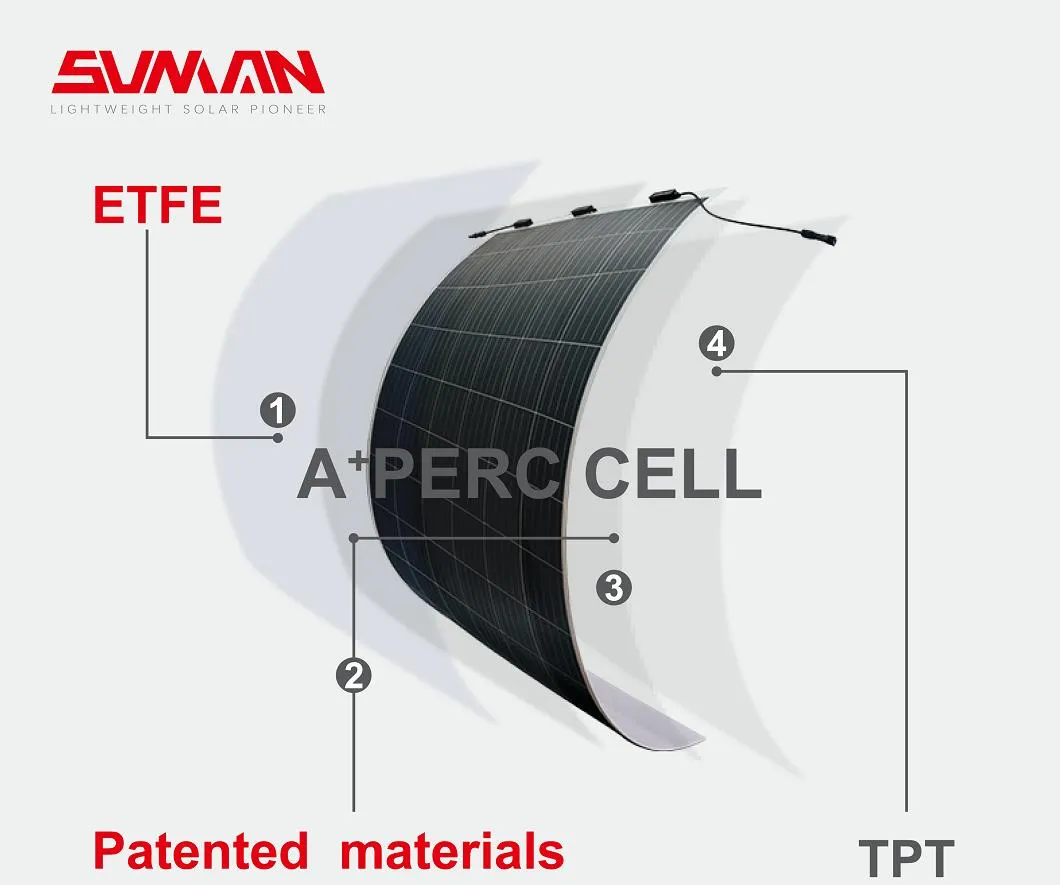

Flexible Solar Panel Detail 2
🏗 Project Case

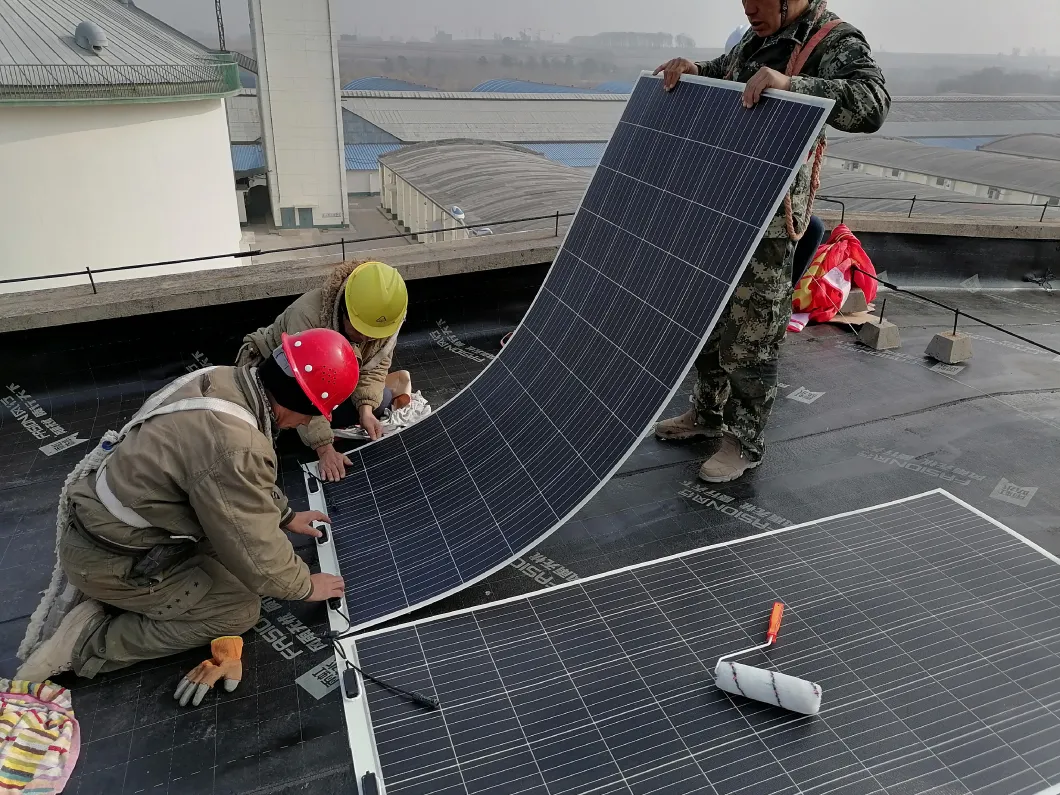

Solar Project Case 1

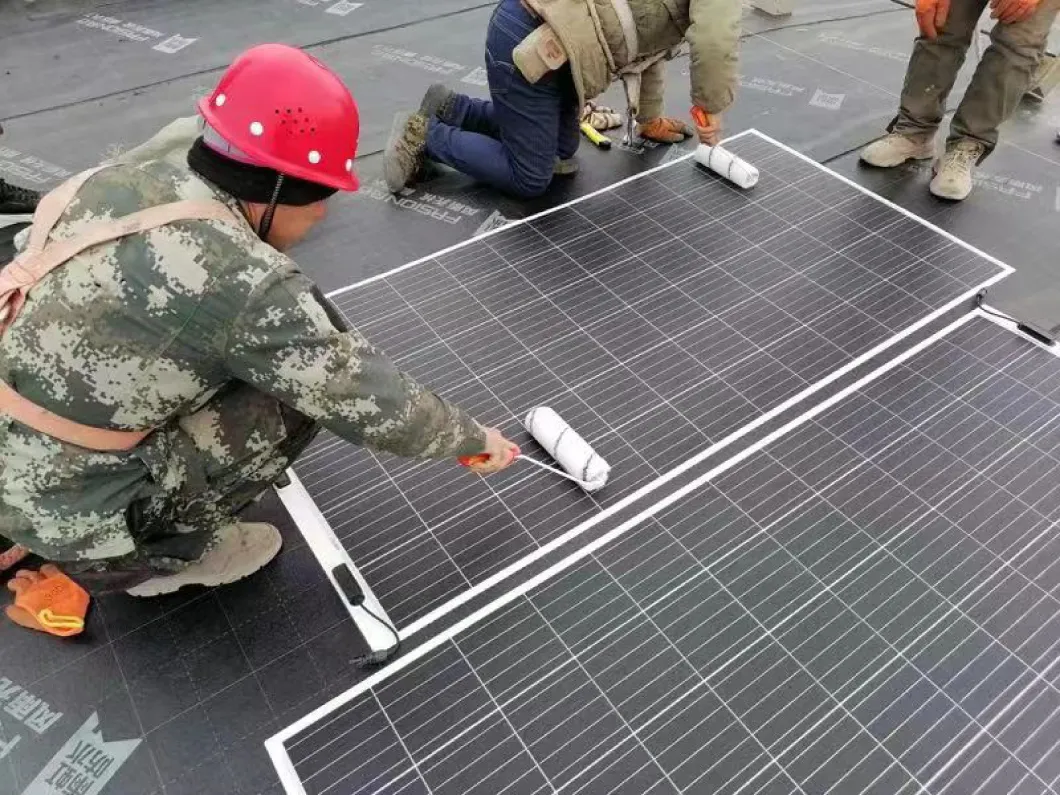

Solar Project Case 2
Solar Project Case 3

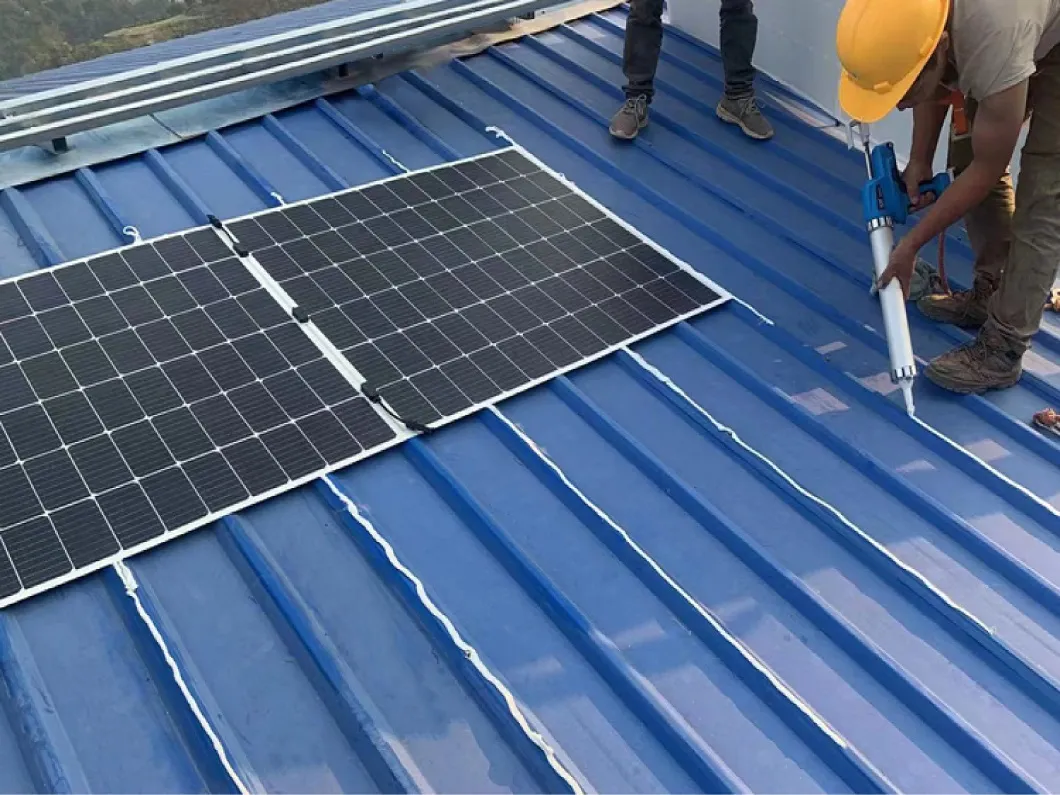

Solar Project Case 4
🏭 Production & Facility

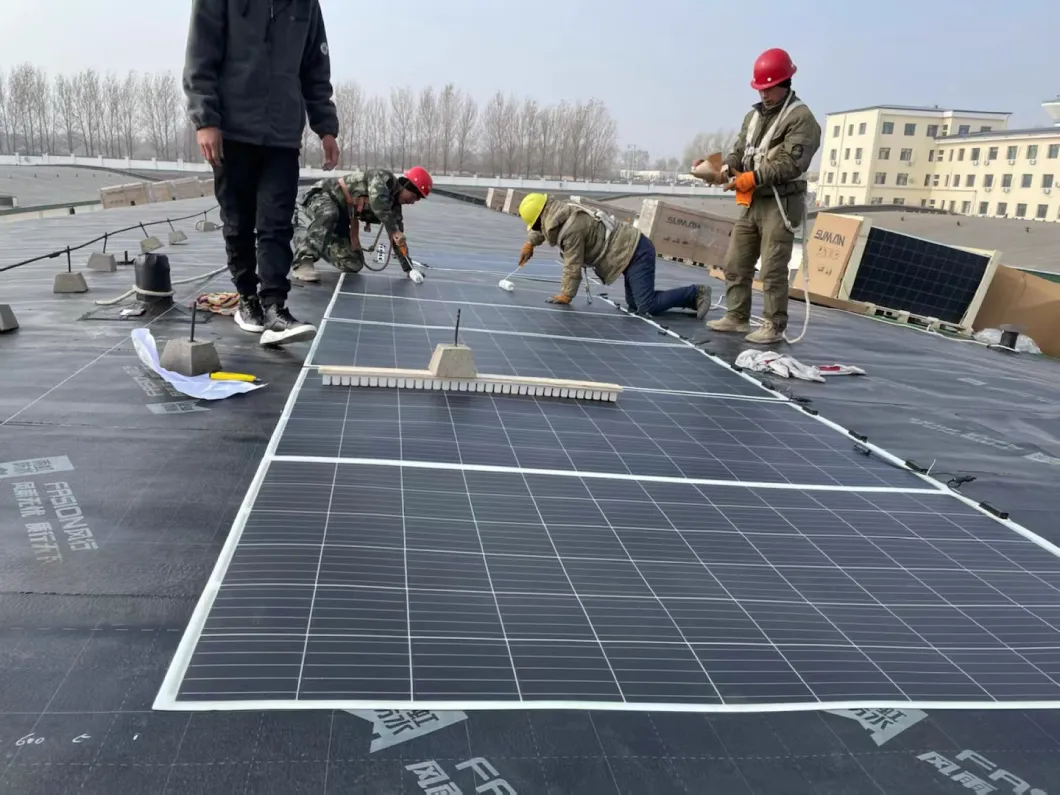

Factory Overview 1
Factory Overview 2
Certifications and Quality Control Global Operations
🚚 Packaging & Shipping

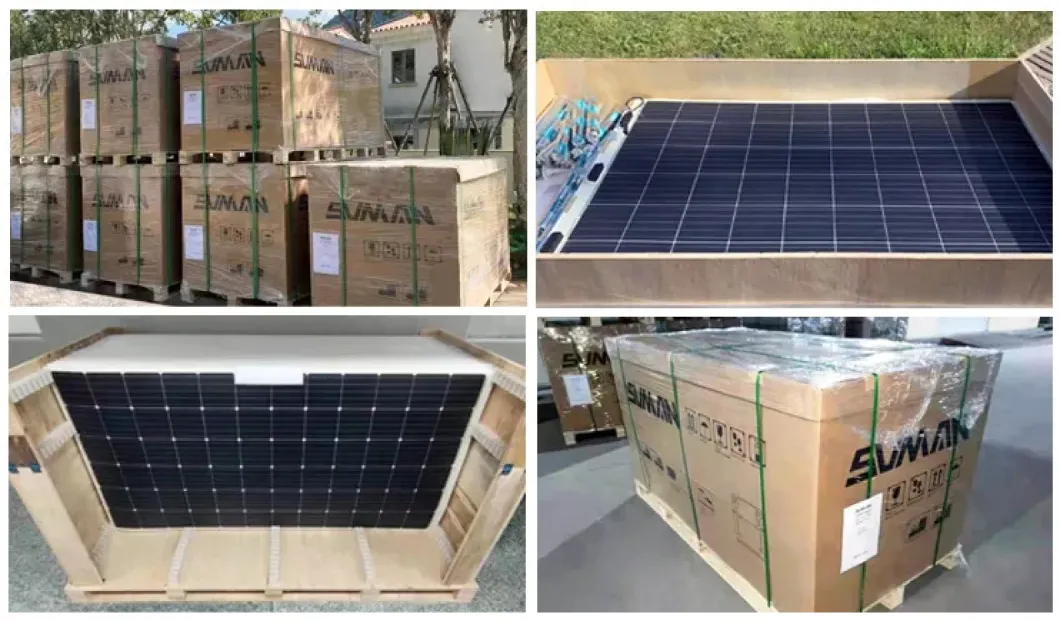

Packaging Detail

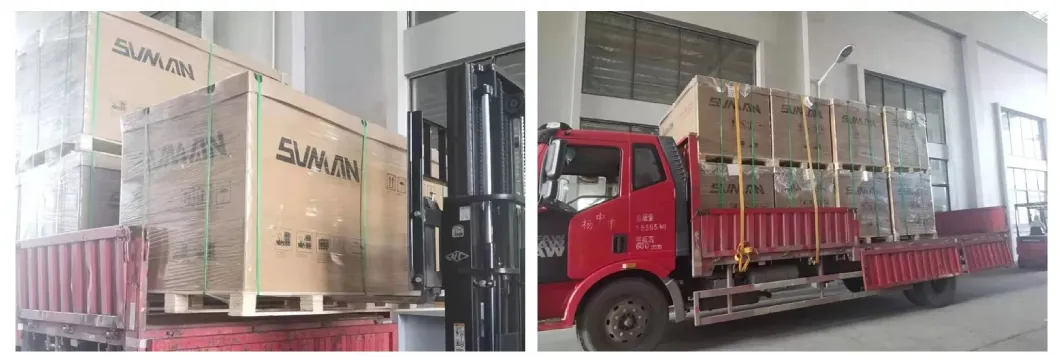

Logistics
🌍 Global Cooperation
Global Network
❓ FAQ
Q1: How to choose the right panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you based on your power requirements and installation environment.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. Polycrystalline processes are simpler and cost less, but generally offer slightly lower efficiency.
Q3: How about the delivery time?
A3: Usually, the delivery time is 7 days for sample orders and approximately 15 days for bulk orders, depending on current production capacity.
Q4: What is the warranty for solar panels?
A4: Generally, we provide a 10-year warranty for the solar panel materials and workmanship, along with a 25-year linear output power warranty.
Q5: How can I get better technical support?
A5: We have a professional engineering team to provide the best support based on your specific requirements. We offer 24-hour online service to address any usage issues promptly.
Q6: Are flexible solar panels durable for curved roofs?
A6: Yes, our flexible modules are specifically designed for building-integrated photovoltaics (BIPV) and are ideal for curved surfaces due to their lightweight and bendable nature.
