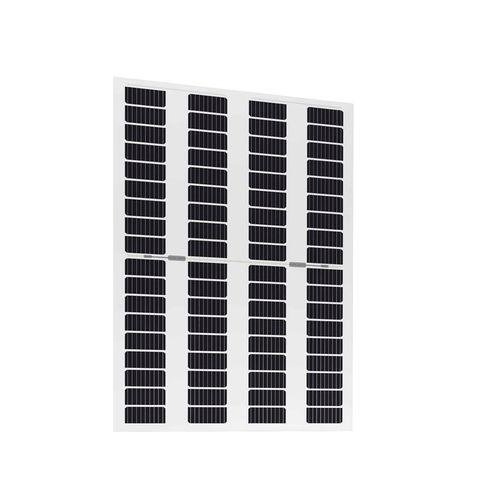

Raytech 40% Transparent Solar Panel 215W 220W 360W 370W BIPV for Sunroomsyatem

Customization:	Available
After-sales Service:	Yes
Warranty:	30 Years

Send Inquiry

Product Description

Basic Information Overview

Model NO.

BPDMJ36H(S)

Number of Cells

72pcs

Application

Industrial

Condition

New

Certification

EST, ISO, CB, CE

Max System Voltage

1000V/1500V DC

Operating Temp

-40~+85℃

Production Capacity

100,000 Pieces Per Year

Packaging & Delivery

Package Size:

180.70cm * 28.80cm * 118.00cm

Gross Weight:

950.000kg

Product Description

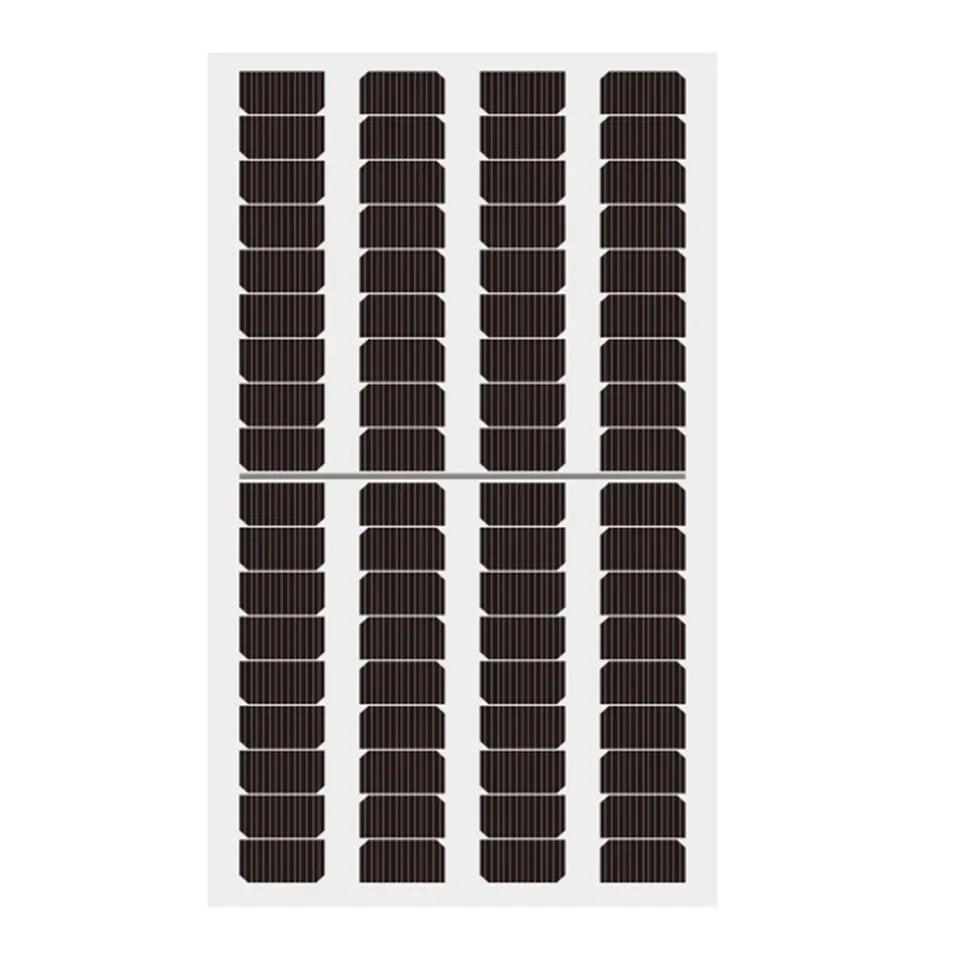

Transparent Solar Panel BIPV for Sunroom

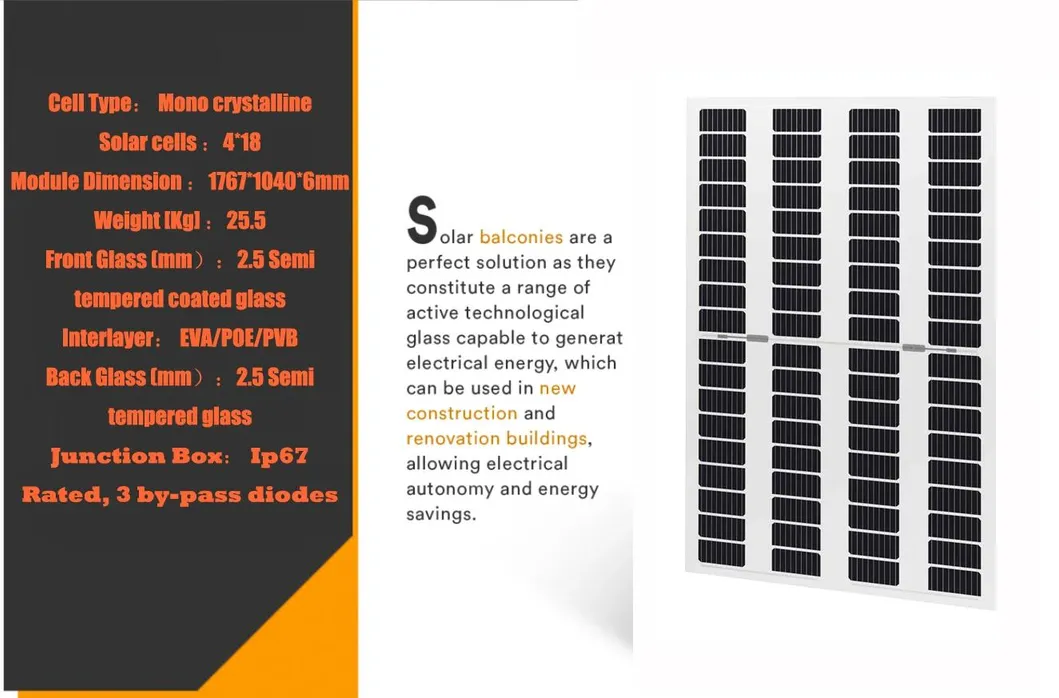

Product Parameters

Feature	Specifications
Cell Type	Mono crystalline
Solar cells Arrangement	4*18
Module Dimension	176710406mm
Weight	25.5 Kg
Front Glass	2.5 Semi tempered coated glass
Back Glass	2.5 Semi tempered glass
Junction Box	Ip67 Rated, 3 by-pass diodes
Frame	No Frame

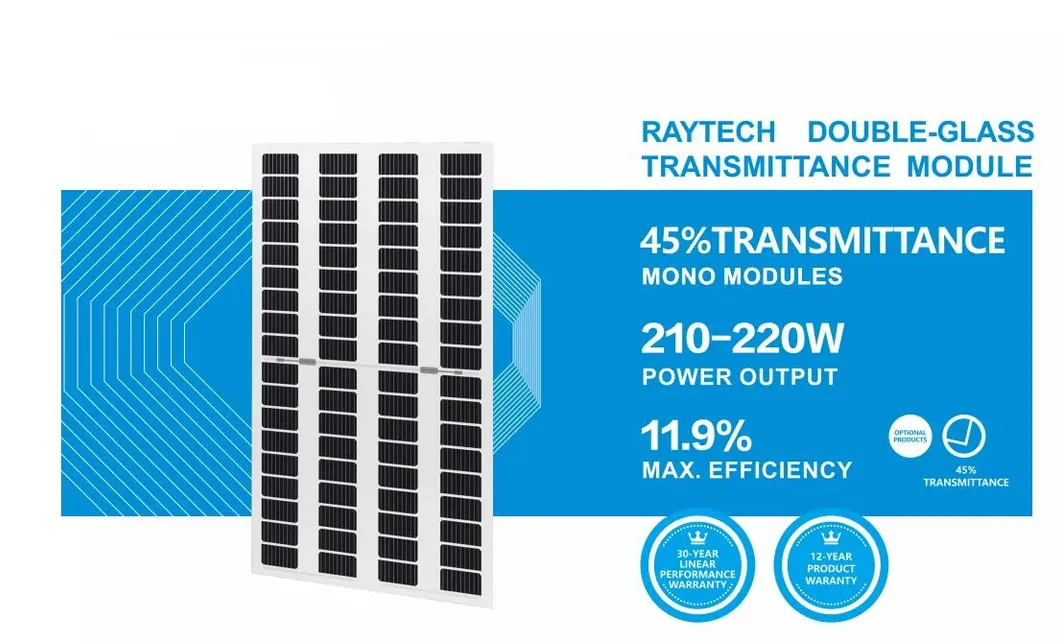

ELECTRICAL CHARACTERISTICS (STC)
Model	DMJ36H(S)-210	DMJ36H(S)-215	DMJ36H(S)-220
Max Power [Pmax]	210W	215W	220W
Open Circuit Voltage [Voc]	24.35V	24.63V	24.95V
Short Circuit Current [Isc]	11.14A	11.22A	11.31A
Module Efficiency	11.4%	11.6%	11.9%

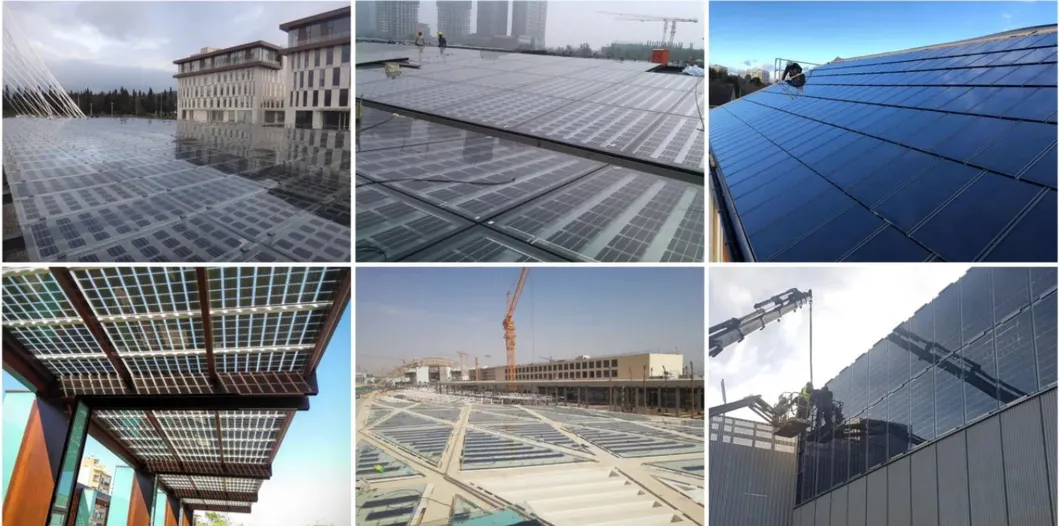

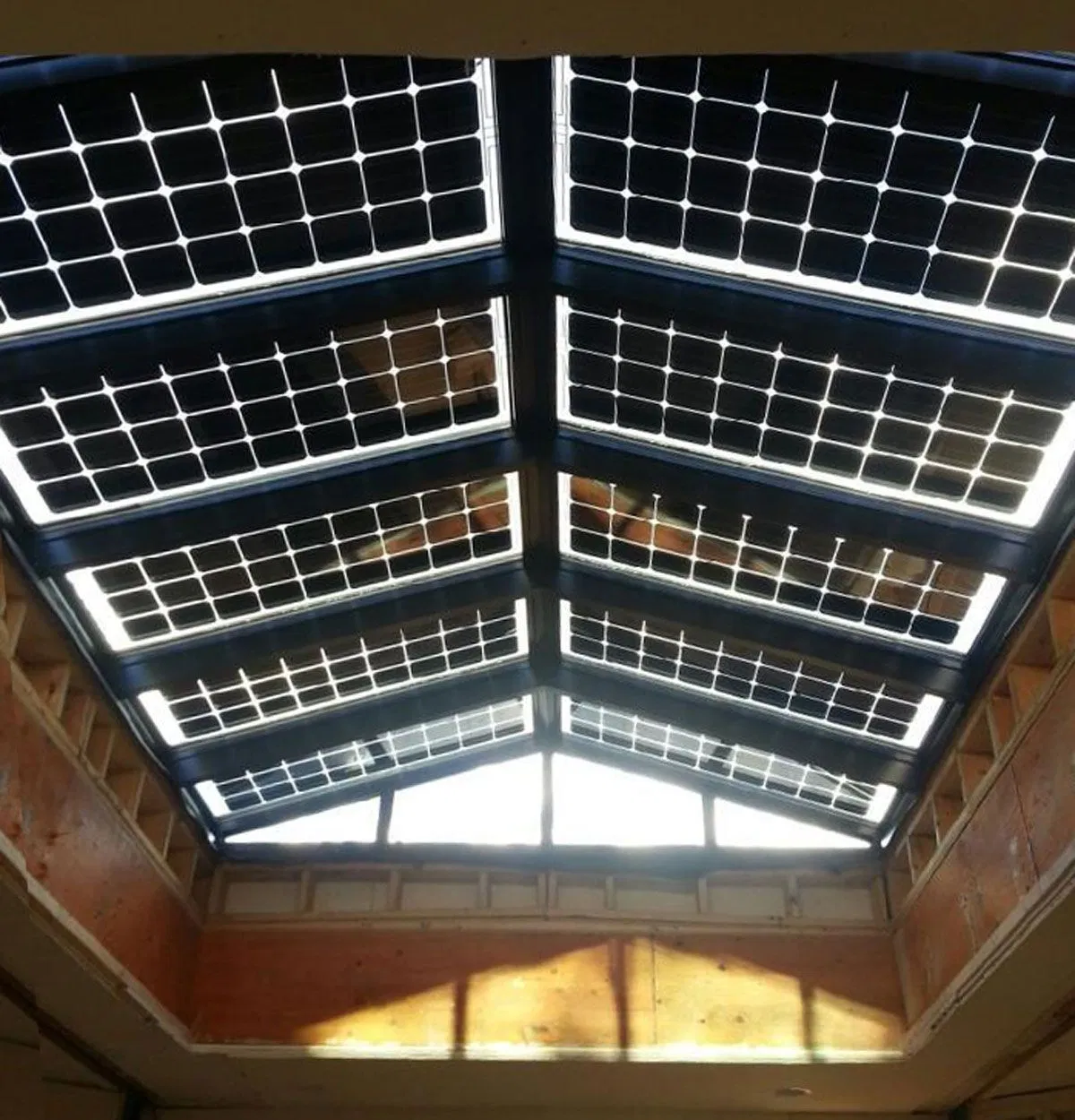

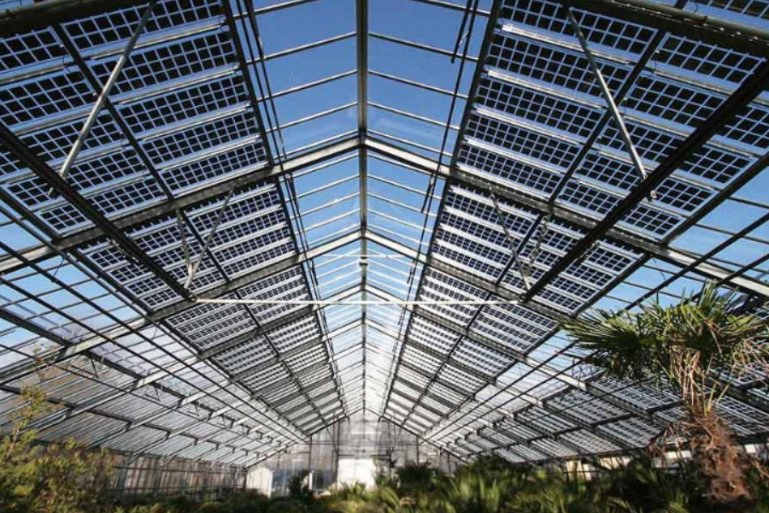

Installation Case

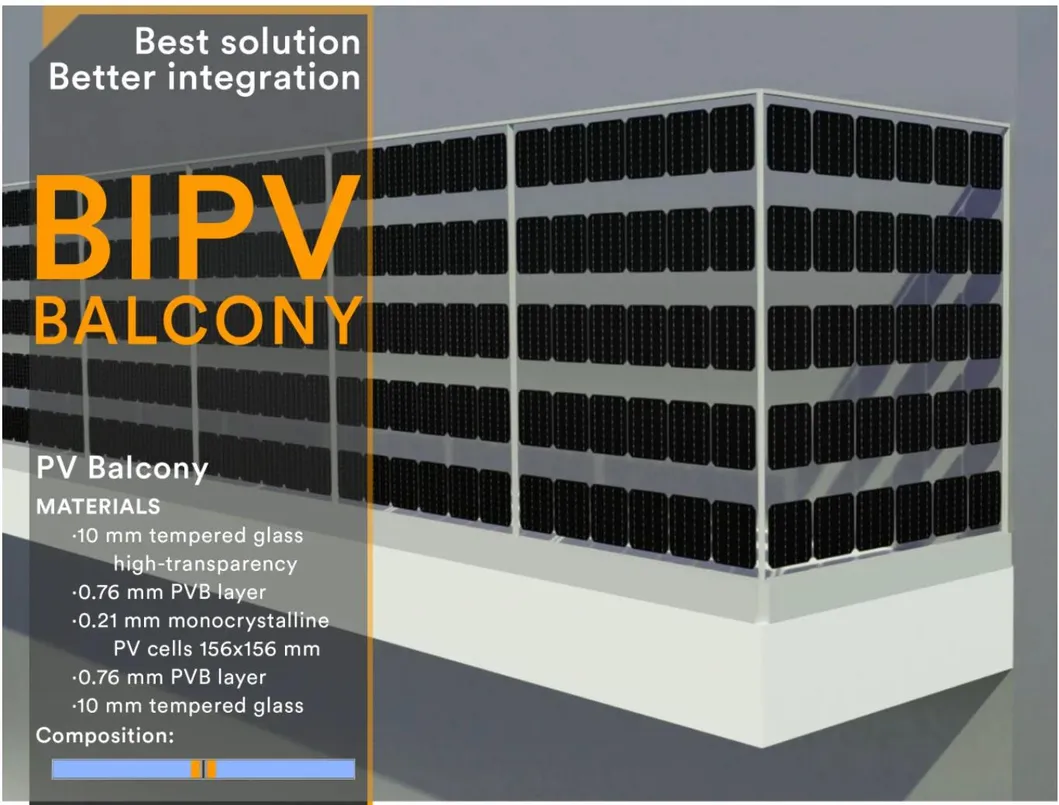

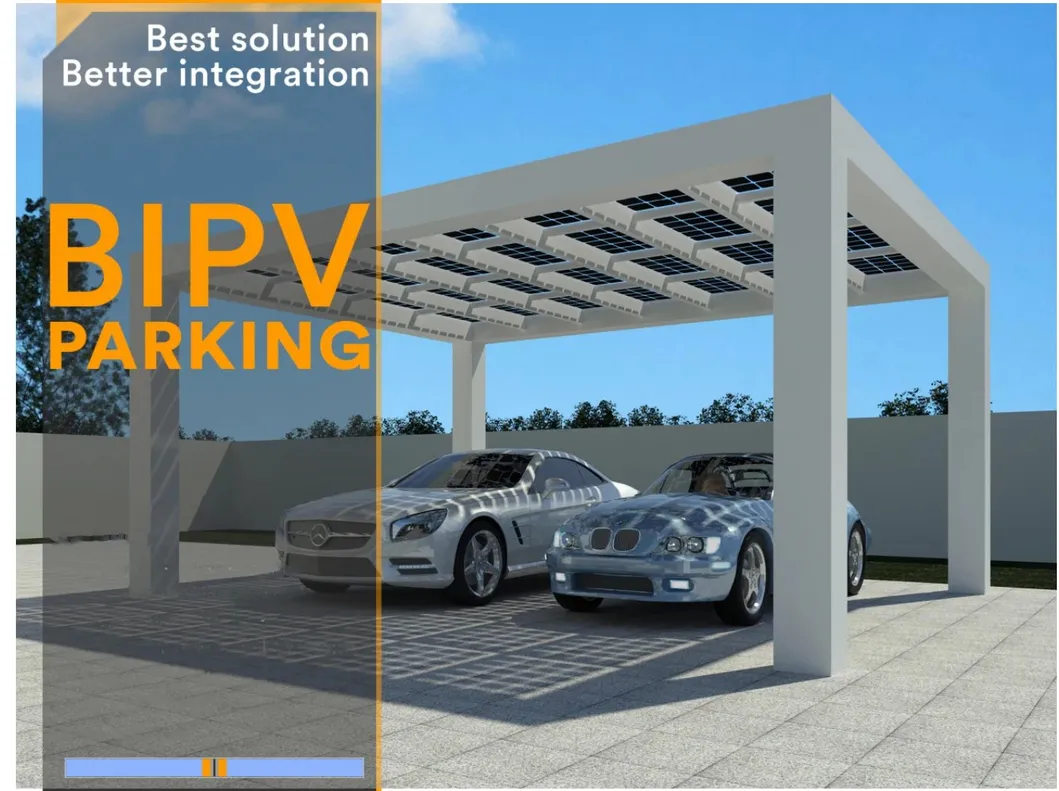

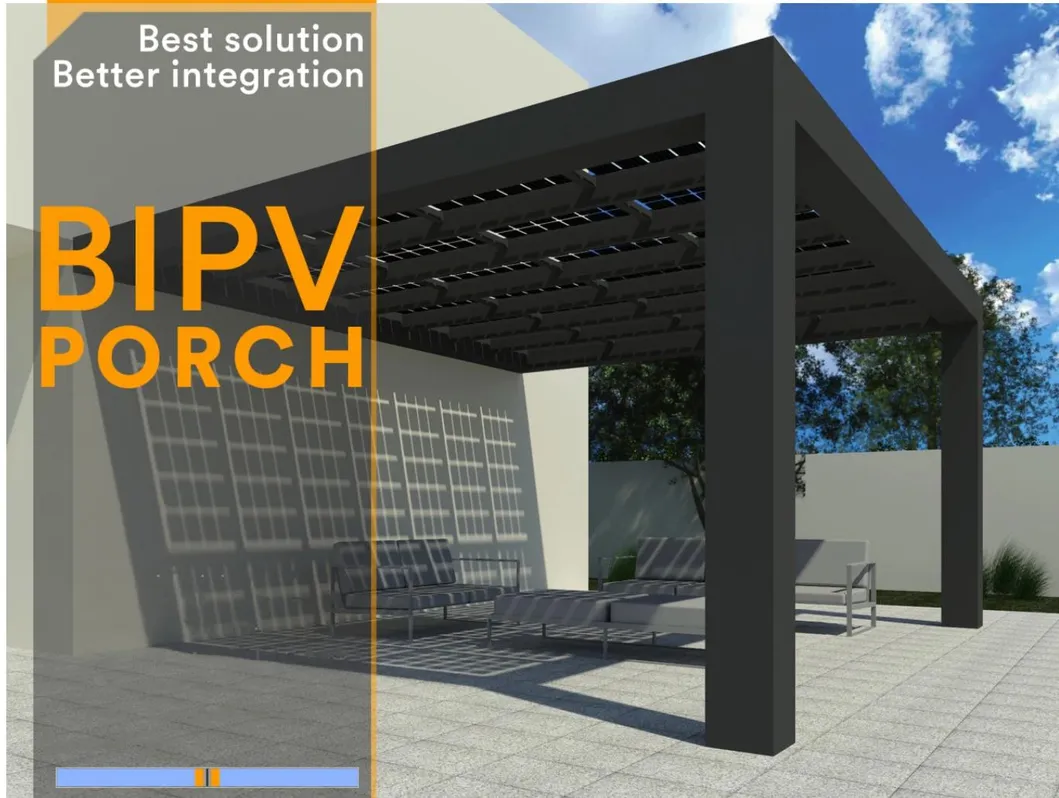

Application Scenarios

Frequently Asked Questions

How to install and use the solar panels?

We provide comprehensive English instruction manuals and step-by-step videos covering disassembly, assembly, and operation to ensure a smooth installation process.

What if I don't have export experience?

We work with reliable forwarder agents who can ship items to your doorstep via sea, air, or express. We will assist you in choosing the most suitable shipping service for your needs.

Can you provide free shipping to a sea port?

Yes, we offer shipping to your nearest convenient sea port. If you have an agent in China, we can also coordinate domestic delivery to them.

Can the solar panels be customized?

Absolutely. We offer customization for brand names, module colors, and unique design patterns to meet your specific project requirements.

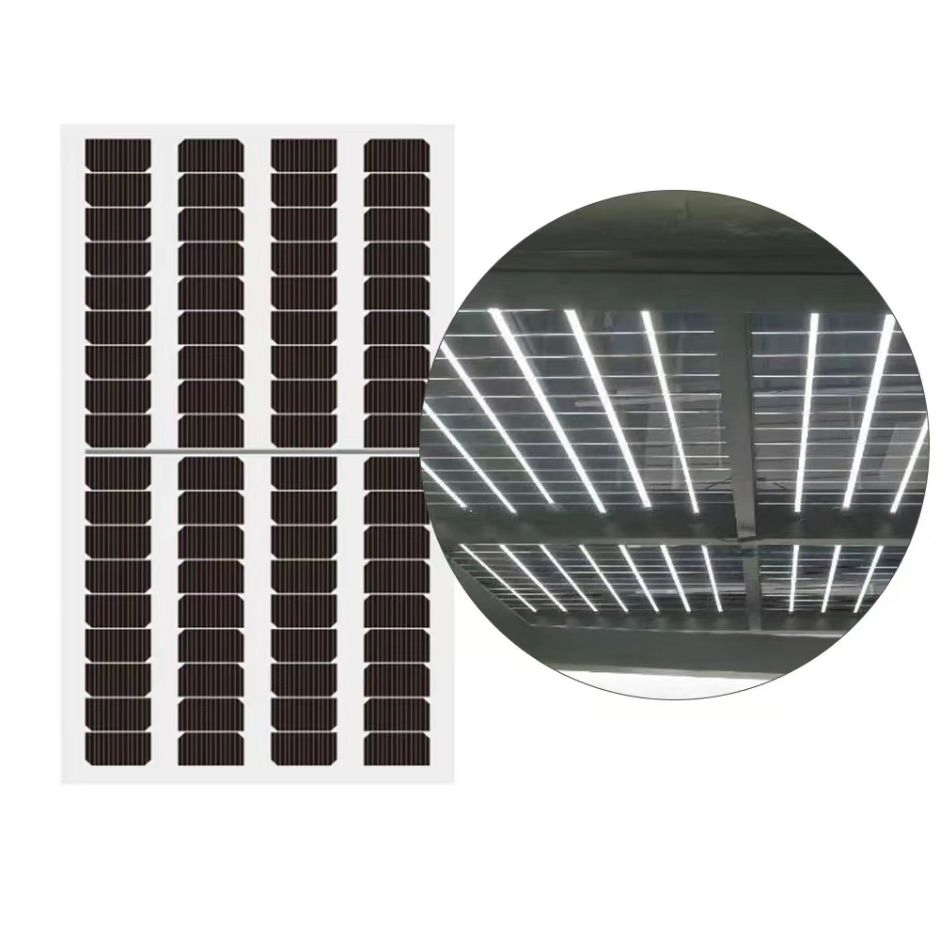

What is the advantage of the 40% transparency feature?

The 40% transparency allows for natural light transmission while generating clean energy, making it perfect for sunrooms, greenhouses, and aesthetic building-integrated photovoltaics (BIPV).

Are these panels durable for extreme weather?

Yes, these panels are designed with semi-tempered dual glass and are rated for load capacities of 2400Pa for both wind and snow, with an operating temperature range of -40 to +85℃.
