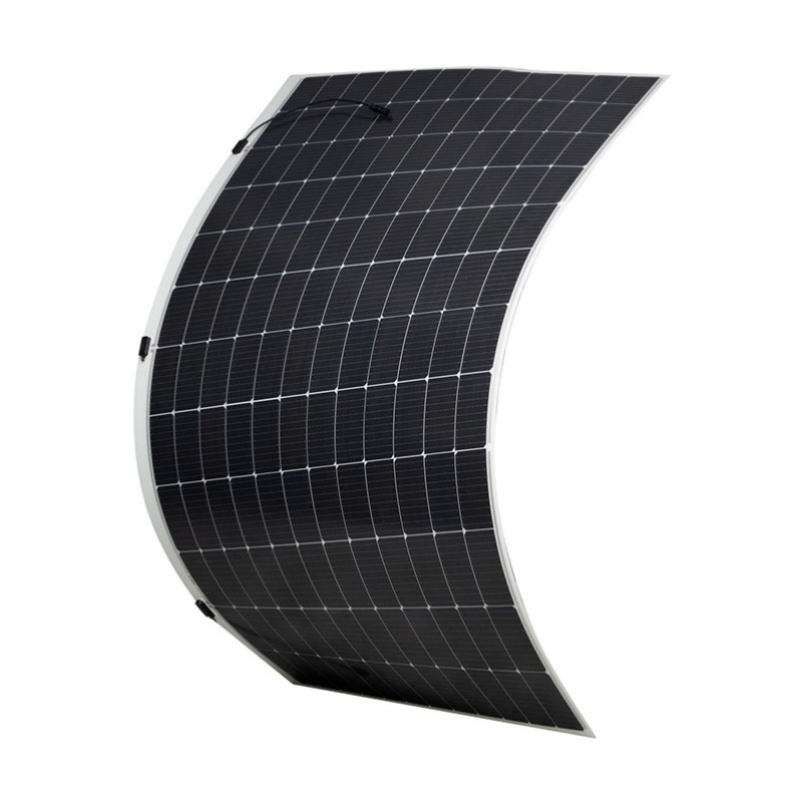

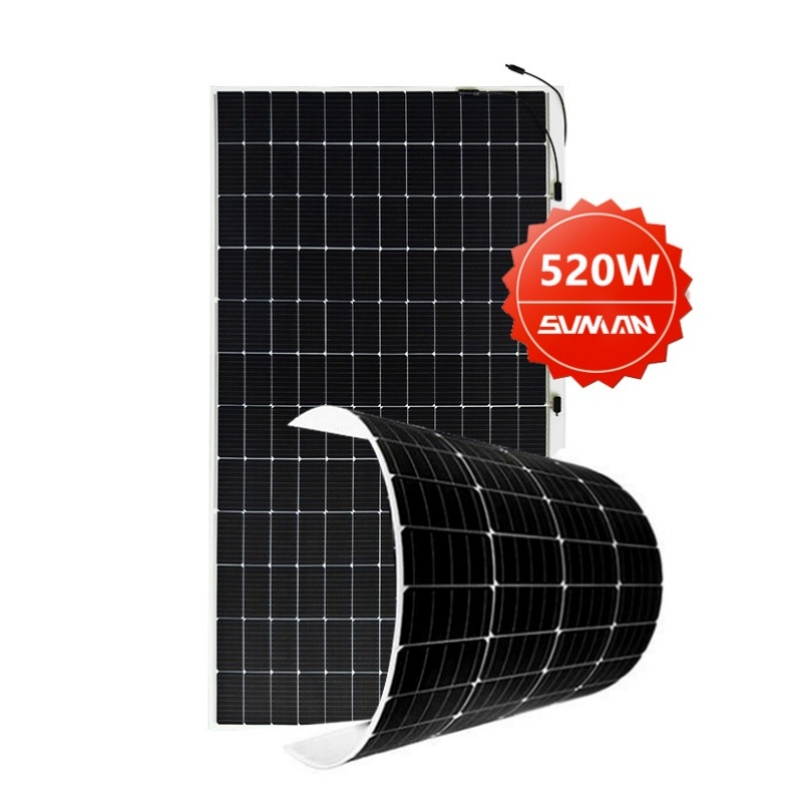

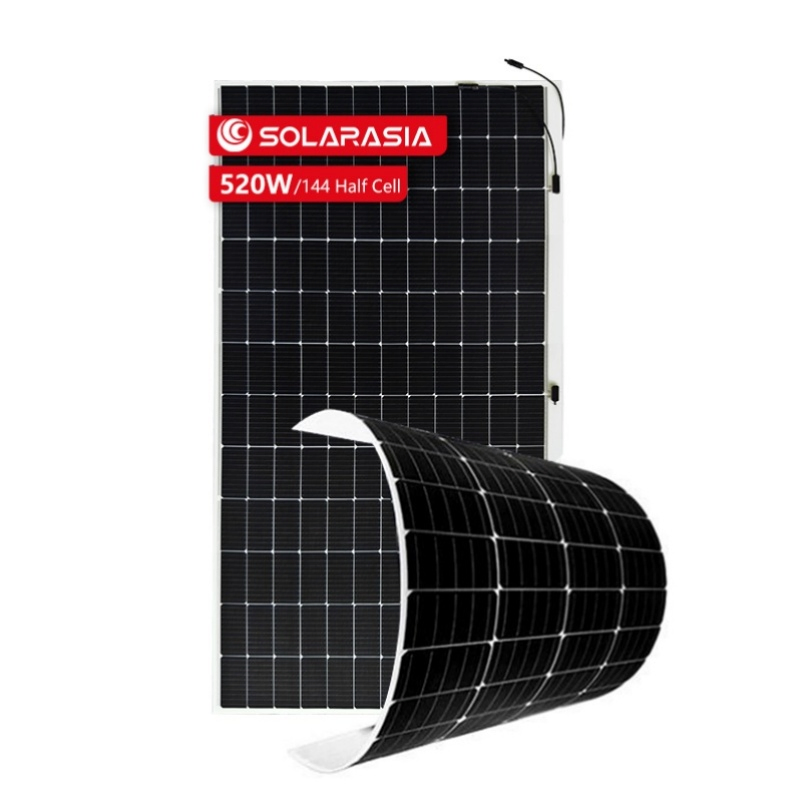

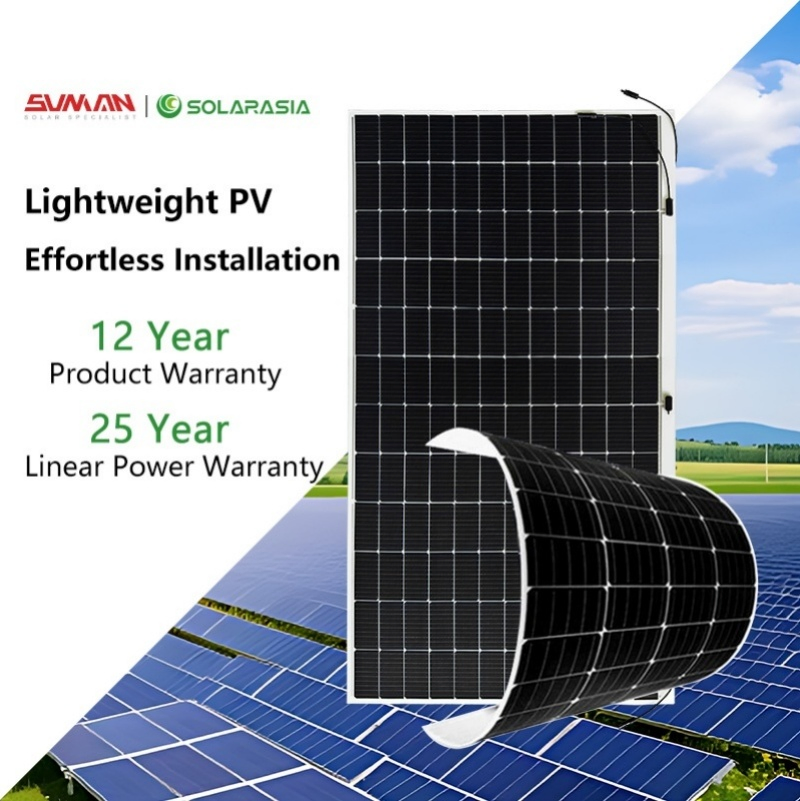

Premium Flexible Solar Panel 520W Lightweight BIPV Monocrystalline Module Factory Direct Supply for Home & Commercial Solar Systems at Competitive Price

1 / 5

Premium Flexible Solar Panel 520W Lightweight BIPV Monocrystalline Module Factory Direct Supply for Home & Commercial Solar Systems at Competitive Price

Customization:	Available
After-sales Service:	Yes
Warranty:	25 Years

Send Inquiry

Product Description

📊 Basic Information

Model NO.

SMF520J-12X12UW

Number of Cells

144 cells

Application

Homeuse / Commercial

Certification

ISO, CE, TUV

Material

Monocrystalline Silicon

Pmax (W)

520

Module Efficiency

19.3%

System Voltage

1500V DC(IEC)

Specification

2246*1197*2mm

HS Code

8541402000

☀️ Product Description

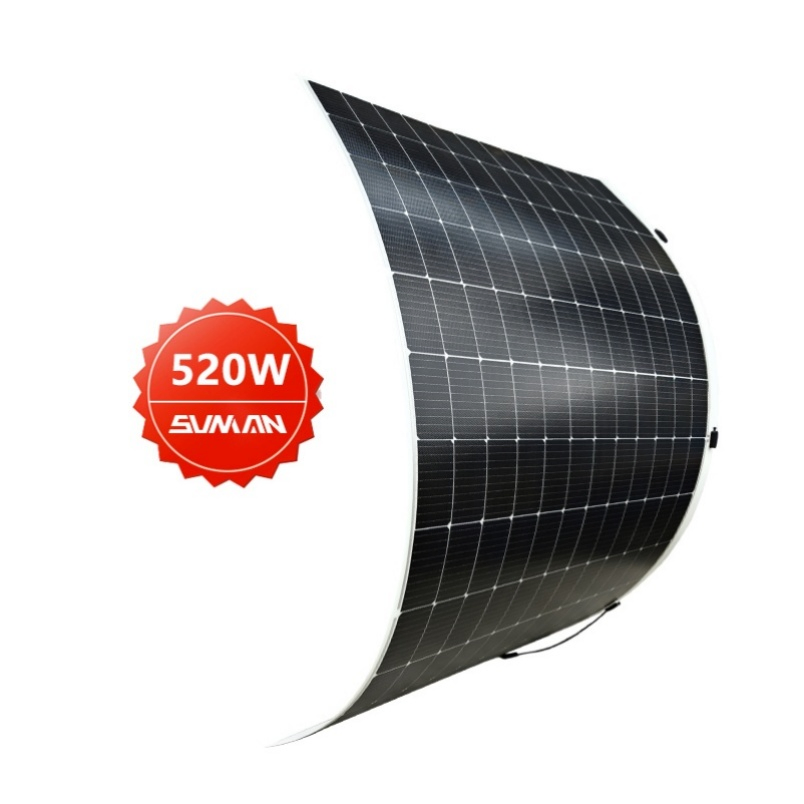

Premium Flexible Solar Panel 520W Lightweight BIPV Monocrystalline Module. Designed for high efficiency and versatile installation on residential and commercial rooftops.

📝 Technical Parameters

Maximum Power (Pmax)	520 W
Maximum Power Voltage (Vmp)	42.3 V
Maximum Power Current (Imp)	12.31 A
Open-circuit Voltage (Voc)	49.5 V
Short-circuit Current (Isc)	13.56 A
Module Efficiency (%)	19.3 %
Operating Temperature	-40ºC to 85ºC
Maximum System Voltage	1500V DC(IEC)
Maximum Series Fuse Rating	25A
Application Class	Class A
Weight	8.6 KG
Dimensions	224611972 mm

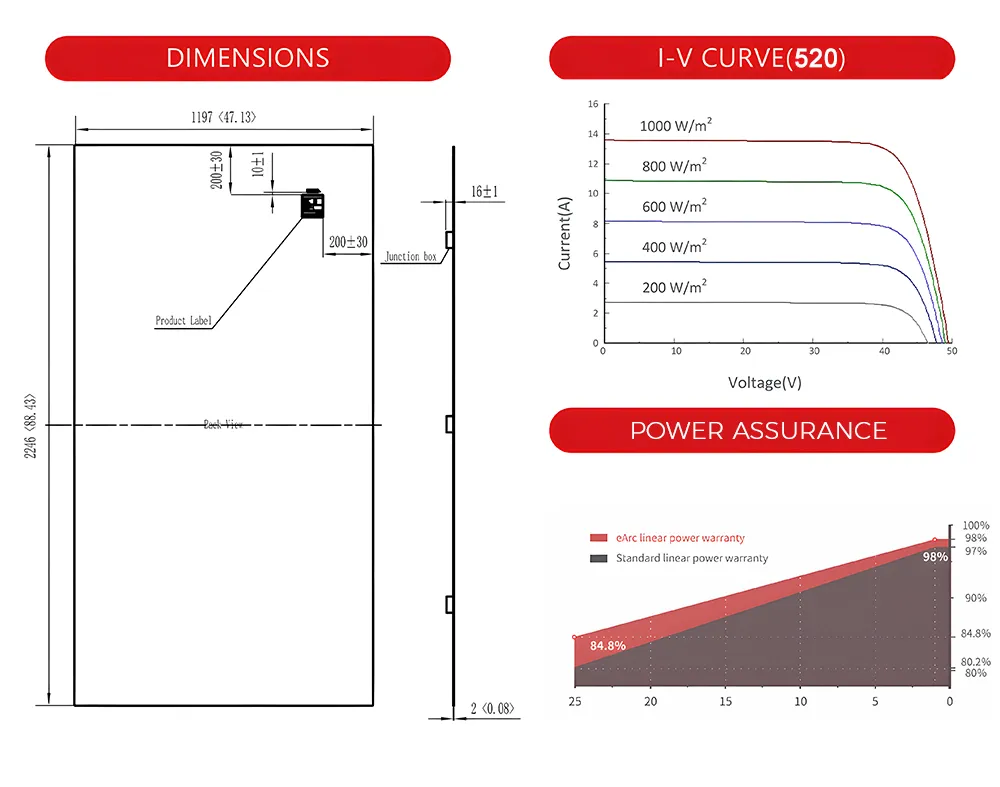

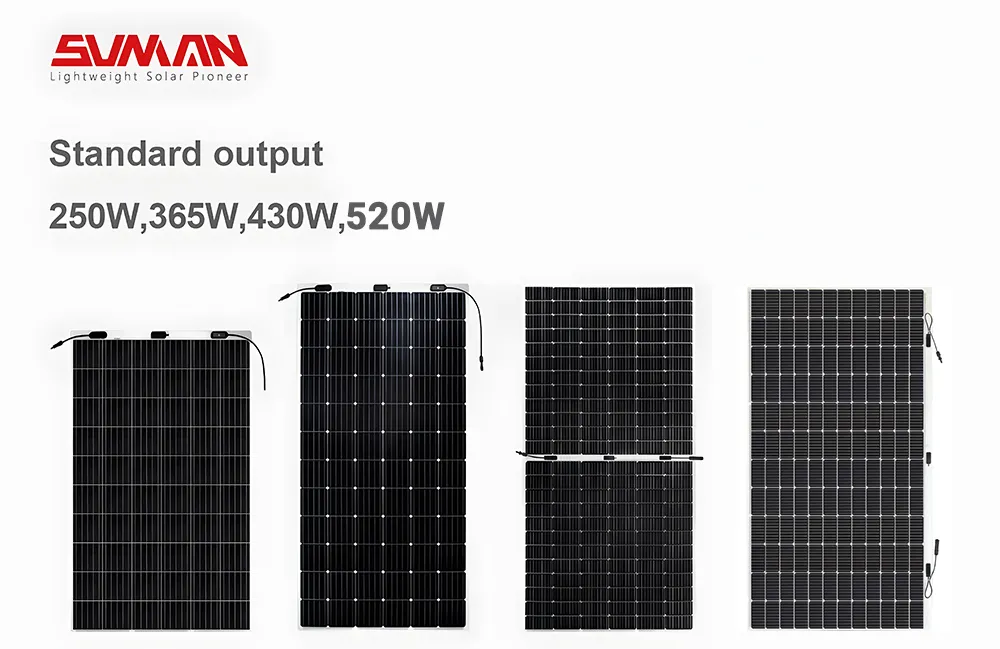

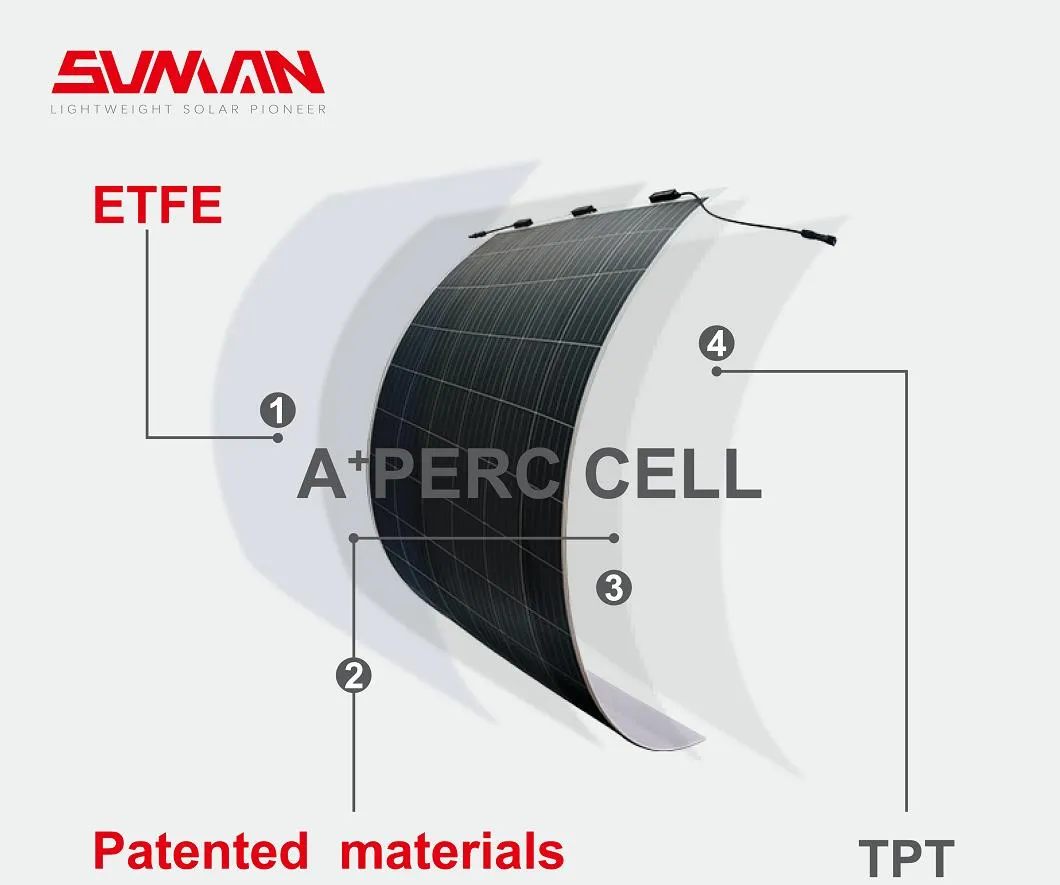

📷 Detailed Photos

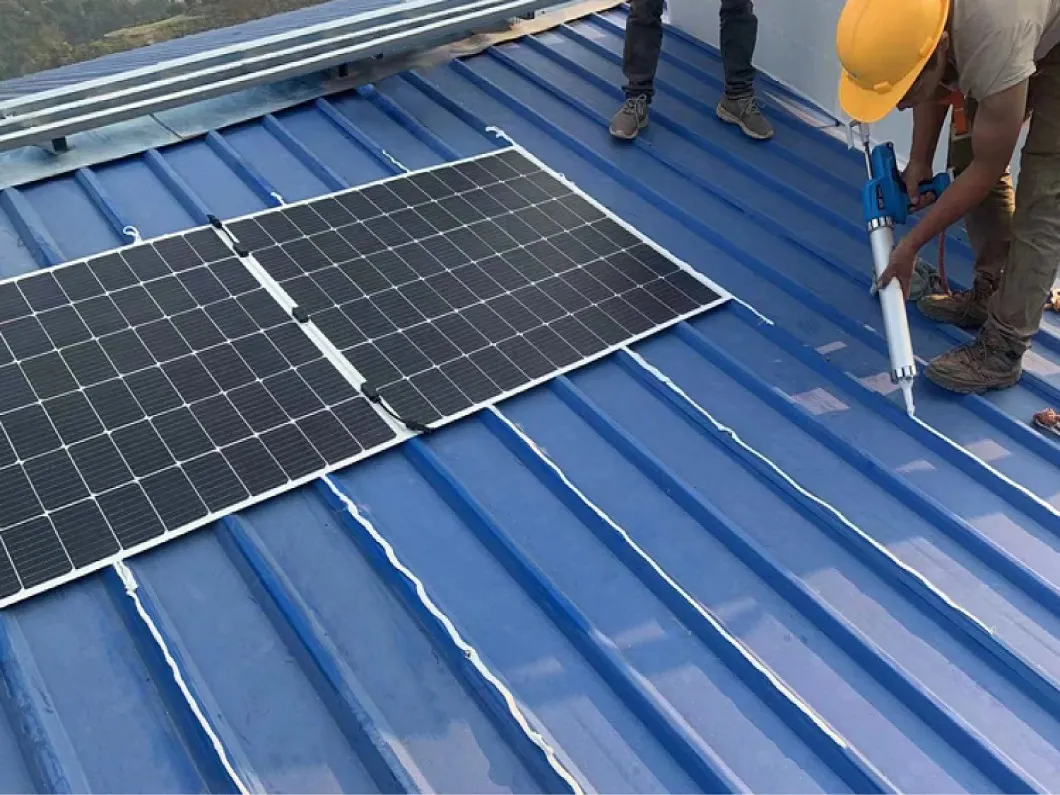

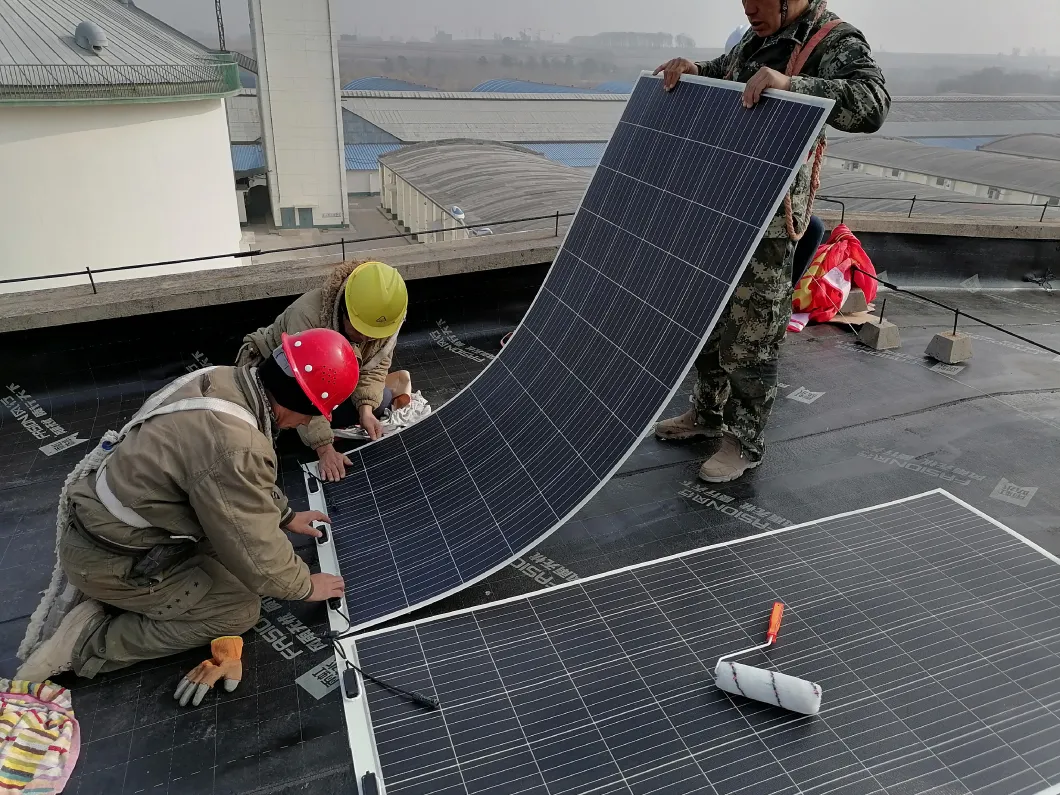

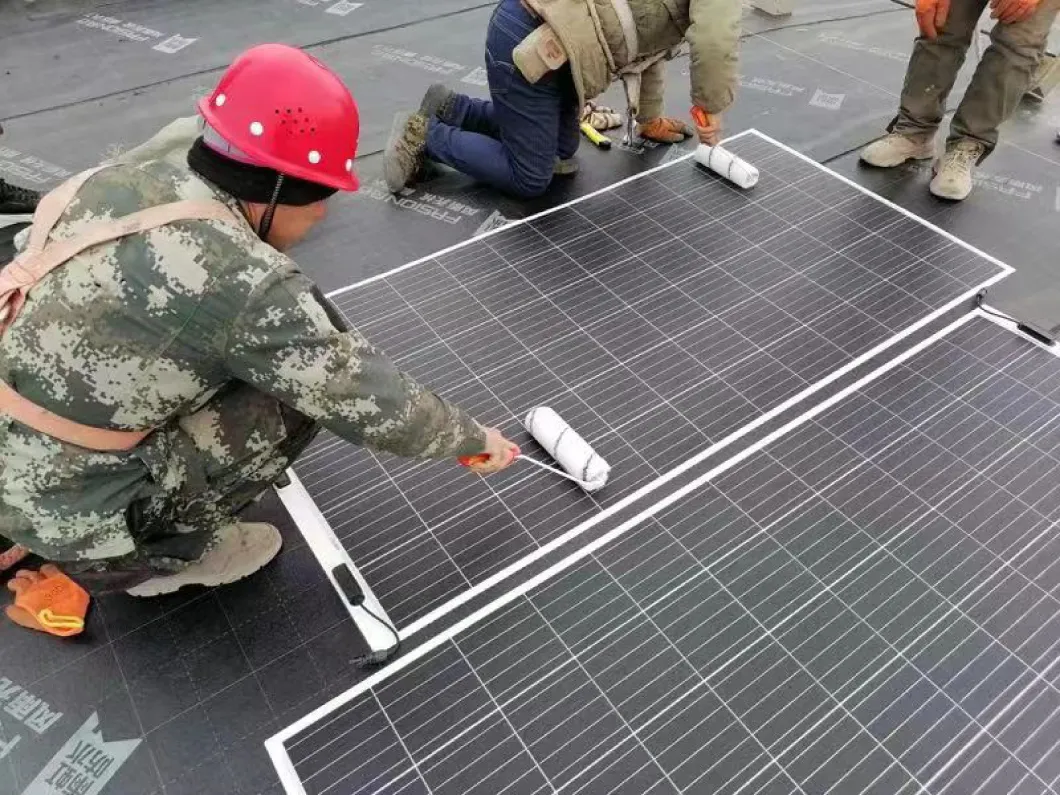

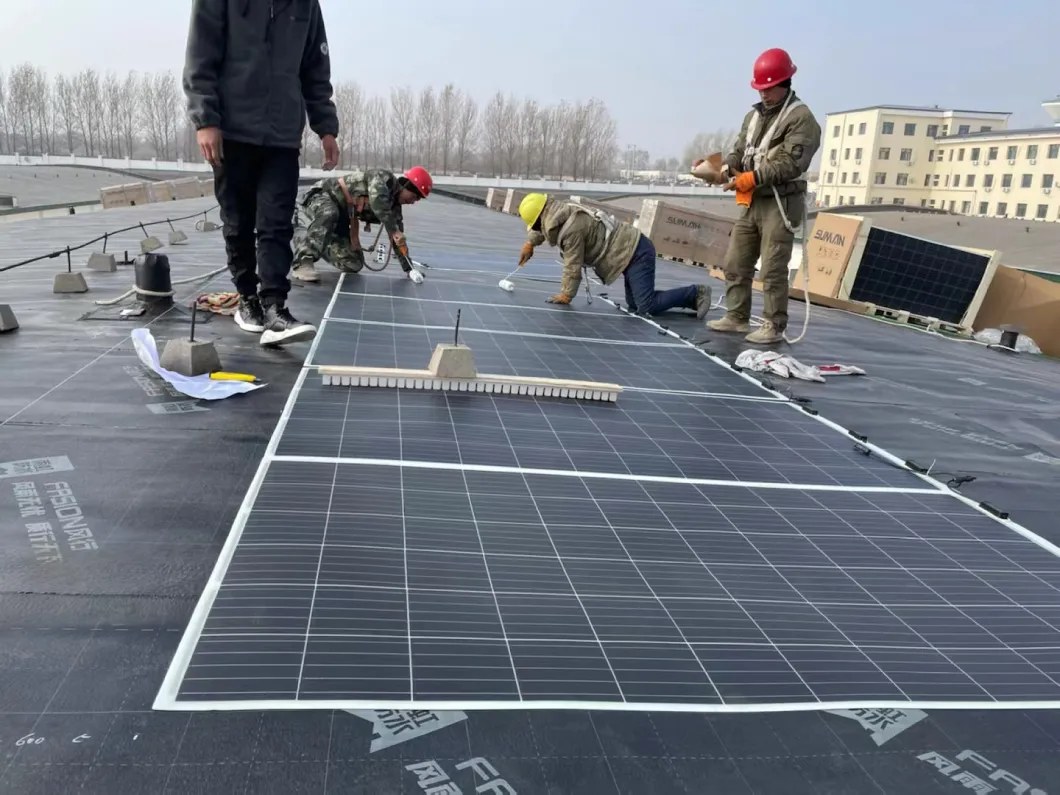

🏠 Project Case Studies

🏆 Certifications

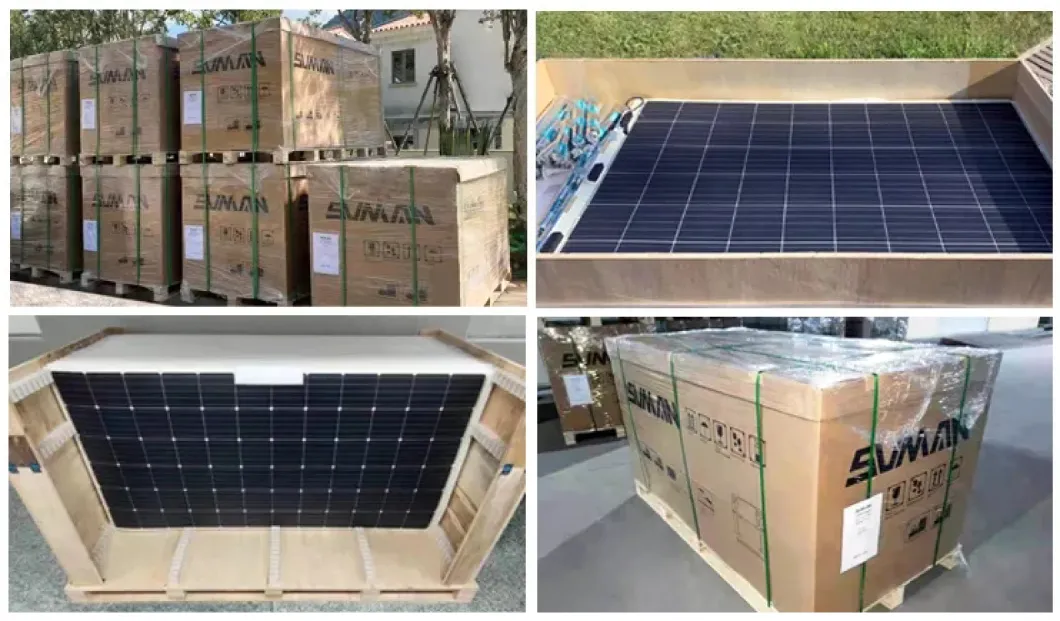

📦 Packaging & Shipping

Package Size

224.60cm * 119.70cm * 0.20cm

Package Gross Weight

8.600kg

Frequently Asked Questions

How to choose the right panel?

Specify your power requirements and installation environment (roof type, space), and our team will recommend the most efficient module for your needs.

What's the difference between Mono and Poly panels?

Monocrystalline panels offer higher efficiency as they are made from high-grade single-crystal silicon. Polycrystalline panels are typically more cost-effective but slightly less efficient.

What is the typical delivery time?

Sample orders usually ship within 7 days, while bulk commercial orders typically require 15 days for processing.

What is the warranty period for these panels?

We provide a standard 10-year product warranty along with a 25-year linear output power warranty.

What are the advantages of flexible solar modules?

Flexible modules are ultra-lightweight (only 8.6kg for 520W) and can be bonded directly to curved surfaces or roofs with low load-bearing capacity without heavy mounting structures.

How is technical support handled?

We offer 24-hour online technical support. Our engineering team can provide customized solutions and resolve installation issues within 1 hour.
