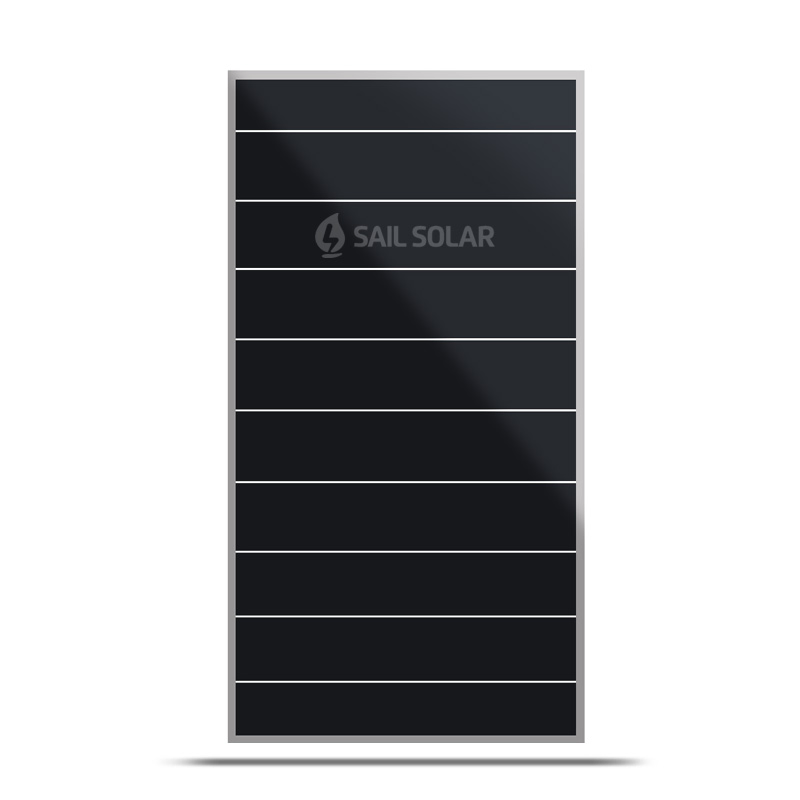

Home Use Solar Panel Price Shingled Solar Panel 540W 545W 550W 555W

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Application
Industrial
Condition
New
Certification
ISO, CE
Material
Monocrystalline Silicon
Frame
Black Anodized Aluminium Alloy
Maximum System Voltage
DC1500V
Solarcell Size & Quantity
210*30mm (35*10=350PCS)
Cable
4mm2; Portrait/Landscape Length
Panel Dimensions
2158mm X 1236mm X 35mm
Cell Type
Grade A Monocrystalline Silicon
Transport Package
Wooden Pallet and Carton Box
Production Capacity
100,000 PCS/Month
P

Product Description

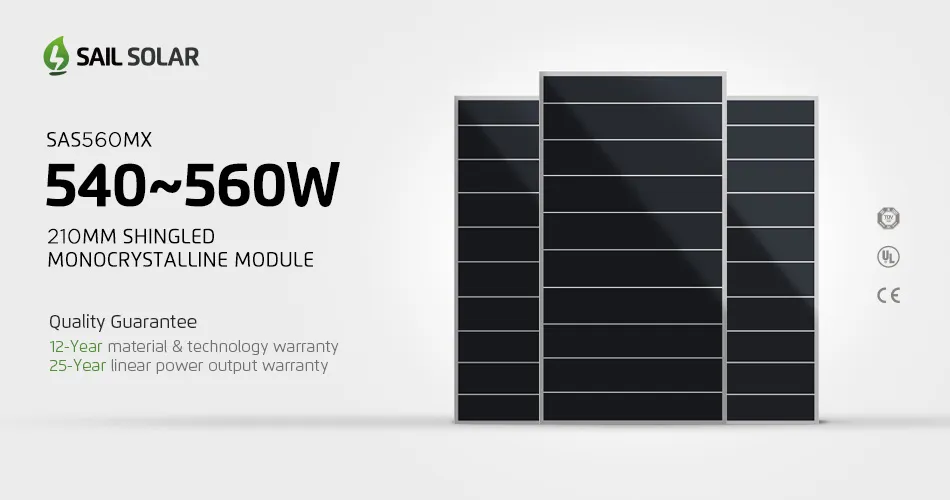

Solar Panel Overview

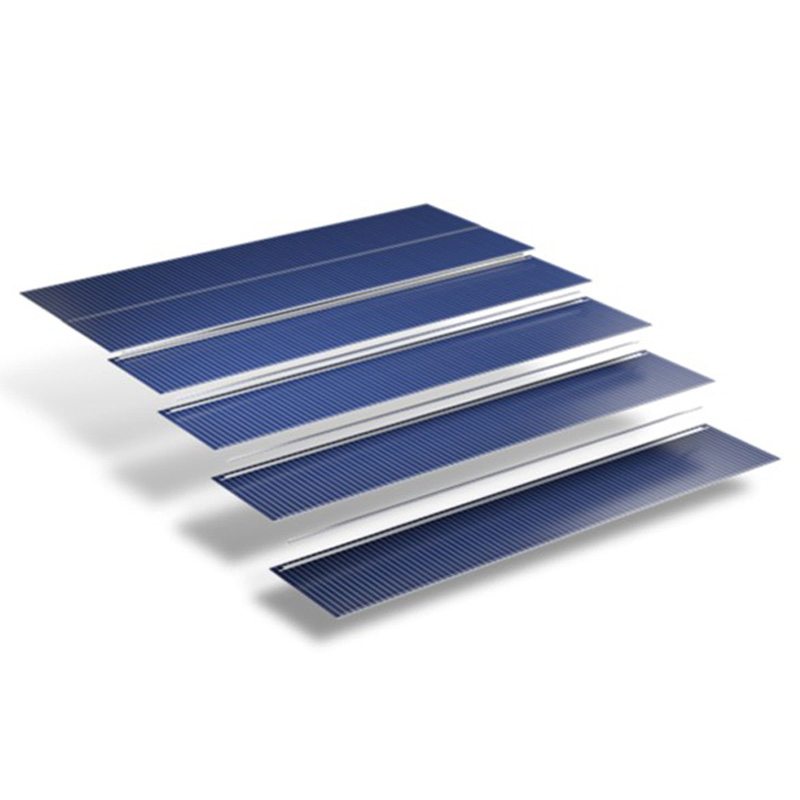

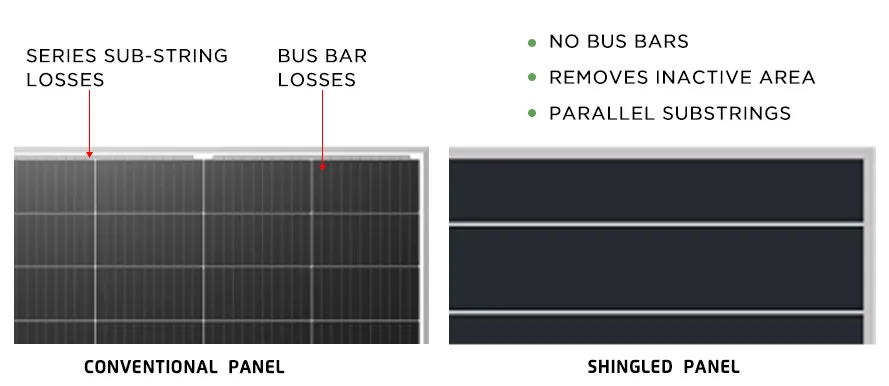

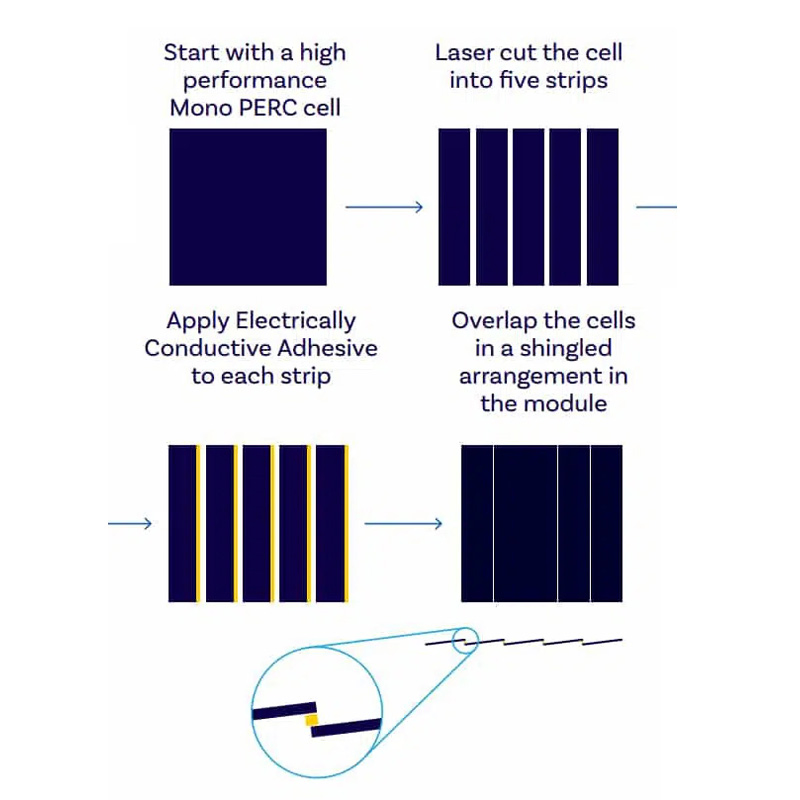

Shingled Solar Panel Details

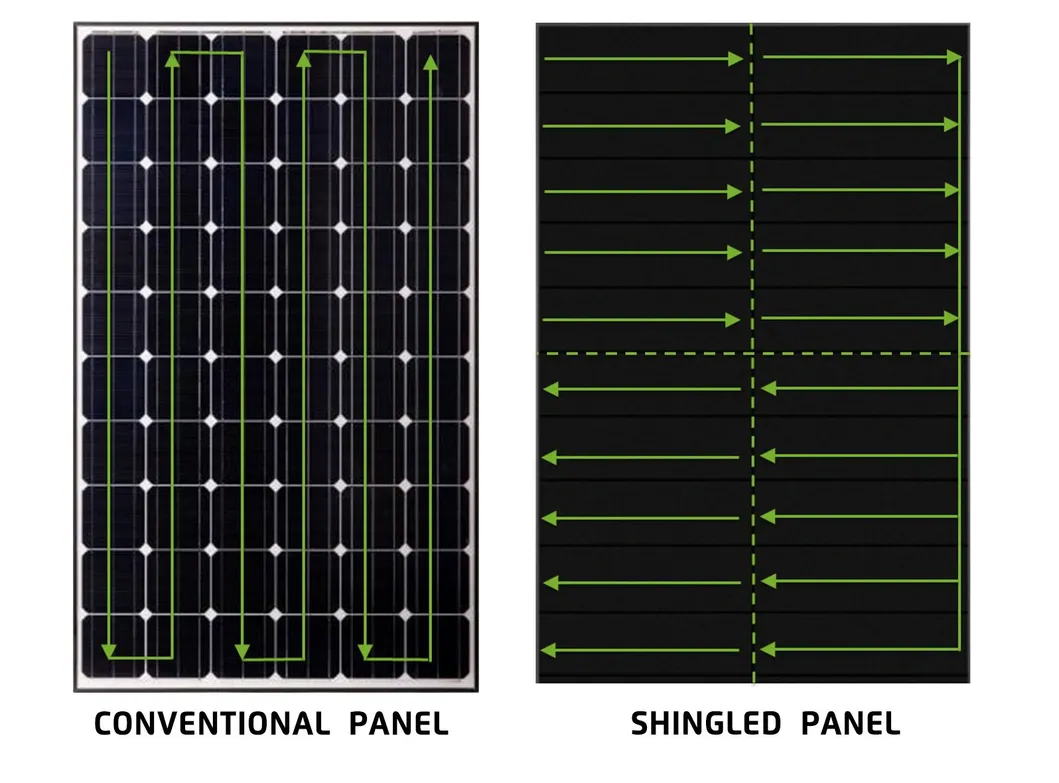

High Efficiency Panel
Solar Module Features
STC: Irradiance 1000W/m2, Cell Temperature 25°C, AM1.5
Maximum Power (Pmax) 540W 545W 550W 555W 560W
Open Circuit Voltage (Voc) 48.08V 48.08V 48.08V 48.09V 48.09V
Short Circuit Current (Isc) 14.54A 14.66A 14.67A 14.69A 14.85A
Module Efficiency (%) 20.9% 21.2% 21.5% 21.8% 22.1%
M

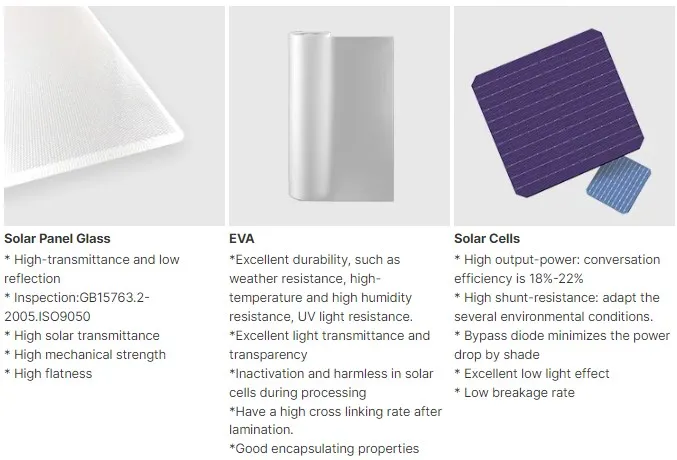

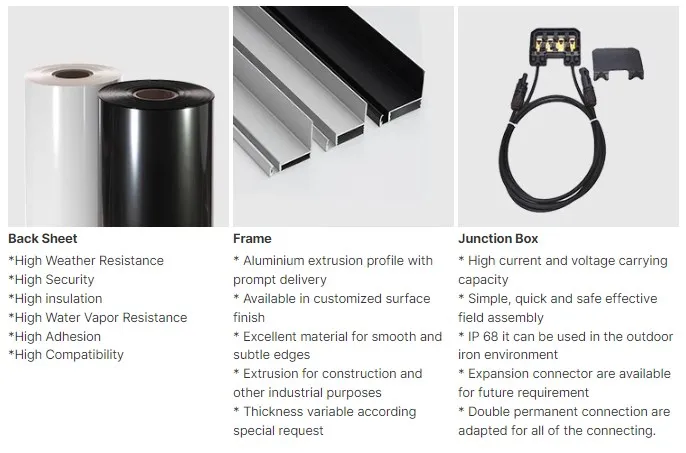

Grade A Material

Solar Cell Material
Quality Silicon Cells
F

Our Factory & Strict QC System

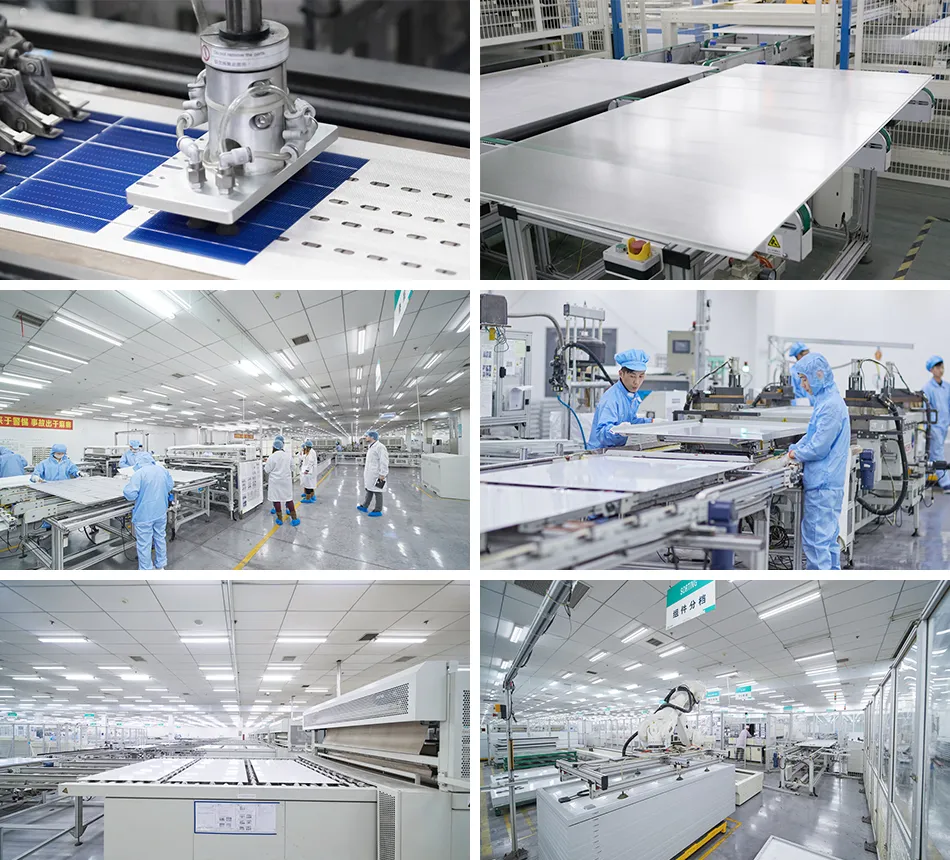

Factory Production Line
Advanced Equipment: We utilize lead stringers, electric laminators, and automatic lamination equipment. Automatic production ensures fast delivery and cost efficiency.

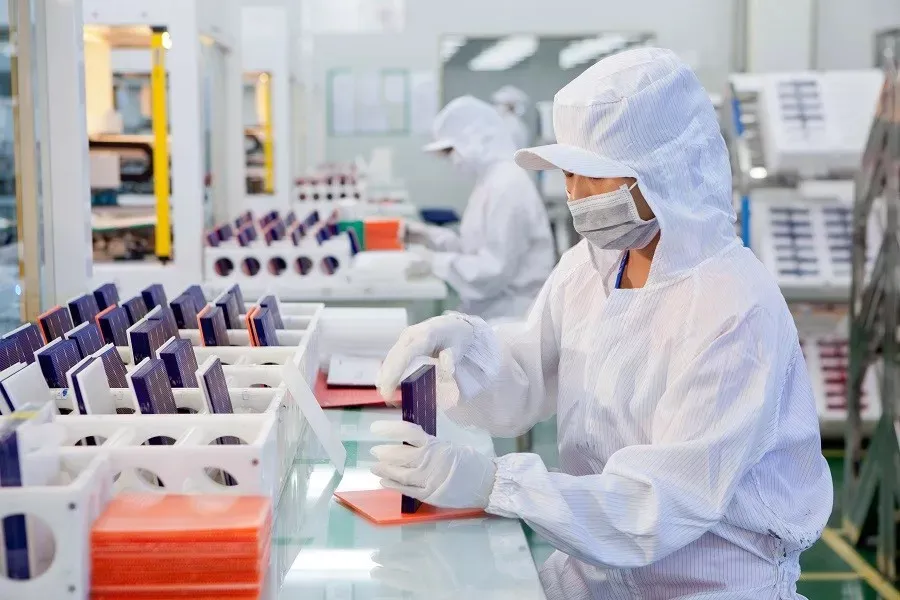

Cells Sorting
100% Cells Sorting
Ensure consistent color and power performance.

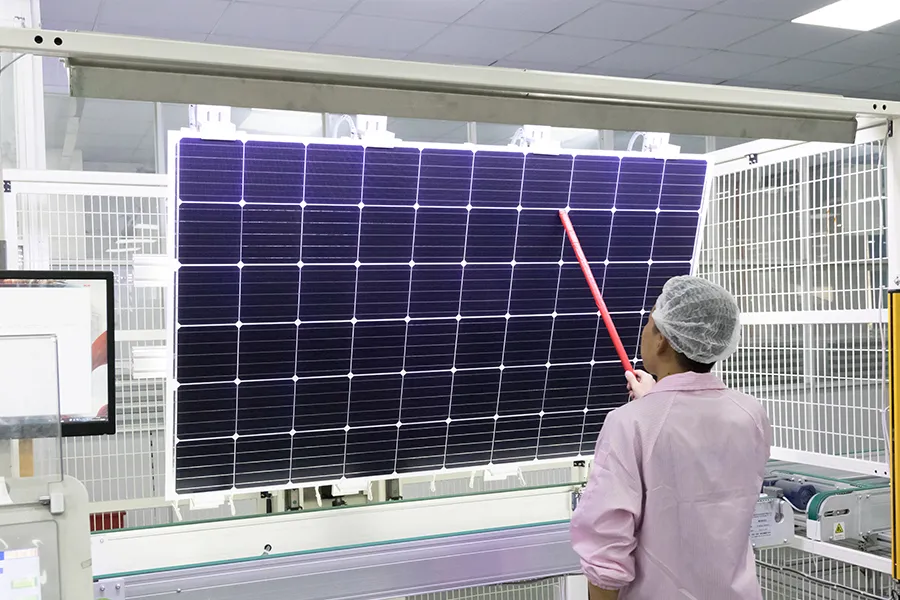

Inspection
100% Inspection
Stringent criteria before and after lamination.

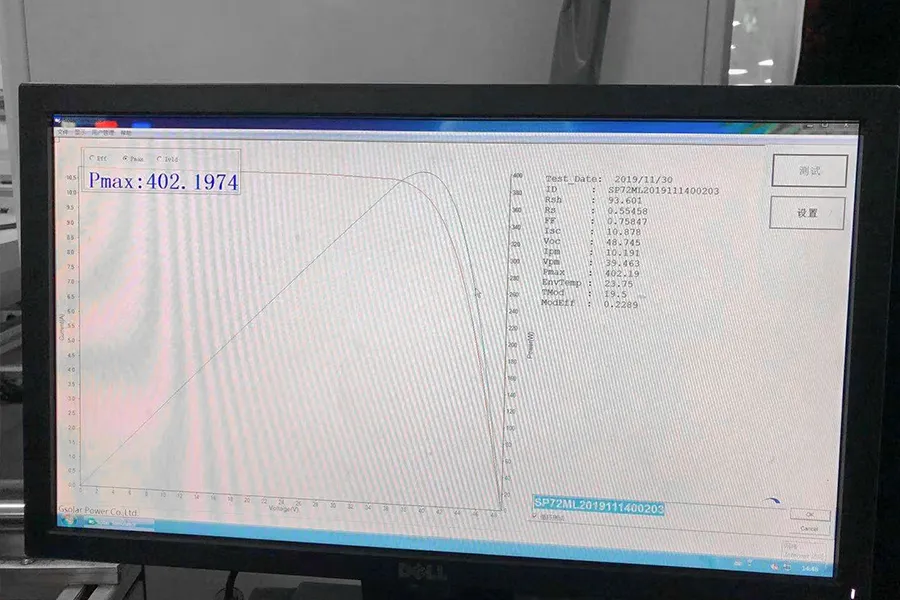

EL Testing
100% EL Testing
Zero micro-crack monitoring for every cell.
S

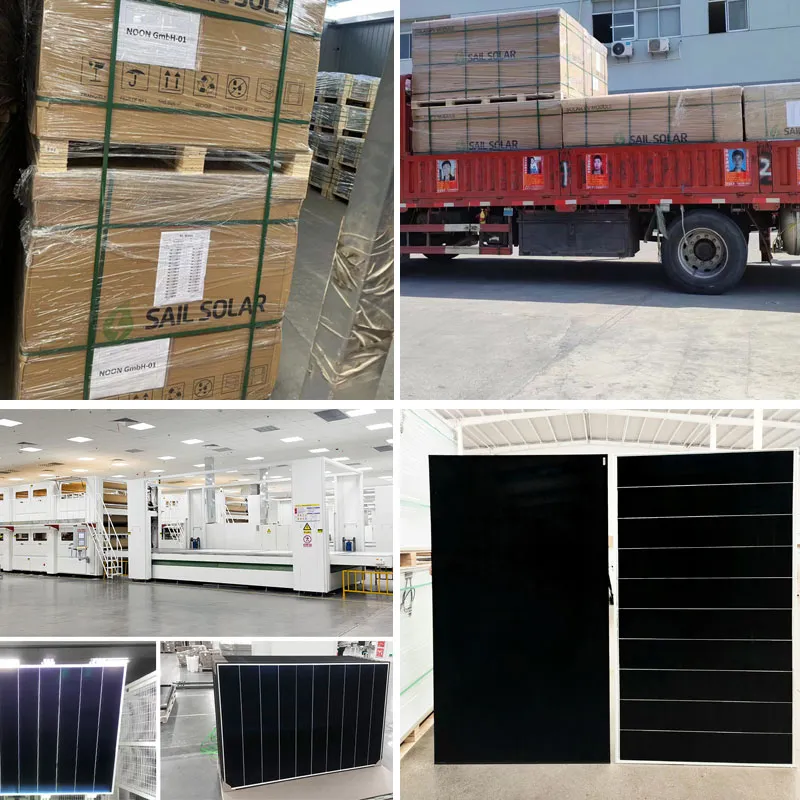

Packaging & Shipping

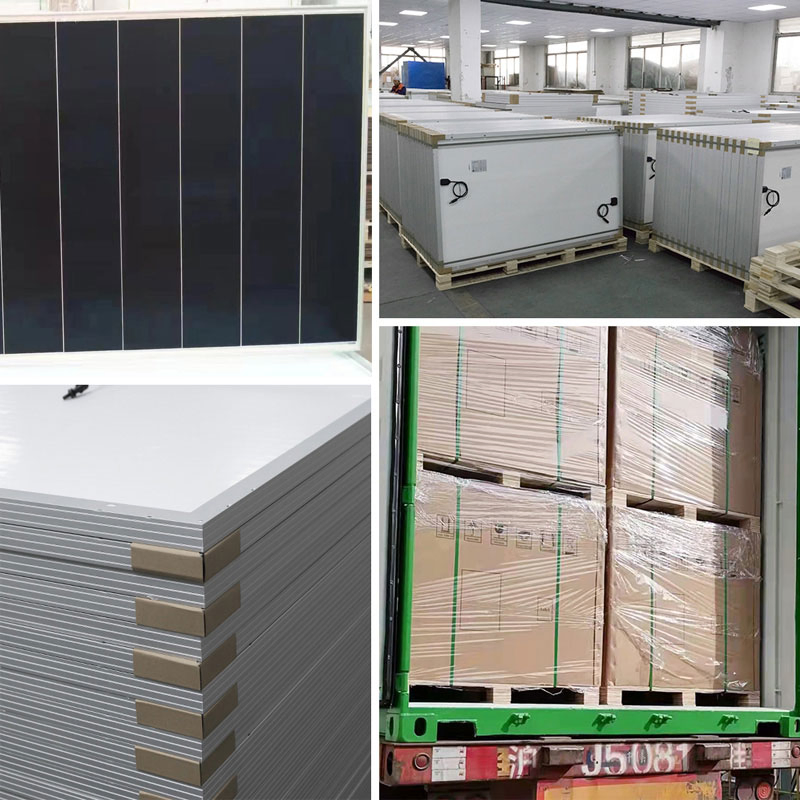

Shipping Packaging
Packing Details: In cartons on pallets or wooden boxes. OEM available.
Delivery: 5-7 working days.
V

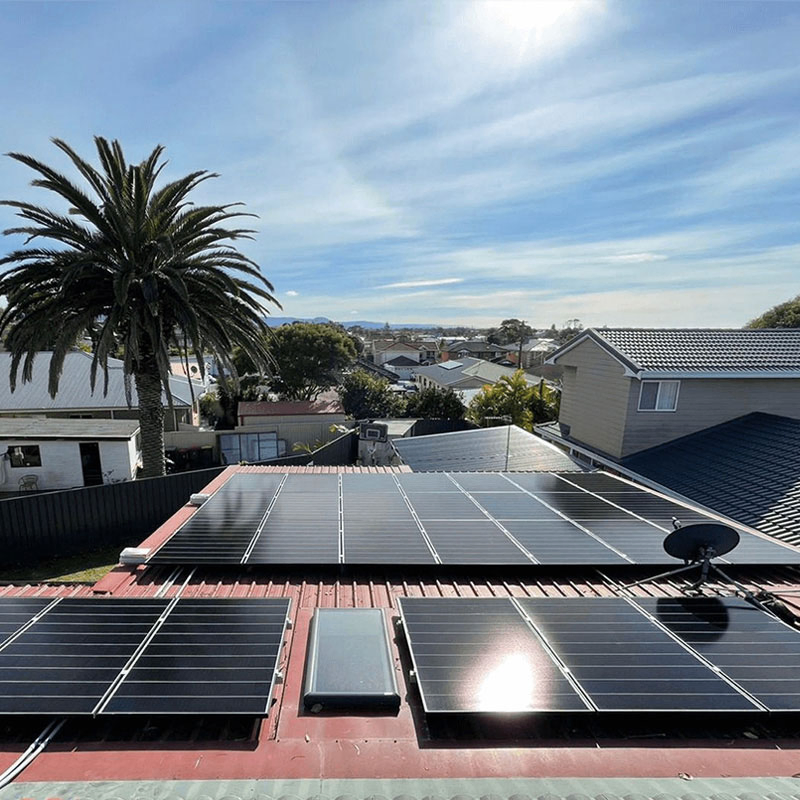

Case Projects

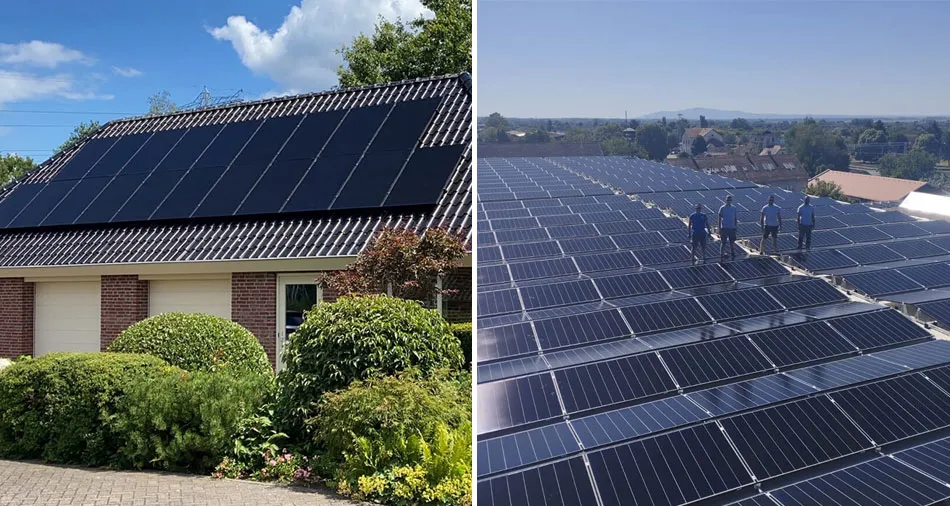

Solar Project 1

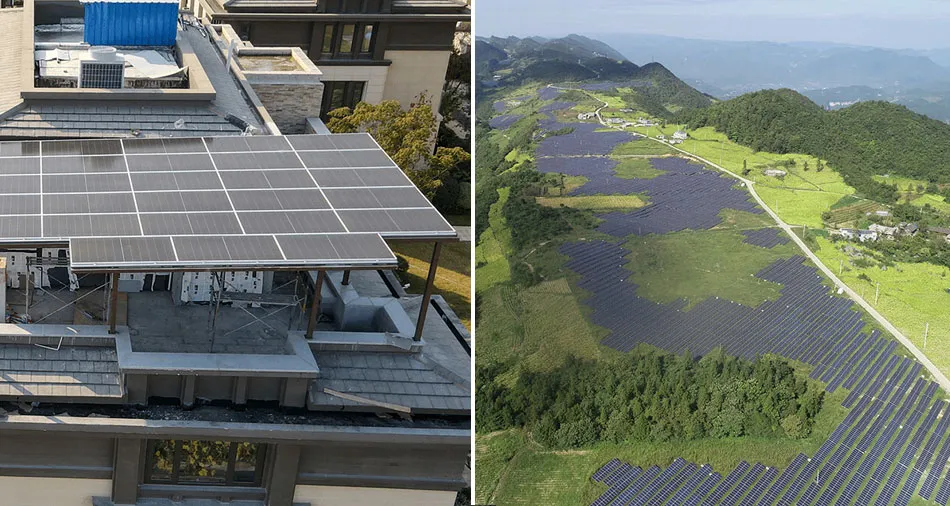

Solar Project 2
$

Payment Terms

Method Terms Conditions
T/T 30% Advance Balance before shipment (EXW/FOB) or against B/L (CFR/CIF)
L/C At Sight Available for amounts above 50,000 USD
Western Union Full Payment Available for amounts lower than 5,000 USD
?

Frequently Asked Questions

What is the maximum efficiency of these solar panels?
These high-efficiency shingled solar panels reach a module efficiency of up to 22.1% under standard testing conditions.
How do you ensure the quality of the solar cells?
We use a 52-step strict quality control process, including 100% color and power sorting, dual-stage inspection, and 100% EL testing to eliminate micro-cracks.
Are the panels resistant to extreme weather?
Yes, the panels are designed for operational temperatures between -40°C and +85°C, with a front static load capacity of 5400Pa and a back load of 2400Pa.
Can the output cables be customized?
The standard cable is 4mm² with a 300mm length, but we offer customization options for both portrait and landscape lengths based on project needs.
What is the standard lead time for delivery?
Standard delivery typically takes 5-7 working days, depending on the order size and specific packaging requirements.
What certifications do these panels hold?
Our solar panels are fully certified with ISO and CE standards, ensuring they meet international safety and performance regulations.
