700W Shingled Bifacial Half Cut Solar Panels Topcon 570W 580W Panels in Europe Warehouse

Customization:	Available
After-sales Service:	Yes
Warranty:	25 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

Evo 5N 156Cells 610-630W

Number of Cells

156 (6*26)

Application

Industrial

Certification

ISO, CE

Material

Monocrystalline Silicon

Solar Cells

N-Type Mono Topcon

Dimensions

2465* 1134 *35mm

Glass

2.0mm Coated Semi-Tempered Glass

Frame

Anodized Aluminium Alloy

Junction Box

IP68 Rated, 3 Diodes

Wind/Snow Load

2400PA/5400PA

Connector

MC Compatible

🚀 Product Description

Module Type: SE5-60H	610	615	620	625	630
Maximum power (Pmax/W)	610	615	620	625	630
Open Circuit Voltage (Voc/V)	55.25	55.40	55.55	55.70	55.84
Short Circuit Current (Isc/A)	14.10	14.17	14.14	14.31	14.38
Module Efficiency (%)	21.82	22.0	22.18	22.36	22.54

📊 Product Series Specifications

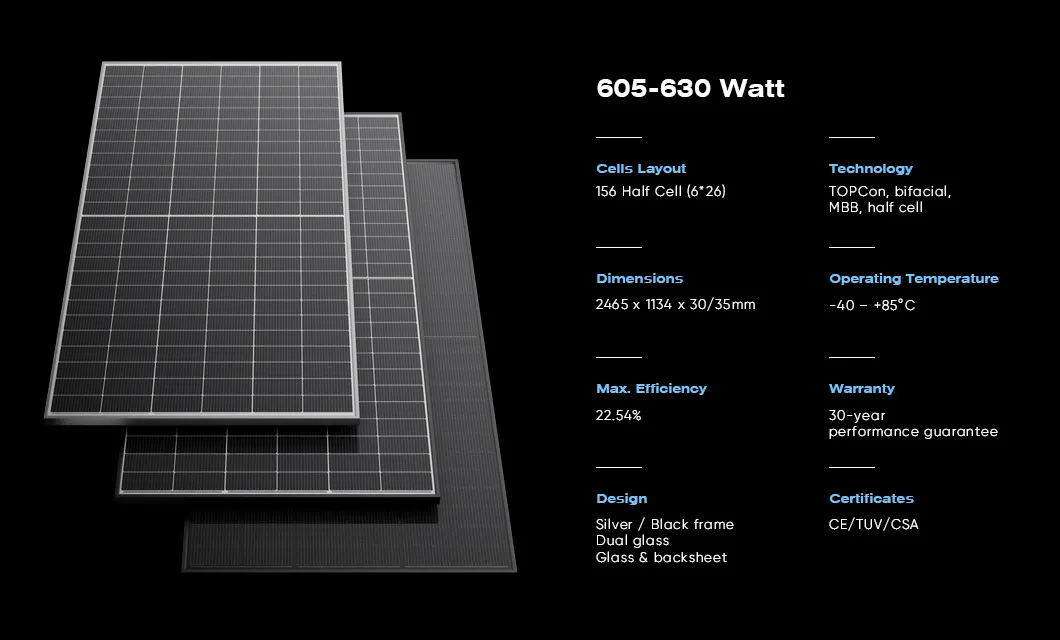

605 - 630 Watt

Cells Layout: 156 Half Cells (6×26)

Dimensions: 2465 x 1134 x 30/35mm
Weight: 34.5kg
Modules per 40' container: 576pcs

555 - 580 Watt

Cells Layout: 144 Half Cells (6×24)

Dimensions: 2279 x 1134 x 30mm
Weight: 31.5kg
Modules per 40' container: 720pcs

505 - 530 Watt

Cells Layout: 132 Half Cells (6×22)

Dimensions: 2279 x 1134 x 30/35mm
Weight: 28.5kg
Modules per 40' container: 792pcs

415 - 435 Watt

Cells Layout: 108 Half Cells (6×18)

Dimensions: 1722 x 1134 x 30/35mm
Weight: 23.5kg
Modules per 40' container: 936pcs

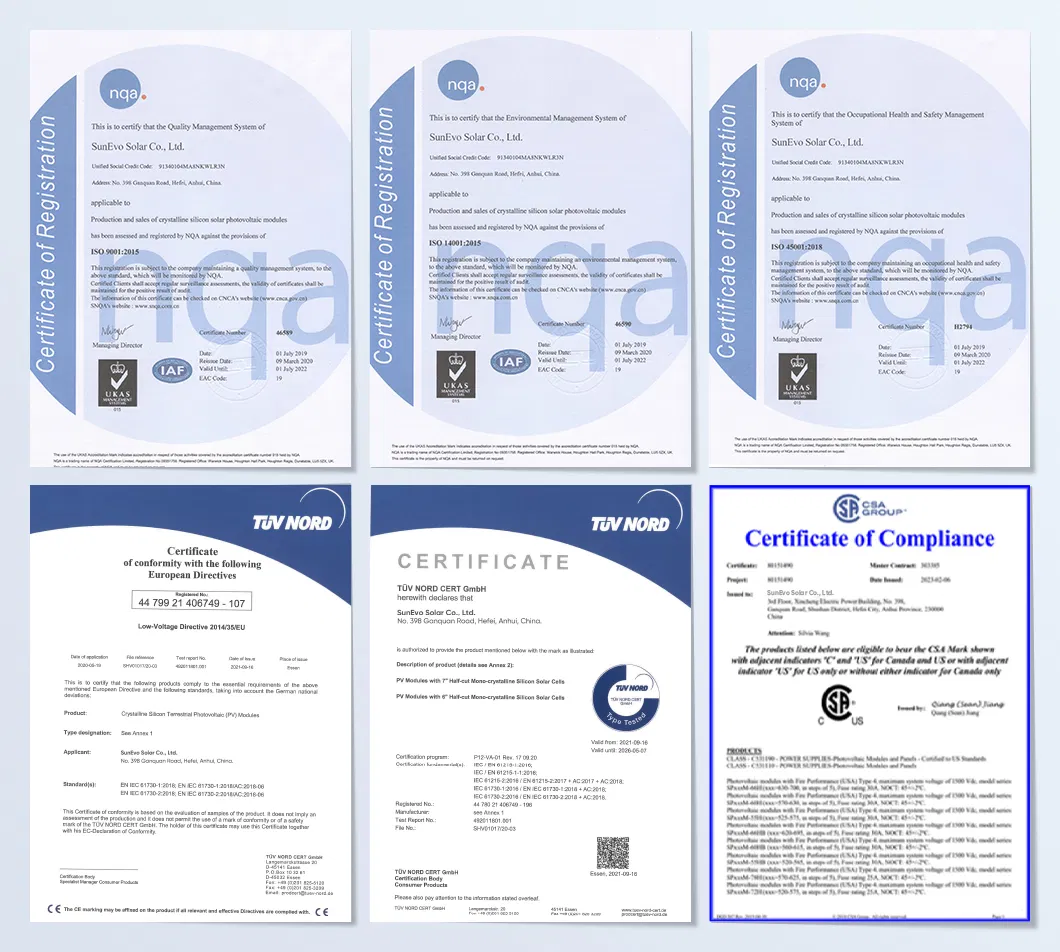

📜 Certifications

🛡️ Quality Control

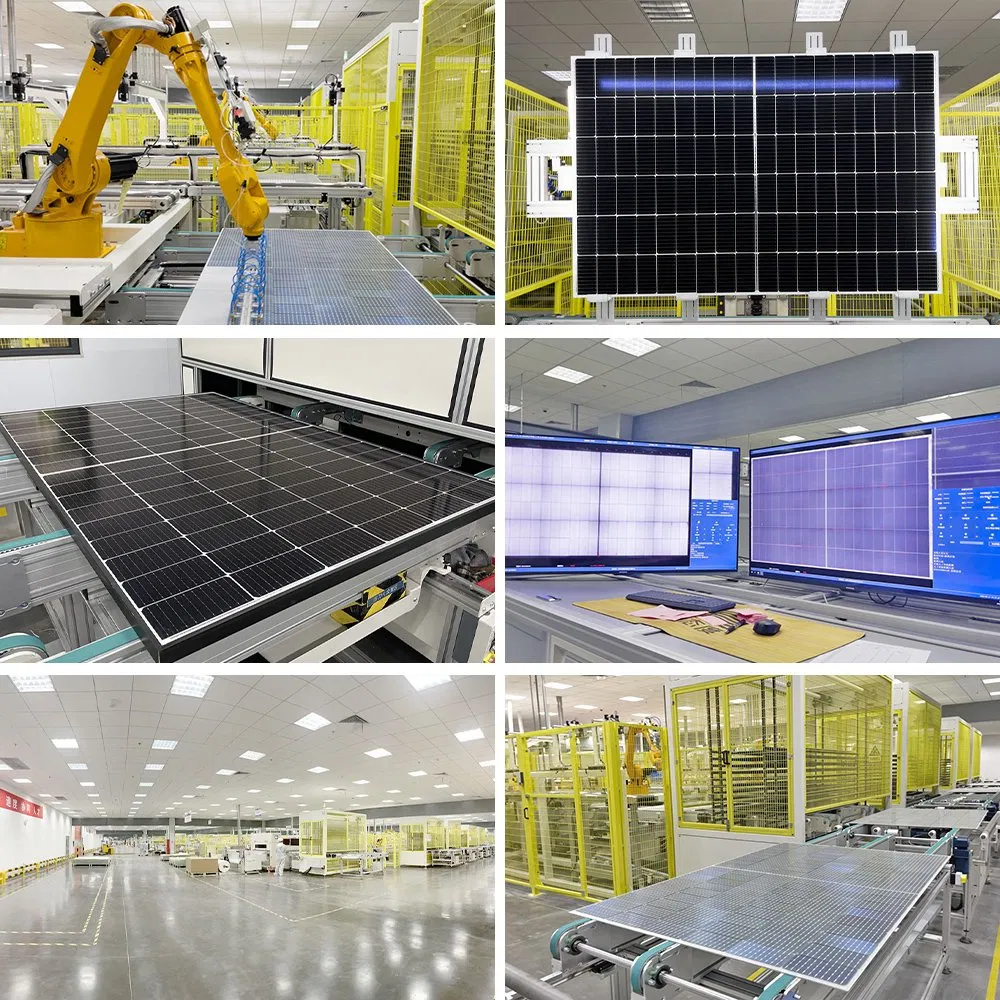

Modularized fully automated production lines enable fast delivery and cost savings. Stringent quality control is the cornerstone of our manufacturing. We have received certifications for Quality Management System (ISO 9001:2015), Environment Management System (ISO 14001:2015) and Occupational Health and Safety Management System (ISO45001:2018).

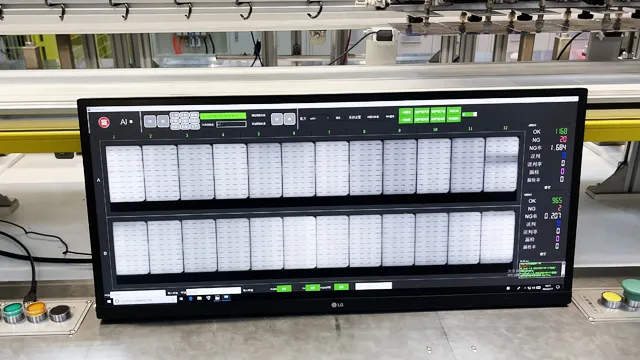

Solar Cell String EL Testing

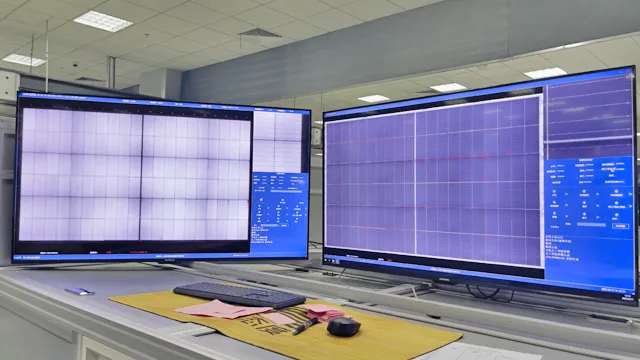

EL Testing Before Lamination

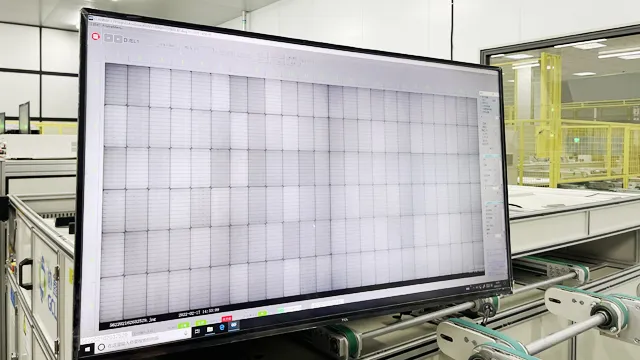

Final EL Testing

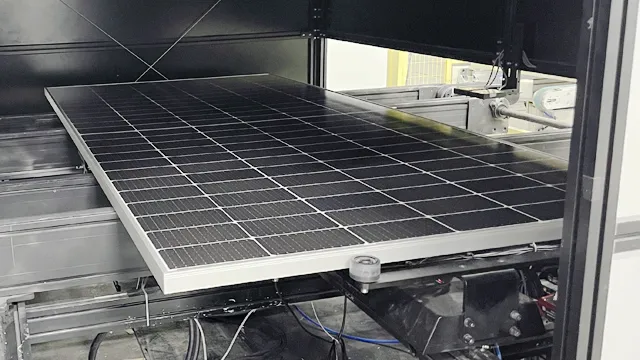

Output Power Testing

🌍 Global Project Case

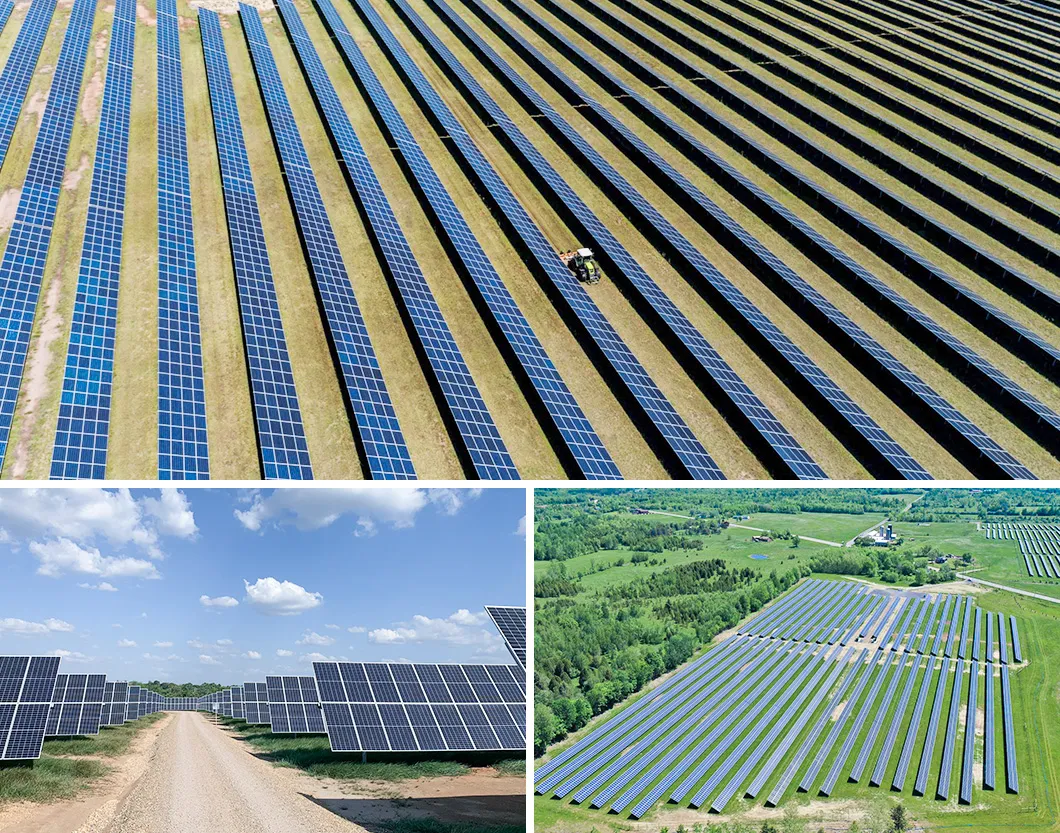

Utility Scale

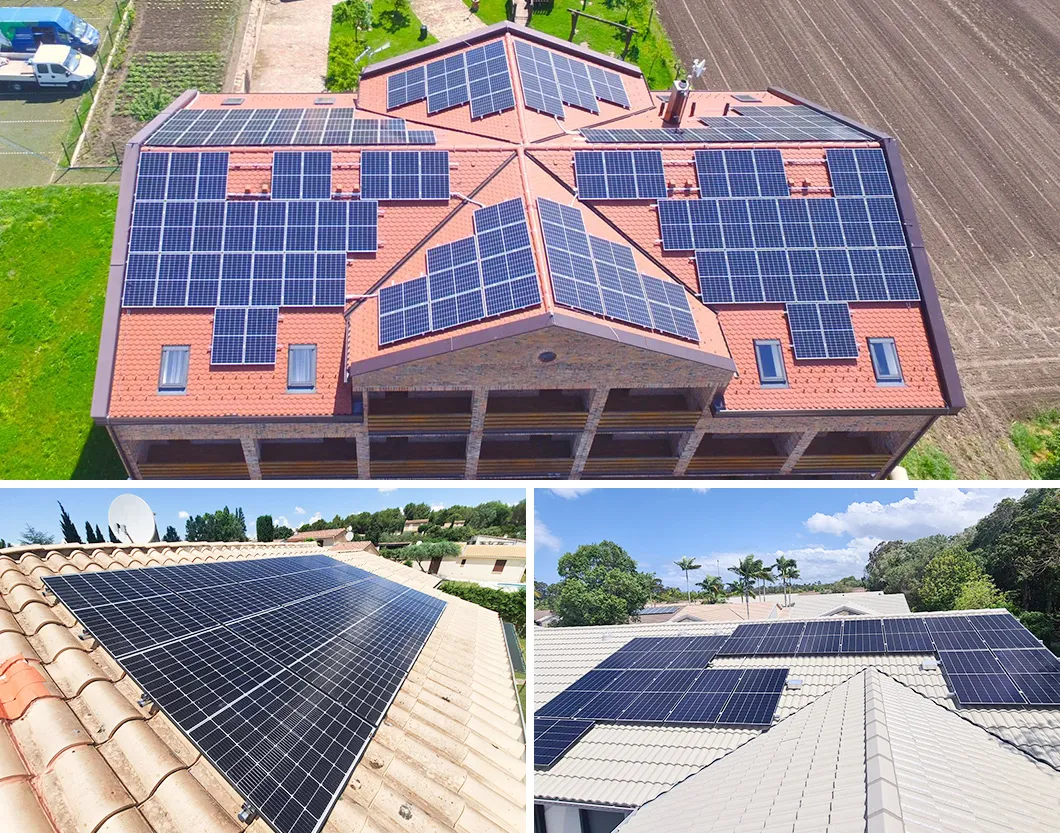

Residential

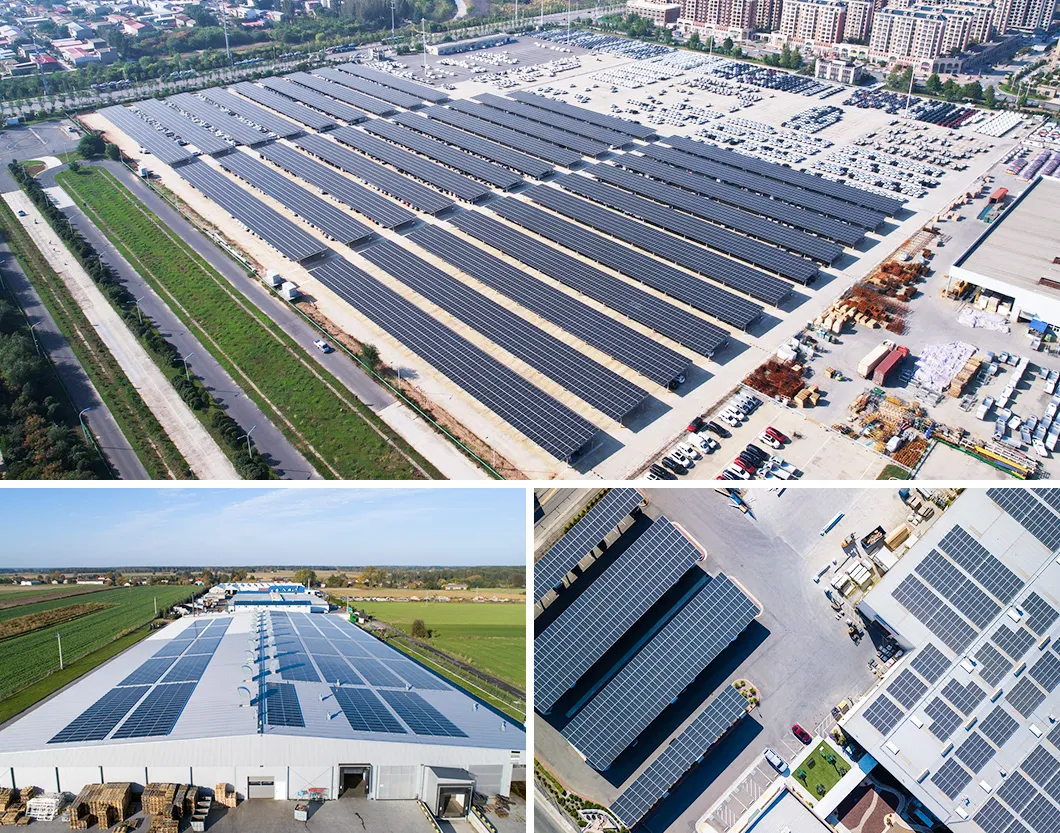

Commercial

🔧 OEM & ODM Services

❓ Frequently Asked Questions

What is N-Type Mono Topcon technology?

N-Type Topcon (Tunnel Oxide Passivated Contact) is an advanced solar cell technology that offers higher efficiency, lower degradation, and better performance in low-light conditions compared to traditional P-type cells.

What is the advantage of 156 half-cells design?

The half-cell design reduces internal resistance and shading losses, leading to higher power output and better thermal performance, especially in large-scale industrial applications.

Are these panels certified for international markets?

Yes, our solar modules are fully certified with ISO and CE standards, ensuring they meet the safety and quality requirements for global installation.

How do you ensure the quality of each module?

Every module undergoes multiple EL (Electroluminescence) tests at different stages of production—before lamination, after lamination, and a final check—to ensure there are no internal micro-cracks or electrical defects.

Can these panels withstand extreme weather conditions?

Yes, our modules are designed to handle heavy loads, withstanding up to 2400Pa wind load and 5400Pa snow load, making them suitable for various geographic locations.

Do you offer customized cable lengths for projects?

Standard cable length is 300mm, but we provide customization options to meet specific project requirements and wiring layouts.
