High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions

Warranty: <5 Years
Certification: CE
Material: Polycrystalline Silicon

Product Description

SPEC Basic Info.

Model NO. SMP-AU004
Application Light Industry
Transport Package Box
Specification 700mm*235mm*307mm
Origin China
HS Code 8507600090
Production Capacity 30000pieces/Year

LOGI Packaging & Delivery

Package Size 227.80cm * 113.40cm * 3.50cm
Package Gross Weight 1328.600kg
Lead Time 15 days (1 - 10 Pieces)
To be negotiated (> 10 Pieces)

INFO Product Description

High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions
Technical Features Maximum Power Output Maximum Efficiency
Double Glass 450-470W 23.52%
Double Glass 450-470W 23.52%
TOPCon 450-470W 23.52%
Double Glass 495-525W 23.00%
Double Glass 500-525W 23.22%
TOPCon 500-525W 23.22%
Double Glass 610-630W 23.32%
Double Glass 610-630W 23.32%
TOPCon 610-630W 23.32%

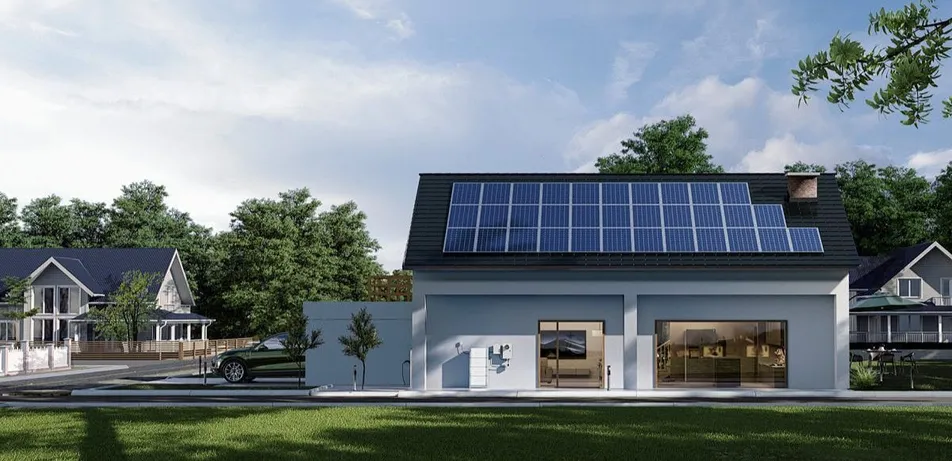

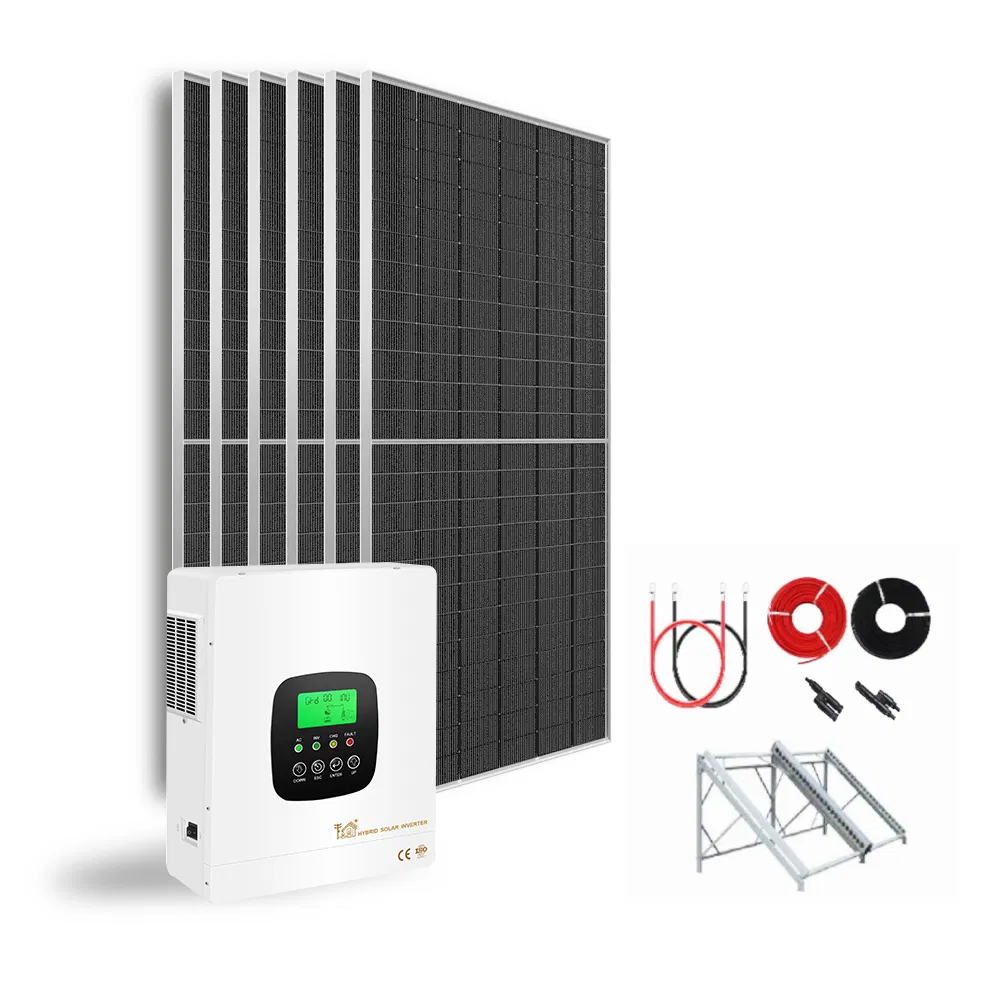

CASE Application Scenario

High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions
High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions

DATA Basic Information

Mechanical Specification
Cell Type Monocrystalline
Cell Dimensions 182*91mm
Cell Arrangement 144 (6*24)
Weight 28.6kg
Module Dimensions 2278*1134*35mm
Cable Length Portrait 300mm/Landscape 1200mm/Customized
Cable Cross Section Size TUV: 4mm²(0.006inches² )/UL: 12AWG
Front Glass 3.2mm (0.13inches) AR Coating Tempered Glass
No. of Bypass Diodes 3
Packing Configuration 31pcs/carton, 620pcs/40hq
Frame Anodized Aluminium Alloy
Junction Box IP68
Operating Conditions
Maximum System Voltage 1000/1500V/DC(IEC)
Operating Temperature -40°C~ +85°C
Maximum Series Fuse 25A
Static Loading Snow Loading: 5400Pa/ Wind Loading: 2400Pa
Conductivity at Ground ≤0.1Ω
Safety Class II
Resistance ≥100MΩ
Connector T01/LJQ-3-CSY/MC4/MC4-EVO2
Temperature Coefficient
Temperature Coefficient Pmax -0.36%/°C
Temperature Coefficient Voc -0.29%/°C
Temperature Coefficient Isc +0.048%/°C
NMOT 45±2°C
High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions
High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions
High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions

SHIP Logistics and Services

High Efficiency Shingled 410W Solar Panel for Eco-Friendly Solutions

FAQS Frequently Asked Questions

Q1. Do you have any MOQ limit?
A: Yes. In general, MOQ is 1 pallet.
Q2. How about your delivery time?
A: For the big capacity, we can deliver around 25 days. It depends on the items and the quantity of your order. It usually takes 1-2 days if in stock.
Q3. Can you offer OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service. We can design the packaging and logo according to your requirements.
Q4. Do you test all your goods before delivery?
A: Yes, all our products have been thoroughly tested before delivery.
Q5. What is the standard packaging standard?
A: We use robust cartons and pallets for maximum transit protection.
Q6. Could you offer Form A or C/O?
A: No problem. We can prepare relative documents to origin affairs office or other relevant offices to apply for the certificates for free.
