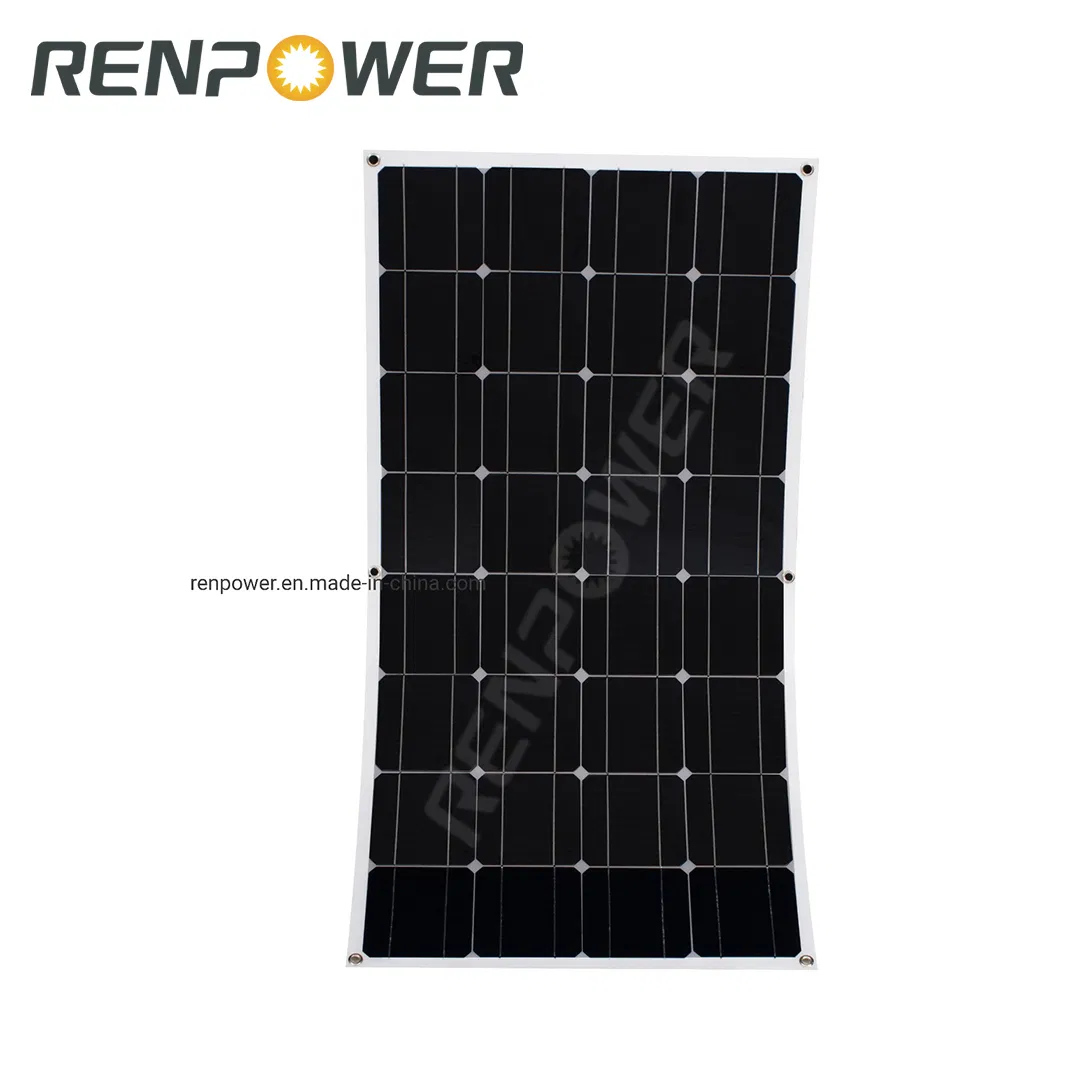

Flexible Solar Panel Marine Mono Flexible Solar Panel 100W

Send Inquiry

Product Description

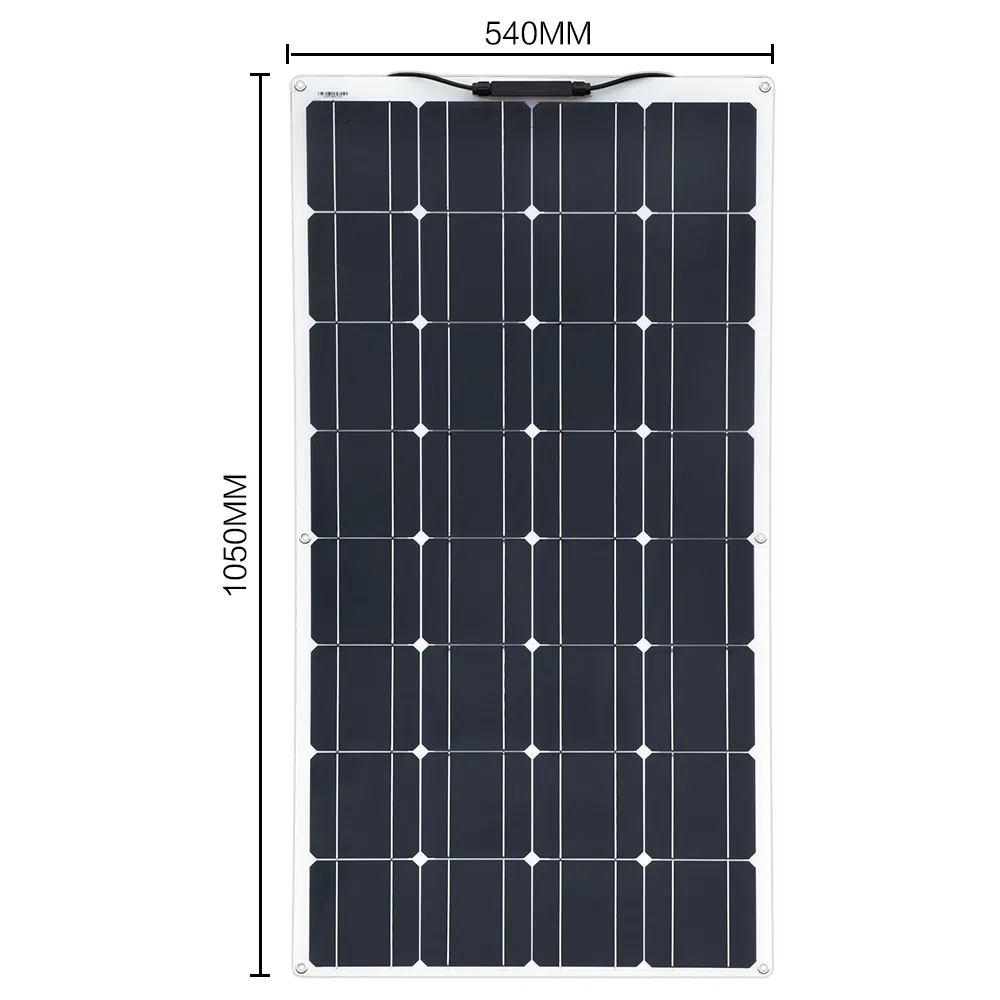

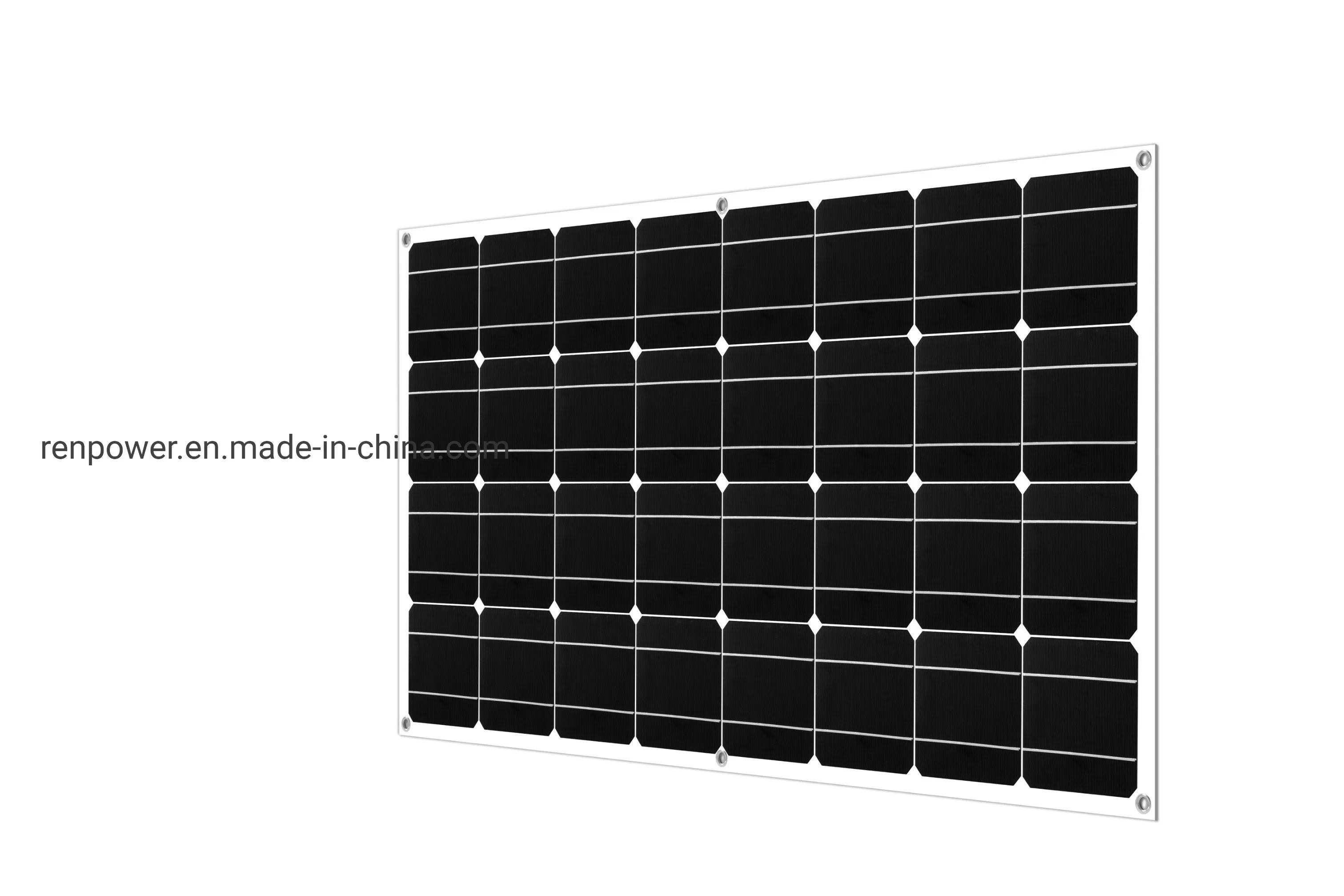

Flexible Solar Panel Marine Mono Flexible Solar Panel 100W

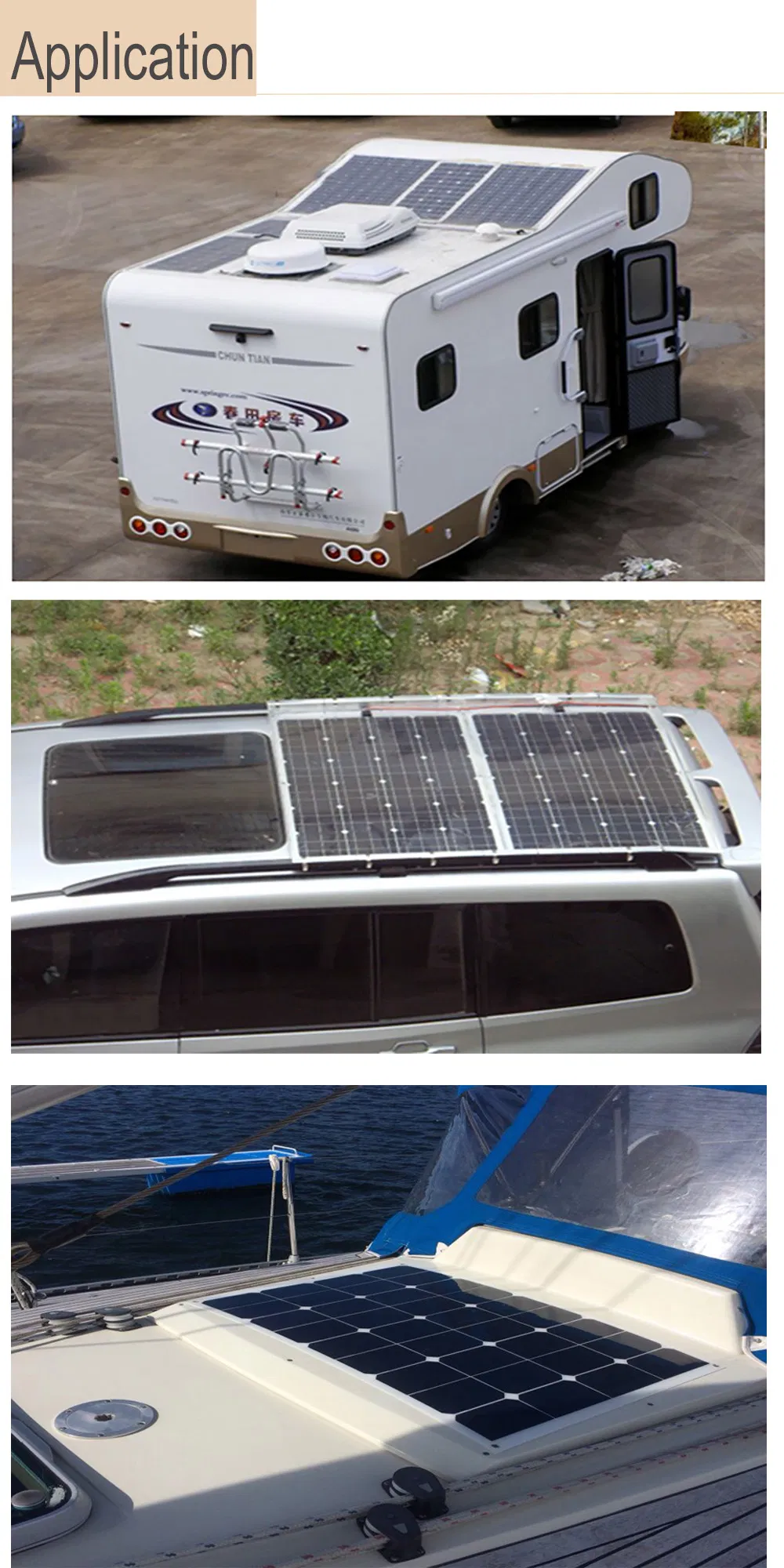

✔ Flexible solar panels can be widely used for Boat, Yacht, Caravan, Vehicle RV, Electrical Car...

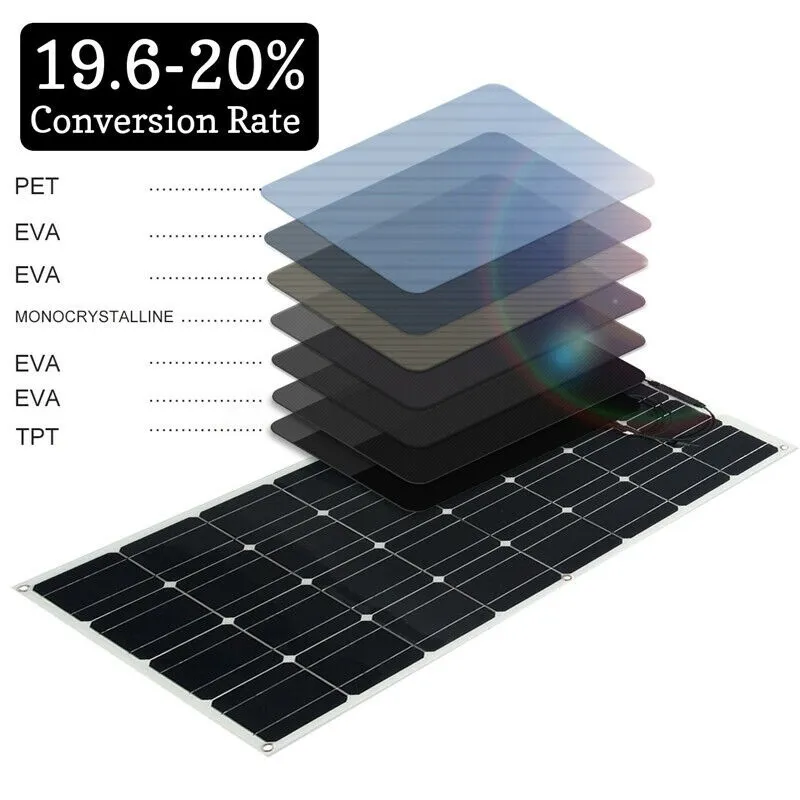

✔ Material: TPT+EVA+125mm mono solar cells+EVA+Frosted PET
✔ Light weight, easy to carry and install.
✔ Incredibly simple mounting & Inexpensive transportation
✔ Ultralight & extremely durable design
✔ Extreme flexibility for any uneven surfaces

Product Parameters

Specification	30W	50W	80W	100W	150W	230W
Max Power (Pmax)	30W	50W	80W	100W	150W	230W
Voltage (Vmp)	20.5V	16.89V	20.5V	17.22V	19V	19.95V
Current (Imp)	1.46A	2.96A	4.39A	5.81A	7.9A	11.96A
Open Circuit (Voc)	24.77V	21.38V	24.77V	21.98V	24.05V	25.03V
Short Circuit (Isc)	1.54A	3.21A	4.63A	6.29A	8.56A	12.54A
Weight	0.56kg	1.2kg	1.8kg	2.39kg	3.37kg	4.7kg

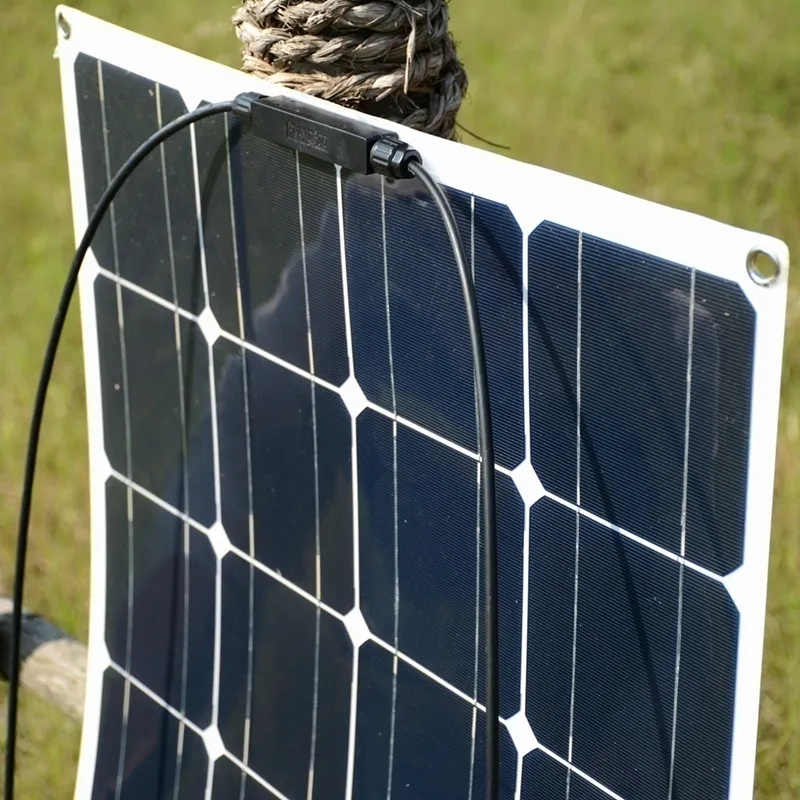

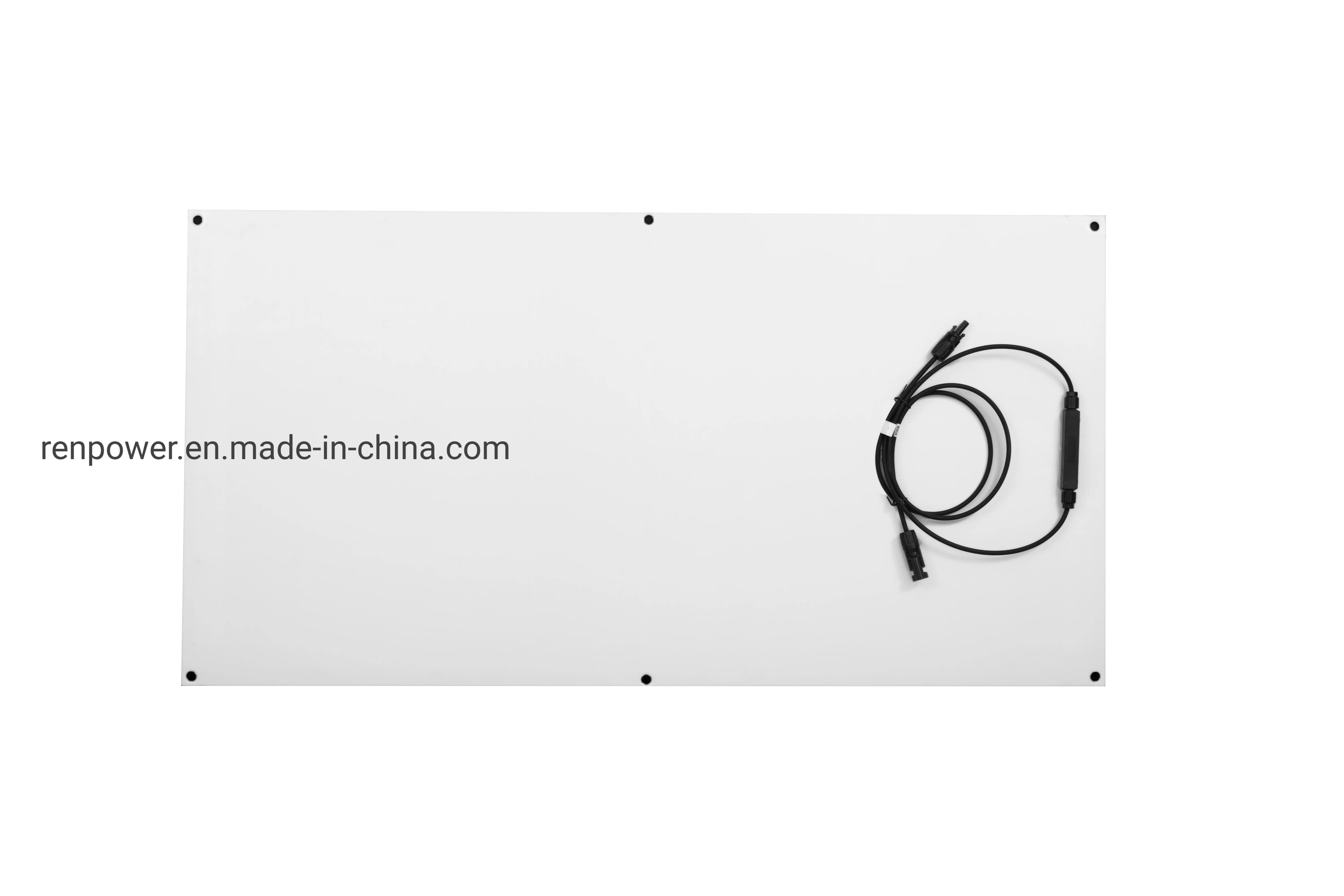

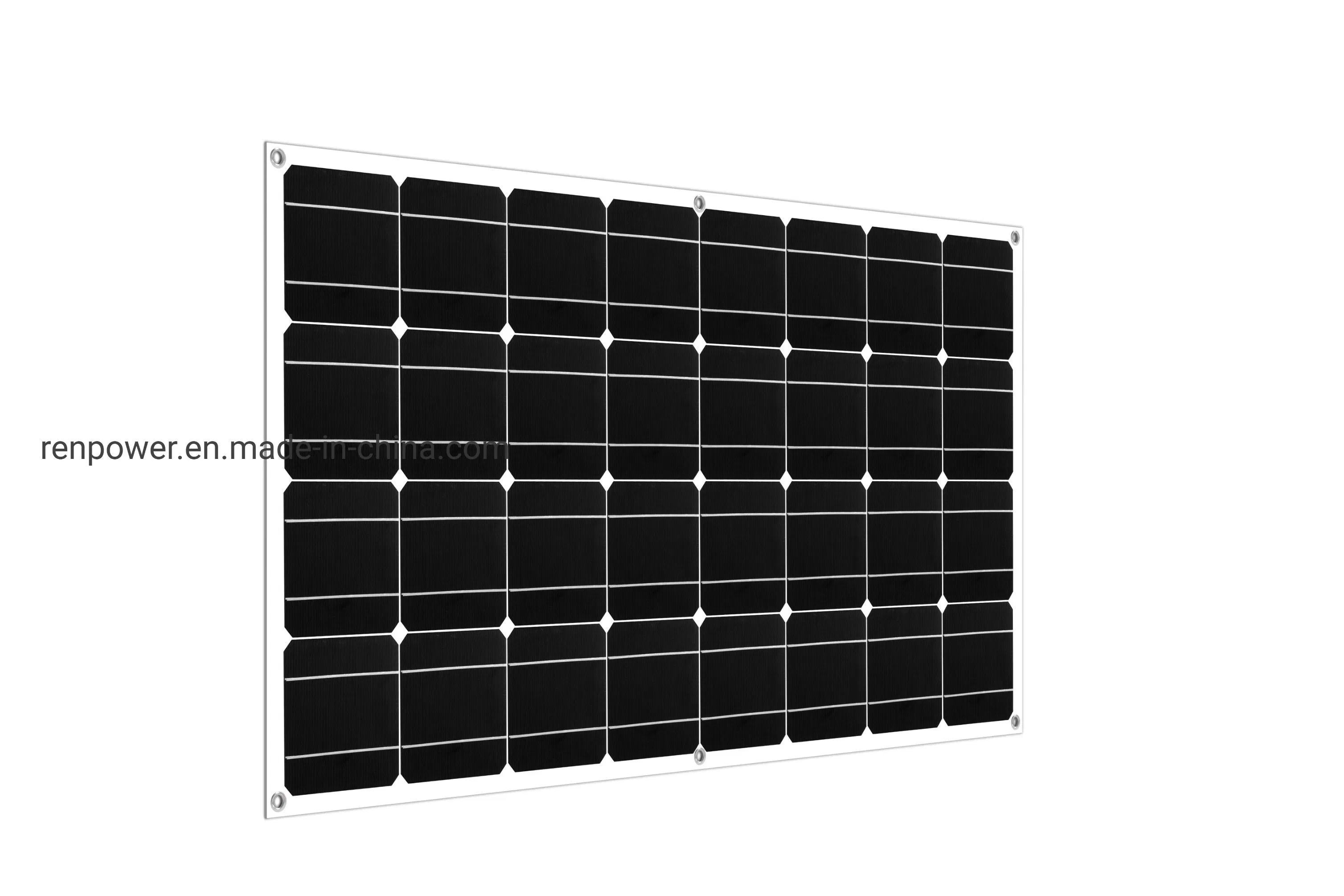

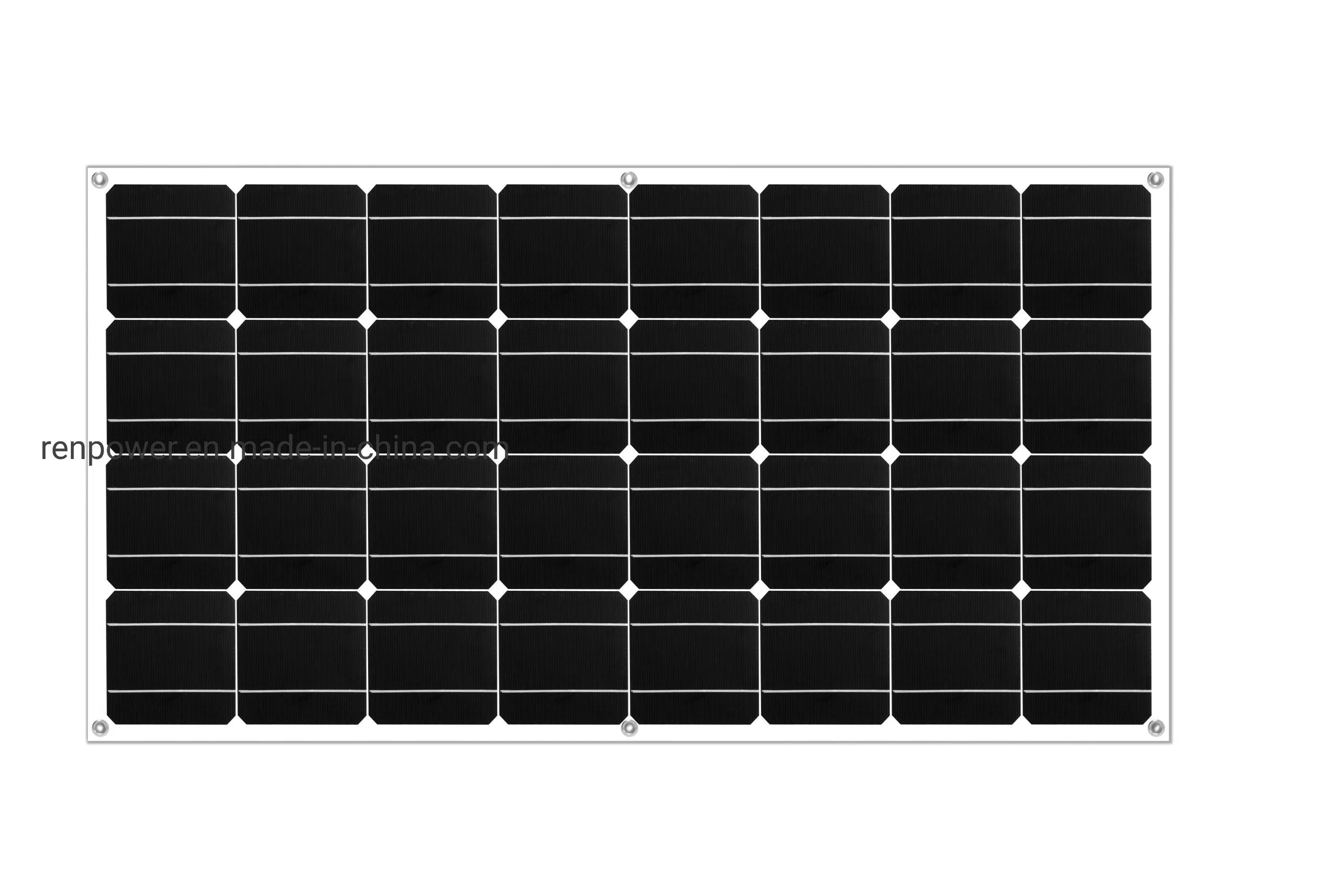

Product Showcase

FAQ

1. Are these solar panels truly waterproof?

Yes, our marine-grade flexible solar panels are designed with advanced PET lamination to withstand harsh marine environments and water exposure.

2. Can I bend these panels on a curved roof?

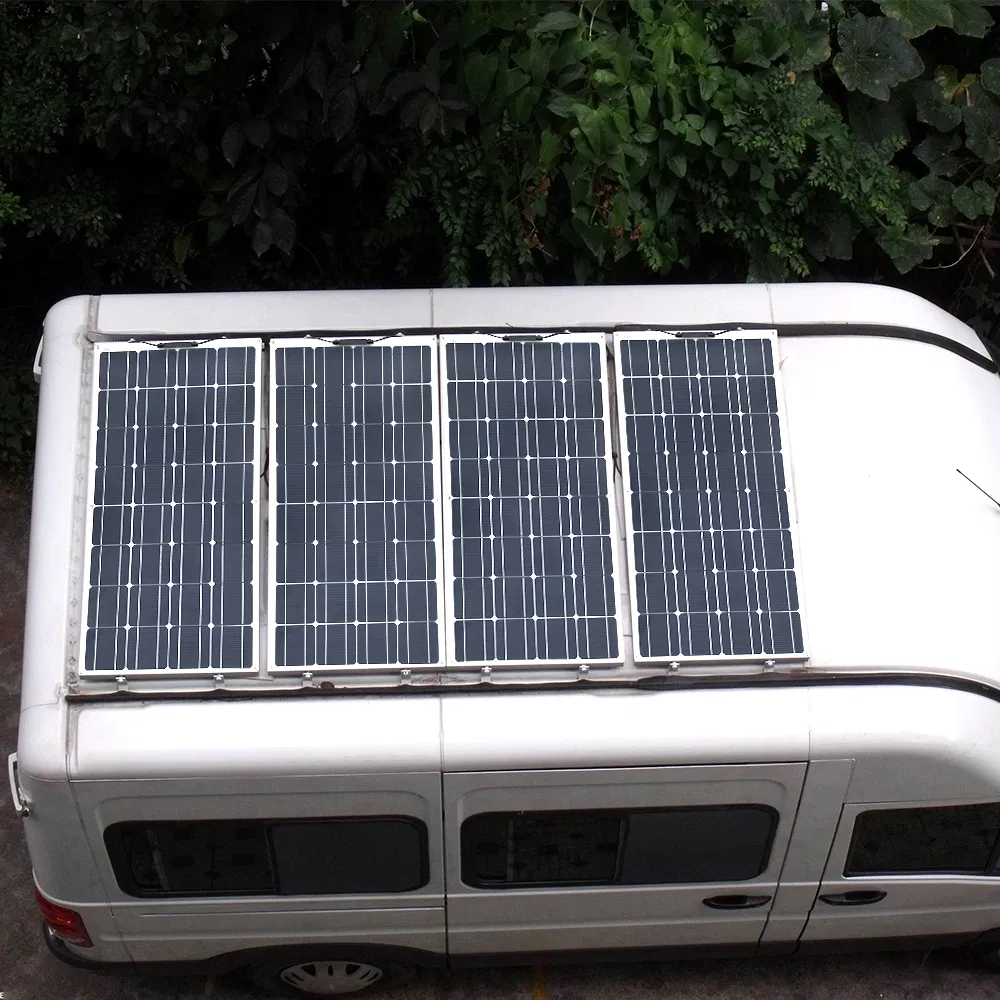

Yes, these panels are designed for extreme flexibility, allowing them to be mounted on curved surfaces like boat decks, RV roofs, and vans.

3. What accessories are included in the package?

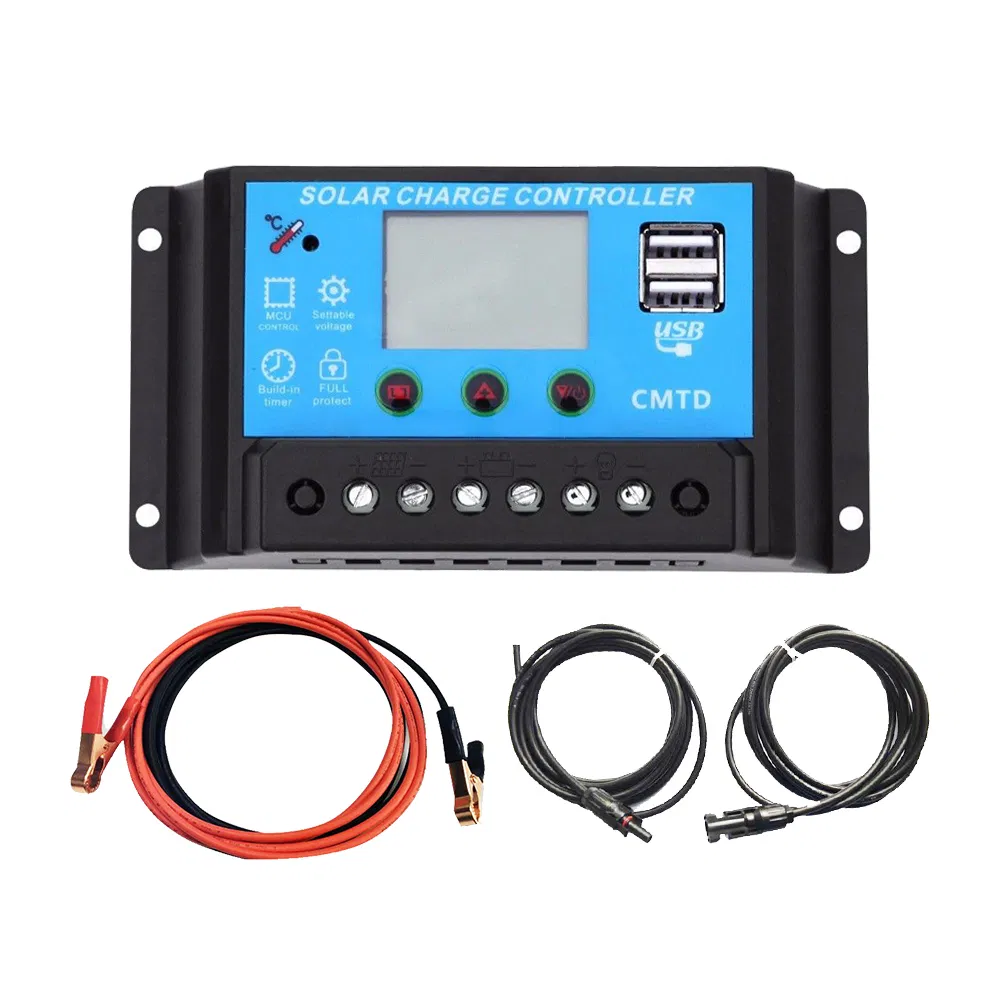

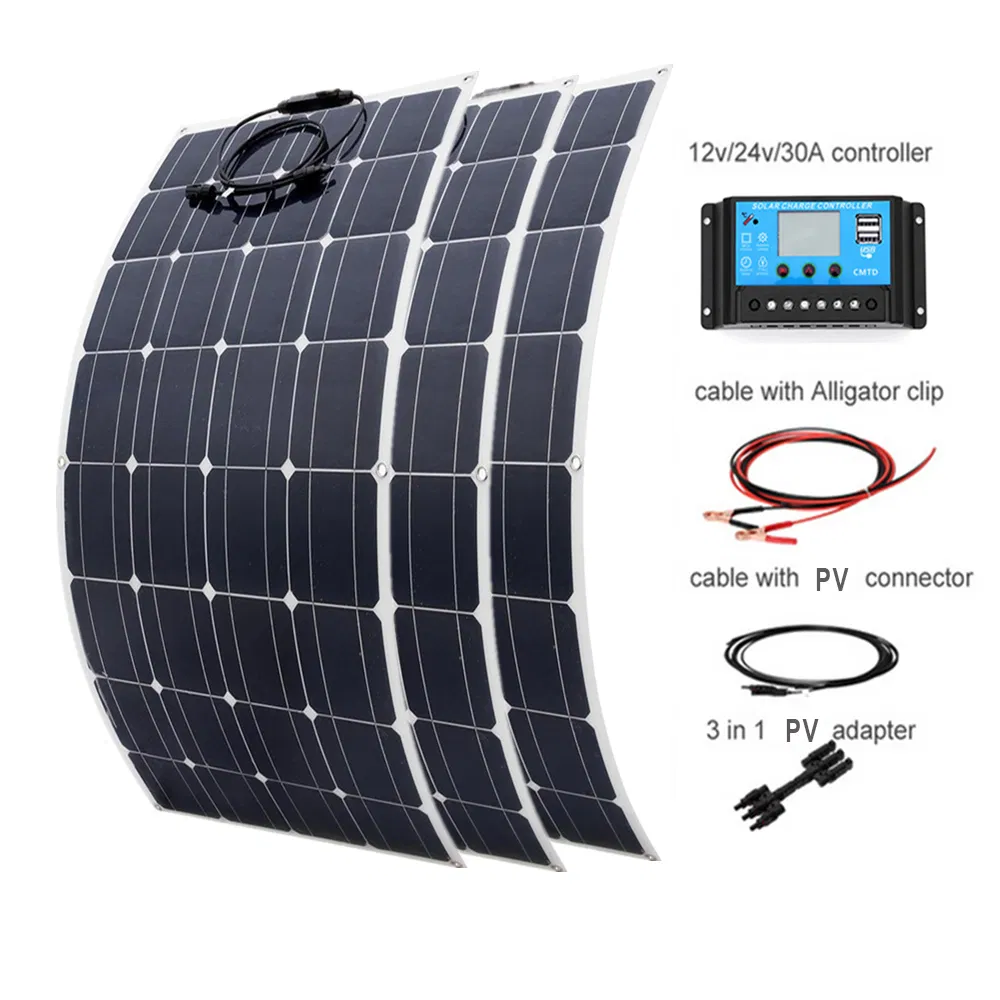

Each package typically includes a PWM/MPPT controller, 5 meters of cable with connectors, alligator clips, and a user manual.

4. Can I walk on these solar panels?

While they are extremely durable, we recommend avoiding direct stepping or heavy pressure on the solar cells to ensure long-term performance.

5. How do I install the flexible solar panel?

The panels are lightweight and can be installed using industrial-strength adhesive, grommets, or Velcro, depending on your mounting surface.
