| Model NO. | KM580W-144 |
| Number of Cells | 72pcs |
| Application | Light Industry |
| Condition | New |
| Certification | EST, ISO, CB, CE |

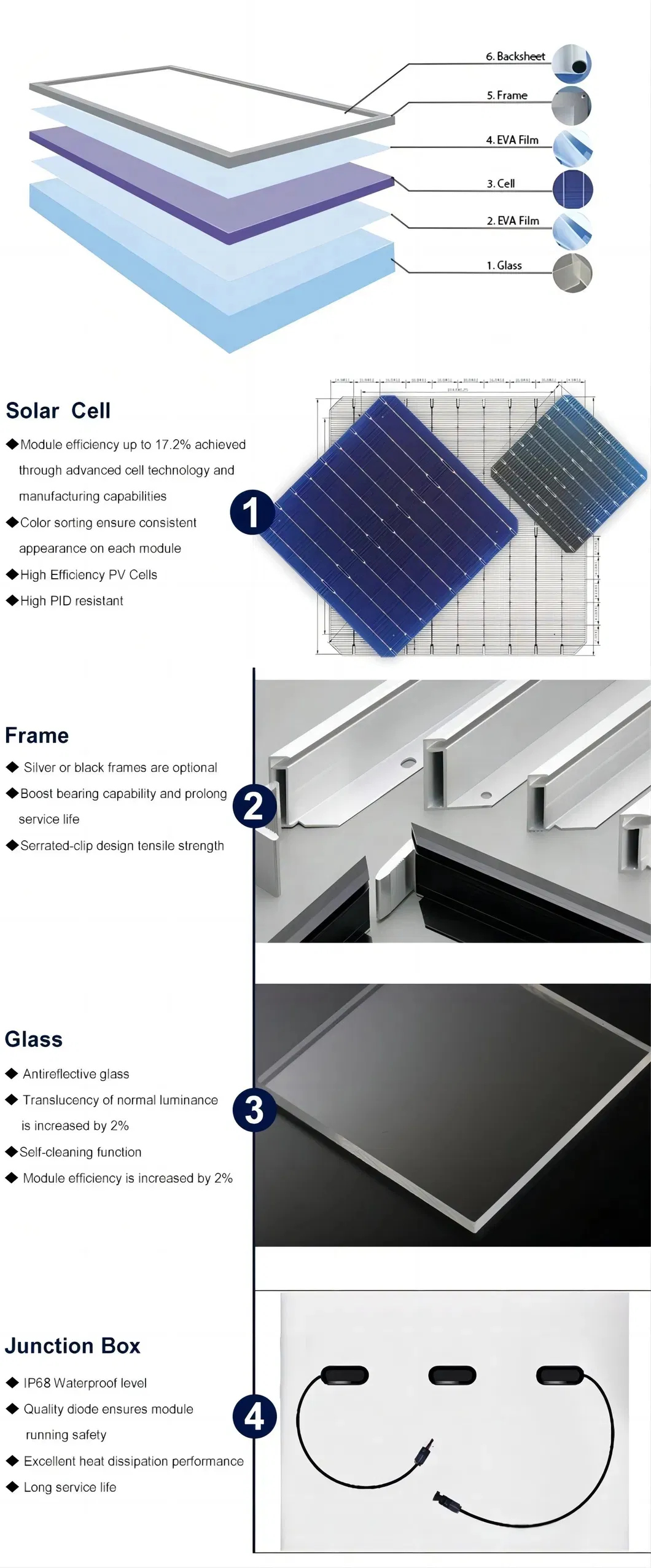

| Material | Monocrystalline Silicon |
| Colour | White and Black |
| Glass | Double and Single |
| Frame | Anodized Aluminum Alloy |
| Temperature | -40° C~+85° C |
| Junction Box | IP68/Pass TUV Certificate |

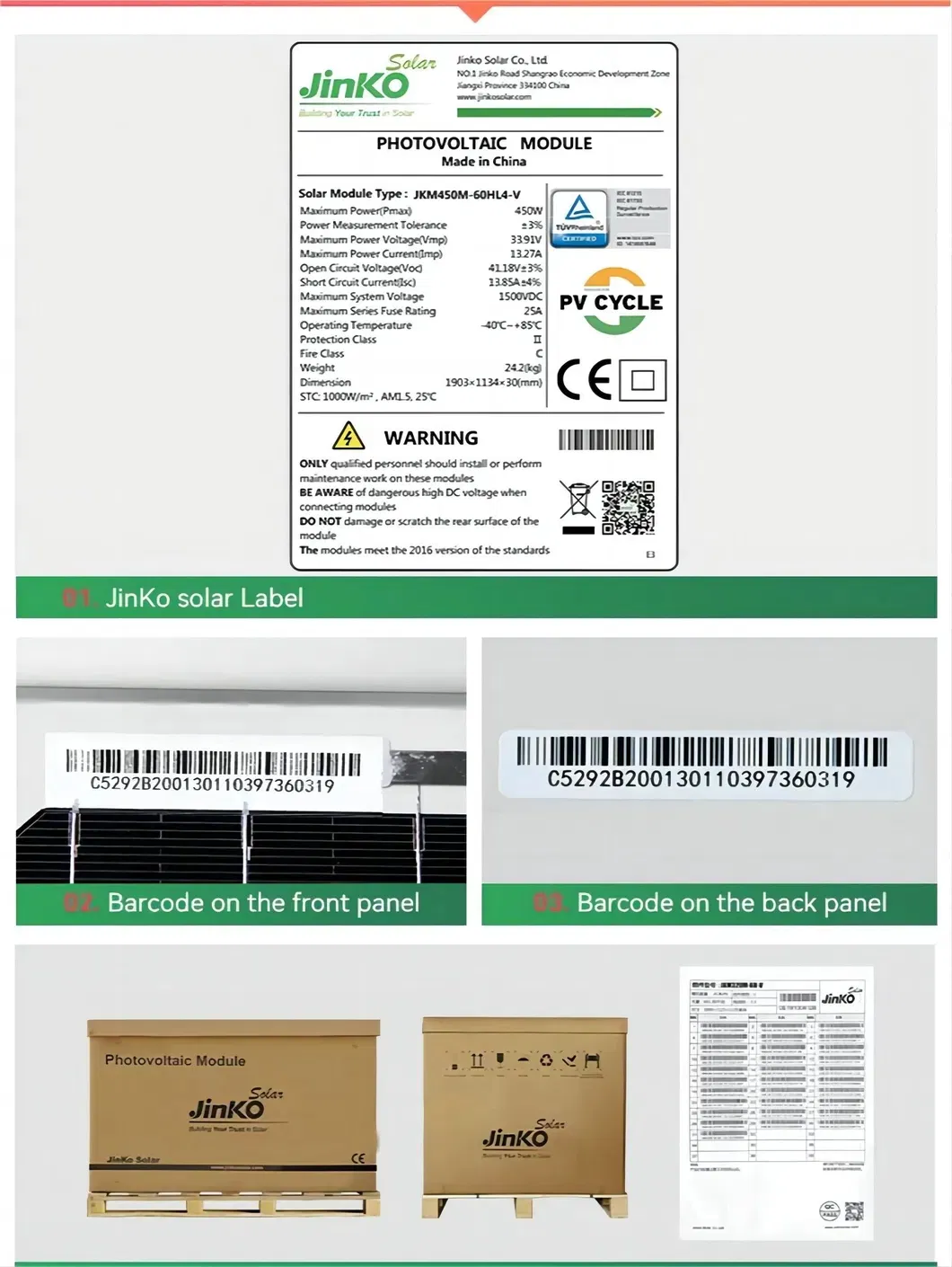

| Transport Package | Carton; Wooden Case; Pallet |
| Specification | 2-3CBM |
| Origin | China |
| HS Code | 8541430000 |
| Production Capacity | 50000 PCS/Year |

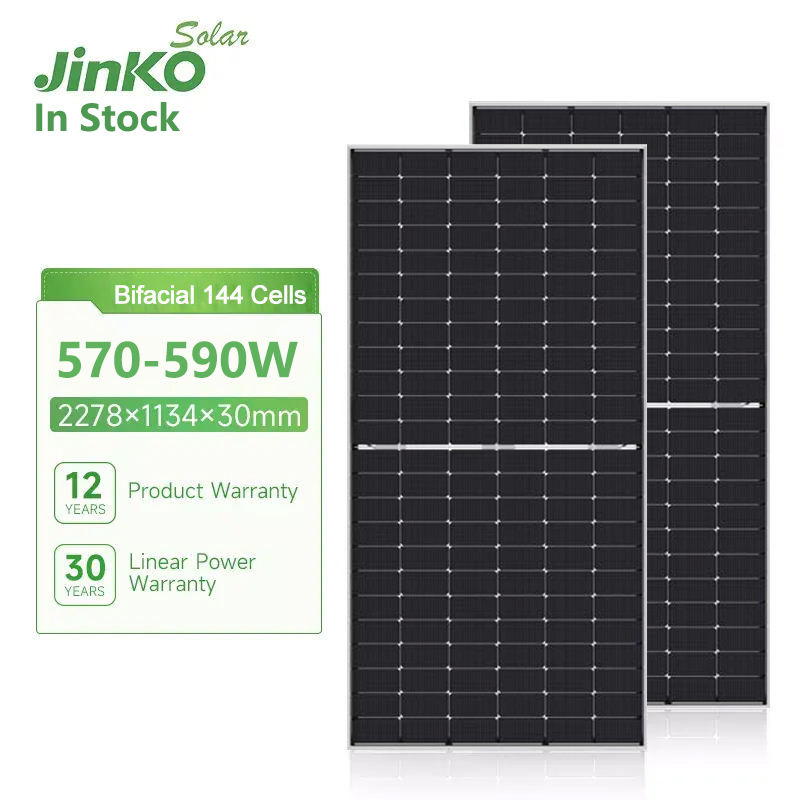

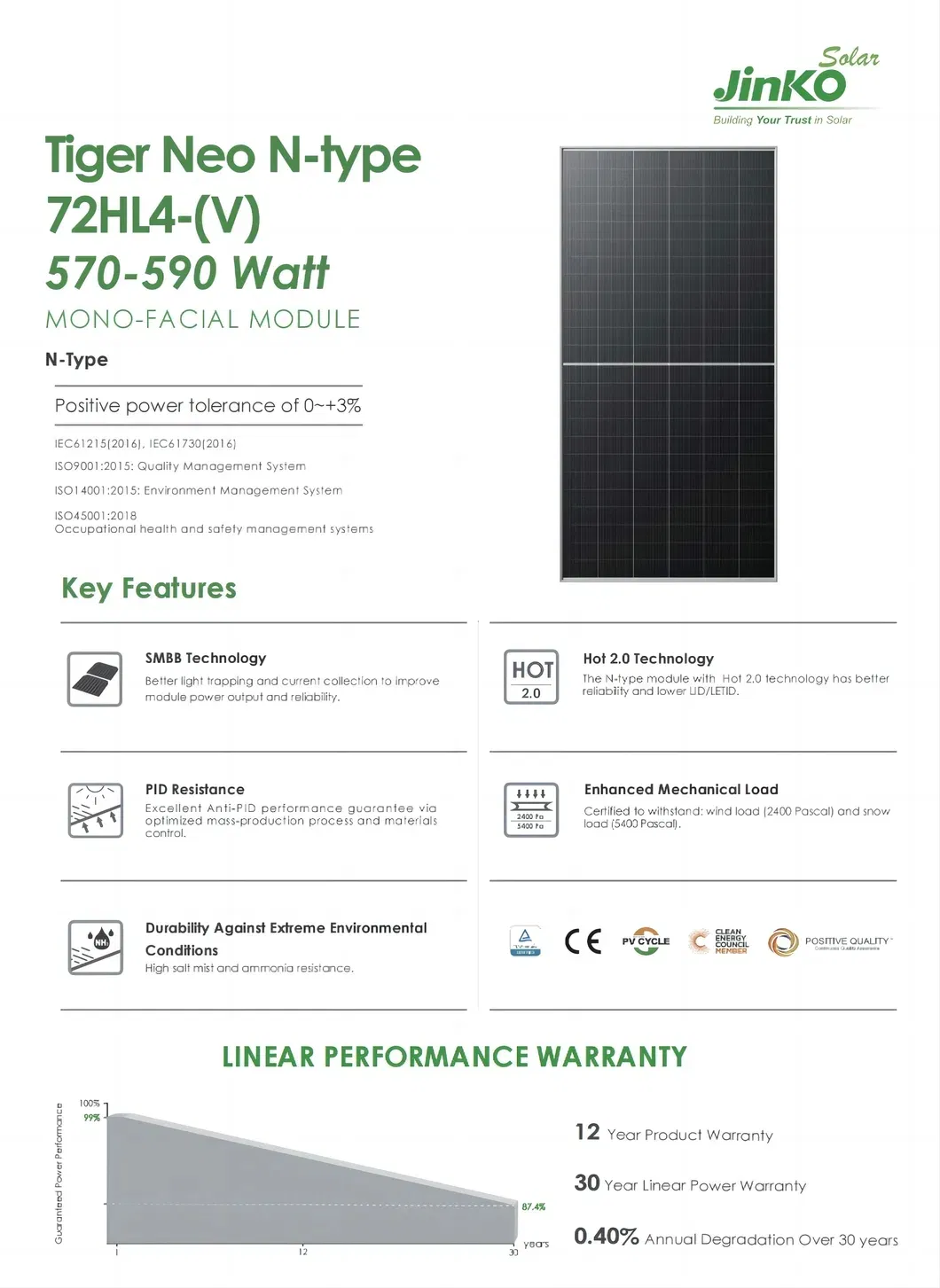

| Maximum Power (Pmax/W) | 570W | 575W | 580W | 585W | 590W |
| Maximum Power Voltage (Vmp/V) | 42.99V | 43.17V | 43.35V | 43.53V | 43.71V |
| Maximum Power Current (Imp/A) | 13.26A | 13.32A | 13.38A | 13.44A | 13.50A |
| Open Circuit Voltage (Voc/V) | 51.99V | 52.15V | 52.31V | 52.47V | 52.63V |
| Short Circuit Current (Isc/A) | 13.89A | 13.95A | 14.01A | 14.07A | 14.13A |
| Module Efficiency(%) | 21.07 | 22.26 | 22.45 | 22.65 | 22.84 |
| Power Output Tolerance (W) | 0~+3 | ||||
| Temperature Coefficient of Isc | +0.045%/°C | ||||
| Temperature Coefficient of Voc | -0.25%/°C | ||||
| Temperature Coefficient of Pmax | -0.29%/°C | ||||
| Model NO. | JKM470M-7RL3 | Condition | new | |

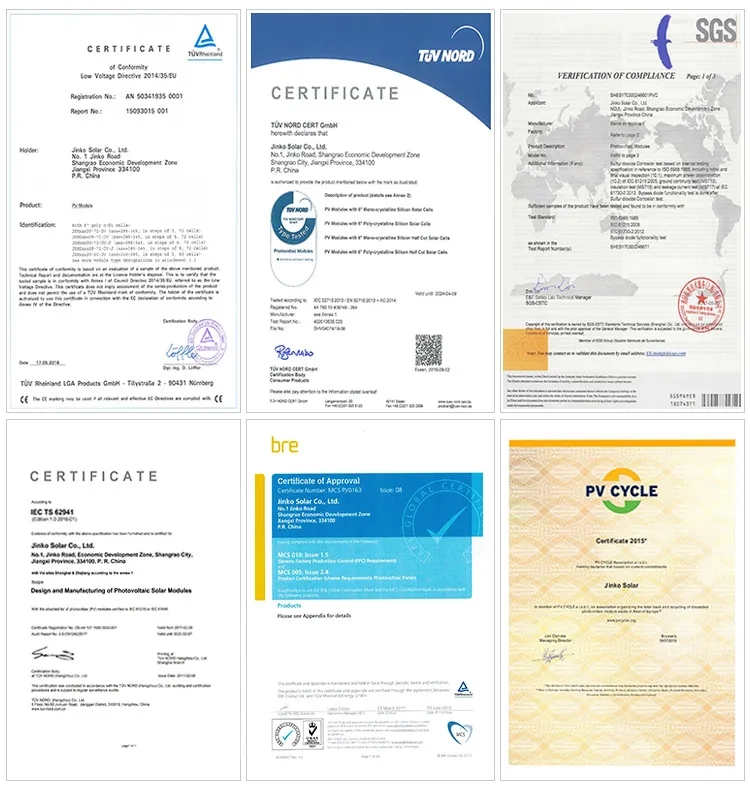

| Certification | ISO, CE, IEC 61215/61730 | Material | Monocrystalline Silicon | |
| Solar Cell | Low Lid Mono Perc, 9bb Half Cut | Slow Power Degradation | Enabled by Low Lid Mono Perc Technology | |
| Degradation Value | First Year Less Than 2%, 0.55% Year 2~25 | Junction Box | IP 68, 3 Diodes | |
| Output Cable | 4.0mm2, 300mm or Customized | Glass | Single , 3.2mm, Tempered, Low Iron High Transmiss | |
| Frame | Anodized Aluminum Alloy | Max. Series Fuse Rating | 20A | |
| Q′ty / Container | 31PCS/Plt, 620PCS/40hc | Product Class | 100% A Grade | |
| MOQ | 620PCS | Wind and Snow Load | 5400/2400PA | |

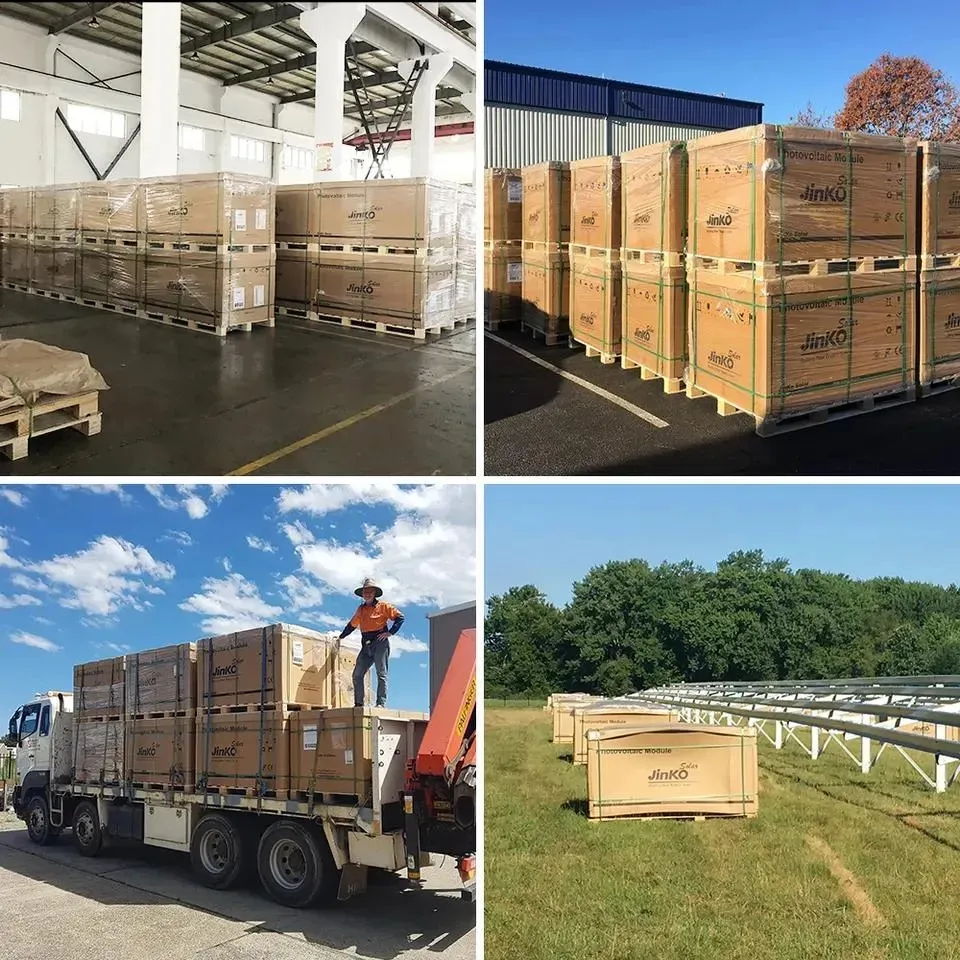

| Hailstone Test | 25mm Hailstone at The Speed of 23m/S | Transport Package | Carton Box and Wooden Pallet | |
| Specification | 2182*1029*35mm | Origin | China | |
| HS Code | 85414020 | Production Capacity | 500MW/Year |
We stand as a professional manufacturer with over 15 years of expertise in the Solar Panel industry, crafting quality and innovation.
Our diverse product lineup includes poly and mono solar panels, solar batteries, power systems, charger controllers, inverters, lights, and even solar air-conditioning. We excel in bespoke solar system solutions, reaching clients across more than 60 countries in Europe, Asia, the Americas, and Africa.
Align your business with a trusted partner. Our global footprint spans Australia, Africa, Russia, the Middle East, South America, Asia, and beyond. Join us for a prosperous business journey!
