Basic Information Overview
Certification
EST, ISO, CB, CE, TUV
Material
Monocrystalline Silicon
Specification
1722*1134*30mm
Package Size
191.00cm * 129.00cm * 15.00cm
Product Description
- 0BB design on the front to get module efficiency up to 24%.
- Ultimate solar design with seamless full black aesthetics.
- High performance powered by HPBC new generation solar cell.
- Uncompromised quality for extended warranty and durability.
- Full back welding technology to effectively reduce micro cracking of modules.
Technical Parameters
| Pmax |
Voc |
Isc |
Vmp |
Imp |
Size (MM) |
Weight |
| 5W | 24.12V | 0.27A | 20.16V | 0.25A | 280*190*17 | 0.9kg |
| 10W | 24.12V | 0.53A | 20.16V | 0.50A | 400*200*17 | 1.2kg |
| 50W | 23.76V | 2.70A | 20.88V | 2.39A | 520*590*25 | 3.6kg |
| 100W | 27.72V | 4.63A | 24.36V | 4.11A | 930*580*30 | 6.2kg |
| 200W | 26.40V | 9.71A | 23.20V | 8.62A | 1280*770*30 | 10.7kg |
| 300W | 27.52V | 13.89A | 22.78V | 13.17A | 1910*770*30 | 15.6kg |
| 450W | 39.60V | 13.69A | 34.80V | 12.93A | 1909*1134*35 | 22.5kg |
| 680W | 49.47V | 17.48A | 39.40V | 16.41A | 2384*1303*35 | 38.5kg |

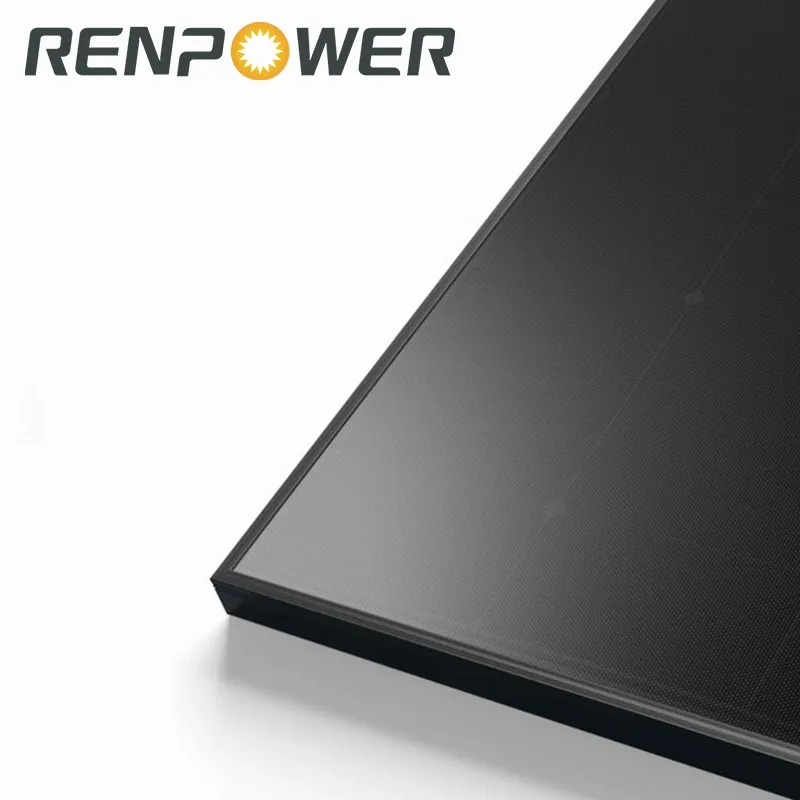

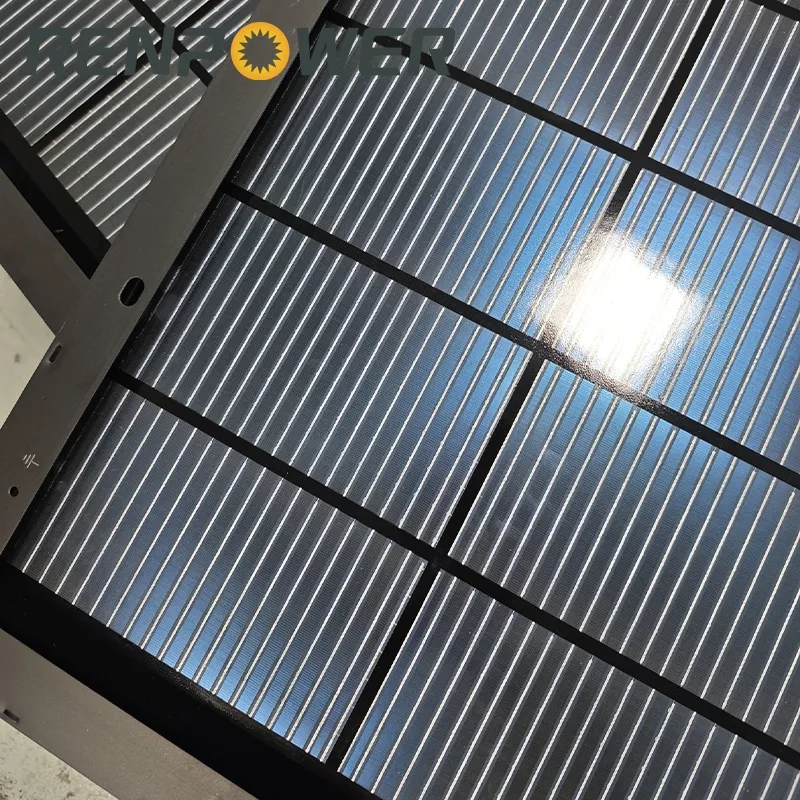

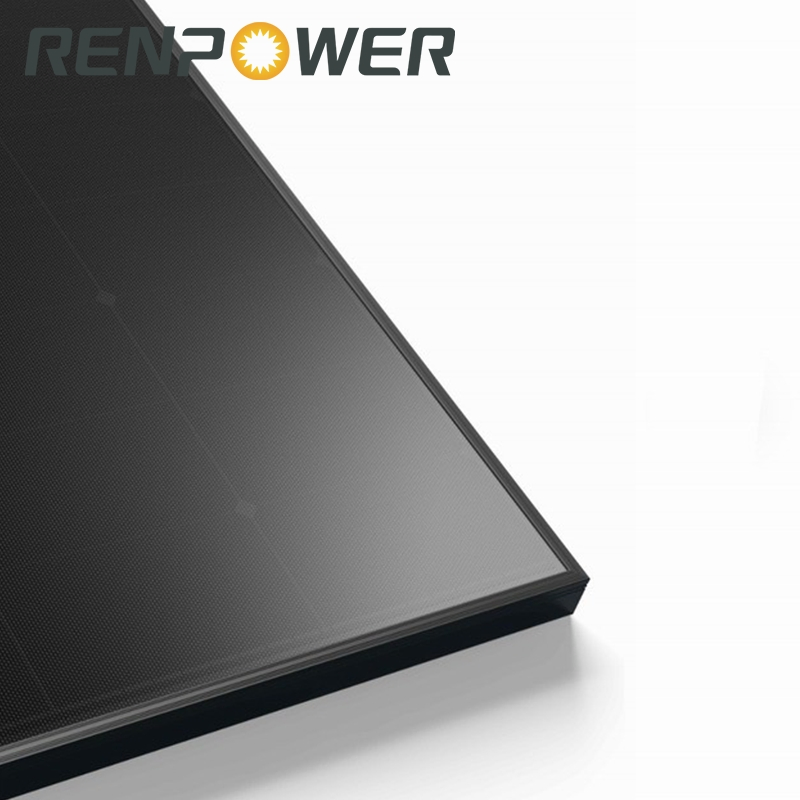

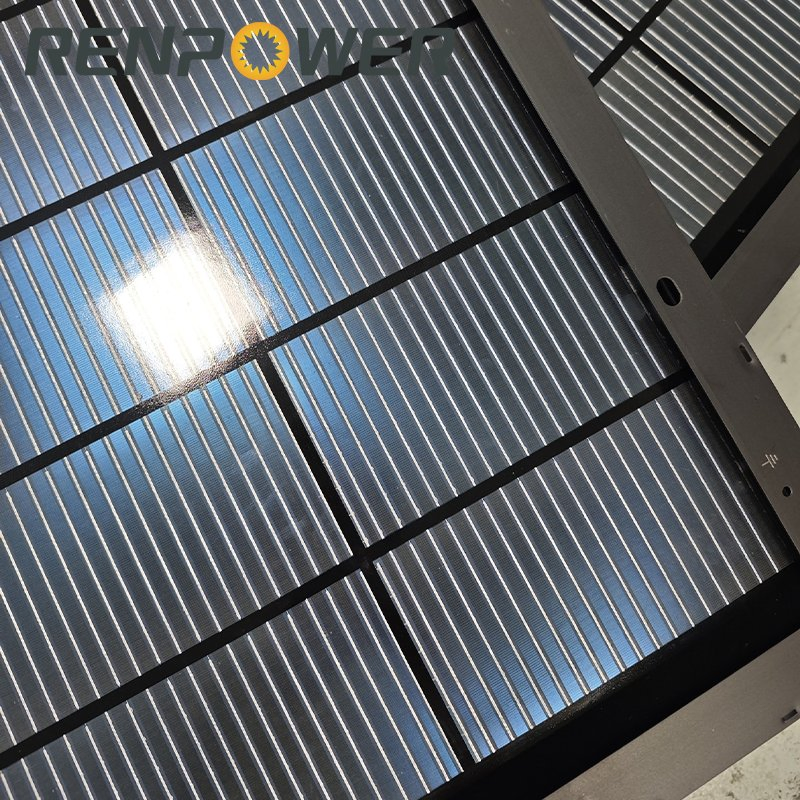

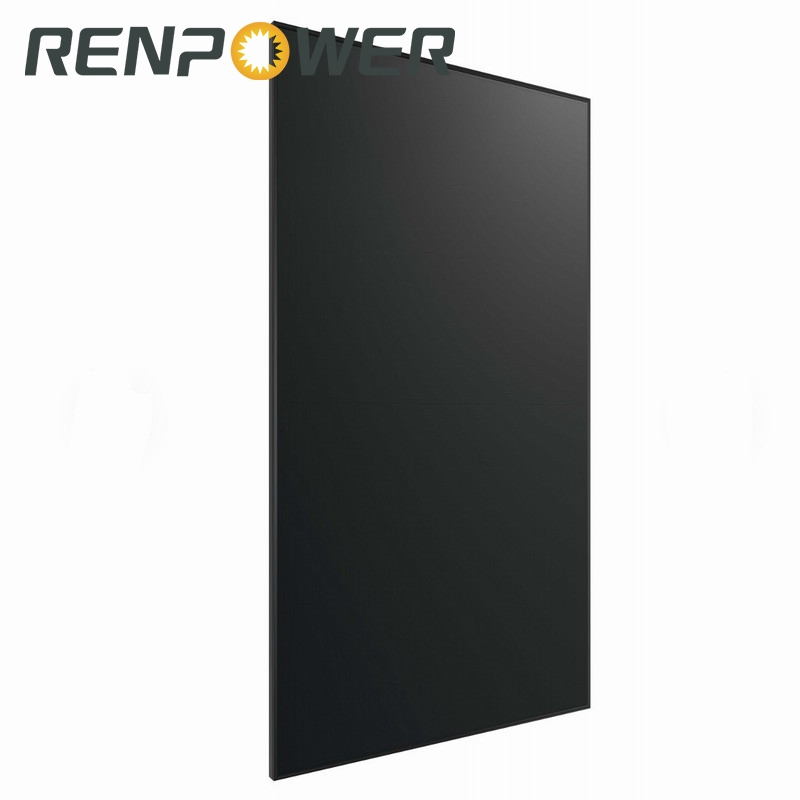

Detailed Product Photos

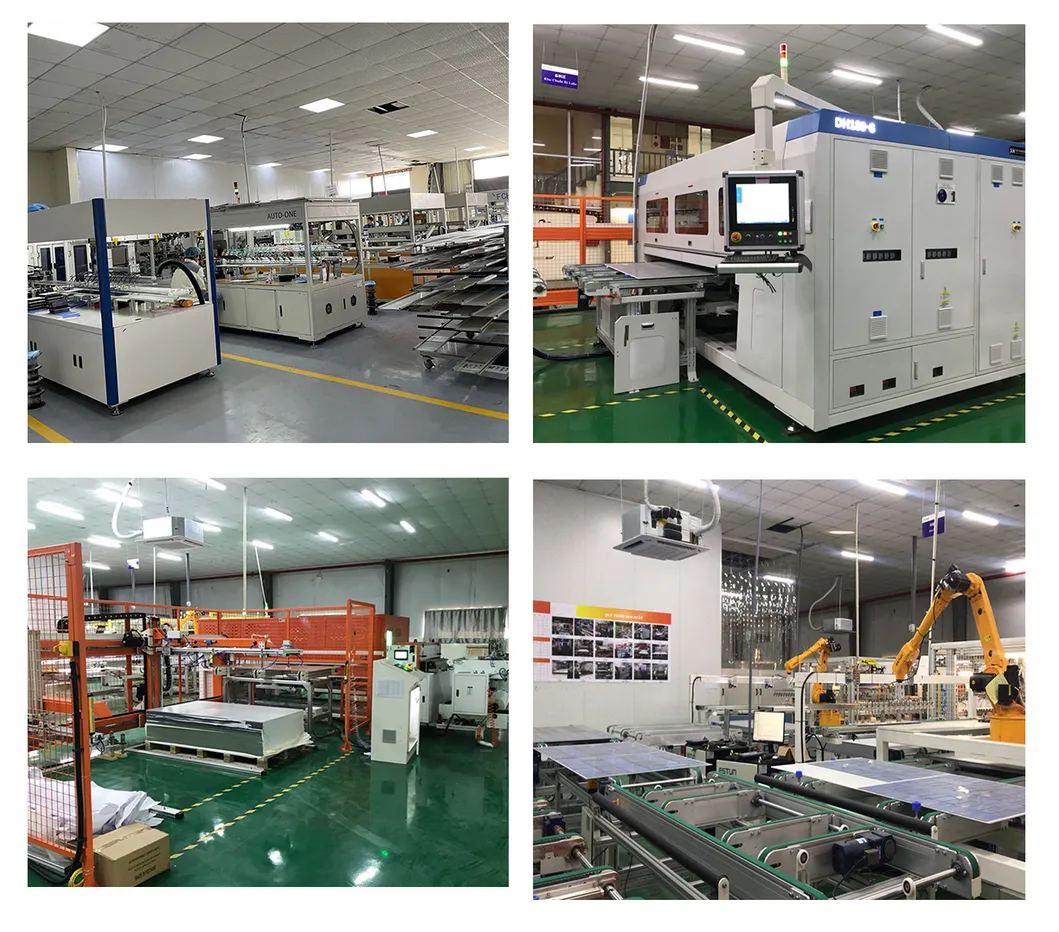

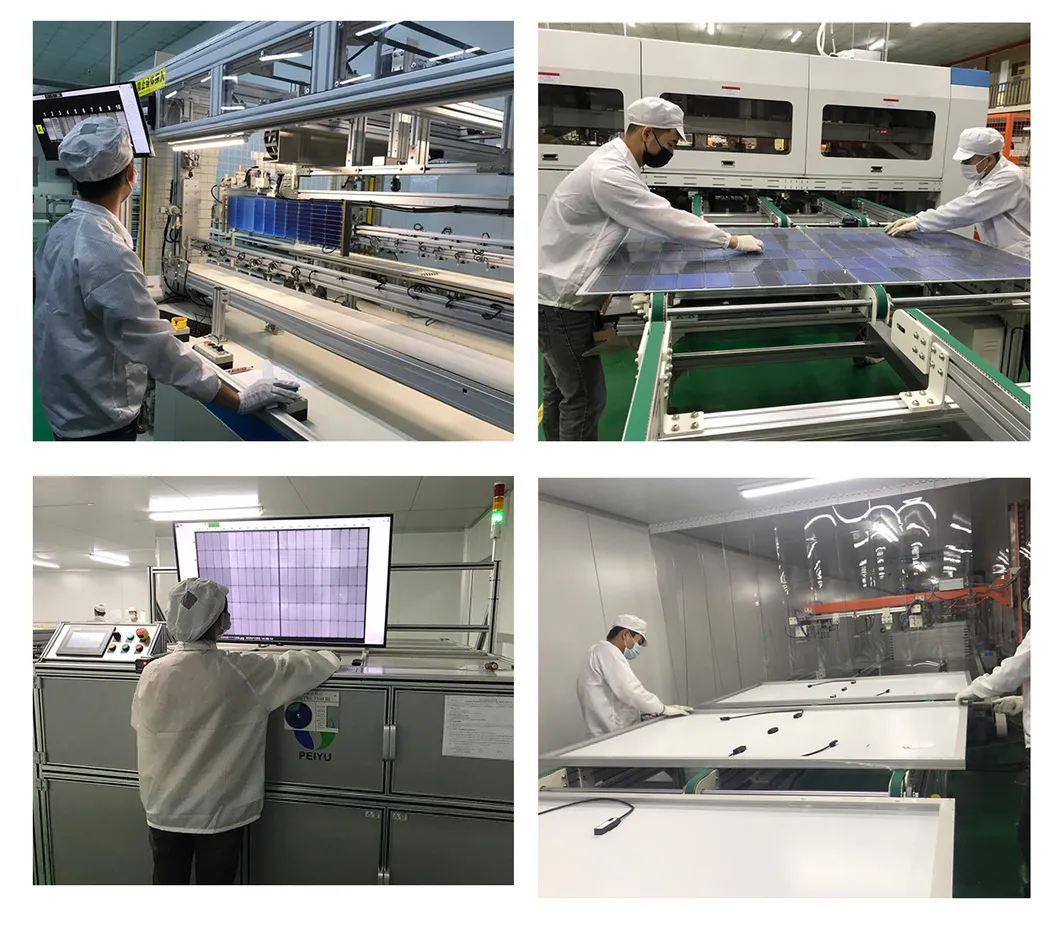

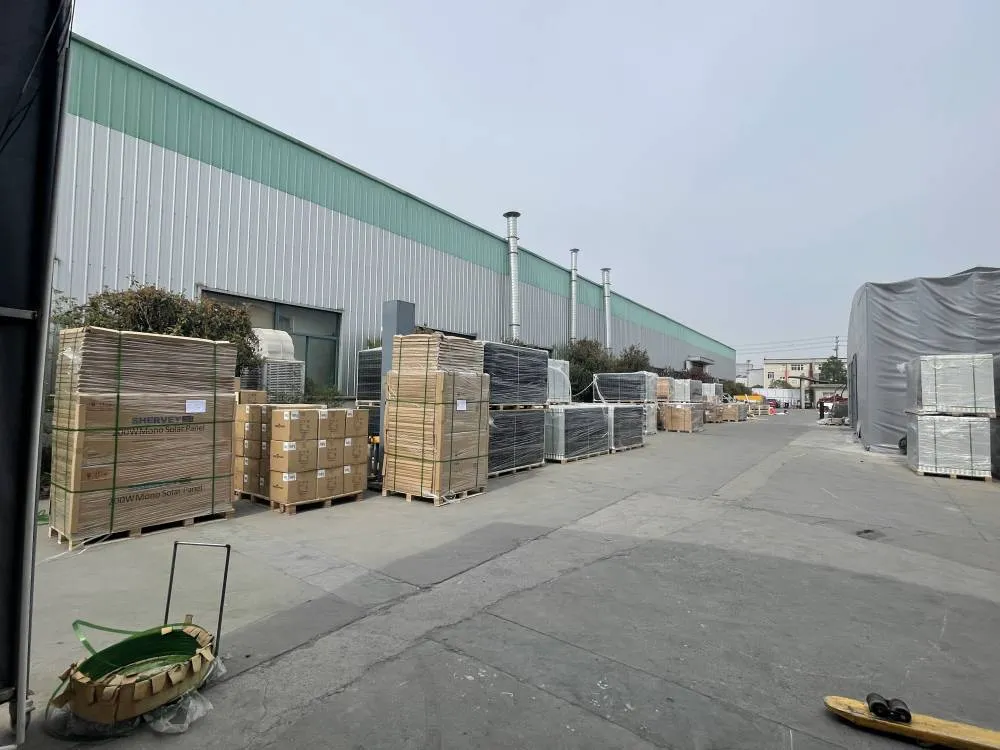

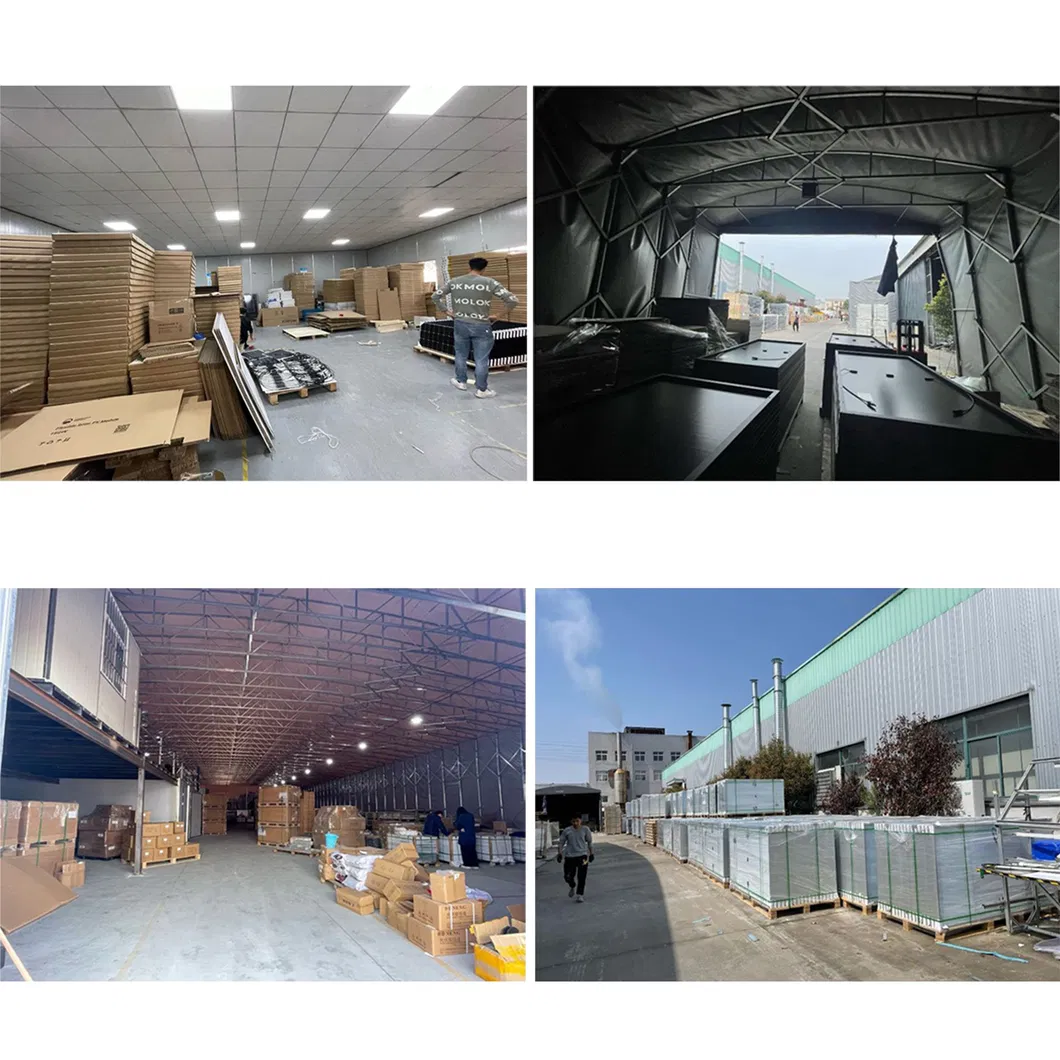

Packaging & Shipping

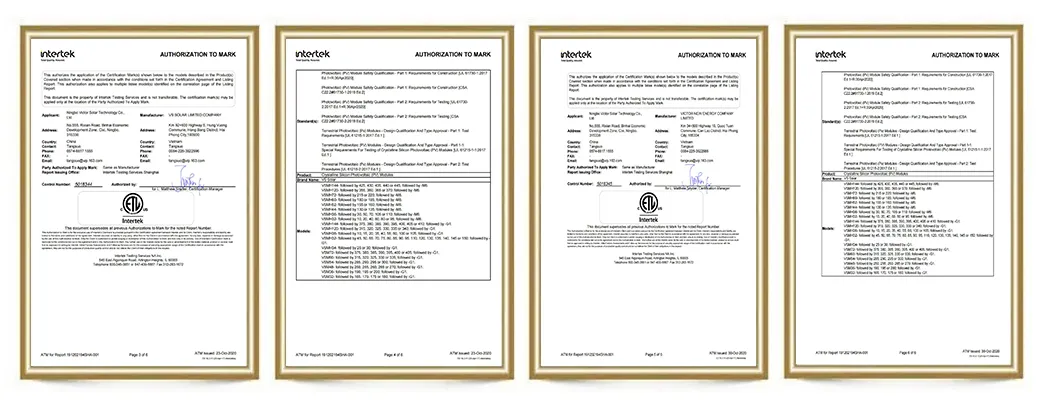

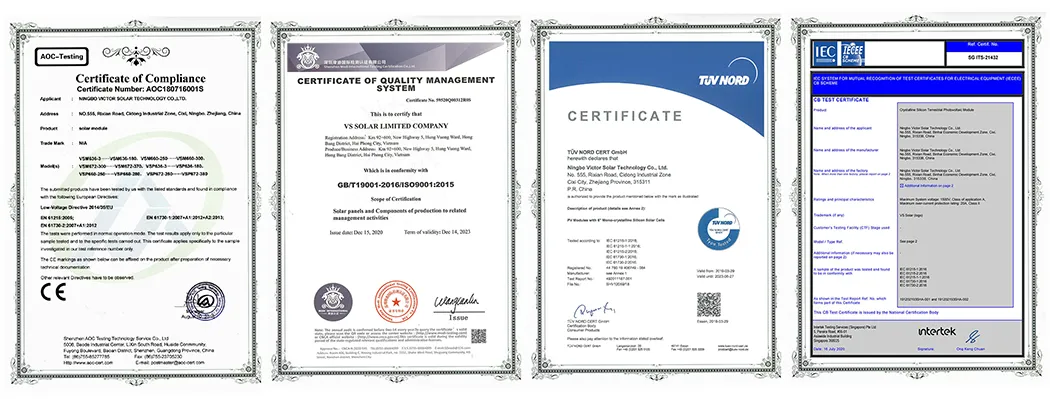

Quality Certifications
Frequently Asked Questions
Do these panels have brackets attached to the roof?
The component itself is equipped with a junction box connector. If you need to access an off-grid system or roof mounting, additional wiring and specific mounting brackets must be purchased.
Can this solar panel accommodate 12V/24V/36V/48V batteries?
Yes, it can be used, but must be connected to a charge controller. Ensure the controller is adapted to handle the maximum component input power.
How much energy can this panel produce daily?
Under Standard Test Conditions (STC), the power generation is the product of standard power and the duration of peak sunlight (W*H).
What is the advantage of high power modules?
High power modules use more efficient cells, requiring fewer panels to meet energy demands, which simplifies wiring and installation.
What is the cell type used in these modules?
These panels use high-efficiency Monocrystalline Silicon cells, specifically the new generation HPBC solar cells.

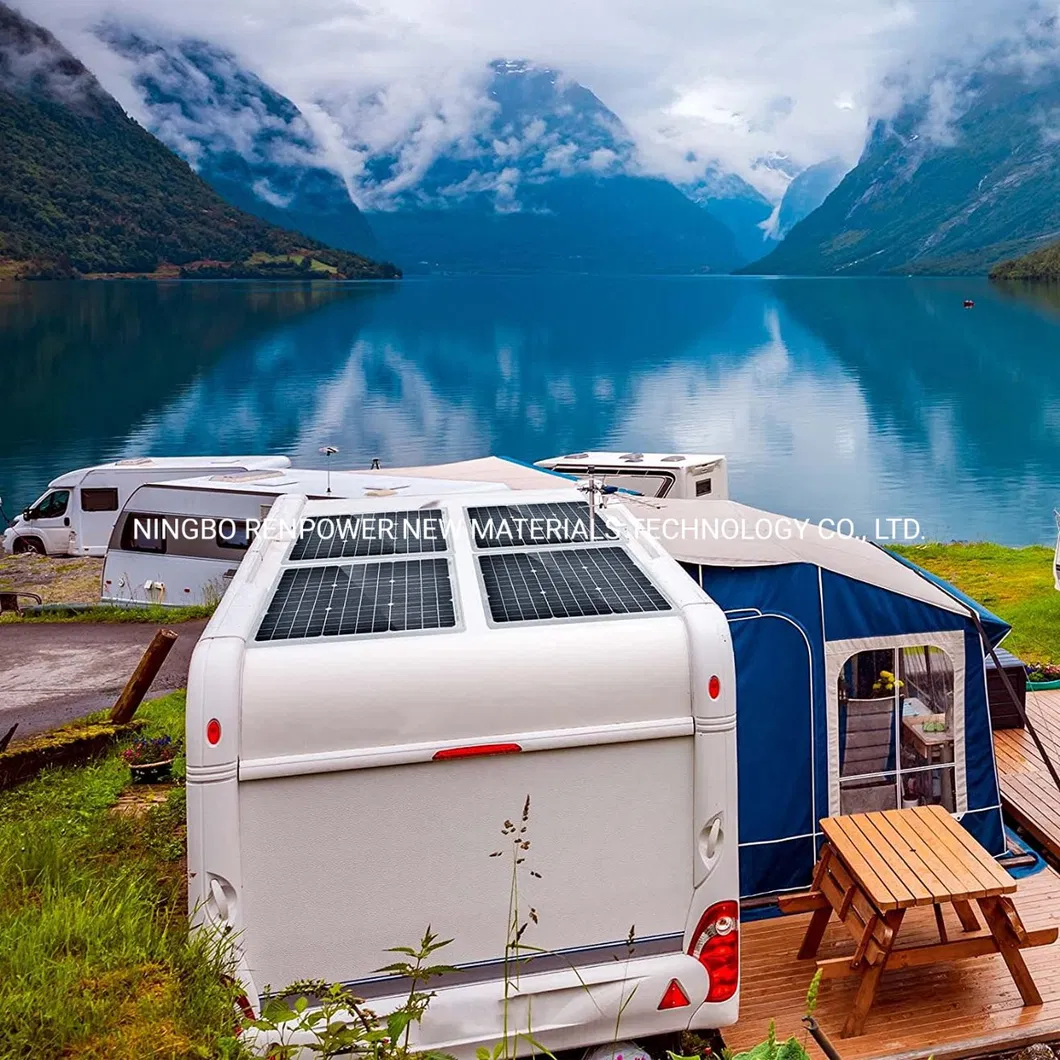

Are these panels suitable for marine or boat use?

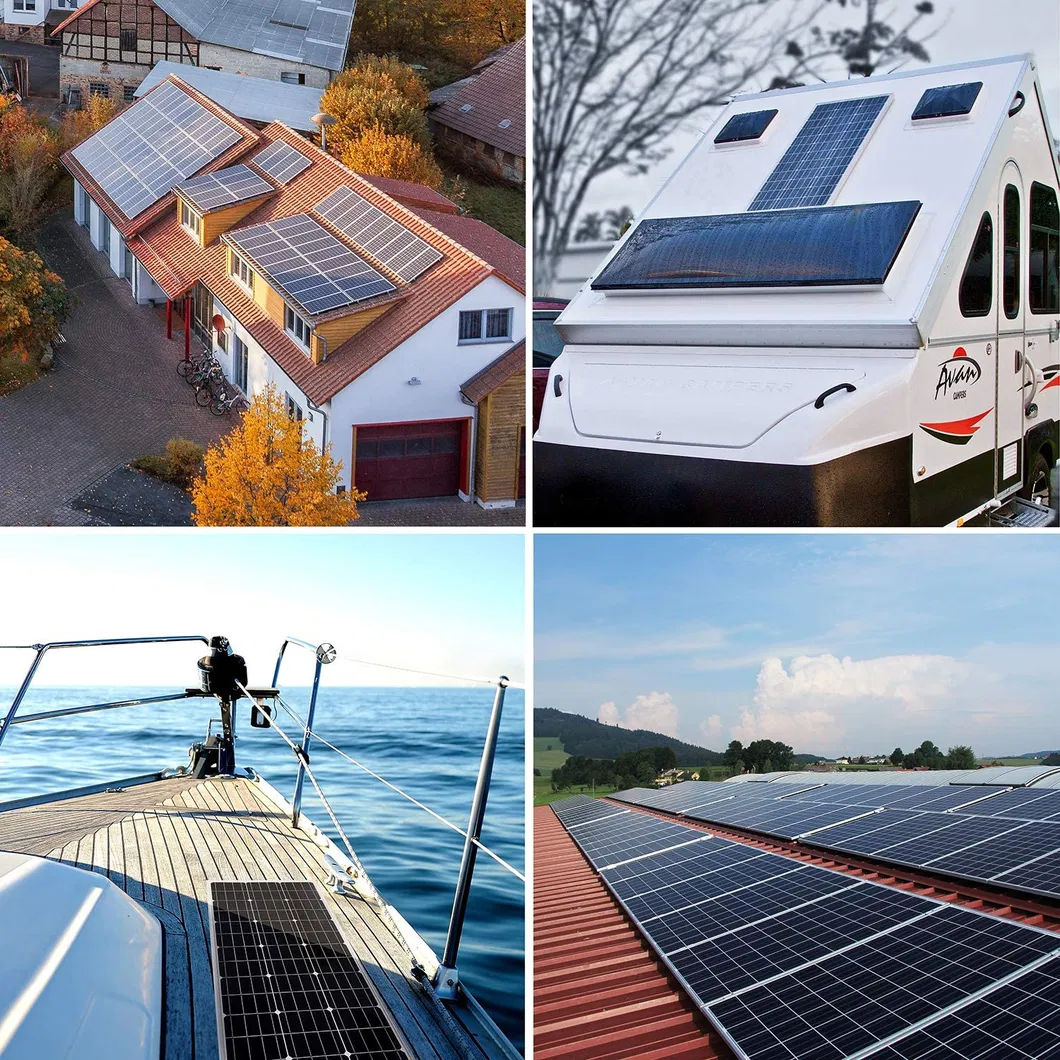

Yes, these solar panels are designed for versatility and can be used for Home PV, Off-grid systems, and boat/RV applications.
