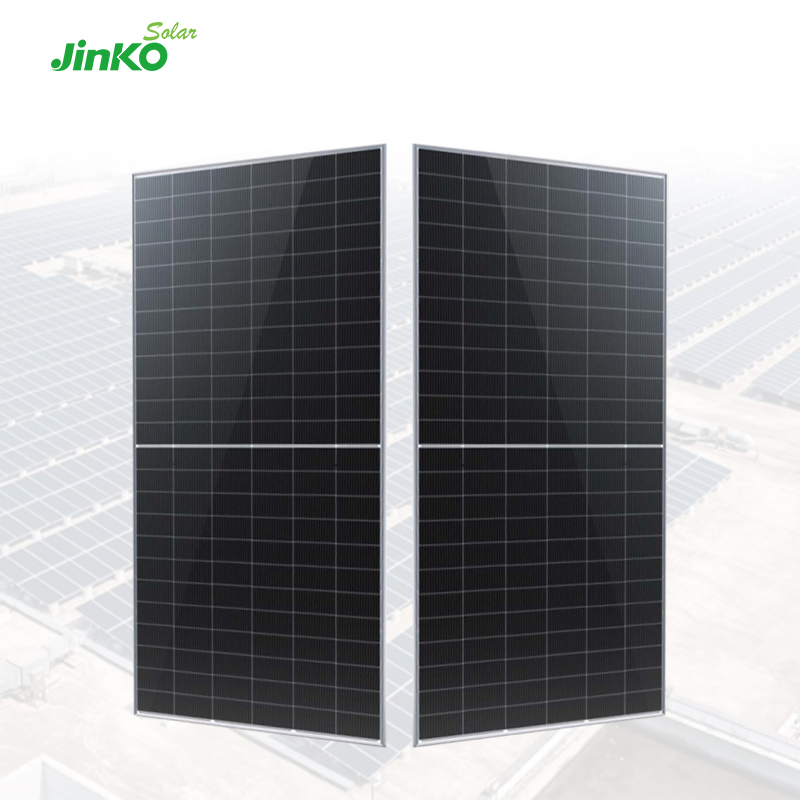

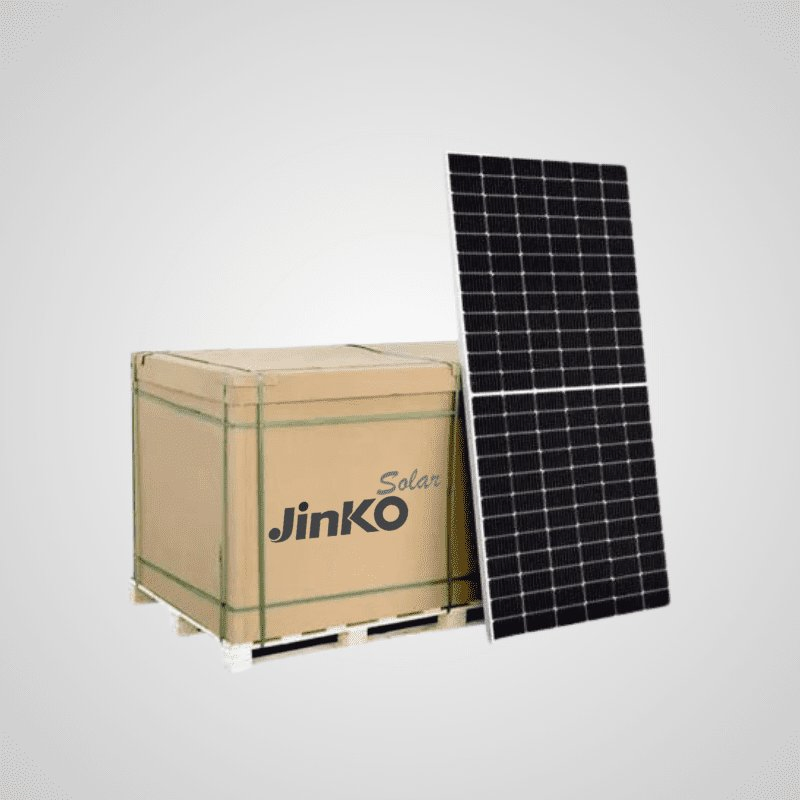

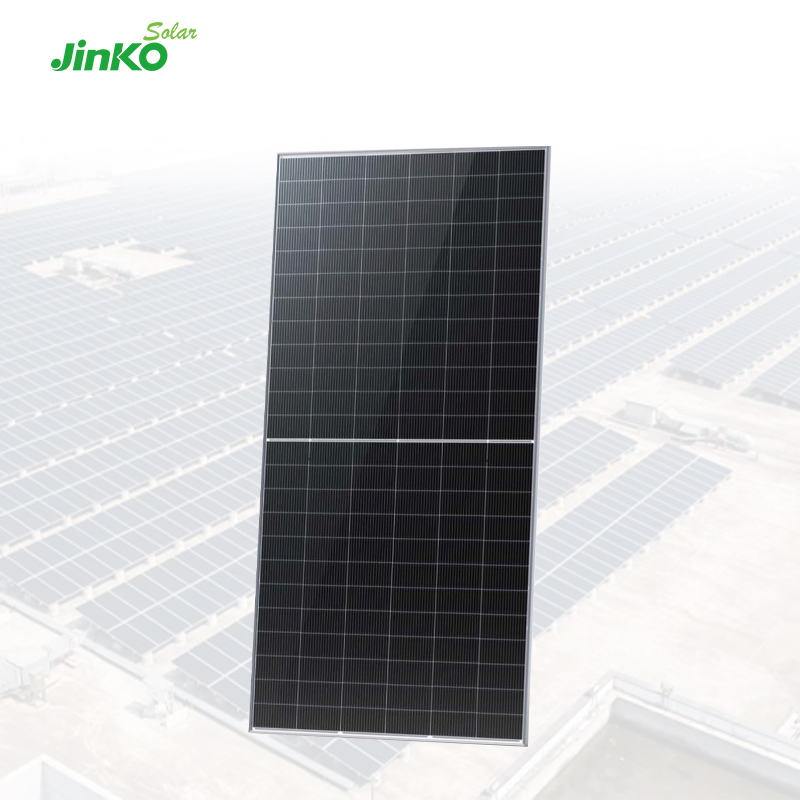

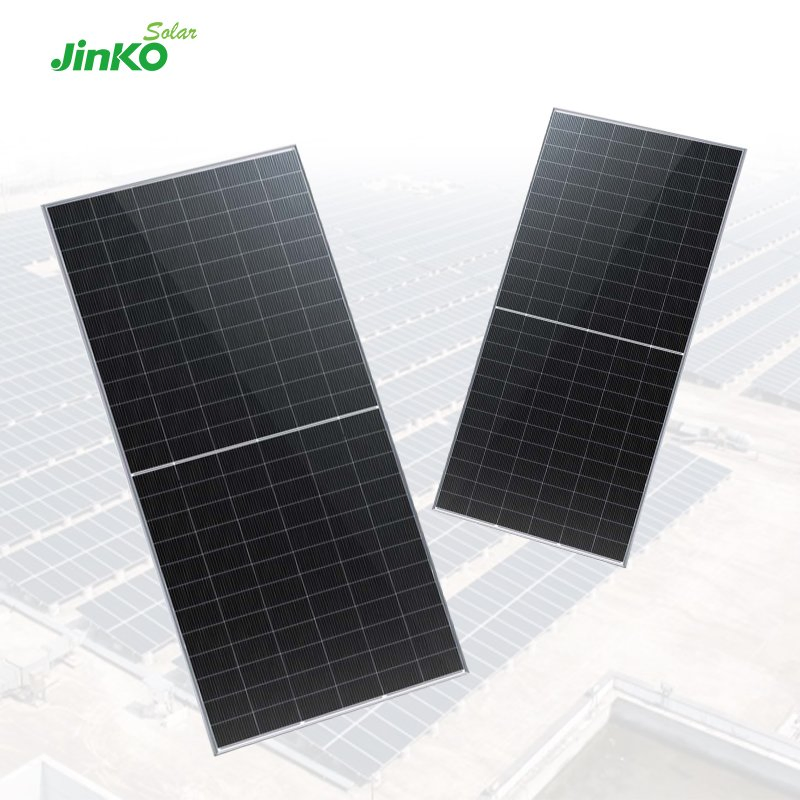

Jinko Solar Tiger Neo N-Type Panel Solar 425-625W Double Glass Bifacial Solar Panels

1 / 5

Jinko Solar Tiger Neo N-Type Panel Solar 425-625W Double Glass Bifacial Solar Panels

Send Inquiry

Product Description

Jinko Solar Tiger Neo N-Type Panel Solar Banner

📋 Product Parameter

Module Type	JKM435N-54HL4R-V	JKM445N-54HL4R-V	JKM450N-54HL4R-V
Maximum Power (Pmax)	435Wp	445Wp	450Wp
Maximum Power Voltage (Vmp)	32.59V	33.02V	33.21V
Maximum Power Current (Imp)	13.35A	13.35A	13.55A
Open-circuit Voltage (Voc)	39.16V	39.59V	39.78V
Short-circuit Current (Isc)	13.80A	13.80A	14.00A
Module Efficiency STC (%)	21.77%	22.27%	22.52%
Operating Temperature	-40~+85ºC
Maximum system voltage	1000/1500VDC (IEC)
Maximum series fuse rating	25A
Power tolerance	0~+3%

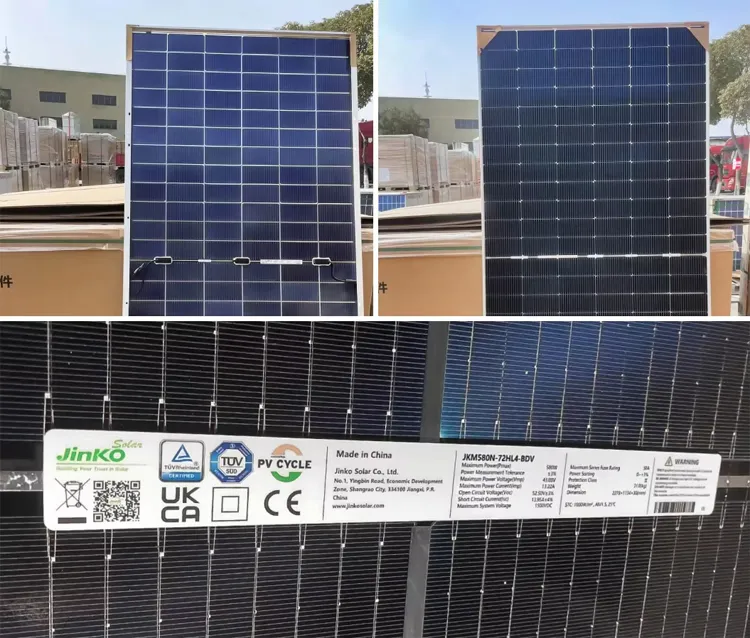

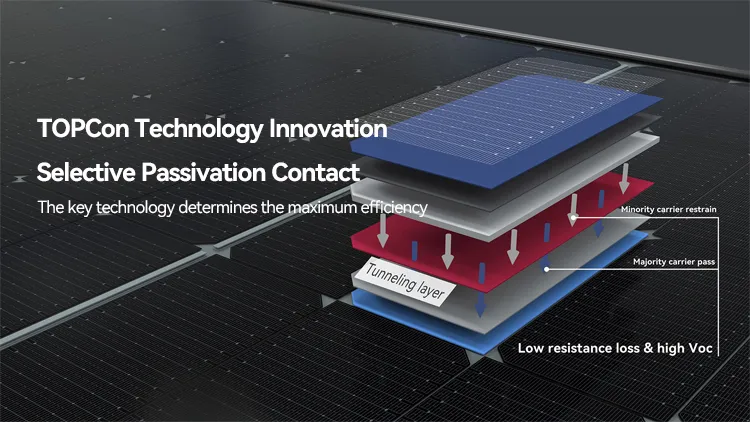

🔍 Details

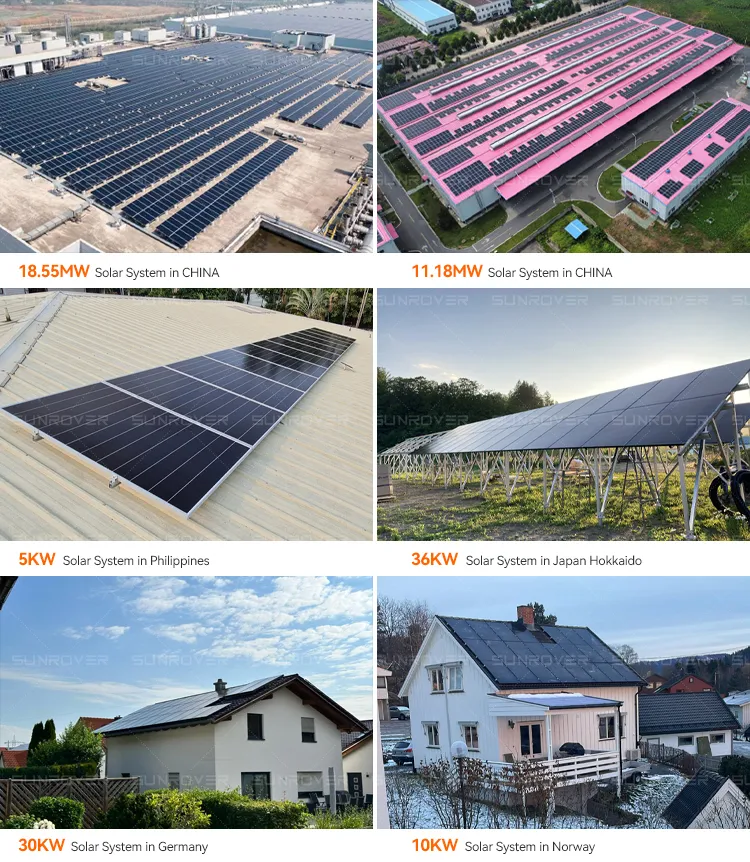

🏗️ Project Cases

❓ Frequently Asked Questions

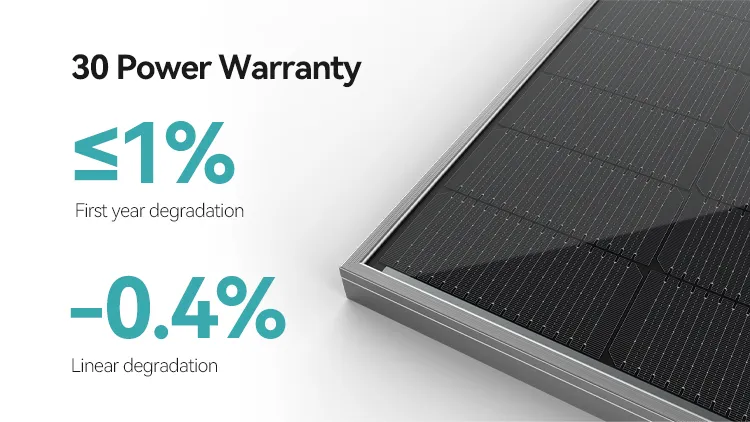

What are the main advantages of Jinko Tiger Neo N-Type solar panels? The Tiger Neo N-Type panels offer higher efficiency, better temperature coefficients, and lower degradation rates compared to traditional P-type panels, resulting in higher long-term energy yields.

What is the power range available for these bifacial solar panels? The Jinko Tiger Neo series covers a wide power range from 425W up to 625W, making them suitable for both residential rooftops and large-scale utility projects.

How does the bifacial technology work in these modules? Bifacial modules can capture sunlight from both the front and back sides. By utilizing reflected light from the ground, they can increase total energy production by up to 5-25% depending on the surface albedo.

Are these panels durable enough for harsh environmental conditions? Yes, these panels are designed with double glass construction and are certified to withstand high wind loads (2400 Pascal) and snow loads (5400 Pascal), ensuring reliability in various climates.

What is the module efficiency of the 450W Jinko Tiger Neo model? The JKM450N-54HL4R-V model features a high module efficiency of 22.52% under Standard Test Conditions (STC).

What is the maximum system voltage allowed for these modules? These modules are compatible with maximum system voltages of either 1000V or 1500V DC, following IEC standards for versatile system design.
