| SPECIFICATIONS | ||||
| Maximum Power (Pmax) | 585Wp | 590Wp | 595Wp | 600Wp |
| Maximum Power Voltage (Vmp) | 44.02 | 44.17 | 44.31 | 44.45 |
| Maximum Power Current (Imp) | 13.29 | 13.36 | 13.43 | 13.50 |
| Open-circuit Voltage (Voc) | 52.70 | 52.90 | 53.10 | 53.30 |
| Short-circuit Current (Isc) | 14.01 | 14.07 | 14.13 | 14.19 |
| Module Efficiency STC (%) | 22.65 | 22.84 | 23.03 | 23.23 |
| Operating Temperature(ºC) | -40ºC~+70ºC | |||
| Maximum system voltage | 1500VDC (IEC) | |||
| Maximum series fuse rating | 30A | |||

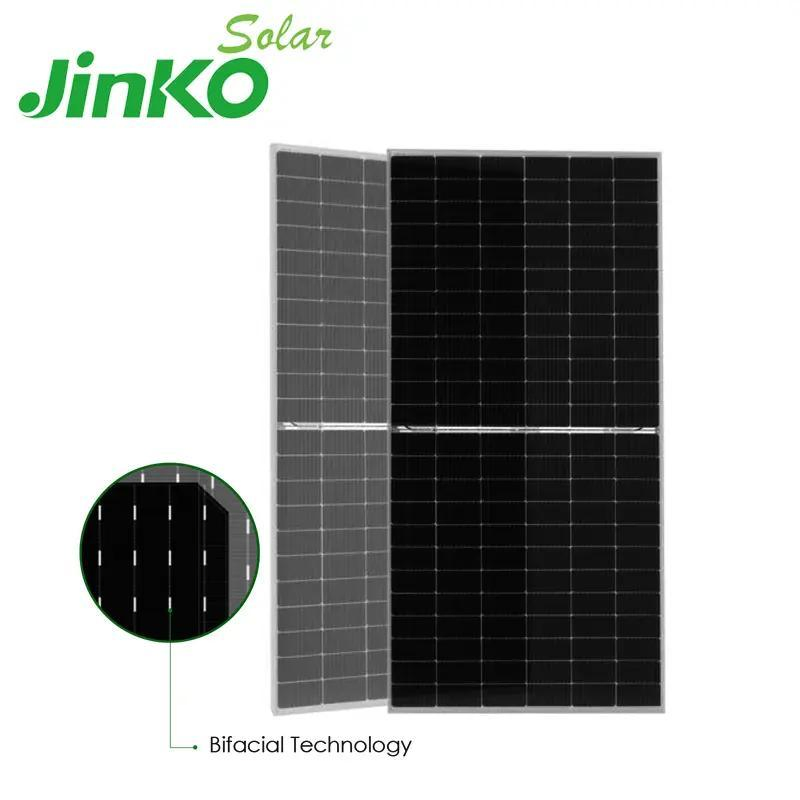

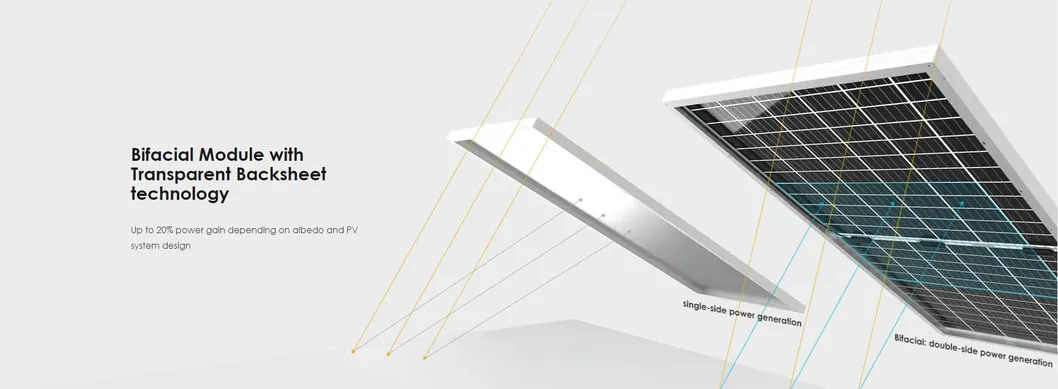

| Bifaciality Coefficent | φVoc: 98±5 %, φIsc: 80±5 %, φPmax: 80±5 % | |||
| Temperature coefficients of Pmax | -0.29%/ºC | |||
| Temperature coefficients of Voc | -0.25%/ºC | |||
| Temperature coefficients of Isc | 0.045%/ºC | |||
| Mechanical Characteristics | ||||

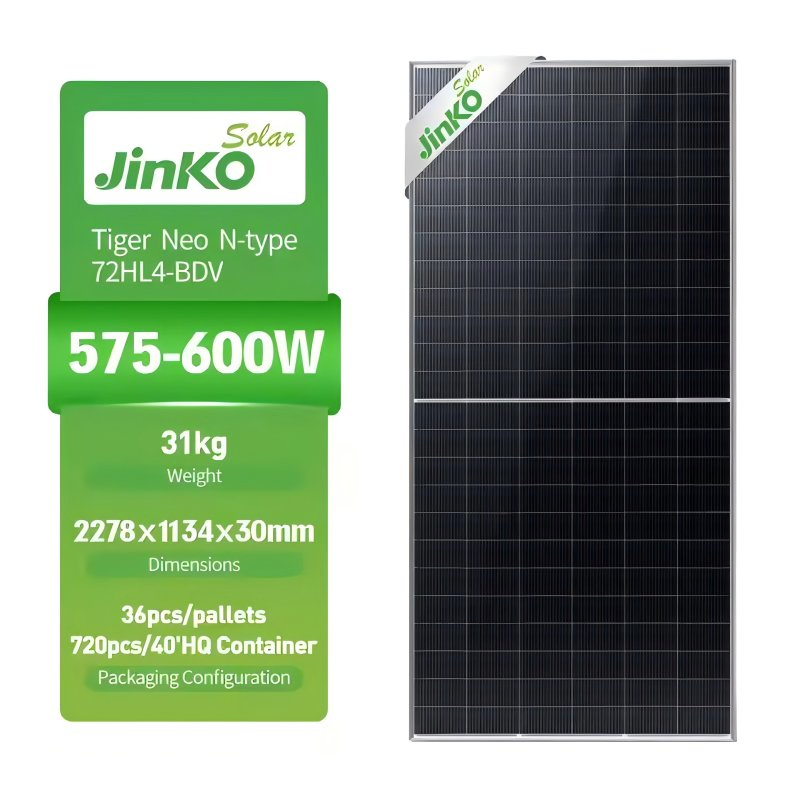

| Cell Type | N type Mono-crystalline | |||
| No. of cells | 144 (2×72) | |||
| Dimensions | 2278×1134×30mm | |||
| Weight | 31kg(68.34lbs) | |||
| Front Glass | 2.0mm, Anti-Reflection Coating | |||
| Frame | Anodized Aluminium Alloy | |||
| Junction Box | IP68 Rated | |||
| Output Cables | TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length | |||

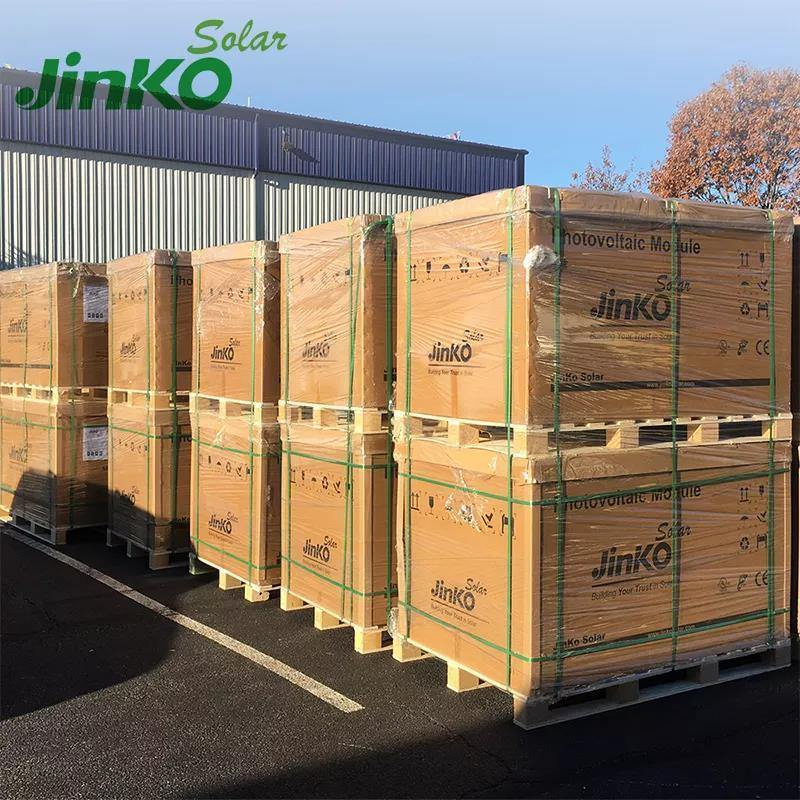

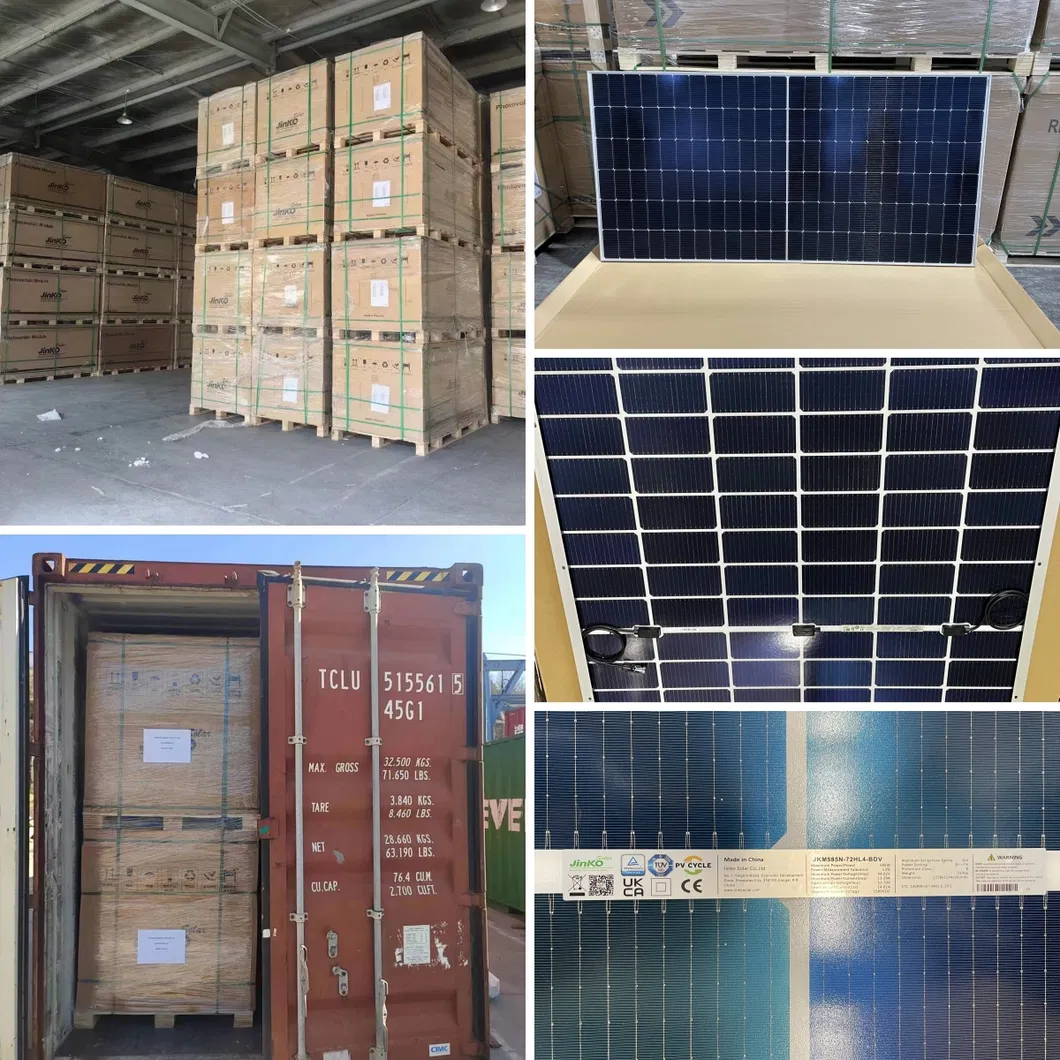

| Packaging Configuration | ||||
| 36pcs/pallets, 72pcs/stack, 720pcs/ 40'HQ Container | ||||
