📊 Basic Information
Number of Cells
144 (6x24)
Material
Monocrystalline Silicon
Certification
EST, ISO, CB, CE, TUV
Junction Box
IP68, 3 diodes
Frame
Anodized Alluminum Alloy
Operating Temp
-40°C ~ +85°C

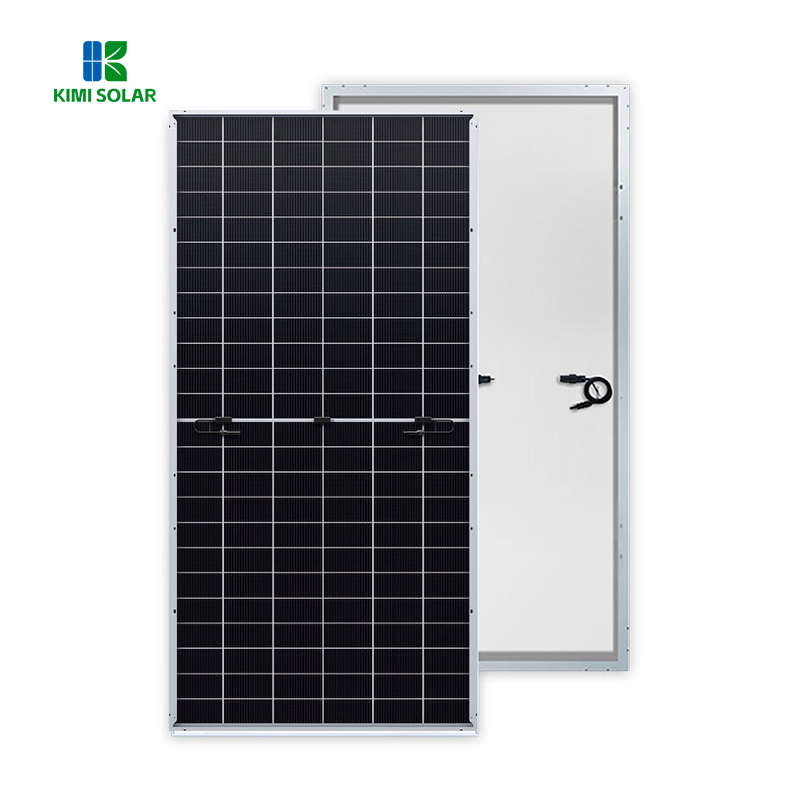

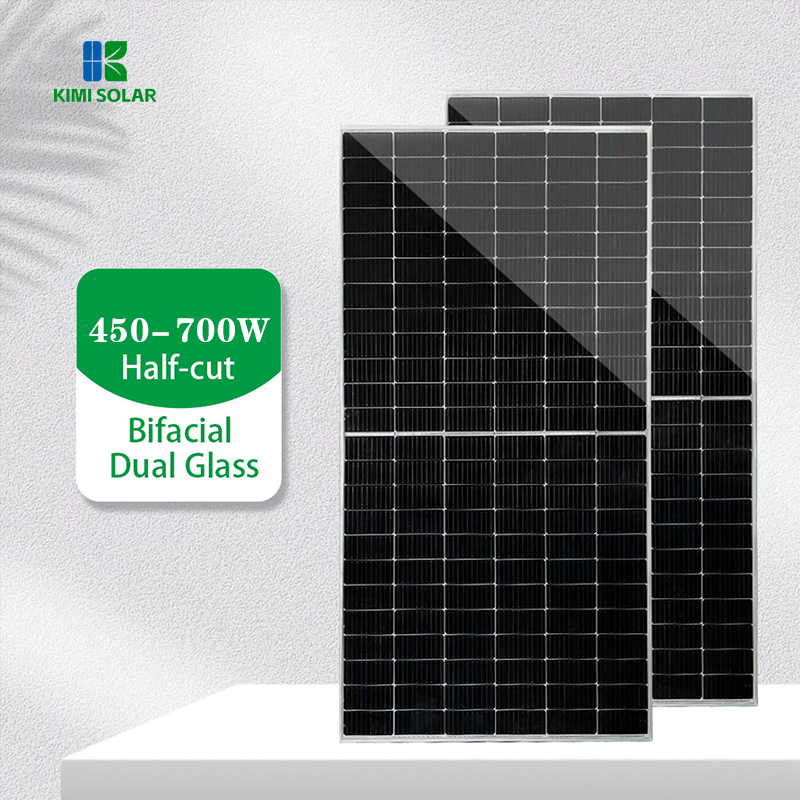

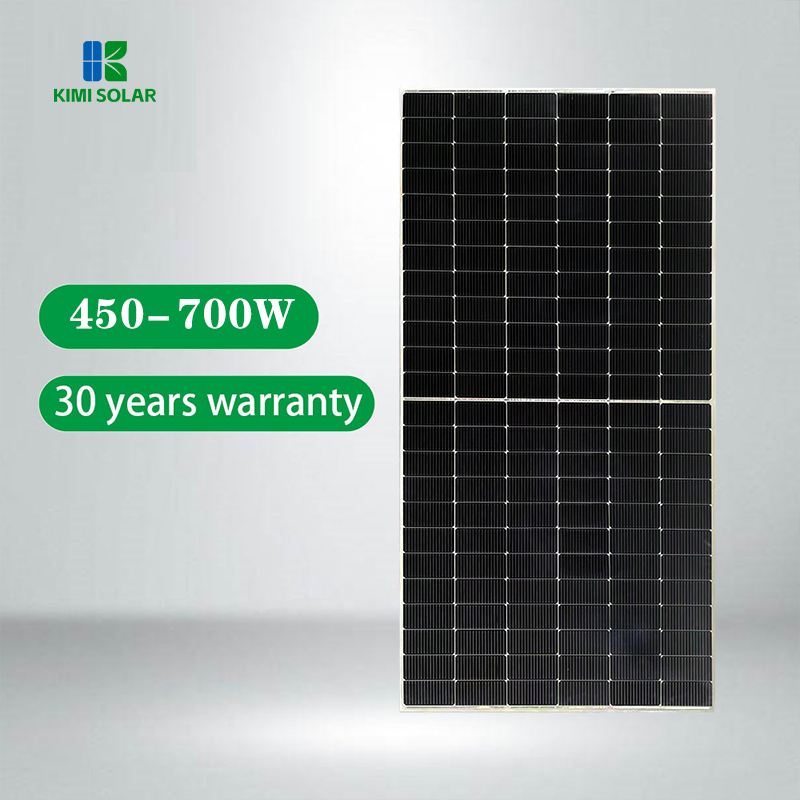

☀️ Solar PV Module N-Type Bifacial 570W-595W
High-efficiency crystalline silicon solar panels designed for maximum power output and reliability in diverse environmental conditions.
🚀 Key Product Features
✅ High Efficiency: A-grade crystalline silicon cells ensure superior conversion rates.
✅ High Reliability: Guaranteed resistance to severe weather conditions. Compliant with IEC 61215 and IEC61730.
✅ Tight Tolerance: Guaranteed positive power tolerance from 0-3% for output reliability.
✅ Full Traceability: Embedded bar code ID for every module and comprehensive flash reports.

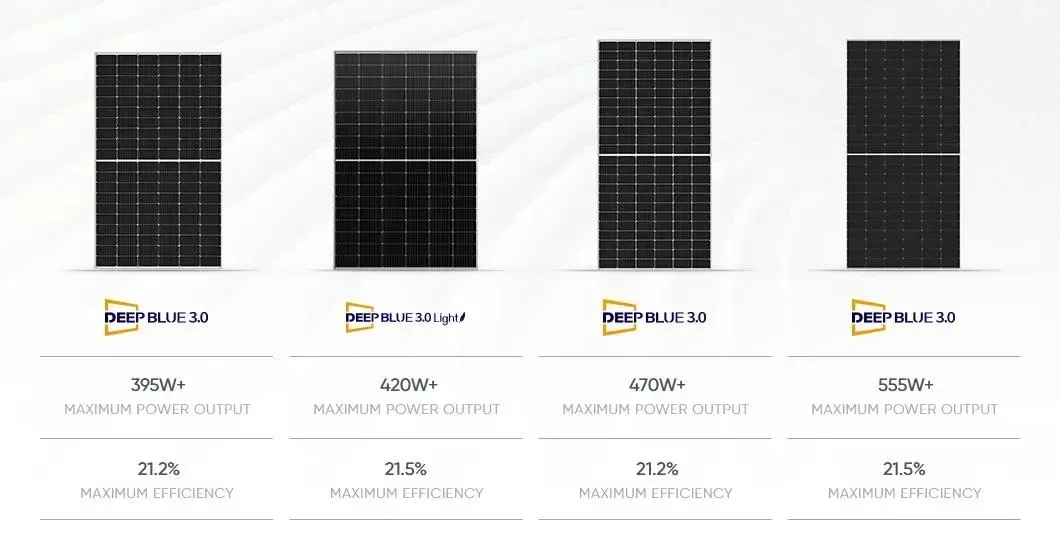

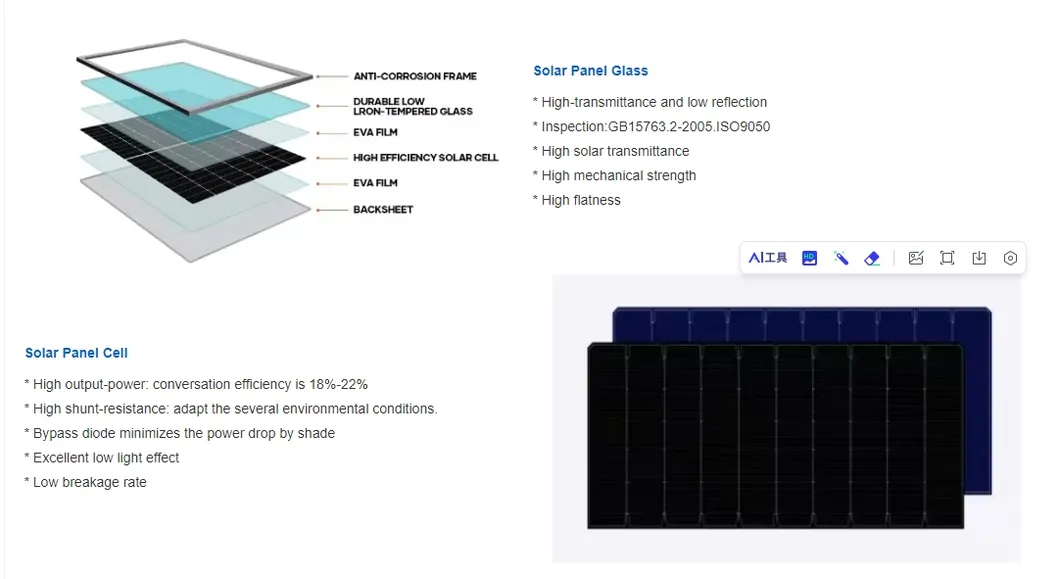

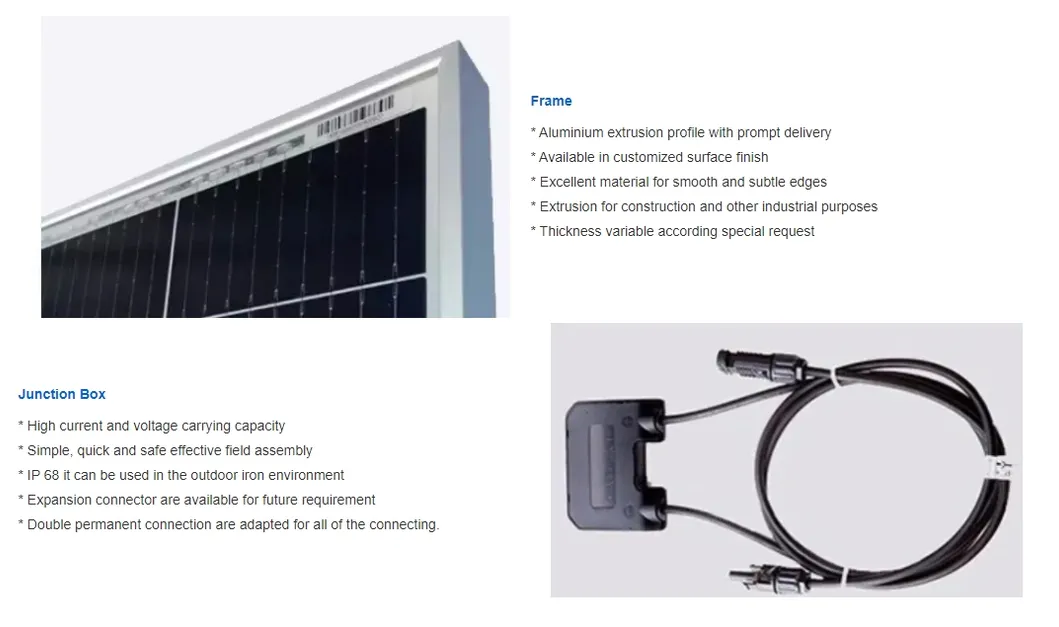

📸 Detailed Product Photos

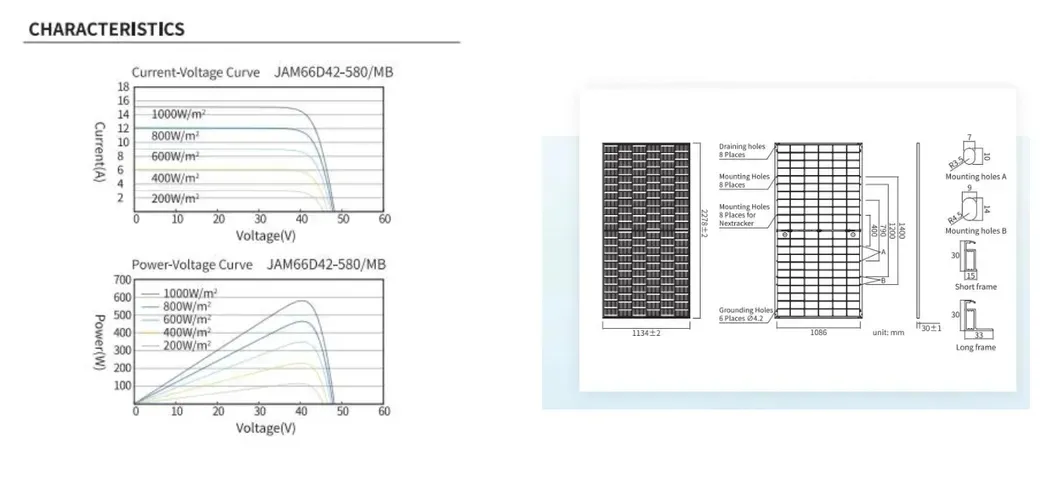

⚙️ Mechanical Parameters
| Component | Specifications |
|---|
| Cell Type | Mono N-Type |
| Weight | 31.8kg |
| Dimensions | 2278 ± 2mm x 1134 ± 2mm x 30 ± 1mm |
| Cable Cross Section | 4mm² (IEC), 12 AWG |
| No. of Cells | 144 (6x24) |
| Glass | 3.2mm Front Glass |
| Connectors | QC 4.10-351 / MC4-EVO2A |
⚡ Electrical Parameters (STC)
| Module Type |
Pmax [W] |
Voc [V] |
Vmp [V] |
Isc [A] |
Imp [A] |
Efficiency |
| JAM72S30 570/MR | 570 | 47.78 | 40.00 | 15.11 | 14.25 | 22.1% |
| JAM72S30 580/MR | 580 | 48.18 | 40.42 | 15.21 | 14.35 | 22.5% |
| JAM72S30 590/MR | 590 | 48.58 | 40.84 | 15.31 | 14.45 | 22.8% |
| JAM72S30 595/MR | 595 | 48.78 | 41.03 | 15.36 | 14.50 | 23.0% |
🌡️ Operating Conditions
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
| Maximum Static Load (Front) | 5400Pa |
| Maximum Static Load (Back) | 2400Pa |
| Bifaciality | 80% ± 10% |
| Fire Safety Class | Class II / Type 1 |

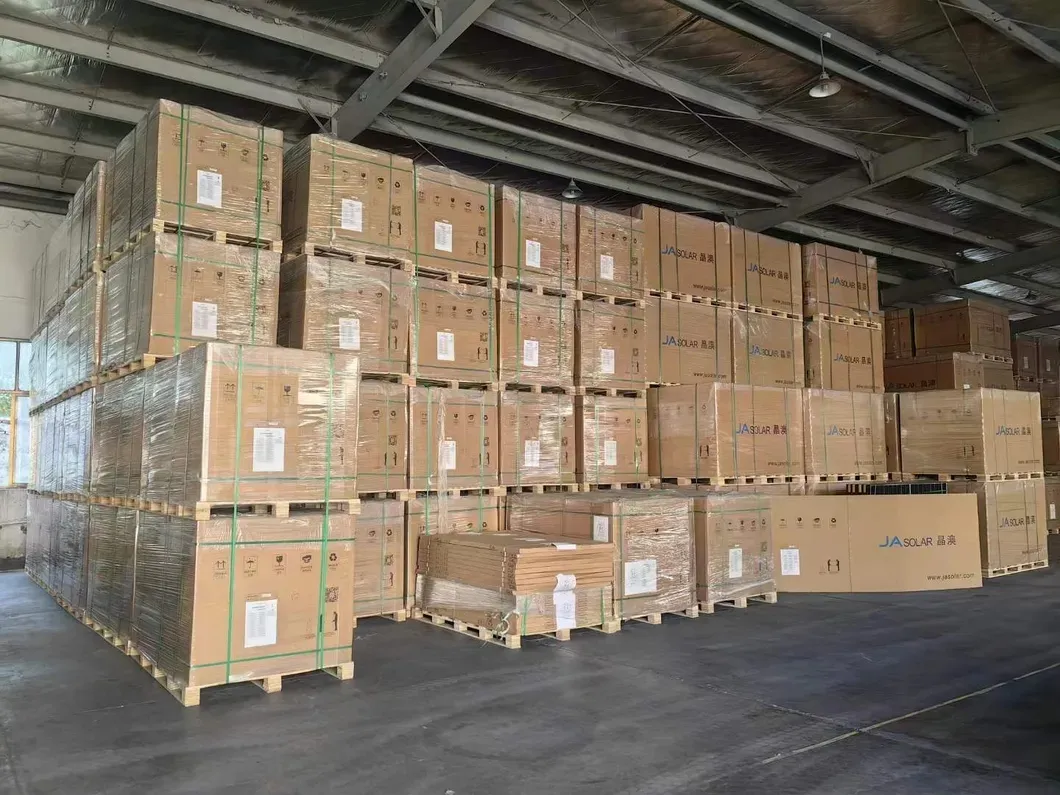

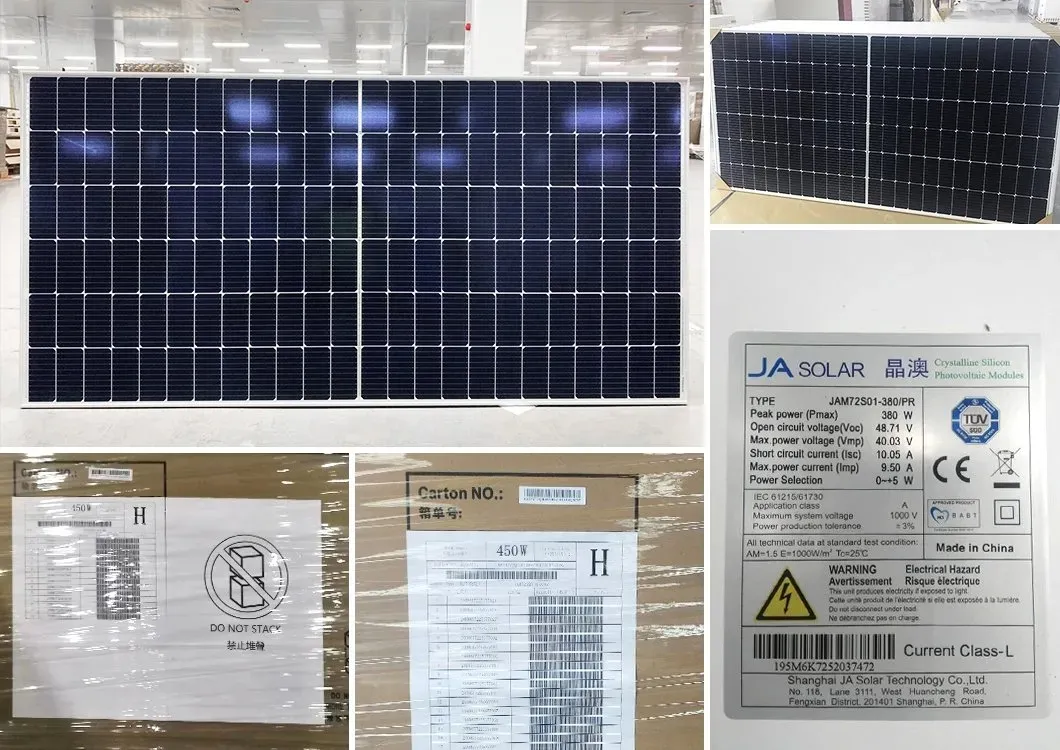

📦 Packaging & Logistics
📜 International Certifications
❓ Frequently Asked Questions
1. How is the quality of the solar panels guaranteed?
We utilize state-of-the-art fully automatic production lines. Every module undergoes a rigorous step-by-step final inspection system before shipment to ensure peak performance.
2. What are the benefits of N-Type Bifacial modules?
N-Type cells offer lower LID (Light Induced Degradation) and better performance in low-light conditions. The bifacial design allows the panel to capture sunlight from both sides, increasing total energy yield by up to 10-30%.
3. What is the standard lead time for orders?
Typically, standard orders are processed and ready for dispatch within 15 working days following the receipt of advance payment.
4. Are your panels certified for extreme weather?
Yes, our modules are certified to withstand high static loads of up to 5400Pa on the front (snow load) and 2400Pa on the back (wind load), compliant with IEC 61215 standards.
5. Do you offer different cable lengths or frame colors?
Yes, we provide customization options for frame colors and cable lengths based on specific project requirements and order volumes.
6. What type of warranty do you provide?
We offer a 12-year limited product warranty and a 25-to-30 year linear power output guarantee, ensuring long-term investment security.
