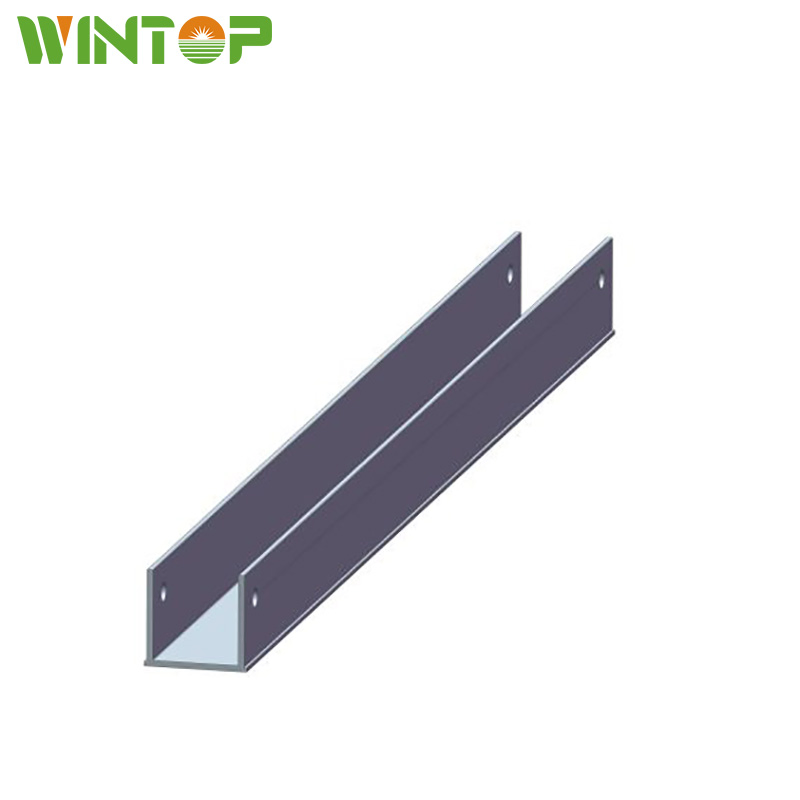

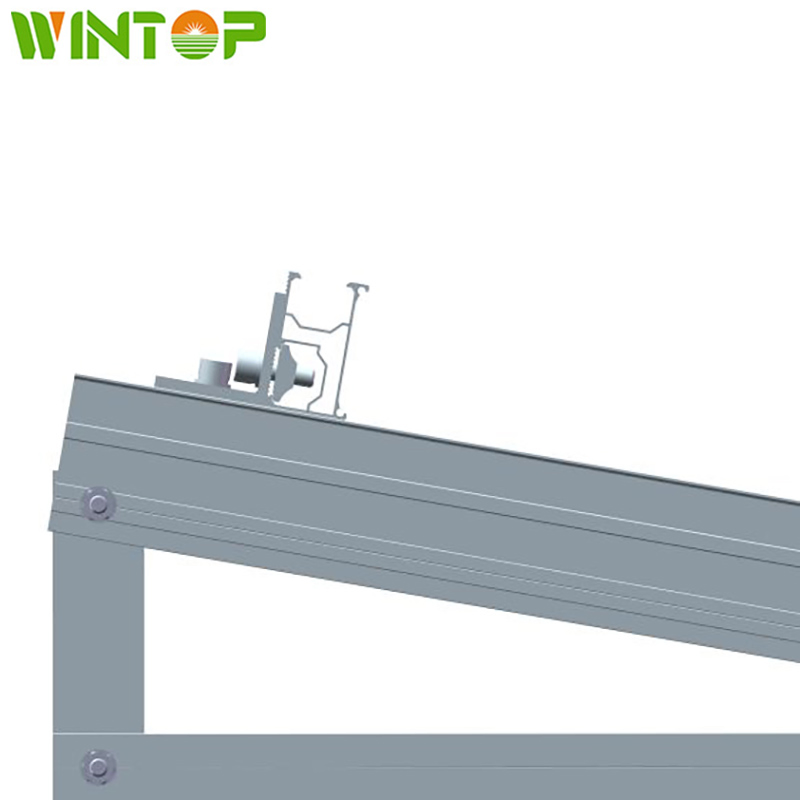

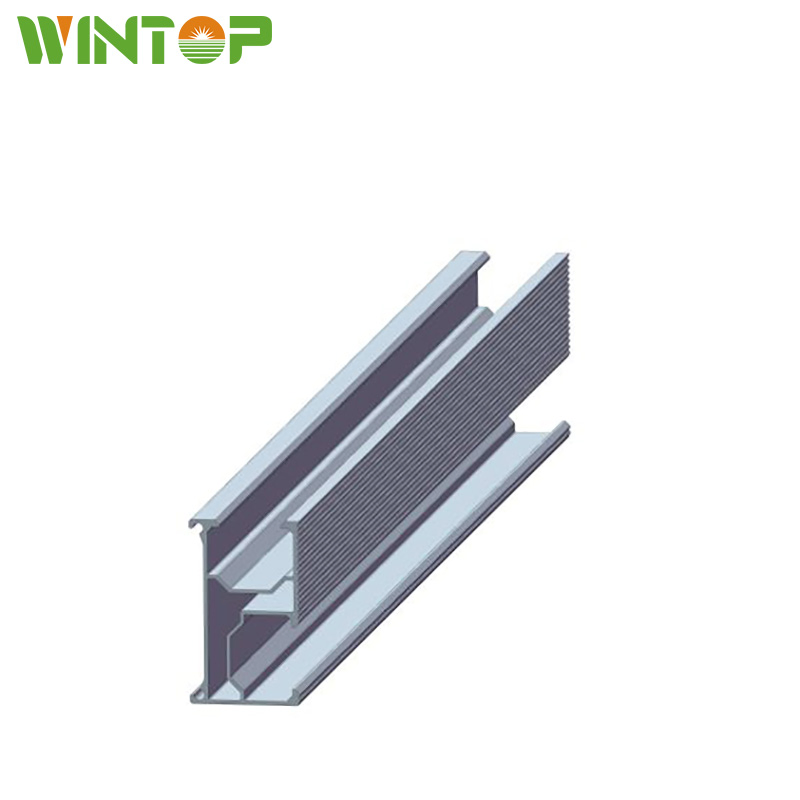

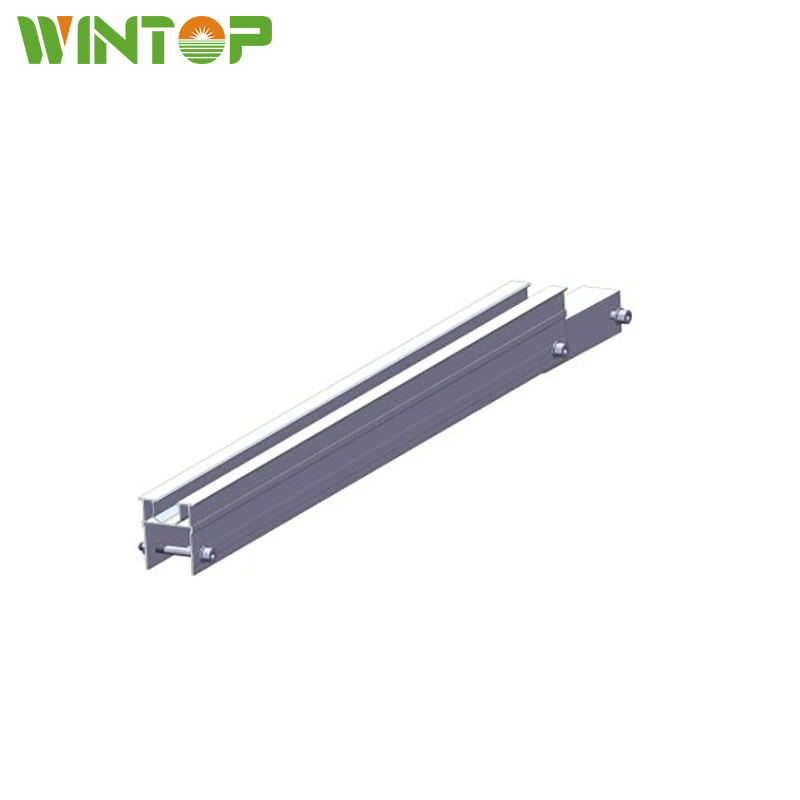

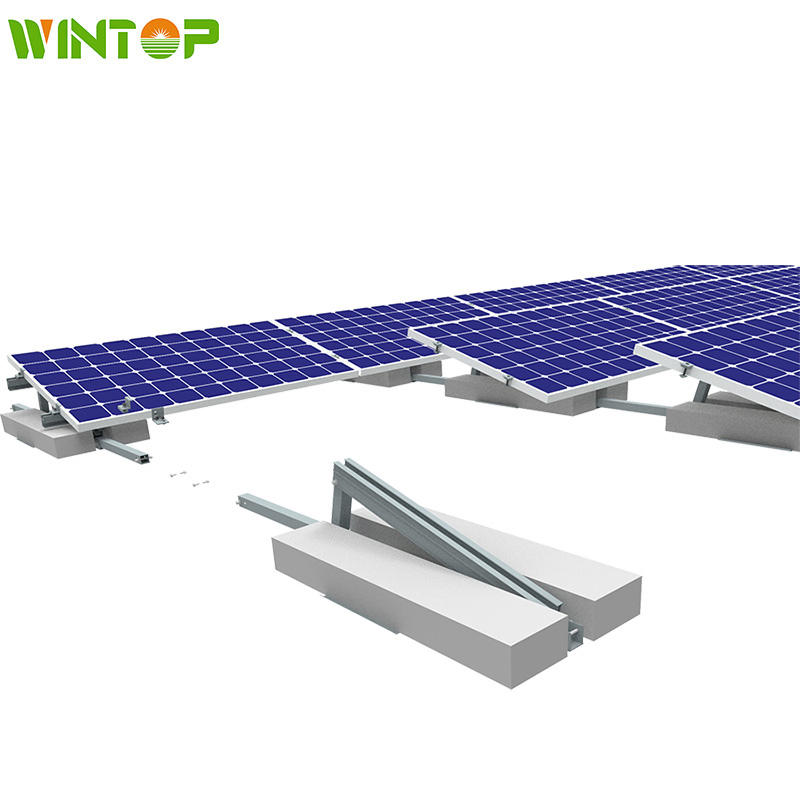

Ballasted Inclined Roof On-grid Solar Panel Bracket System

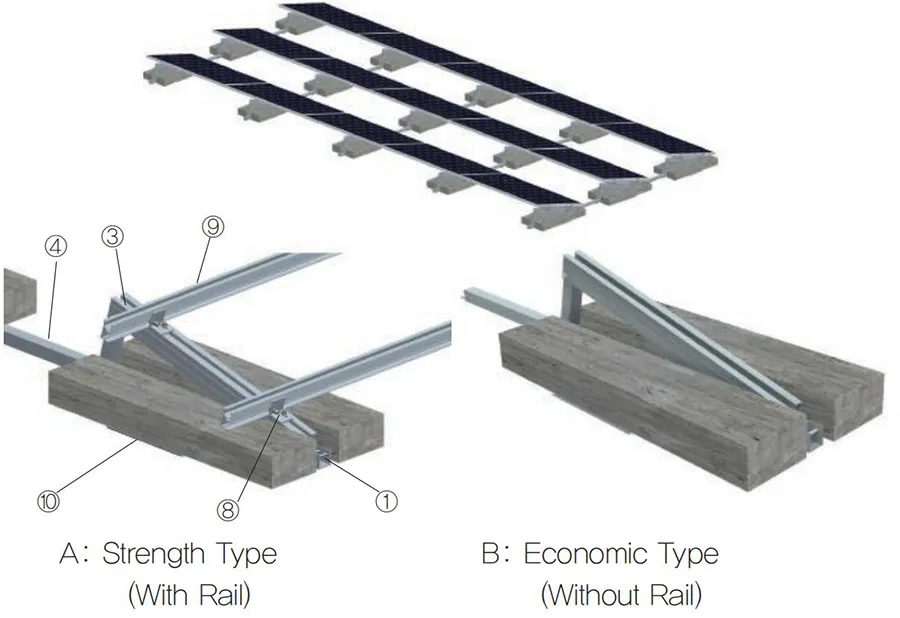

The Roof Ballast Solar Mounting System is a flat roof racking system. This ballast system can also be used for installation on pitched roofs or flat ground. It has the advantages of low price and convenient and quick installation. Our mounting systems are designed by experienced engineers to withstand extreme weather conditions according to international common standards. The main load-bearing components of the system have undergone various tests to ensure their structural load-carrying capacity.
| Installation location | Low angle rooftop or outdoor |
| Installation foundation | Concrete foundation |
| Installation angle | 5°-35° |
| Wind load | 60m/s (216kmh/133mph) |
| Snow load | 1.4KN/m² |
| Applicable module type | Mono-crystalline, Poly-crystalline, Double wave and Thin film |
| Module Orientation | Horizontal, Vertical |
| Design standard | AS/NZS1170, JIS C 8955-2017 |
| Bracket material | AL6005-T5 (Anodized Oxidation) |
| Fastener Material | Stainless steel SUS304 |
| Warranty & Duration | 10 years & More than 20 years |
Established in 2016, we are a high-tech enterprise that integrates R&D, production and marketing of Solar Mounting Systems for residential, commercial and utility scale customers.
