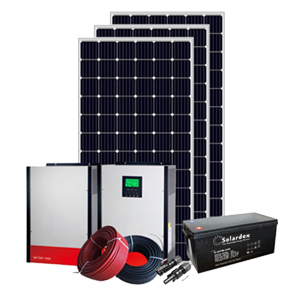

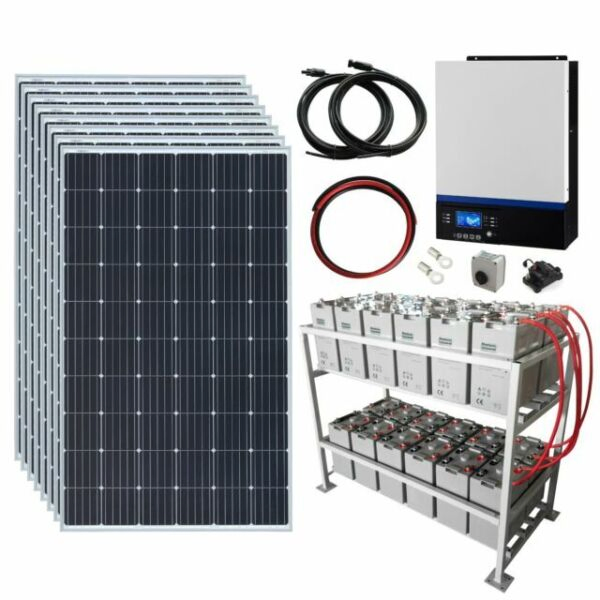

5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
1 / 5
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set
5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set

5kw Solar Energy System on&off Grid Solar Panel System 220V 380V PV Module Complete Set

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Number of Cells
144PCS
Application
Industrial
Condition
New
Certification
ISO, CE, Rosh
Material
Monocrystalline Silicon
Product Name
Mono Solar Panel
Type
Half Cell N Type Mono PV Module
Cell Size
78mm*166mm
Power Range
535W-550W
Junction Box
IP68
Front Glass
High Transparency Coated Tempered Glass
Frame
Anodized Aluminum Alloy
Weight
28kgs
HS Code
85414020
Detailed Photos

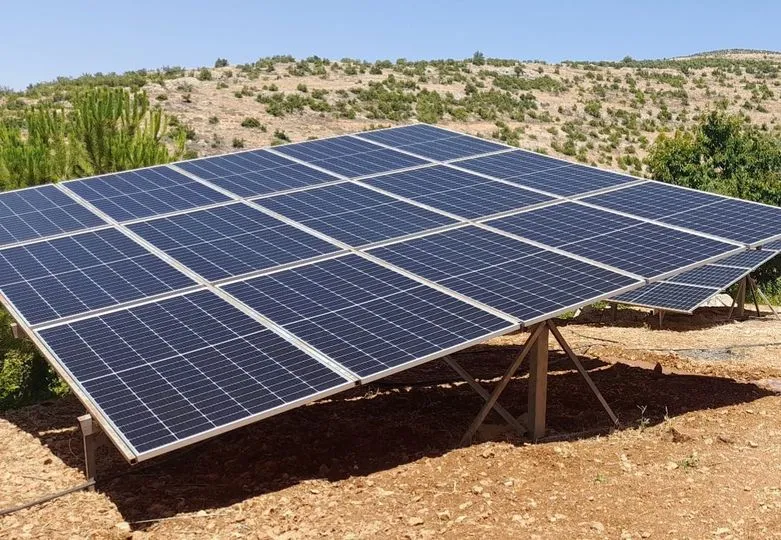

Detailed Solar Panel view

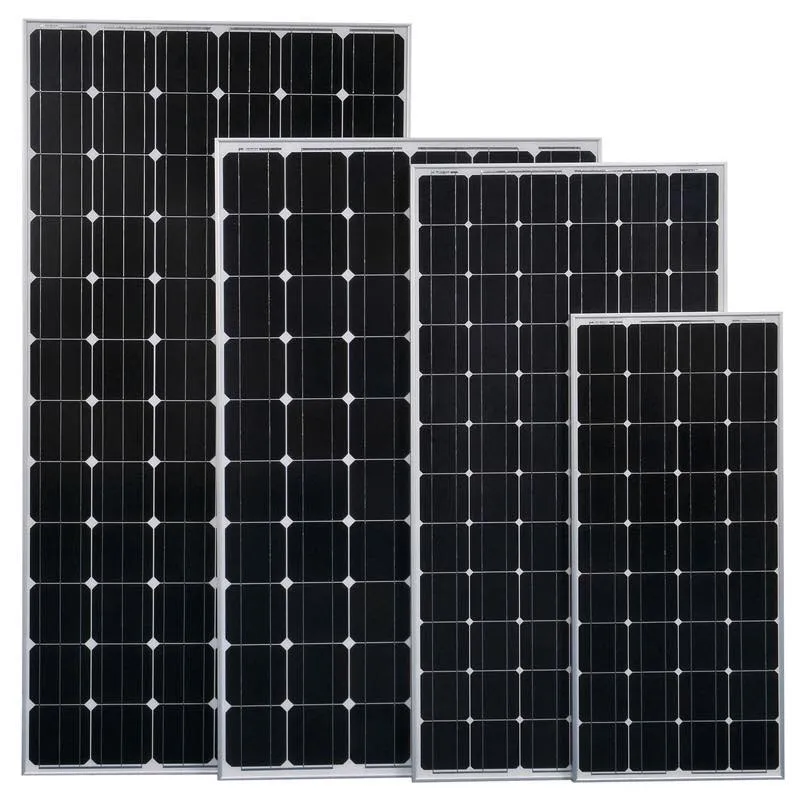

Solar Energy System Component
Product Parameters

High-efficiency Mono Half Cell Solar Power modules (Tier 1 Quality).

Rated Power - Pmax (W) 530w 535w 540w 545w 550w
Open Circuit Voltage - Voc (V) 49.2 49.35 49.51 49.69 49.88
Short Circuit Current - Isc (A) 13.68 13.75 13.82 13.89 13.97
Working Voltage - Vpm (V) 41.53 41.82 42.12 42.41 42.71
Working Current - Ipm (A) 12.76 12.79 12.82 12.85 12.88
Module Efficiency - η (%) 20.51 20.7 20.89 21.09 21.28
STC Conditions: Irradiance 1000W/m², Cell Temperature 25°C, Air Mass AM 1.5.

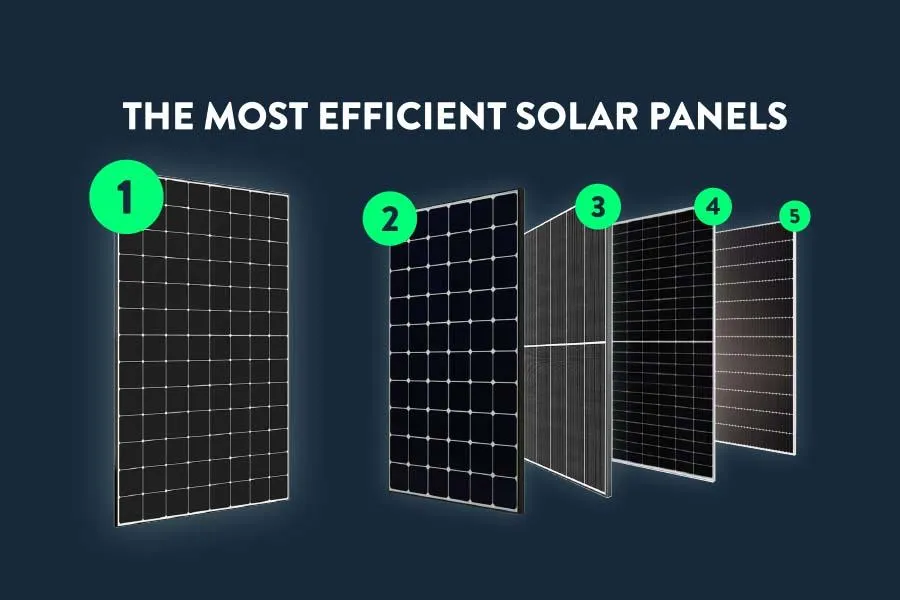

Technical Specifications Diagram
Production Capacity
Our facility is an industry-leading solar energy manufacturer with a current high-efficiency module production capacity of 10GW. By designing, manufacturing, and supplying high-efficiency monocrystalline solar modules, we provide outstanding photovoltaic products and system solutions to customers globally.

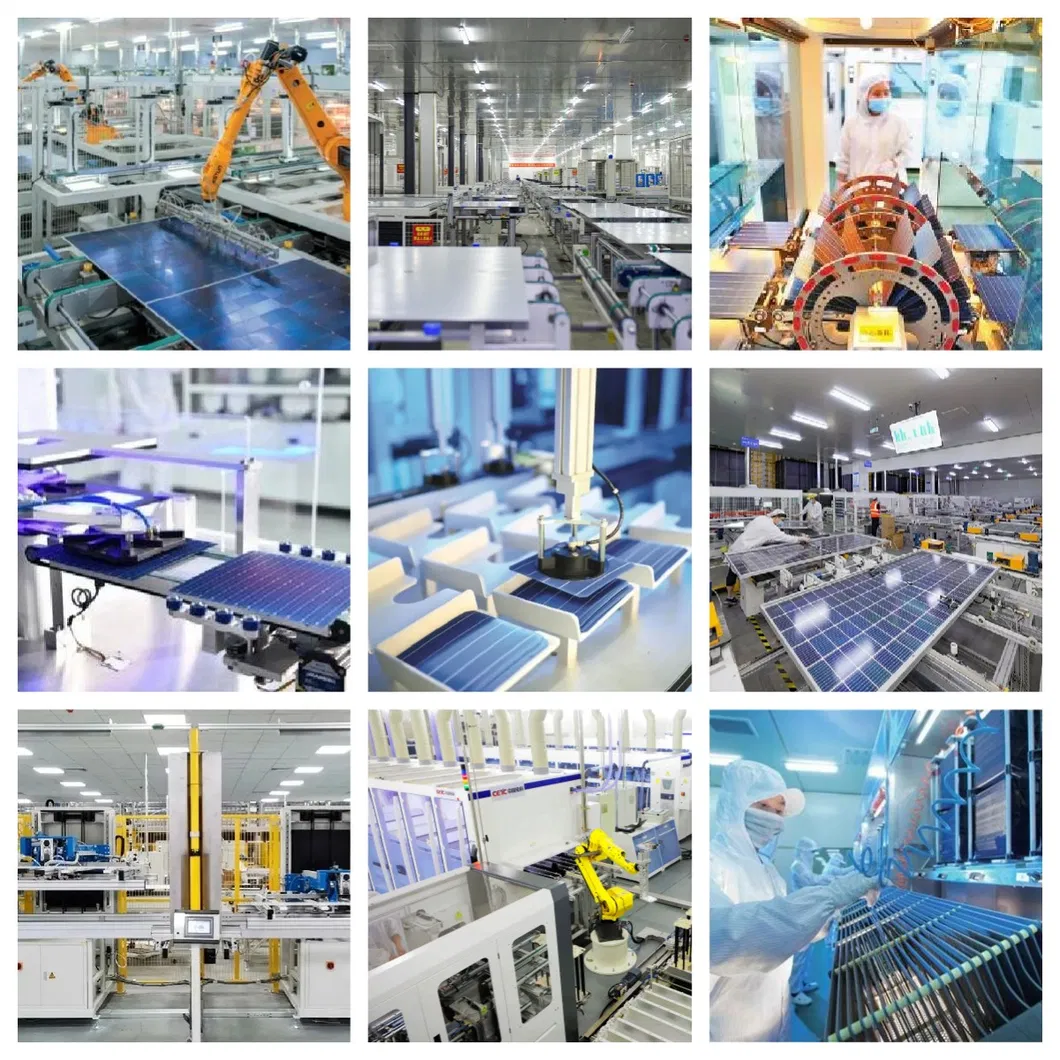

Automated Production Line
Photovoltaic Projects

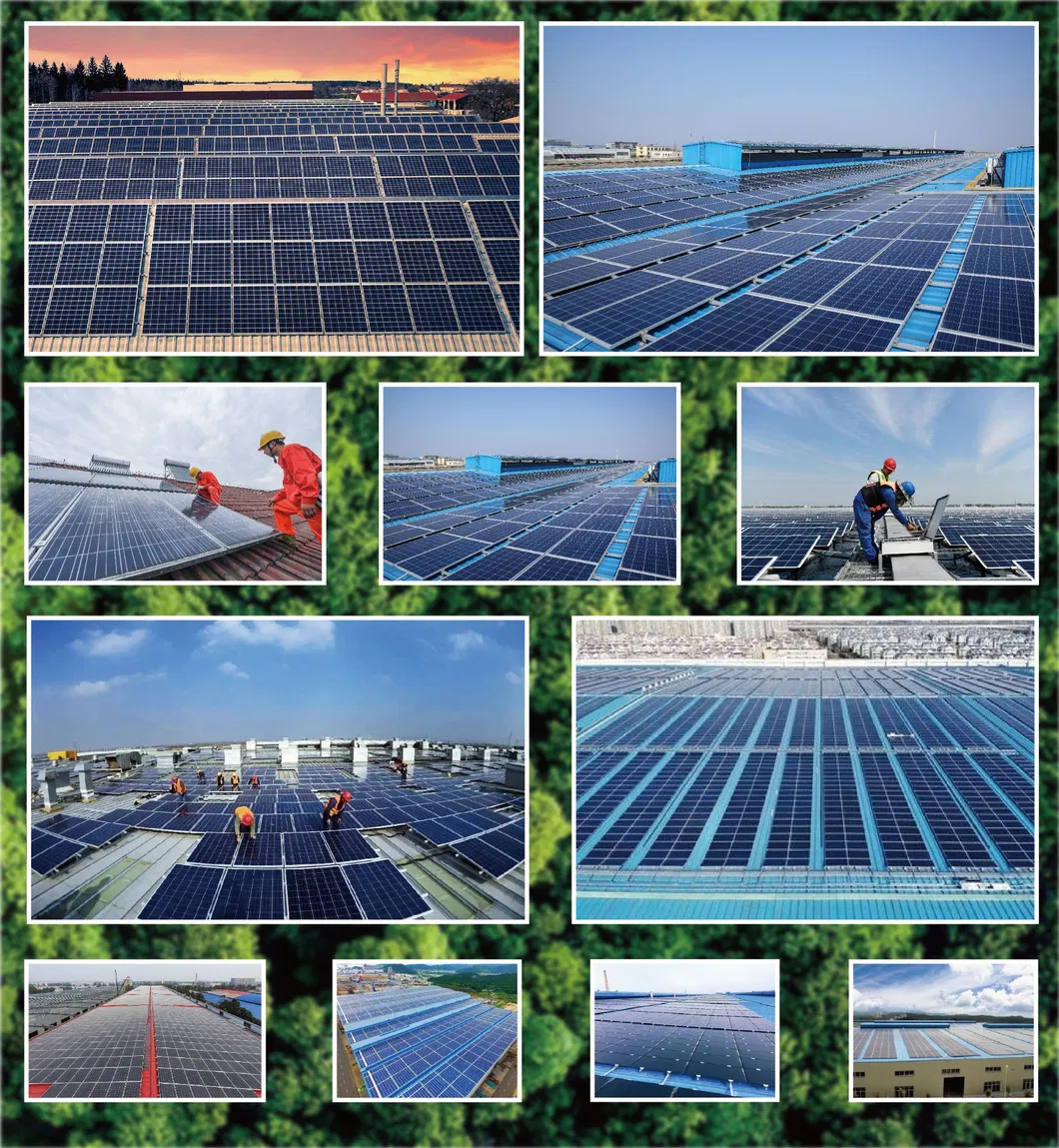

Global PV Project Installations
Certifications & Logistics
Industry Certifications
Packaging and Loading
Professional Team
Team Work
Factory Overview
Frequently Asked Questions
What is the typical lead time for orders?
Generally 10 days for requirements under 200kW. For larger projects exceeding 200kW, the lead time is subject to negotiation.
What payment methods are accepted?
We accept 100% TT, or 30% TT in advance with the remaining 70% TT due when goods are ready before shipment.
What are the available modes of transport?
International sections are generally handled via sea transport. Post-entry, we utilize multimodal transport including rail and barge.
What is the warranty period for the solar modules?
We offer a 10-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty.
What is the maximum efficiency of these N-Type modules?
The 550W modules reach a maximum efficiency of approximately 21.28% under STC conditions.
Are these panels suitable for industrial applications?
Yes, these monocrystalline half-cell modules are specifically designed for high-performance industrial and commercial installations.
