📜 Basic Specifications
Application
Home, Industrial, Commercial

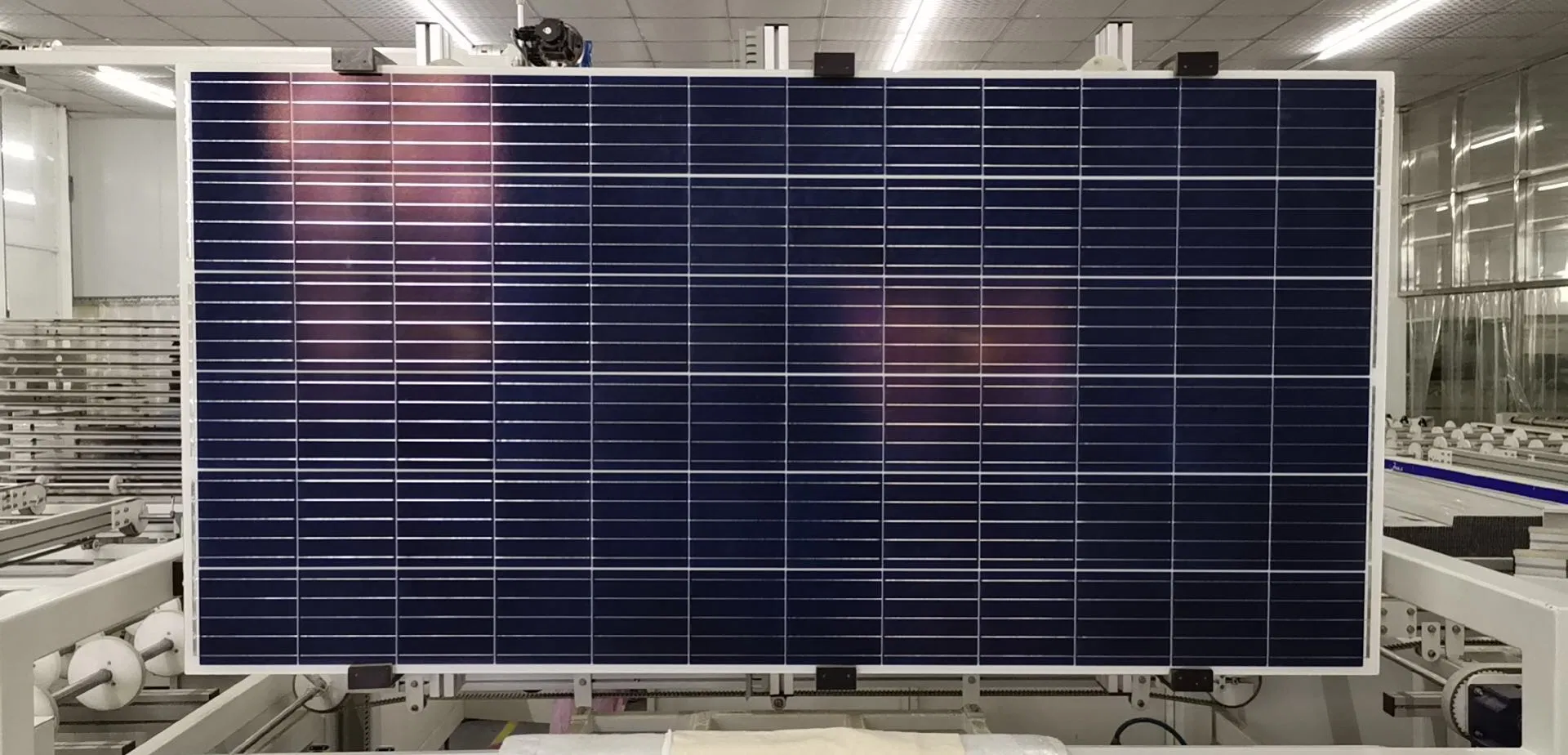

Solar Module
A Grade 280W Poly (Efficiency 17.11%)
Inverter
Off-Grid 1kw, Pure Sine Wave, 24V
Battery
12V 150ah/200ah Lead Acid Gel, Deep Cycle
Controller
MPPT or PWM, 24V, 50ah
Mounting
Carbon Steel or Hot Galvanizing Aluminum
📦 Product Overview
Applicable Loads Analysis: Total daily consumption estimated at 2.48KWH based on typical home usage (4hrs effective sunlight).
| Loads |
Power |
Q'ty |
Daily Service Time |
Daily Consumption |
| TV | 120w | 1pc | 4hrs | 480wh |
| Pump | 200w | 1pc | 2hrs | 400wh |
| Lamp | 20w | 10pcs | 8hrs | 1600wh |
| Total Consumption | 2.48KWH |

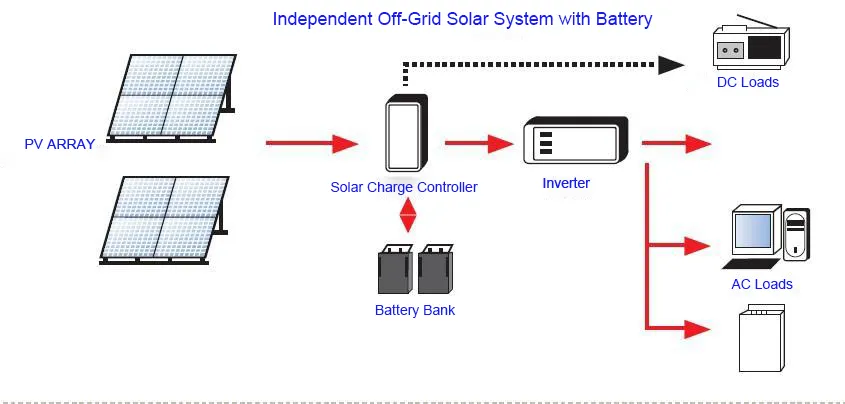

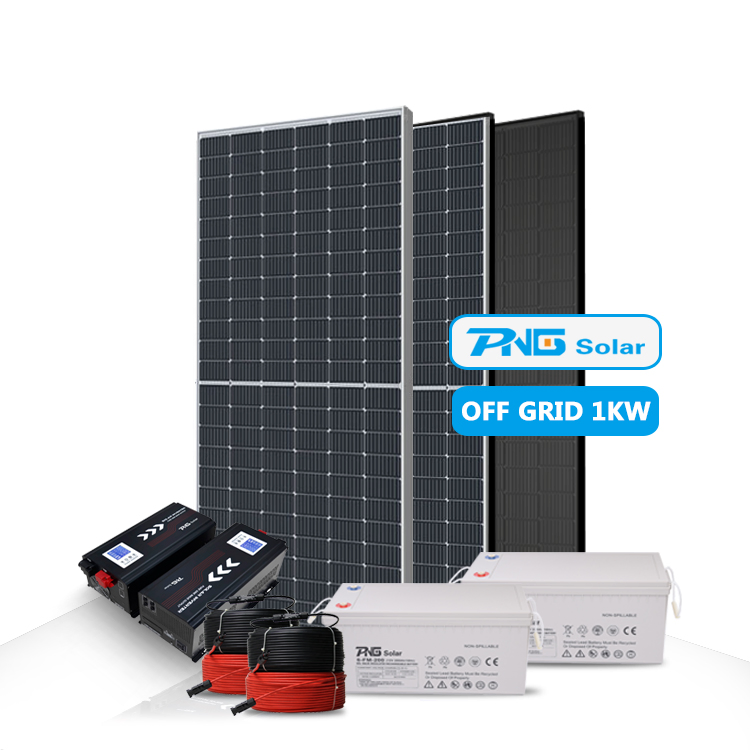

⚙️ System Components
| No. |
Item |
Model Specs |
Q'ty |
Warranty |

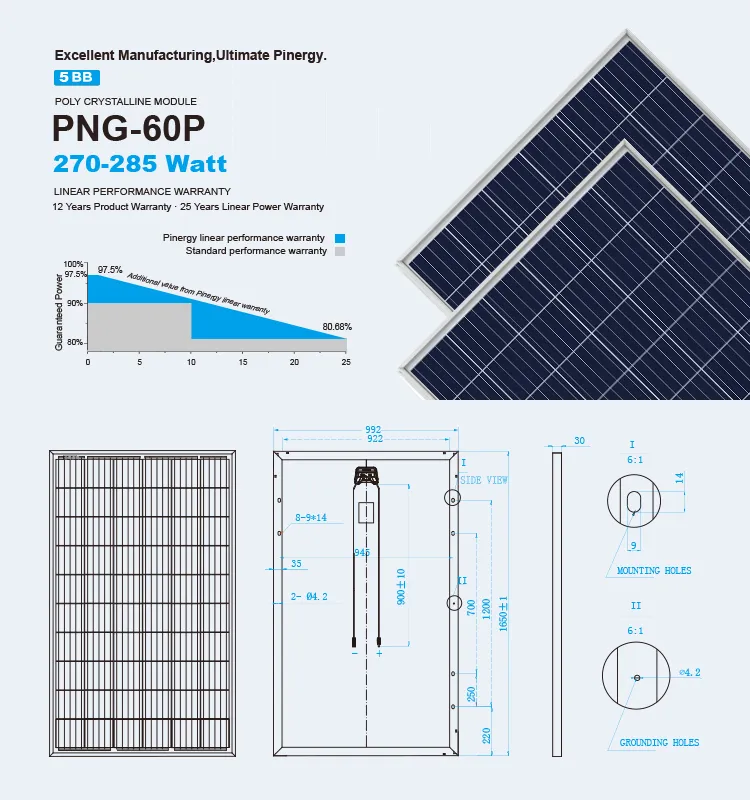

| 1 | Solar Modules | Voc 38.5V, Vmp 31.6V | 2 pcs | 25 Years |

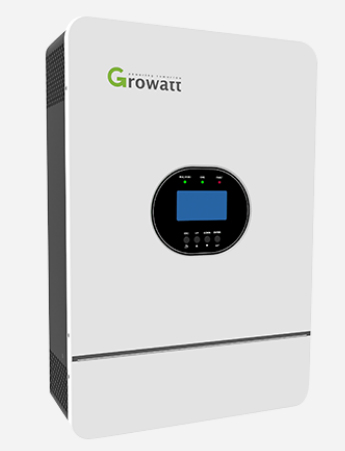

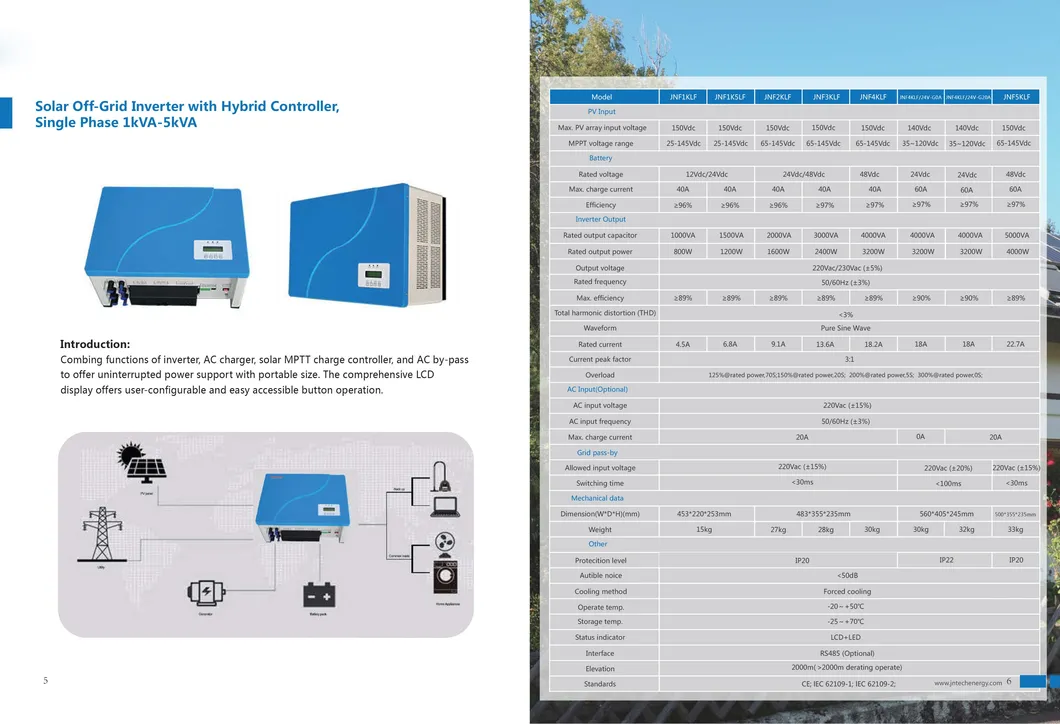

| 2 | Off-grid Inverter | 1KVA Pure Sine Wave, 24V MPPT | 1 pc | 5 Years |

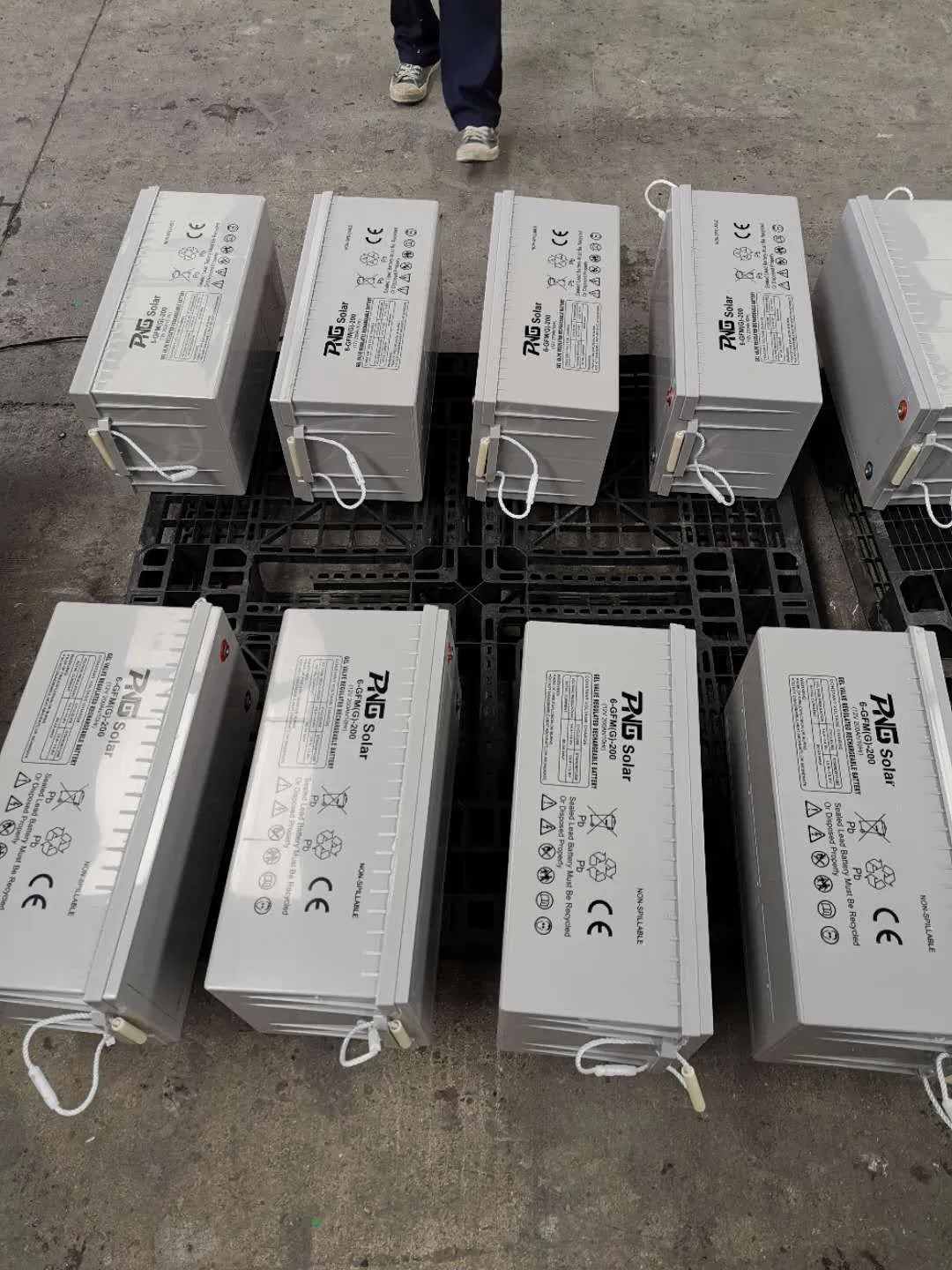

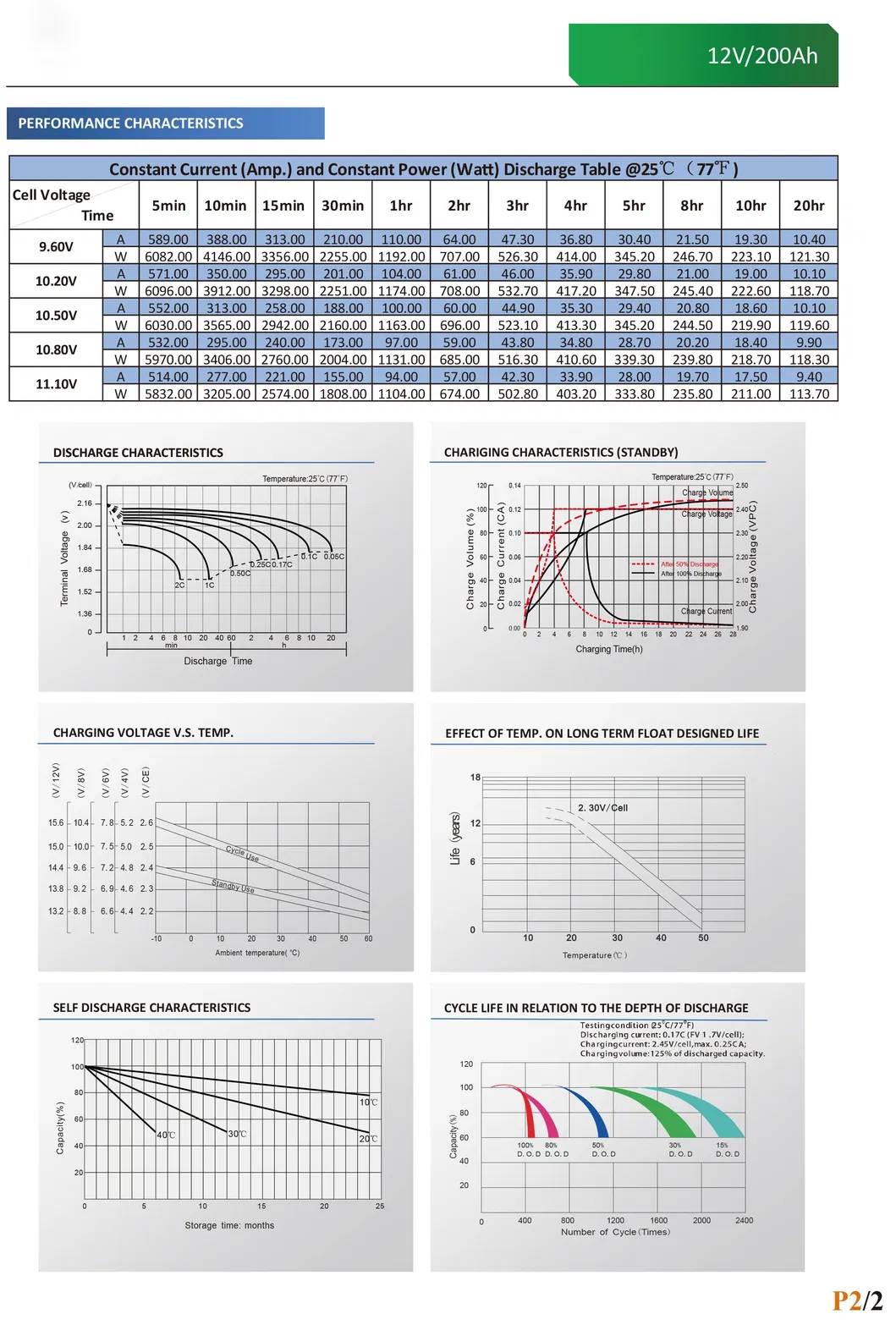

| 3 | Battery | 12V 200AH Lead Acid Gel | 2 pcs | 1600 Cycles |
| 4 | Mounting Brackets | Hot-dip galvanized/Aluminum | 1 Set | 10 Years |
| 5 | Cables & Access. | PV Cables, MC4, PVC Conduit | 1 Set | 3-5 Years |

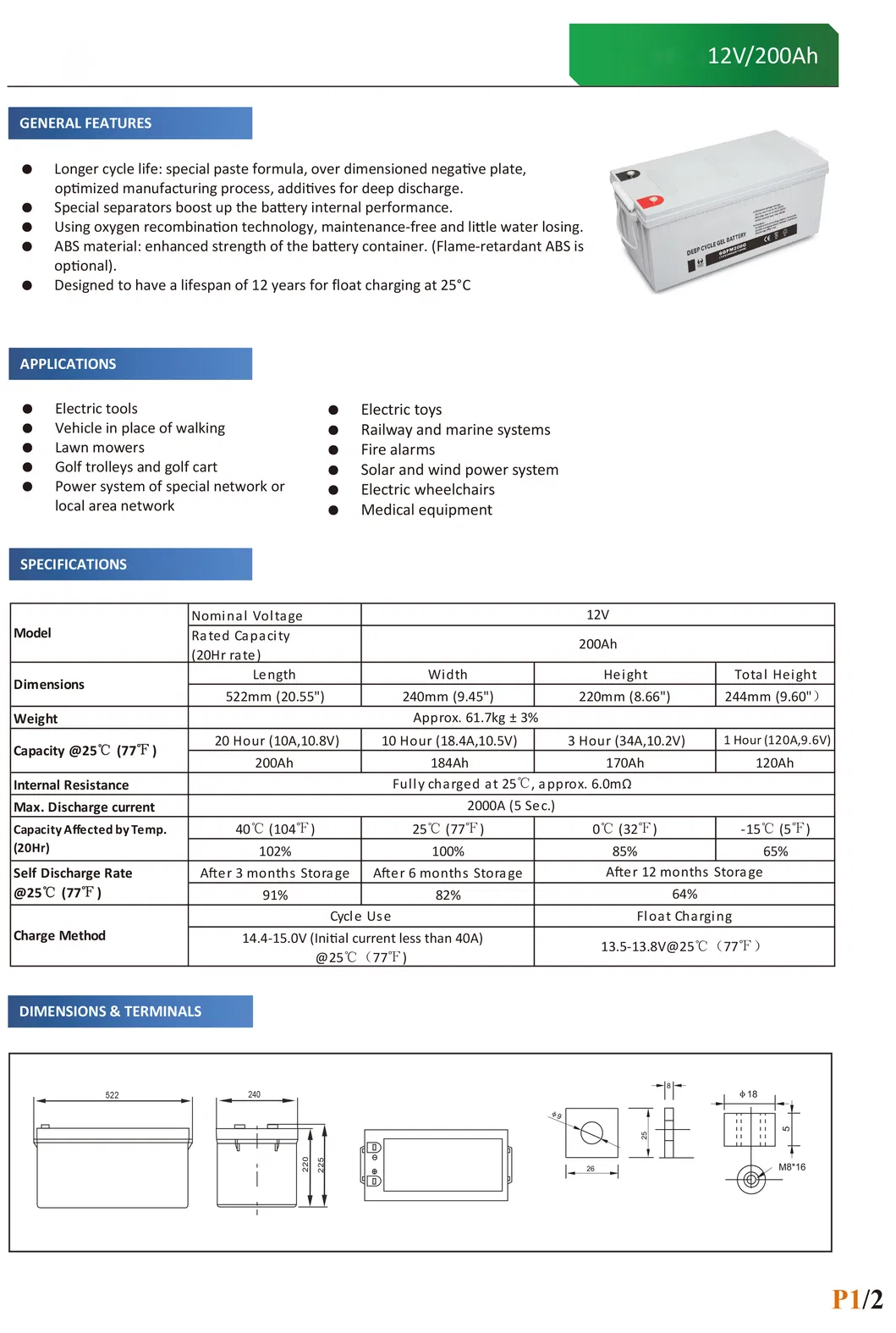

📊 Technical Data

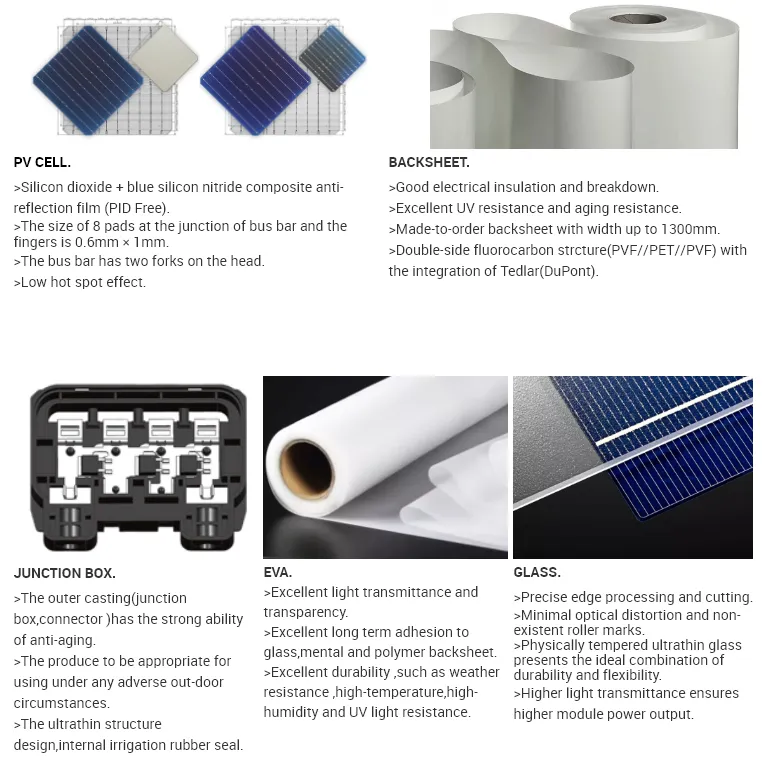

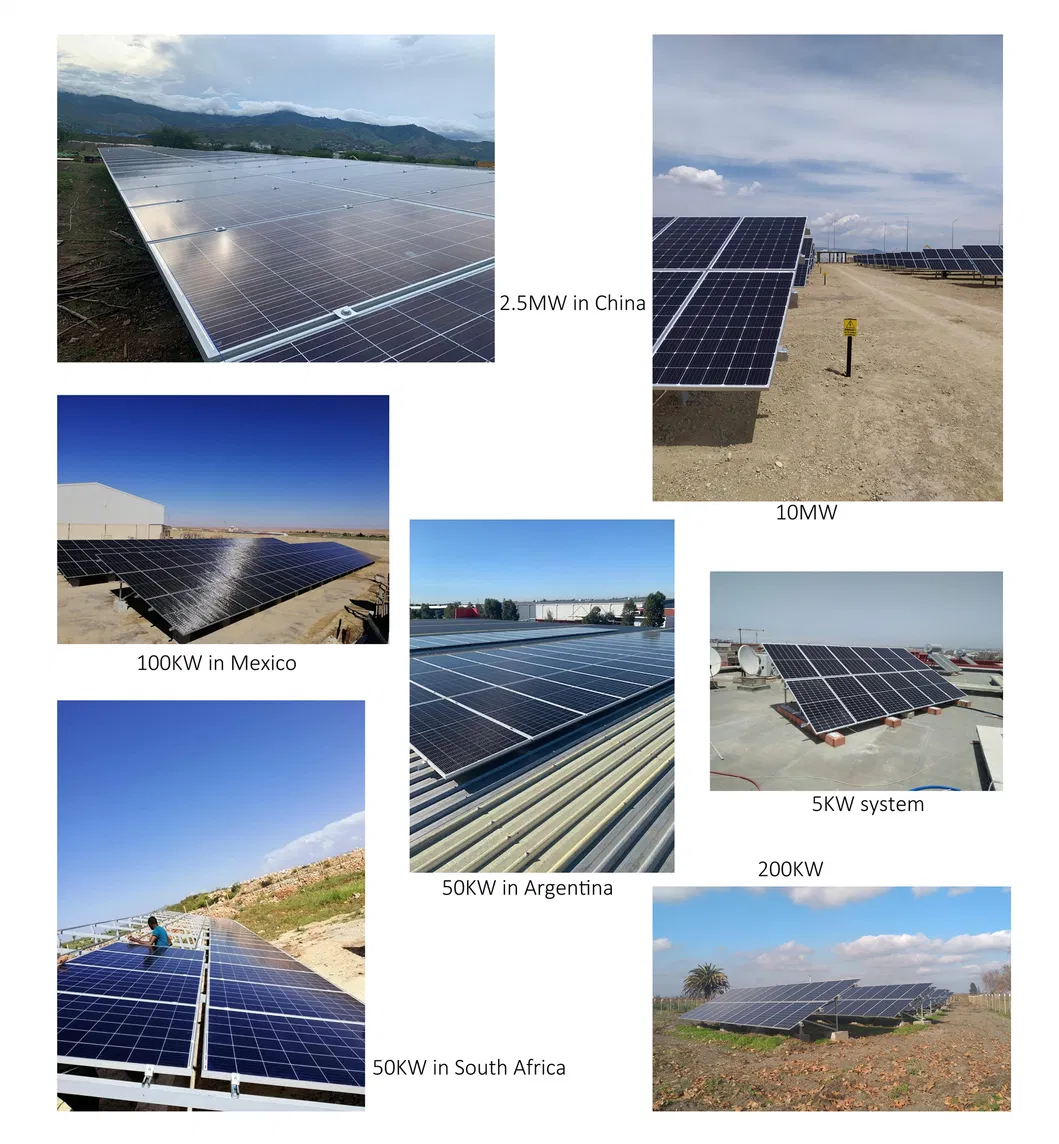

🛠️ Materials & Projects
📜 Quality Certificates
❓ Frequently Asked Questions
What information is needed to customize my system?
We require the names of all loads (appliances), their power ratings (Watts), and the intended service time (hours) per day.
What is the production lead time?
Production time depends on the order quantity, typically ranging between 15 to 20 working days.
What are the accepted payment and shipping terms?
We accept T/T and L/C. Available shipping terms include CIF, FOB, CFR, DDU, and DDP.
What is the lifespan of the battery included?
The system utilizes high-quality Lead-Acid Gel batteries designed for deep cycle use, offering approximately 1600 cycling times.
Where can this solar system be installed?
This 1KW off-grid system is versatile and suitable for residential homes, industrial facilities, and small commercial applications.
Are the mounting brackets suitable for all roof types?

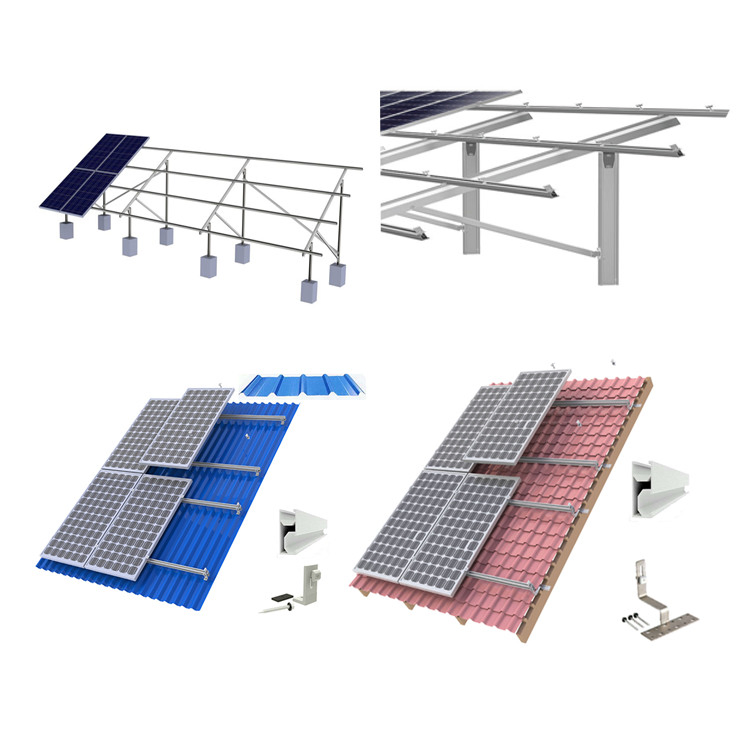

Yes, we provide carbon steel or hot-galvanized aluminum mounting brackets that can be configured for both roof-top and ground-mounted installations.
