ConTech Solar
1 / 5

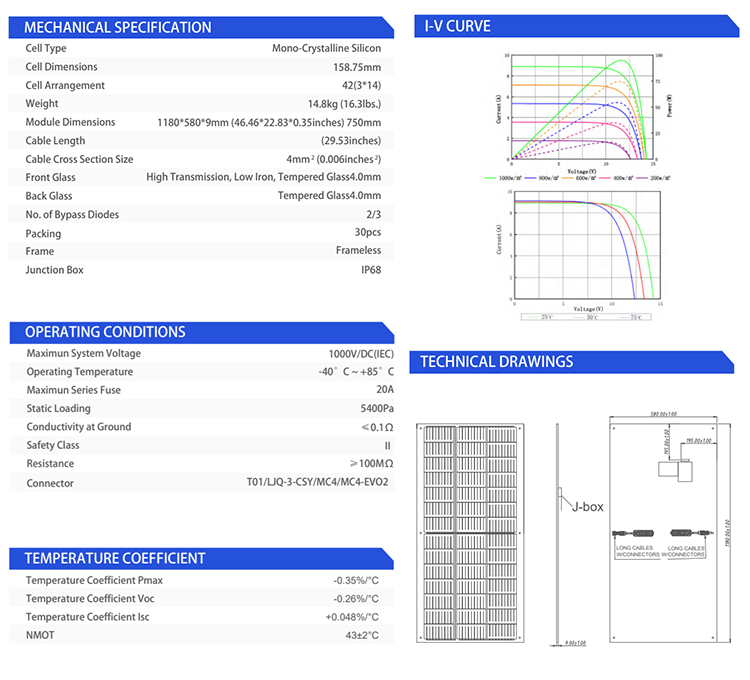

| Parameter | Blue Series | Green Series | Purple Series | Red Series |
|---|---|---|---|---|
| Solar panel performance under STC standard (tolerance: 0~+3%) - Size: 1180*580mm | ||||
| Maximum rated power (Pmax/W) | 80 / 85 / 90 | 85 / 90 / 95 | 75 / 80 / 85 | 65 / 70 / 75 |
| Max power point voltage (Vmpp/V) | 11.6 / 12.0 / 12.4 | 11.6 / 12.0 / 12.4 | 11.6 / 12.0 / 12.4 | 11.6 / 12.0 / 12.4 |
| Max power point current (Impp/A) | 6.90 / 7.08 / 7.26 | 7.33 / 7.50 / 7.66 | 6.47 / 6.67 / 6.85 | 5.60 / 5.83 / 6.05 |
STC: irradiance 1000 W/m², cell temperature 25℃, spectrum AM1.5
NMOT: irradiance 800W/m², ambient temperature 20℃, spectrum AM1.5, wind speed 1m/s
