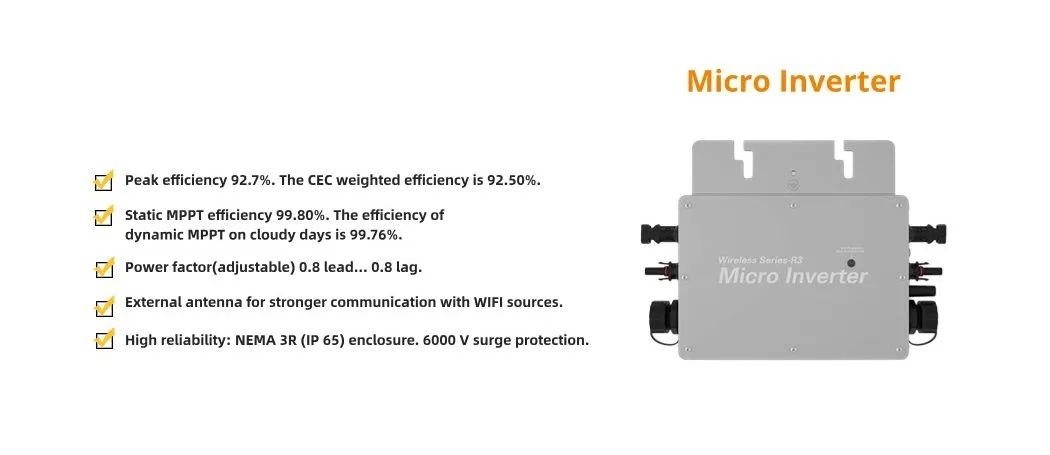

| Micro Inverter | 300W | 350W | 400W | 600W | 700W | 800W |
|---|---|---|---|---|---|---|
| Max input power | Max 375W | Max 435W | Max 500W | Max 2*375W | Max 2*435W | Max 2*500W |
| Output voltage mode | 120/230V Auto switch | 120/230V Auto switch | ||||
| Operating voltage range | 22-60V | 22-60V | ||||
| Maximum Output Power | 300VA | 350VA | 400VA | 600VA | 700VA | 800VA |
| Rated Output current | @120V 2.5A @230V 1.3A |
@120V 2.9A @230V 1.5A |
@120V 3.3A @230V 1.7A |
@120V 5A @230V 2.6A |
@120V 5.9A @230V 3.1A |
@120V 6.6A @230V 3.5A |
| Nominal Frequency Range | 50Hz/60Hz | |||||
| MPPT Voltage Range | 30-60V | |||||
| Number of branch connections | @120V 15 PCs @230V 25 PCs |
@120V 6 PCs @230V 12 PCs |
||||
| Power factor | >95% | >95% | ||||
| Static MPPT efficiency | 99.5% | 99.5% | ||||
| Max output efficiency | 95% | 95% | ||||
| Loss of power at night | <0.5W | <0.5W | ||||
| Total current harmonics | <5% | <5% | ||||
| Temperature range | -40°C to + 65°C | -20°C to + 50°C | ||||
| Size (L*W*H) | 165mm*176mm*38mm | 283mm*200mm*41.6mm | ||||
| Waterproof grade | IP65 NEMA3R | |||||
| Electromagnetic compatibility | EN50081 part 1 EN50082 part1 CSA STD.C22.2 No.107.1 | |||||
| Power grid | EN6100-3-2 EN6219. STD.1741 | |||||
| Communication Method | WiFi | |||||

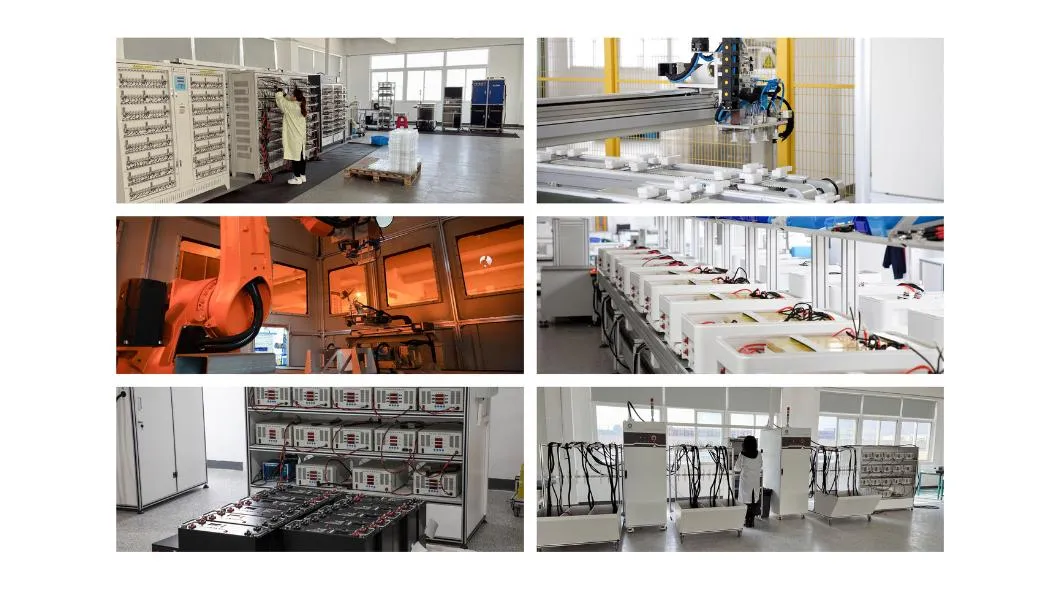

As an innovation-oriented enterprise, our production line is equipped with the latest technology and machinery, as well as high-level testing machines and devices. We maintain a team of experienced and skilled professionals who closely oversee the production process, ensuring that every manufactured product strictly meets the premium global standards.
Yes. In general, the MOQ is 1 set.
For big capacities, we can deliver in around 25 days, depending on the items and your order quantity. Standard stock items usually take only 1-2 days.
Yes, we can provide both OEM and ODM services. We are fully capable of designing customized packaging and logos according to your requirements.
Yes, 100% of our products undergo comprehensive testing and inspections before delivery to guarantee maximum safety and functionality.

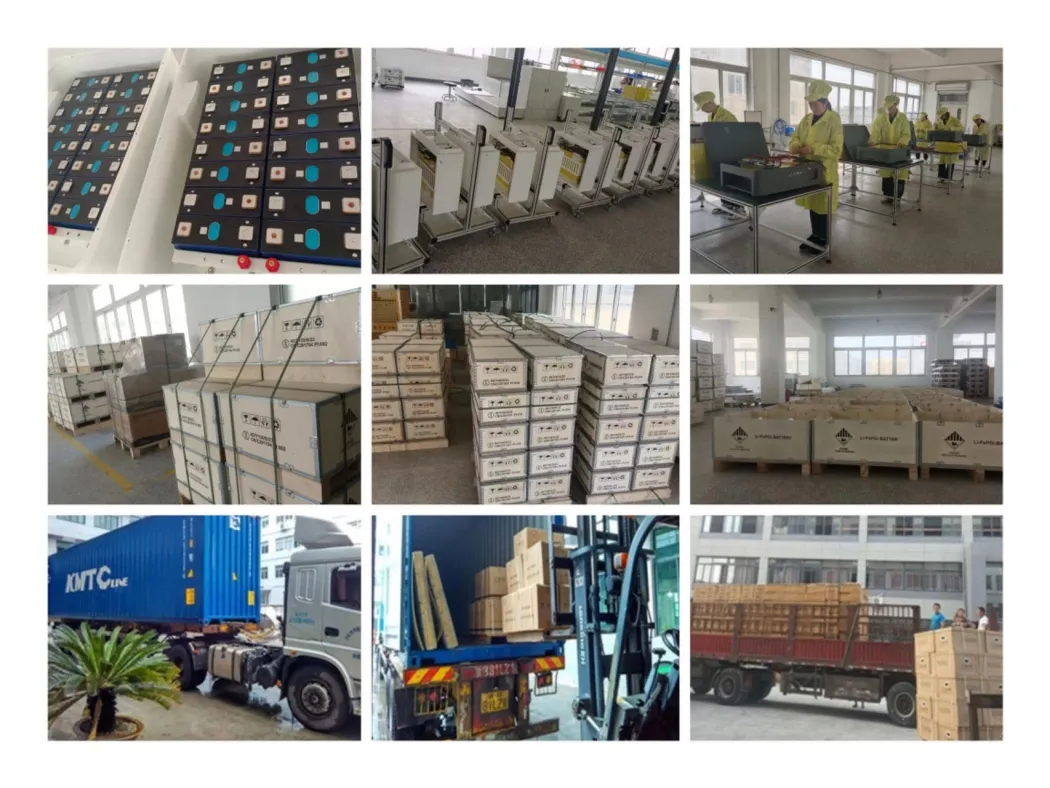

We utilize robust, secure cartons reinforced with pallets to ensure optimal protection during transit.
Absolutely. We can prepare relative documentation and apply for the required origin certificates through the appropriate office free of charge.
