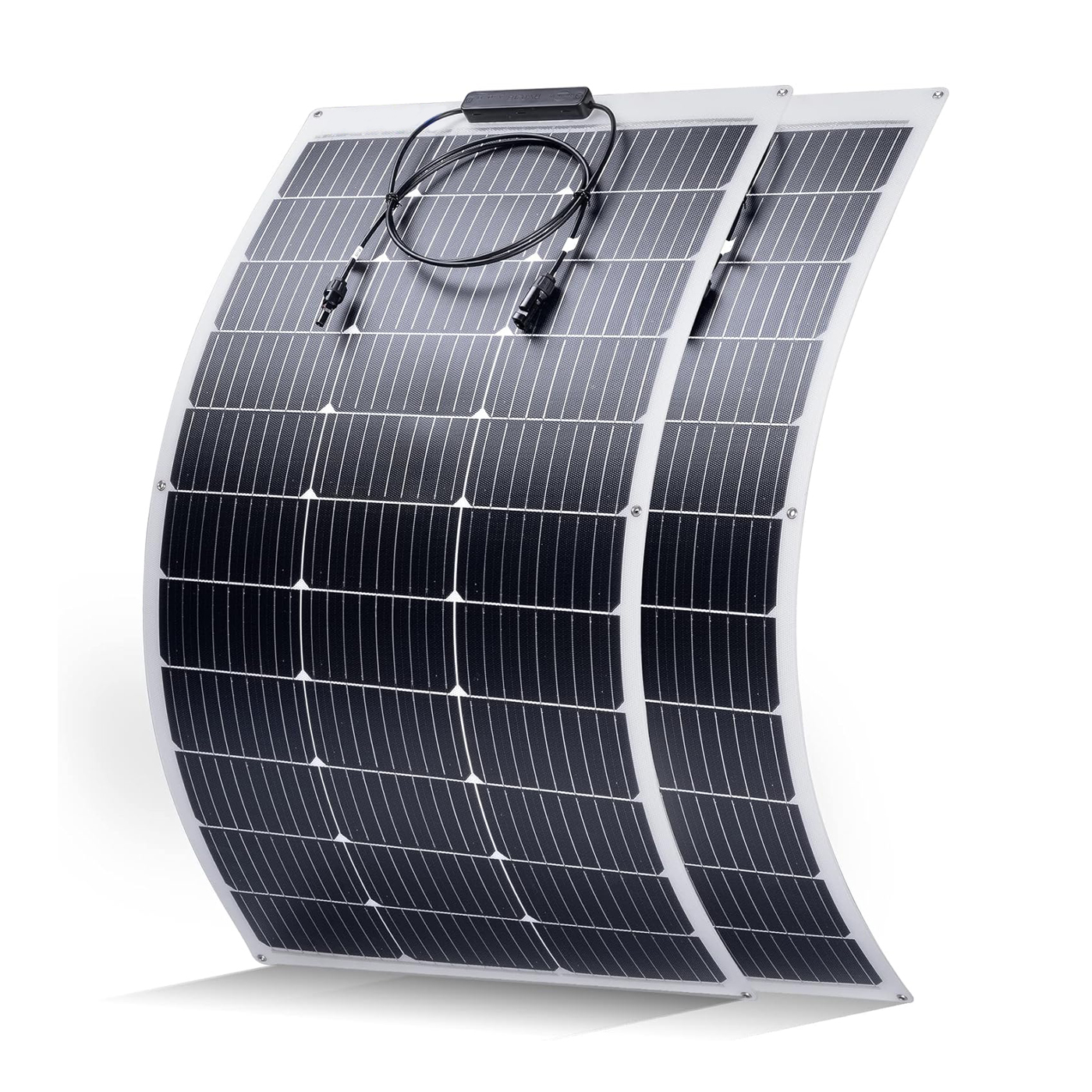

PV Mono Solar Power System 12V 24V 100 150 200 Watt 500 1000W 100W 150W 200W Foldable Thin Film Flexible Solar Panels

Product Description

PV Monocrystalline Silicon Off Grid Solar Power System 12V 100-400W & 500-1000W Flexible Foldable Thin Film Solar Panels
Solar Power System Flexible Solar Panel
!
We provide solar power systems and various types of batteries globally. Our commitment is to provide clean energy for the world through future-oriented emerging technologies.
We offer a wide range of high-quality solar panels and solar energy systems. Our solar panels are made with the latest technology and materials, ensuring maximum efficiency and durability. We offer a variety of sizes and power output options to fit your specific needs, whether for residential or commercial use.
Our solar energy systems are designed to provide reliable, clean energy to power your home or business. We provide complete one-stop solutions for solar energy systems, including maintenance and repair services. We are dedicated to being your personal home clean energy solution provider.
Technical Design
150W Solar Flexible Panel Technical Parameters
Product codeFL-150W/18V
Maximum power(Pmax)Wp150
Voltage at Pmax(Vmp)V18.2
Current at Pmax(Imp)A8.22
Open-circuit voltage(Voc)V22.58
Short-circuit current(Isc)A8.80
Power temperature coefficient%/°C-0.34
Voltage temperature coefficient%/°C-0.27
Current temperature coefficient%/°C+0.05
Solar Cells Efficiency%21.45
Maximum system voltageVDC(IEC)500
Output power toleranceW±3%
Dimension L×W×Hmm1100*800*3 or Customized
Net WeightKG2.6
STCIrradiance 1000W/㎡ Cell Temperature 25°C AM1.5

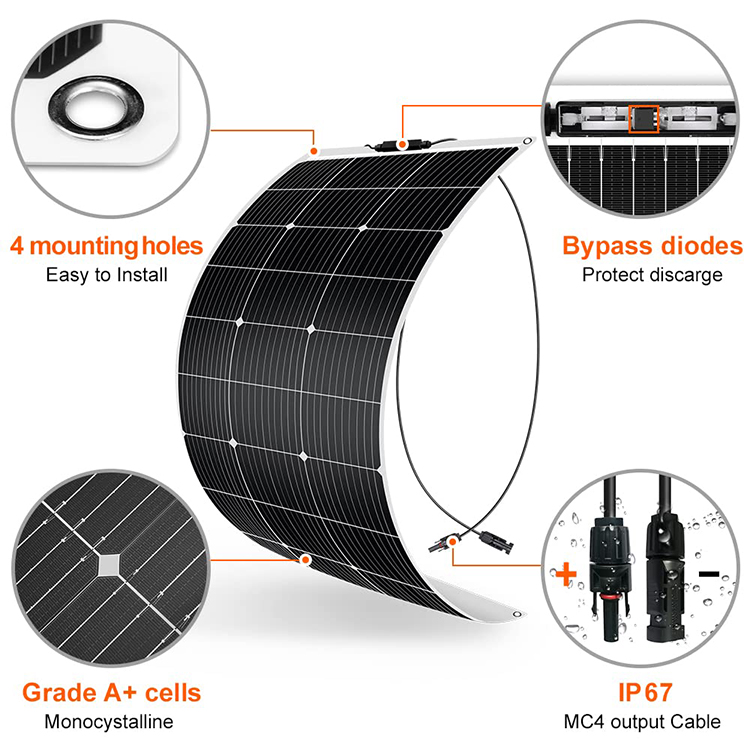

Product Layout Panel Details

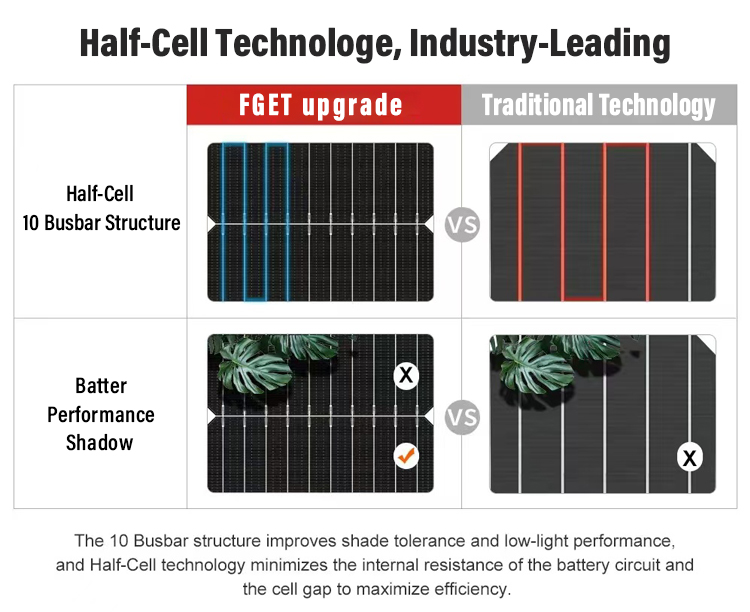

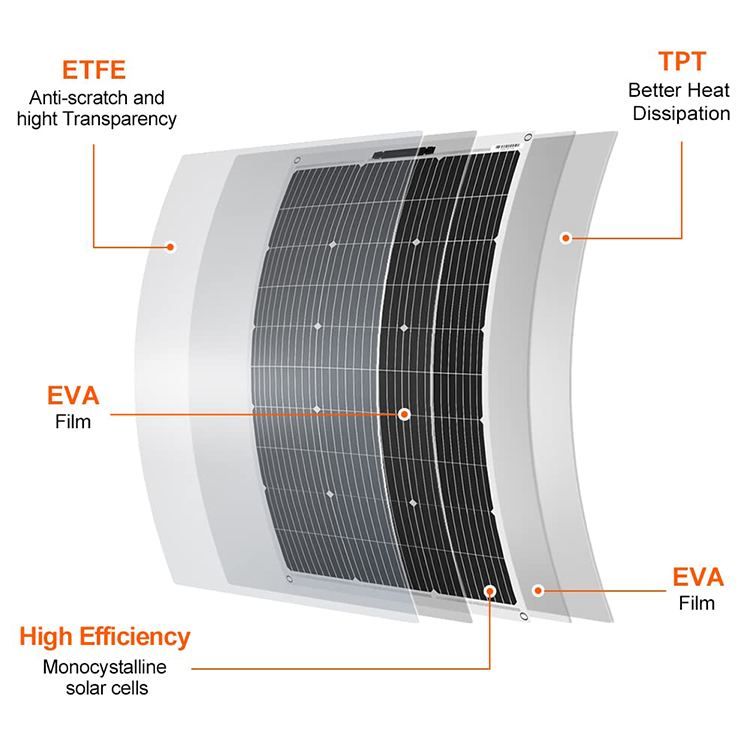

Multi View 1 Multi View 2

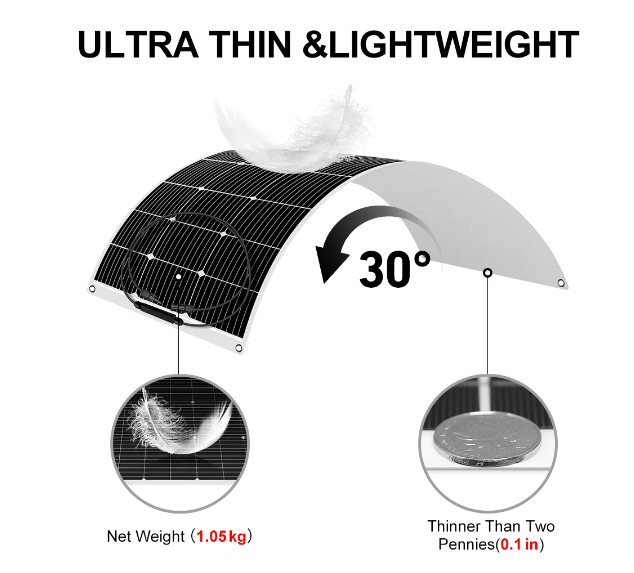

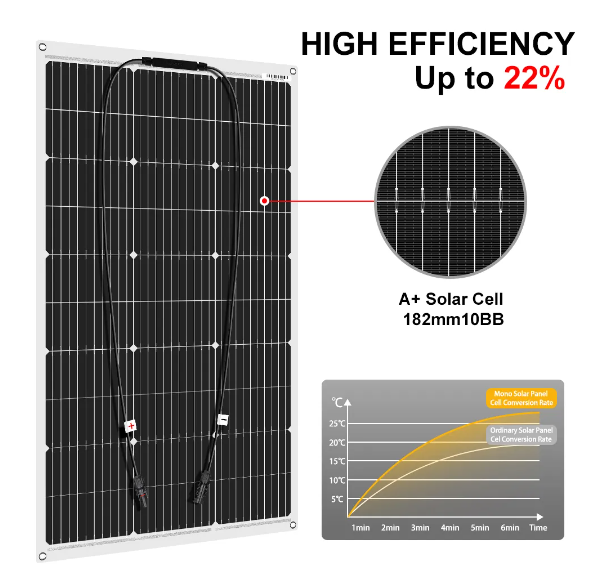

Details 1 Details 2

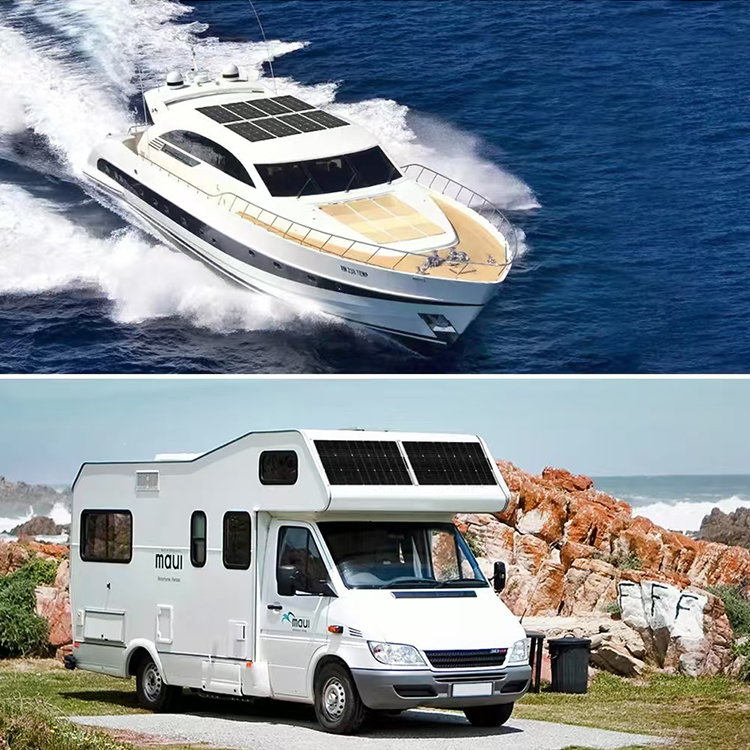

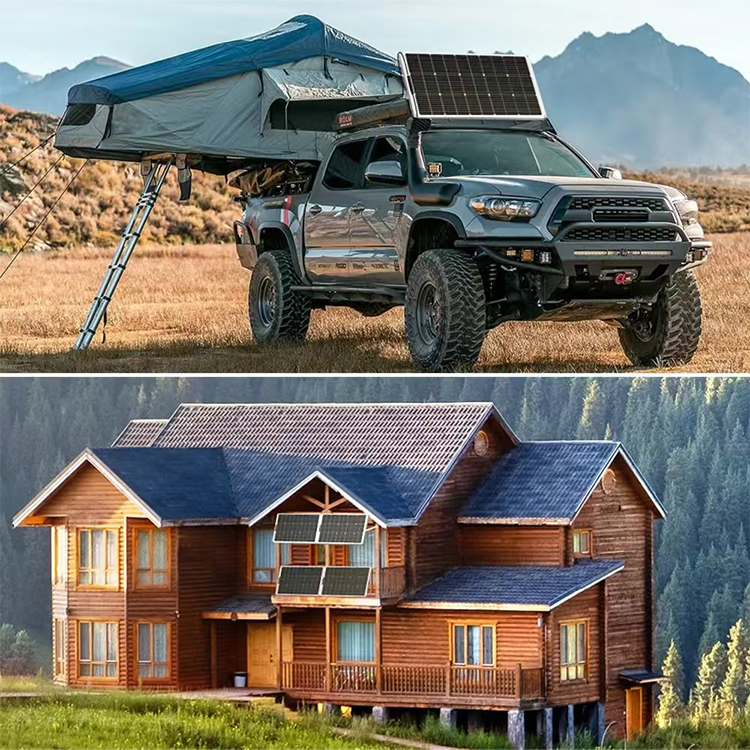

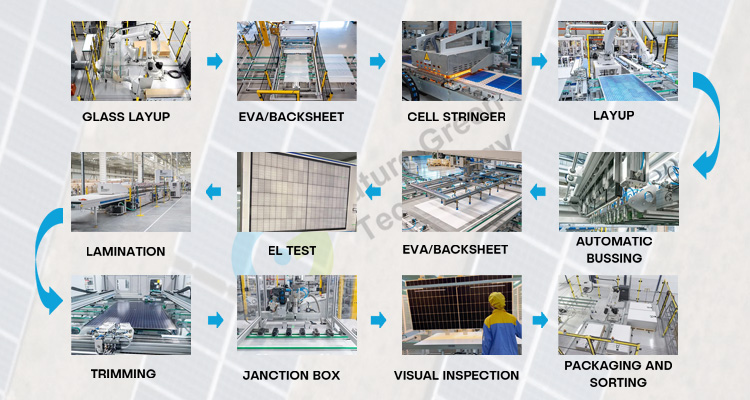

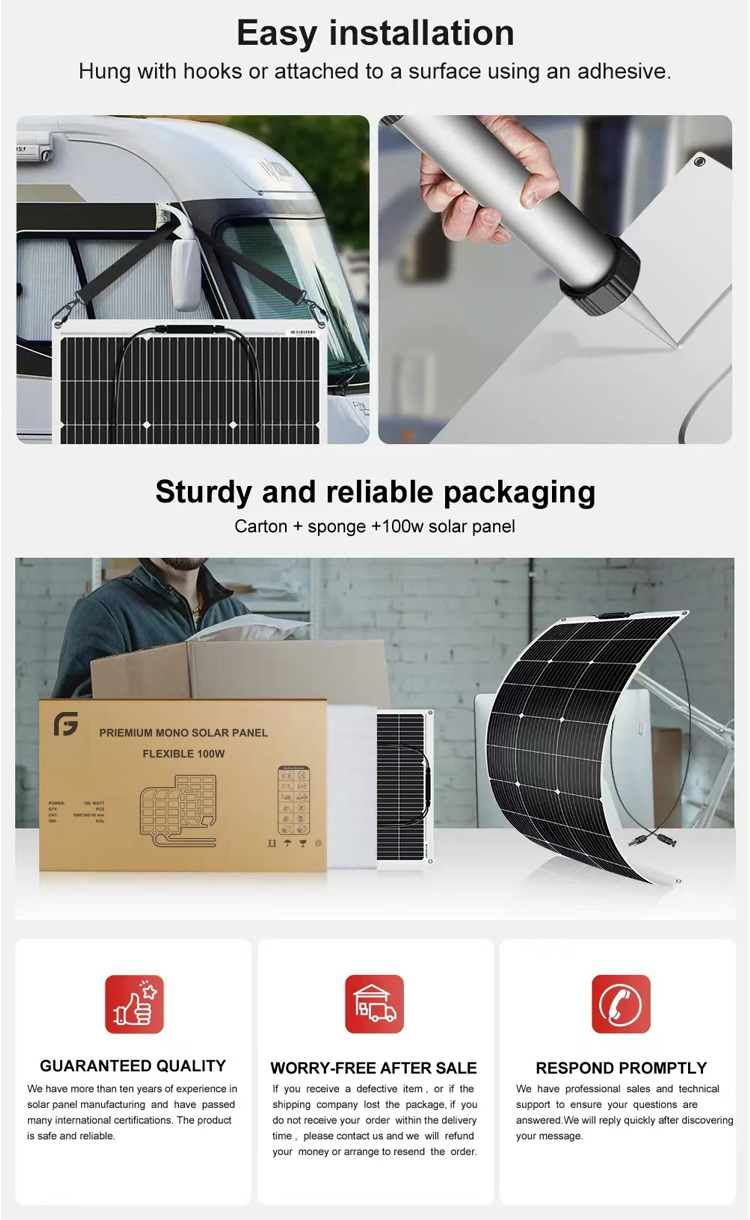

Application Manufacturing Quality Check
Parameter FL-50W FL-100W FL-150W FL-200W
Max Power50W100W150W200W
Vmp (V)18V18.2V18.2V20.5V
Imp (A)2.85A5.85A8.22A9.76A
Voc (V)21.1V21.1V22.58V25.38V
Isc (A)3.05A6.26A8.80A10.44A
Efficiency21% ~ 22.5%
Dimensions (mm)585*460*31000*600*31100*800*31320*800*3
Weight (kg)0.92.12.63.2
Foldable Panel Outdoor Use
Packaging 1 Packaging 2 Packaging 3
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Summary Image
Frequently Asked Questions
Q1: How to choose the right Panel?
Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What is the difference between Mono and Poly panel?
Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. Polycrystalline silicon process is simpler and costs less, with less waste silicon compared to monocrystalline.
Q3: What is your delivery time?
It depends on the order quantity. Usually, it takes about 7-10 days for small orders. Bulk ordering (more than 10,000 pieces per watt) takes 10-15 days.
Q4: What is the warranty for solar panels?
We offer a 25 years warranty on our solar products.
Q5: Is it possible to put our logo on your product or packaging?
Yes, we welcome customization of your brand, LOGO, color, product manual, and packaging. The minimum order quantity is 100 per piece for customization.
Q6: How to solve technical problems?
We provide 24 hours after-service consultancy to ensure your technical problems are solved easily.
