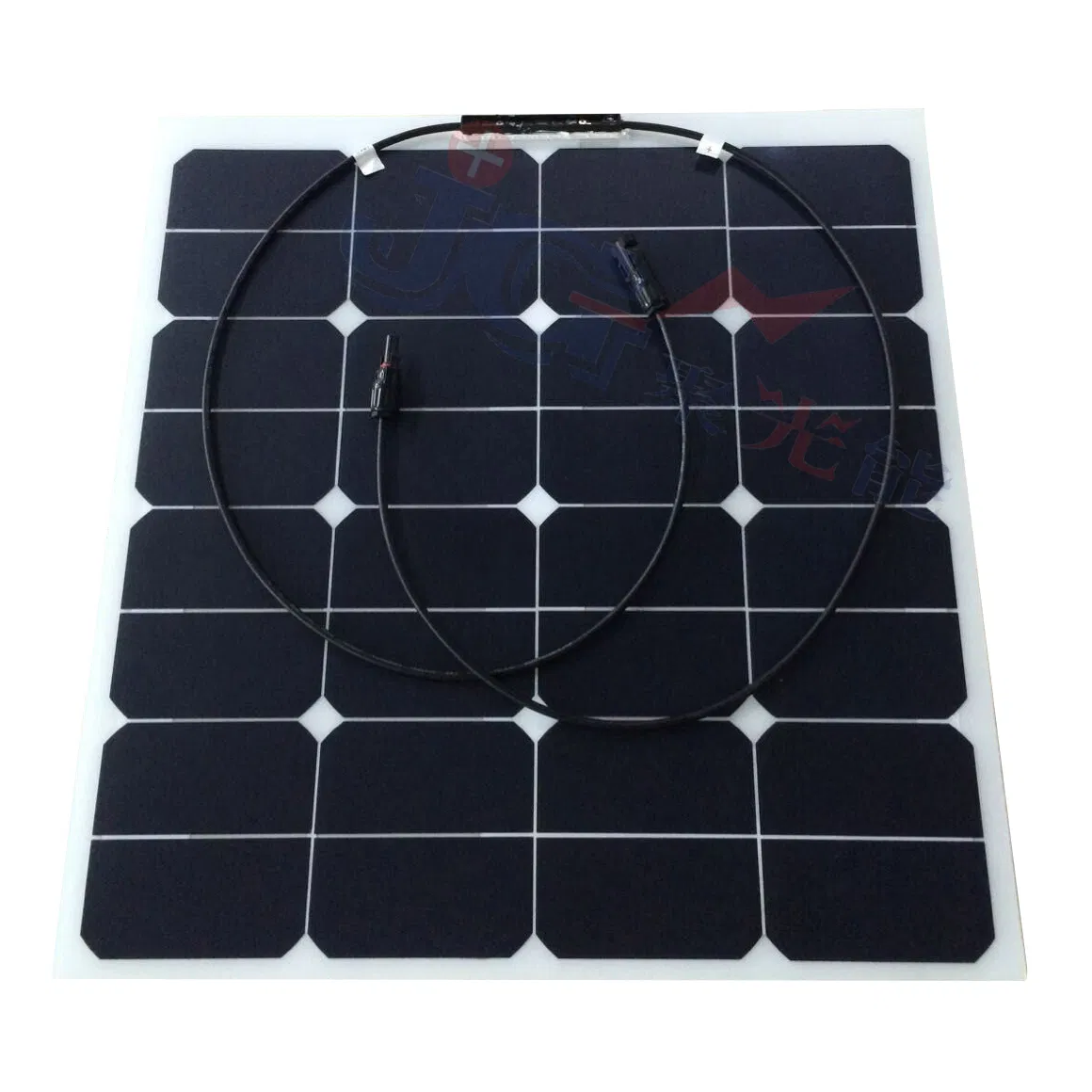

Customized Portable Solar Panel Kit for Rvs, Boats, and Tents

1 / 5

Customized Portable Solar Panel Kit for Rvs, Boats, and Tents

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.	JGN-50W
Application	RV Boat Cabin Tent Car
Condition	New
Certification	ISO, CE
Material	Sunpower
Backsheet Color	White Color/Black Color/Customized
Encapsulation	Glossy or Frosted ETFE
Size	560X540X3mm
Junction Box	Front Side or Back Side
Transport Package	Cartons and Pallets, Standard Export Packing
Specification	Semi Flexible Solar Panel
Origin	China
HS Code	8541430000
Production Capacity	50MW/Year

Packaging & Delivery

Package Size	105.00cm * 70.00cm * 3.00cm
Package Gross Weight	2.000kg

Customized Flexible Lightweight Solar Panel Kit

Optimized high-efficiency solar panel solution designed dynamically for RVs, marine applications, cabins, tents, and vehicles.

Product Description

Semi Flexible Solar Panels construction makes it perfect for a marine installation allowing flexibility of up to 3% typically.

Semi-flexible solar panel range boasts one of the highest efficiency cells in the World with efficiency levels up to 22.5%, meaning higher power generation of between 25-30% more than conventional solar modules of the same size. The high performance monocrystalline or polycrystalline cells are encapsulated between EVA & TPT giving excellent durability under harsh outdoor conditions. Thin, light when fitted to the roof of a caravan or motor home very aerodynamic. Lightweight design combined with high-efficiency cells and solar panel flexibility makes our latest solar curve range also perfect for marine use and many more applications where a rigid framed solar panel is not an option.

SunPower's panels are constructed with top-grade, light-weight polymer materials, allowing for easy transport, installation and panel flexing up to 30 degrees.

Features

✓ High Efficiency: Efficient semi-flexible solar panel design.
✓ Reliable Performance: Stable performance with high conversion efficiency cells.
✓ Heavy Duty Protection: Waterproof, high compressive strength, corrosion resistance, and long-lasting durability.
✓ Portable Design: Antioxidant treatment, fast heat dissipation, extremely lightweight, and easy to carry.
✓ Texture Finishes: Available in both premium Glossy and Frosted surface options.

Applications

✦Sailboats, Trawlers, and Luxury Yachts
✦Moored boats or applications with no shore power
✦Boats in dry storage or sitting on trailers
✦Offshore beacons and remote monitoring infrastructure
✦Oceanside homes & remote off-grid cabins
✦Solar water pumping systems
✦Automobile, camper, or RV battery charging

Technical Specifications

Model number	J-50W-SPFE1
Peak power / Pm(W)	50 Wp
Open circuit voltage / Voc(V)	21.6
Max. power voltage / Vmp(V)	18.0
Max. power current / Imp(A)	2.78
Short circuit current / Isc(A)	3
Solar cells origin	SunPower (Authorized & Imported directly)
Dimensions(LWT)	5605403mm (NOT including the thickness of junction box)
Solar cell / No. of cells and connections	SunPower solar cells / 32 cells in series
Encapsulation	ETFE laminated (PET optional)
Backsheet	TPT (white color)
Frame	NO Frame
Junction box protection degree	≥IP65; Located on the front side of the panel
Cable & connector	900mm solar cable with MC4 compatible connectors
Standard Testing Conditions	Irradiance: 1000W/m2, Cell temperature: 25ºC, AM: 1.5 (air mass)
Max. system voltage (V)	600Vdc
Application Class	Class A
NOCT	45±2ºC
Operating temperature range	-40ºC - +85ºC
Product Certifications / Standards	CE, RoHS
Other Certifications	ISO9001:2008

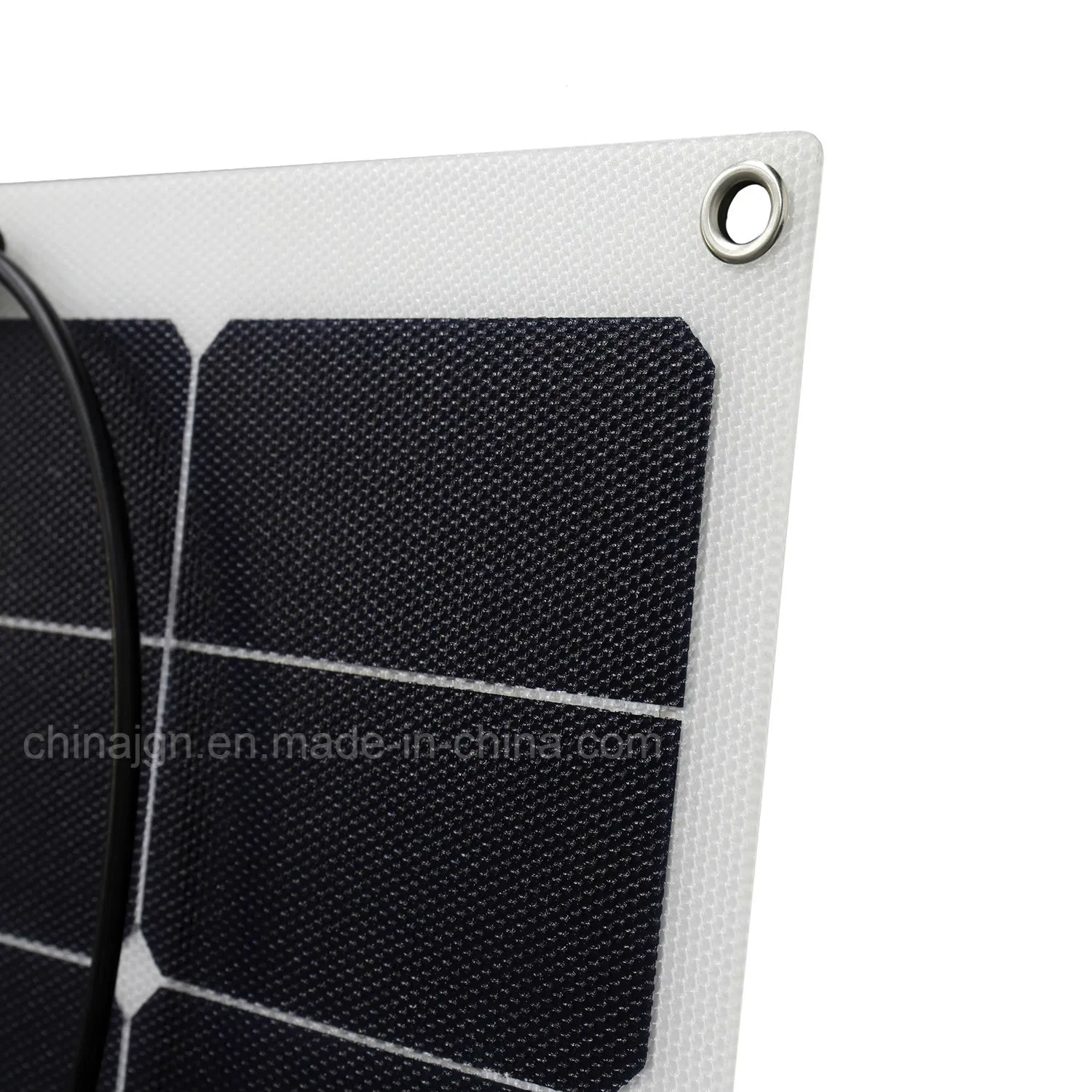

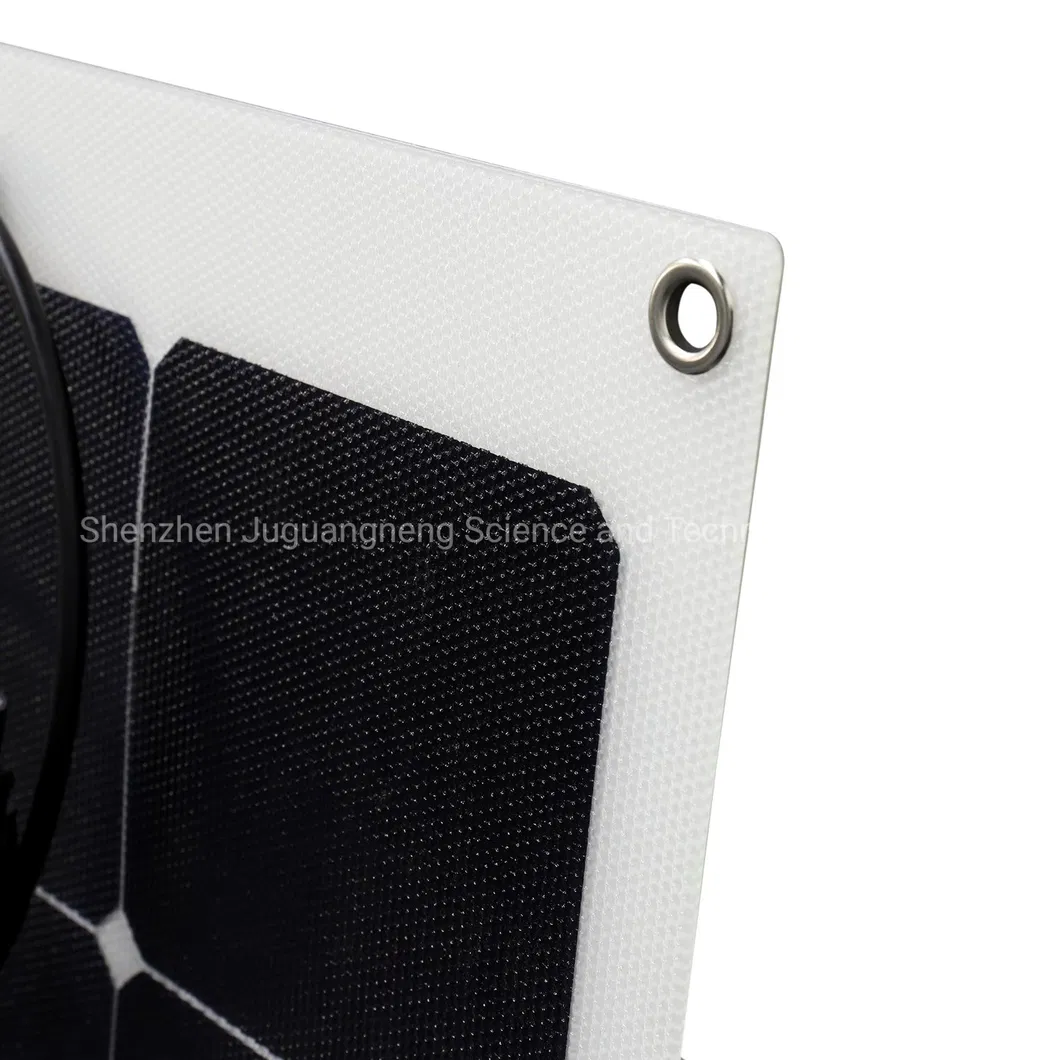

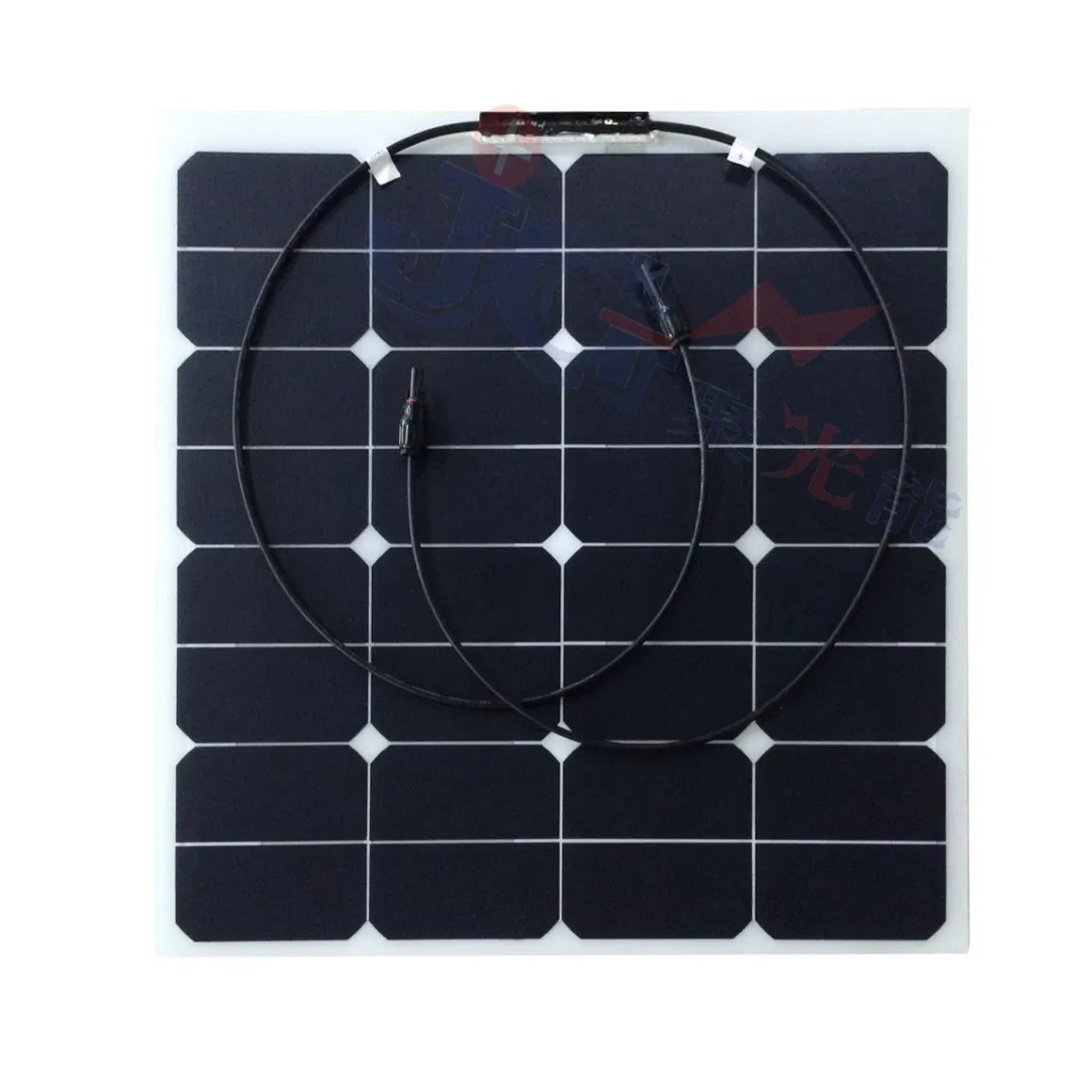

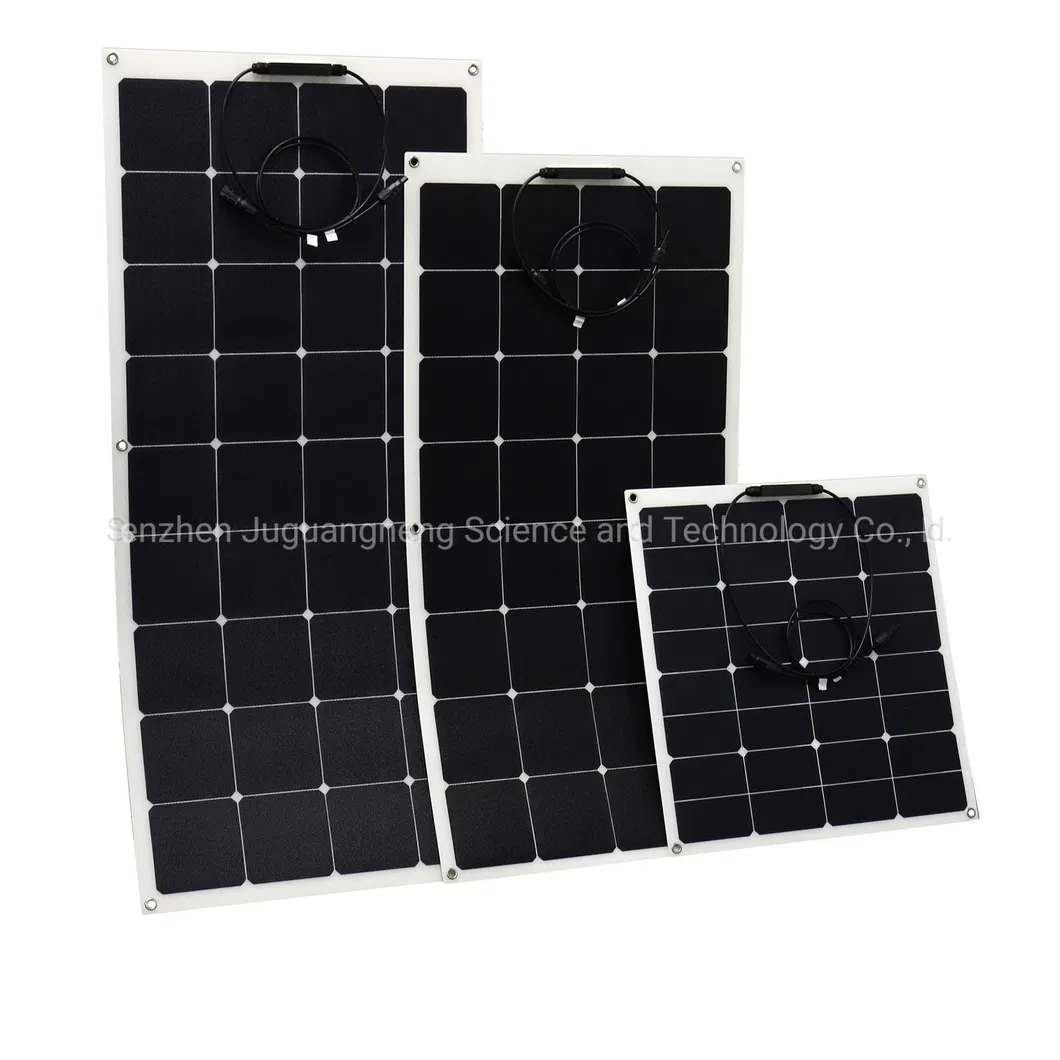

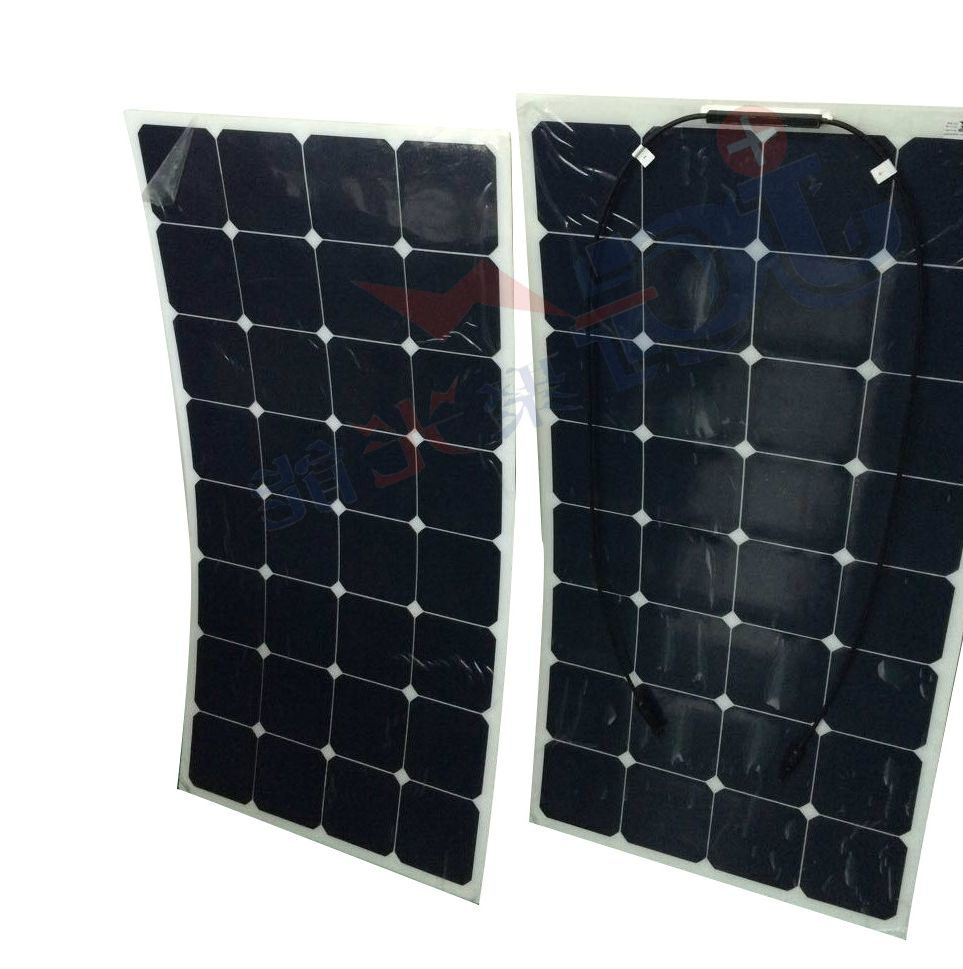

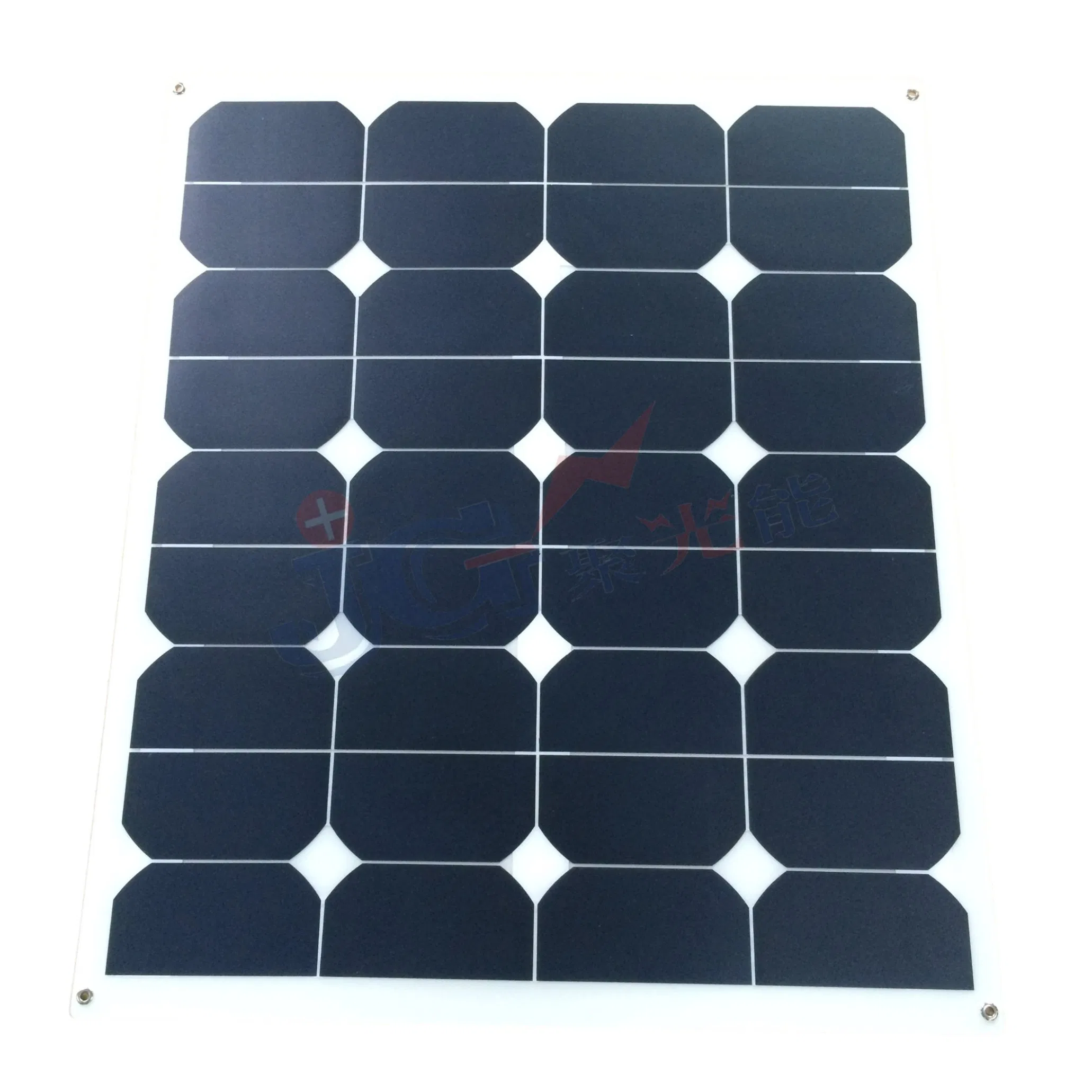

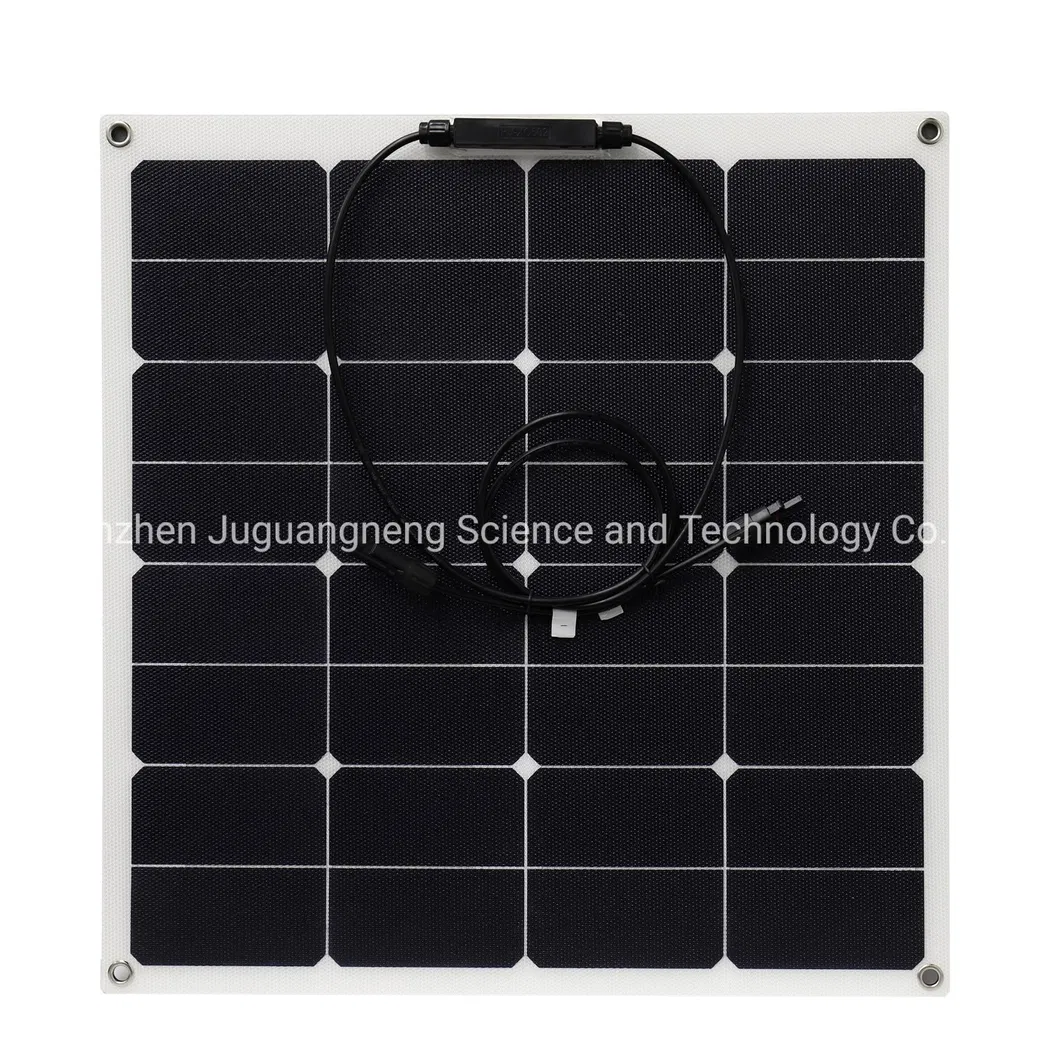

Product Showcase

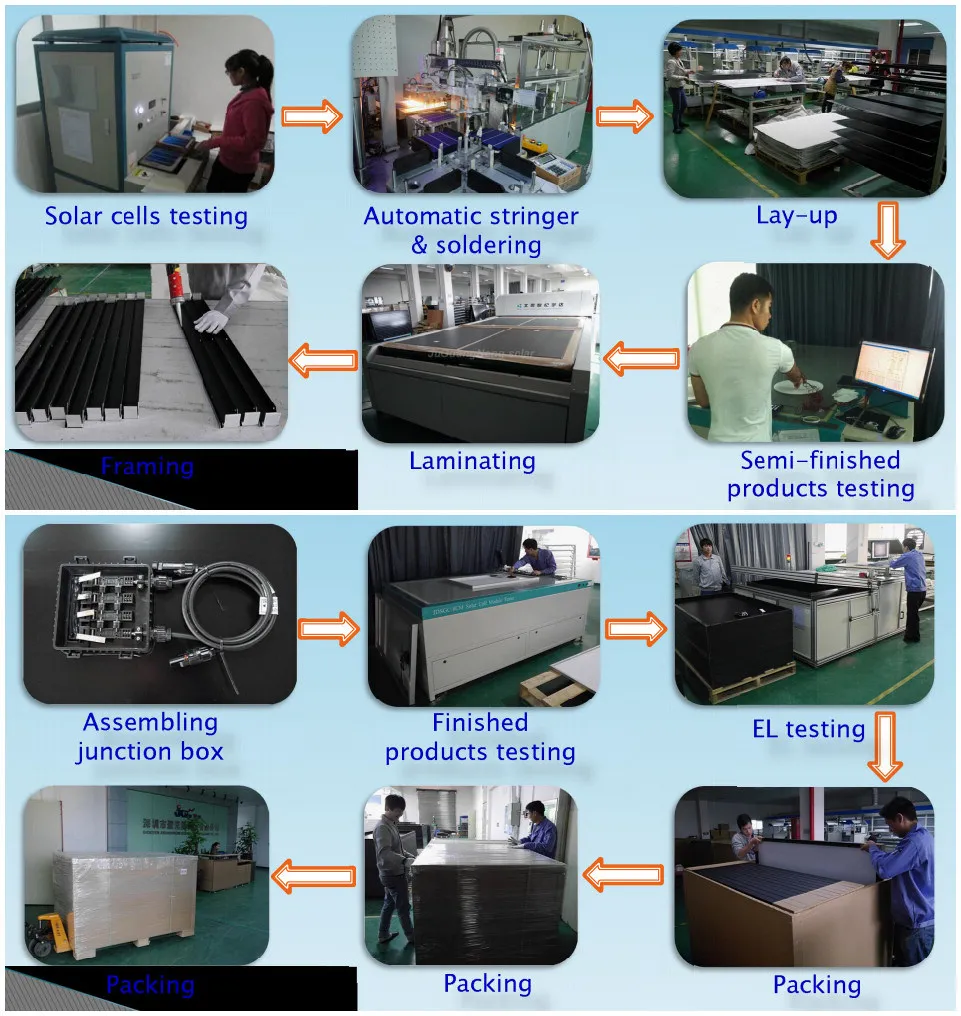

Manufacture Process

Product Line Profile

Our facility has extensive production experience specializing in various solar panels ranging from 0.1W to over 400W. Standard qualified production lines cover small watt solar panels (PET/PCB laminated and Epoxy resin solar panels), tempered glass solar panels (0.1W-400W+), semi-flexible solar panels (5W-400W+) utilizing high-performance SunPower or mono solar cells, as well as 10W to 400W+ portable foldable solar panels, and more.

Packaging & Shipping

Frequently Asked Questions

What is the advantage of using SunPower cells in these semi-flexible panels?

SunPower cells offer world-leading efficiency of up to 22.5%. This enables 25-30% more power generation compared to conventional solar panels of the same overall physical footprint, allowing you to maximize power generation in restricted spaces like RV roofs or boat decks.

How flexible are these panels, and can they be mounted on curved surfaces?

Yes, these lightweight polymer panels are designed to flex up to 30 degrees, making them ideal for mounting perfectly on contoured surfaces like caravan roofs, boat cabins, and yachts where standard rigid metal frame panels cannot fit.

What is the difference between Glossy and Frosted ETFE encapsulation?

Glossy ETFE offers high clarity and maximum direct light transmission. Frosted ETFE provides an anti-glare, non-reflective surface that helps scatter harsh light, improves tracking efficiency in diffuse light settings, and offers better scratch and slip resistance.

Are these panels durable enough to survive harsh marine and coastal conditions?

Absolutely. The encapsulation uses specialized high-grade EVA and TPT backsheets. Together with its IP65+ rated waterproof junction box, it provides excellent dust protection, waterproofing, and corrosion resistance to withstand salty marine environments and severe weather.

Do the panels come with pre-installed cables and connectors?

Yes, each panel comes equipped with a 900mm solar cable and MC4-compatible connectors pre-routed through a front-mounted IP65 junction box for rapid, secure, and weatherproof plug-and-play installation.
