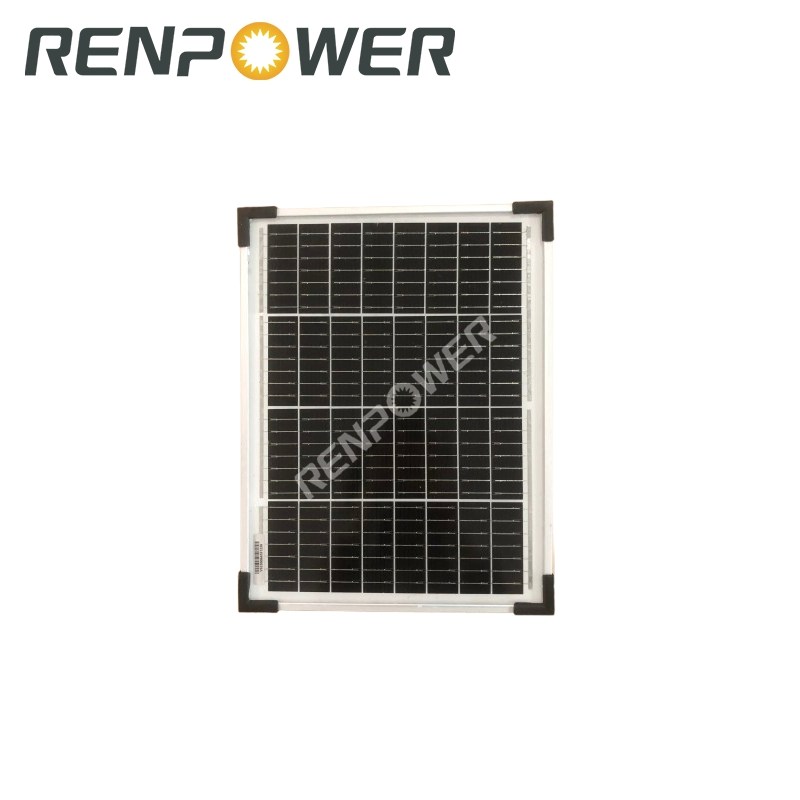

20W PV Solar Power Module High Efficiency Mono Half-Cell Solar Panel for Power Supply
5W-550W CAN BE CUSTOMIZED (OEM/ODM AVAILABLE)
High efficiency monocrystalline solar panel manufactured to the highest quality and performance standards.

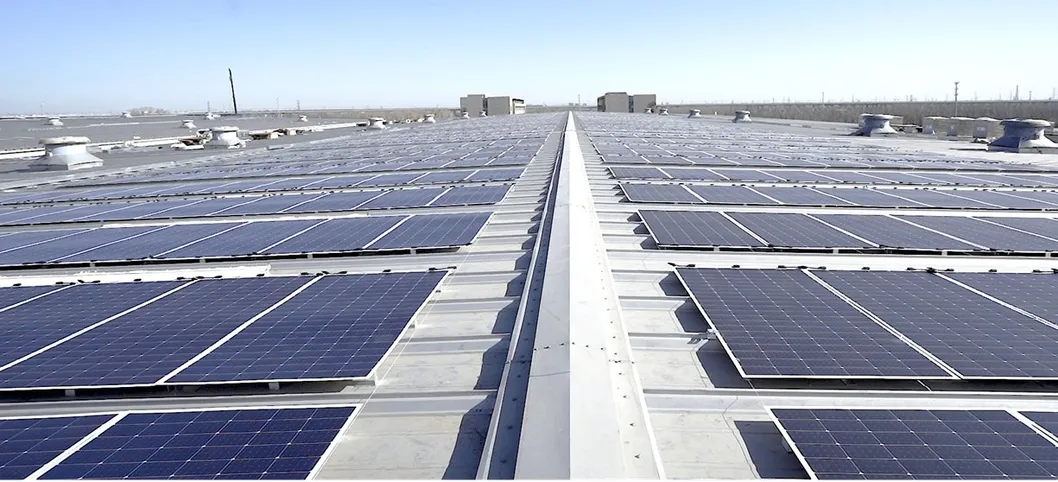

Great for all grid connected or off grid systems on ground power plants and rooftops.
Can be used for any standalone off-grid solar power system with batteries, such as a household solar system or solar lighting.
Tough, sealed aluminium frame is perfect for all weather conditions.

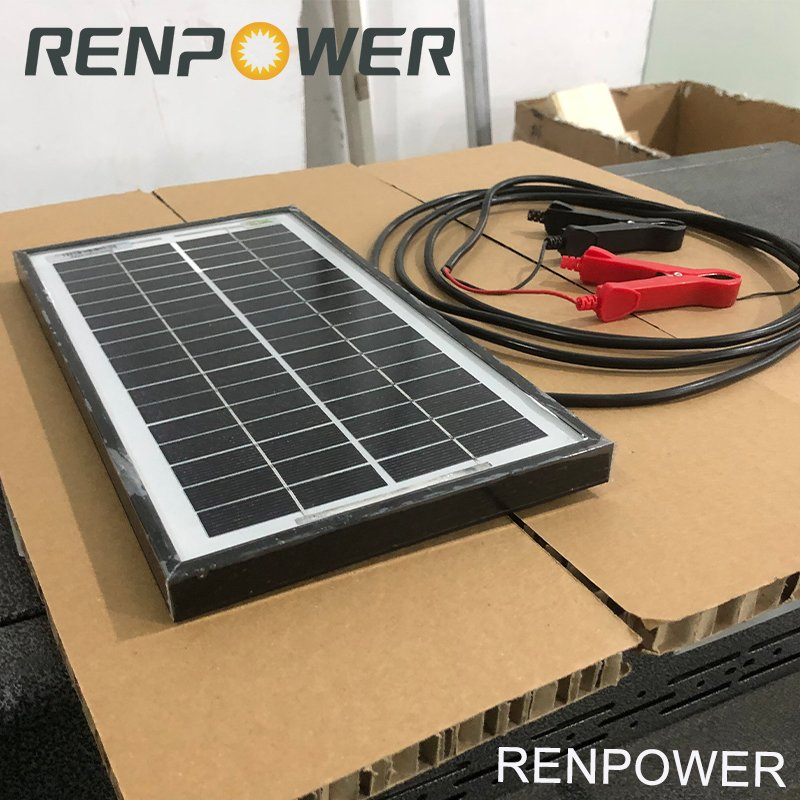

Comes with solar cable which can work in high roof temperatures and has minimum power losses.
Technical Specifications
Model No.
Output Power (W)
Working Voltage (Vmp)
Working Current (Imp)
Dimensions (mm)
Open-Circuit Voltage (Voc)
Short-Circuit Current (Isc)
Weight (kgs)
VSMH-M-5W
5W
20.16V
0.25A
280*190*17
24.12V
6.9A
0.7KGS
VSMH-M-10W
10W
20.16V
0.50A
400*200*17
24.12V
7.92A
1.1KGS
VSMH-M-20W
20W
18.56V
1.08A
360*390*25
21.12V
10.2A
1.6KGS
VSMH-M-30W
30W
18.56V
1.62A
470*390*25
21.12V
11.34A
2.2KGS
VSWM-M-40W
40W
18.56V
2.16A
660*390*25
21.12V
14.48A
2.7KGS
VSWM-M-50W
50W
20.88V
2.39A
520*590*25
23.76V
18.33A
3.5KGS
VSWM-M-60W
60W
19.14V
3.13A
570*590*25
21.78V
3.53A
4.2KGS
VSWM-M-80W
80W
19.14V
4.18A
740*590*30
21.78V
4.71A
4.9KGS
VSWM-M-100W
100W
24.36V
4.11A
930*580*30
27.72V
4.63A
6KGS
VSWM-M-150W
150W
18.56V
8.08A
1040*770*30
21.12V
9.11A
8.6KGS
VSWM-M-160W
160W
18.56V
8.62A
1040*770*30
21.12V
9.71A
9KGS
VSWM-M-180W
180W
20.88V
8.62A
1160*770*30
23.76V
9.71A
10.5KGS
VSWM-M-200W
200W
23.20V
8.62A
1280*770*30
26.40V
9.71A
11.3KGS
VSWM-M-250W
250W
20.88V
11.97A
1730*770*30
23.76V
13.49A
12.4KGS
VSWM-M-260W
260W
20.88V
12.45A
1730*770*30
23.76V
14.03A
13.2KGS
VSWM-M-310W
310W
24.36V
12.73A
1340*1134*30
27.72V
14.34A
16.5KGS
VSWM-M-320W
320W
24.36V
13.14A
1340*1134*30
27.72V
14.80A
17.4KGS
VSWM-M-370W
370W
34.80V
10.63A
1755*1038*35
39.60V
11.98A
20.2KGS
VSWM-M-410W
410W
31.32V
13.09A
1722*1134*35
35.64V
13.86A
23KGS
VSWM-M-450W
450W
34.80V
12.93A
1909*1134*35
39.60V
13.69A
24.5KGS
VSWM-M-550W
550W
41.76V
13.17A
2279*1134*35
47.52V
13.62A
29.2KGS
Mechanical Parameters
Cell
33(3x11) MONO
Junction box
IP67 Split type, 3 diodes
Output cable
4mm², 300mm in length
Glass
Single glass, 3.2mm coated tempered glass
Frame
Anodized aluminum alloy frame
Operating Parameters
Operating temperature
-40°C~+85°C
Front side static loading
5400Pa
Back side static loading
2400Pa
Maximum system voltage
DC1500V/1000V
Maximum series fuse
25A
Normal operating cell temperature
45±2°C
Safety class
Class II

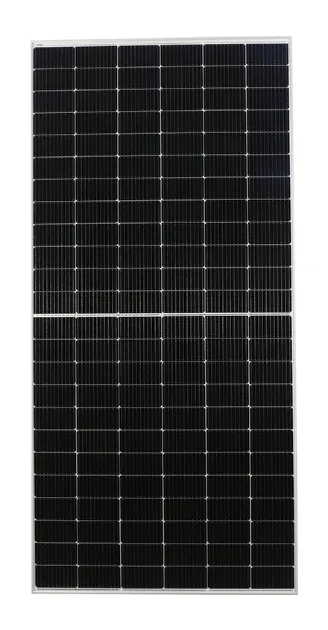

Product Details
Product Application & Usage

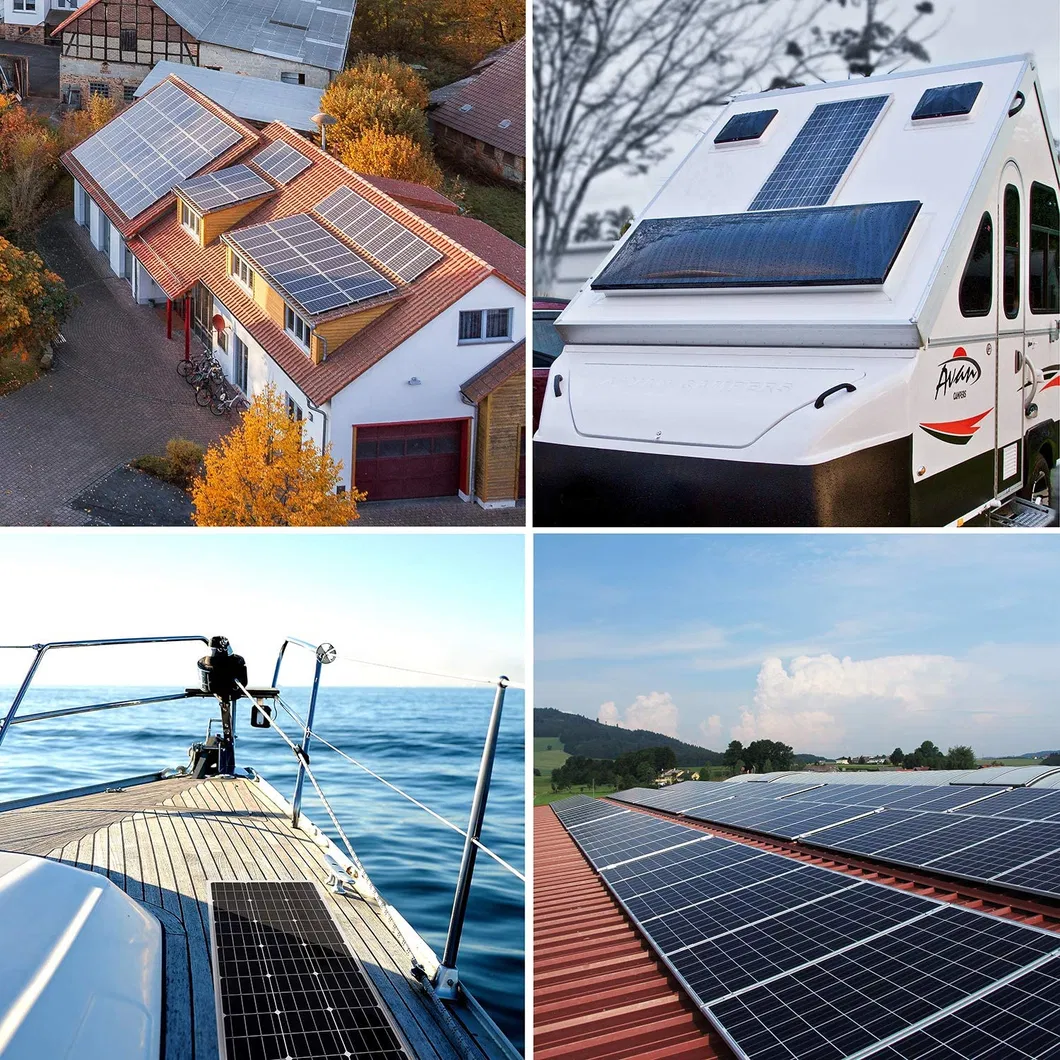

These high-efficiency monocrystalline solar panels are highly versatile and ready for deployment across multiple outdoor scenarios. Perfect for marine applications, RV setups, off-grid cabins, automotive battery maintenance, and residential backup systems. The weather-resistant construction ensures continuous operation even under harsh environmental pressures.

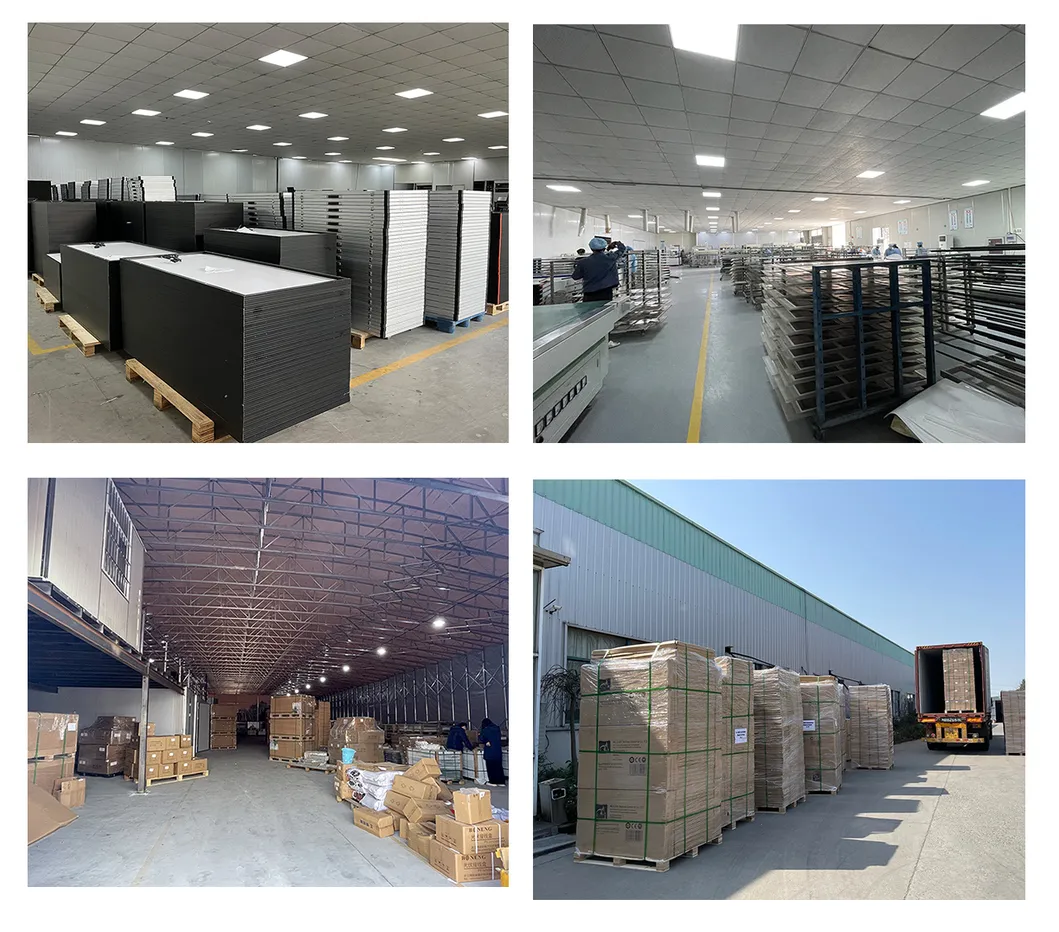

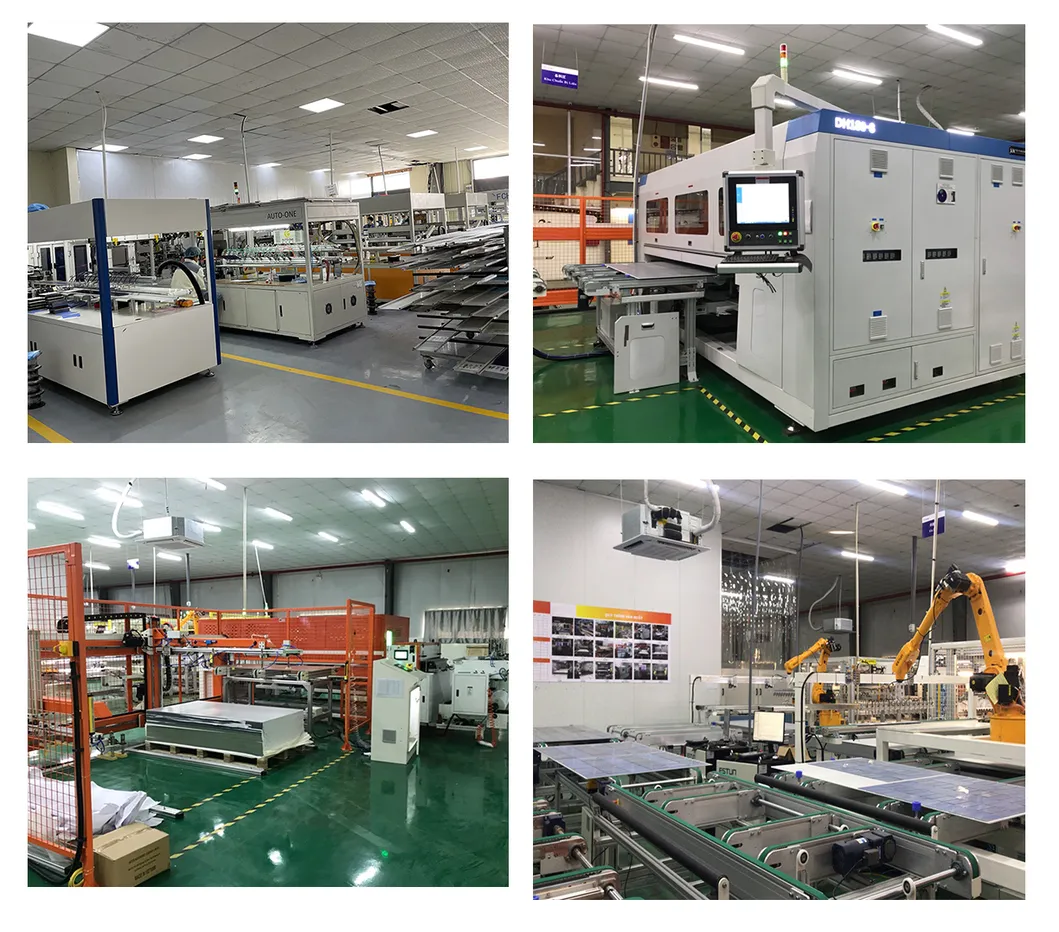

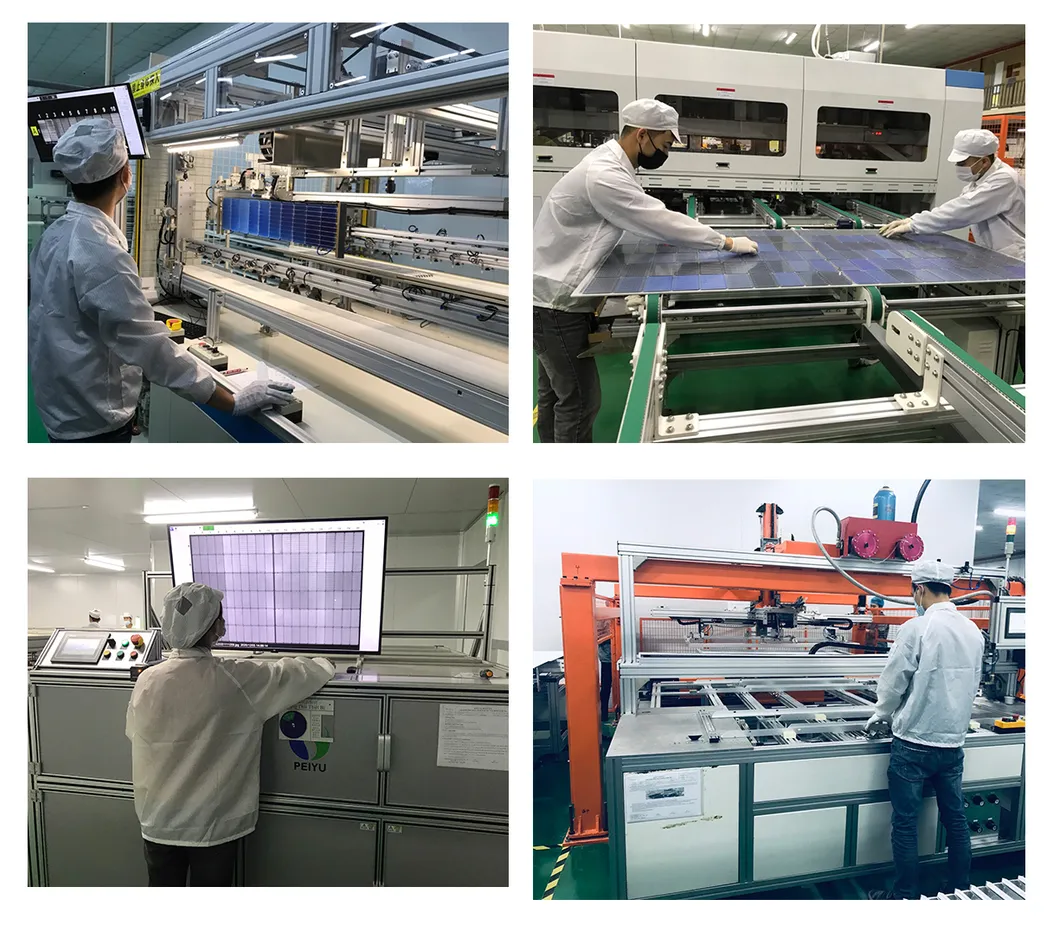

Manufacturing Process & Facilities
The factory covers an area of 7,000 square meters and features three finished product warehouses totaling 1,500 square meters.
Packaging & Delivery

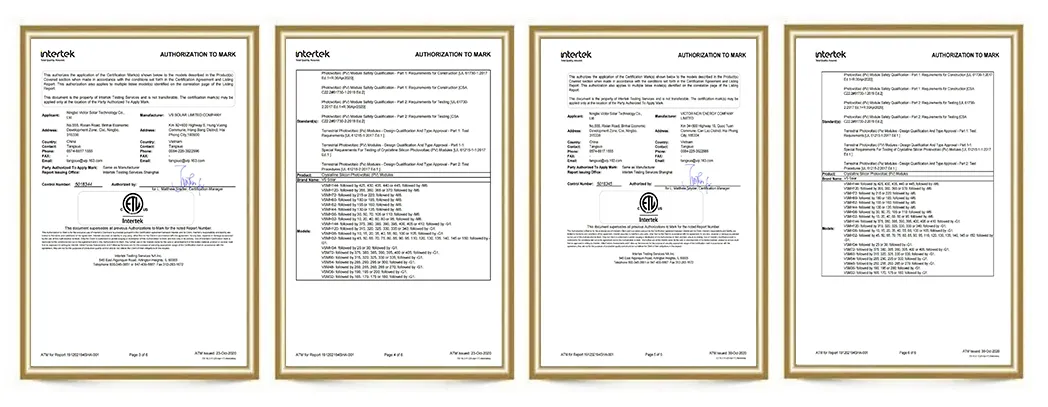

Quality Certifications
Frequently Asked Questions
1. Do these panels have brackets attached to the roof?
The component itself is equipped with a junction box connector output voltage. If you need to access the off-grid system, you need to purchase additional appropriate wiring.

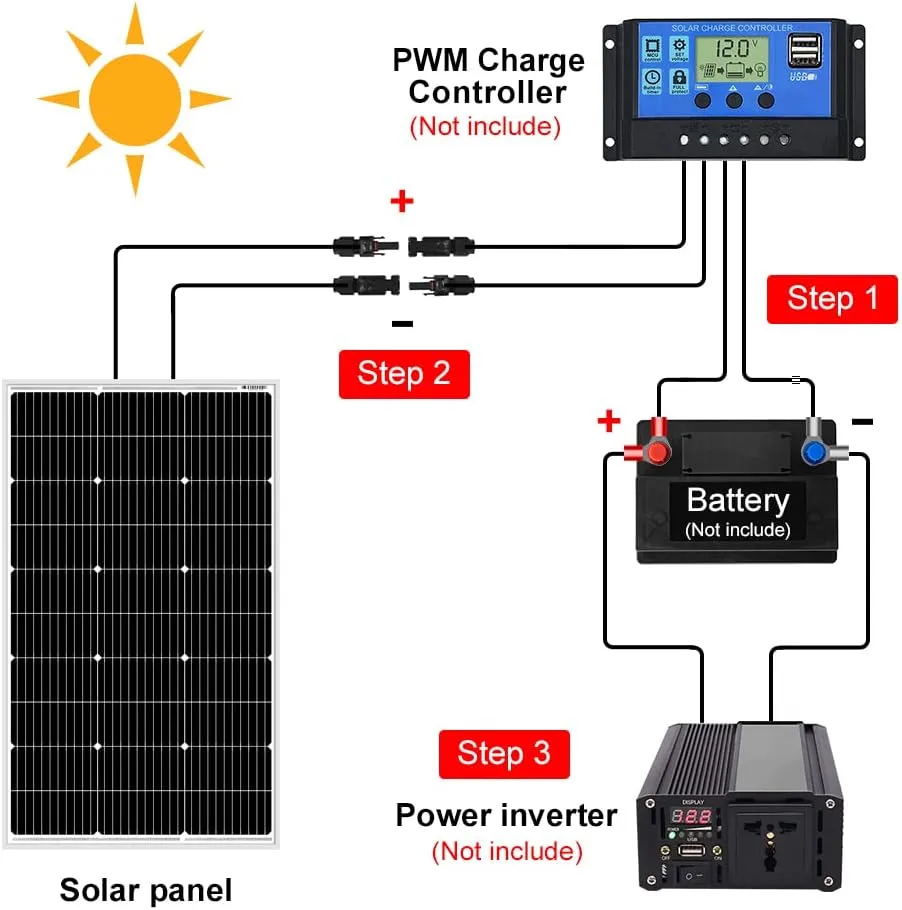

2. Can this solar panel accommodate 12V/24V/36V/48V batteries?
It can be used, but must be connected to a controller. When selecting the controller, it is necessary to adapt the maximum component input power that the controller can access (without exceeding it).
3. How many kilowatt hours can this solar panel produce in a day?
In the case of STC (Standard Test Conditions), the power generation is the product of standard power and sunlight exposure time (W * H).
4. What is the difference between high power modules and low power modules?
The biggest difference is that the efficiency of the cells used is not the same, which will result in different power generation efficiency of the PV modules. At the same time, due to the different efficiency of the cells used, their open voltage will not be the same. In addition, at the installation end, the high power module needs less quantity to meet the customer's demand compared to the low power module, which is also convenient for the wiring and installation at the installation end.
5. What are the operating parameters and conditions for these solar panels?
The panels operate reliably at temperatures ranging from -40°C to 85°C, with a normal operating cell temperature of 45±2°C. They can withstand up to 5400Pa static loading on the front side and 2400Pa static loading on the back side, with a safety level of Class II.
6. What materials are used for the frame and glass panels?
The panels are engineered with a heavy-duty anodized aluminum alloy frame and a 3.2mm coated tempered single glass layer to maximize durability and weather resistance while ensuring high light transmission.
