| Technical Features | ||||
| Max -Power: | 150W | 135W | 110W | 80W |
| Solar cells: | Sunpower | Sunpower | Sunpower | Sunpower |
| Min power tolerance: | ±3% | ±3% | ±3% | ±3% |
| Peak power(WP): | 150W | 135W | 110W | 80W |
| Voltage at Pmax(Vmp): | 25.5V | 23.2V | 18.6V | 19.8V |
| Current at Pmax(Imp): | 5.97A | 5.97A | 5.97A | 4.04A |
| Open circuit voltage(Voc): | 30.1V | 27.4V | 21.9V | 23.4V |
| Short circuit current(Isc): | 6.32A | 6.32A | 6.32A | 4.28A |
| Max System Voltage(VDC): | 45VDC | |||
| cell Efficiency: | 22.60% | 22.60% | 22.60% | 22.60% |
| Temperature Coefficient of Pmax: | -0.32%/ºC | |||
| Temperature Coefficient of Voc: | -1.8mv/ºC | |||
| Temperature Coefficient of ISC: | -0.06%/ºC | |||
| Nominal Operating Cell Temperature: | 45+/-2ºC | |||
| Data under standard testing conditions(STC): 1000W/M²; 1.5AM | ||||
The surface with Hardening process prevent from scratched electronic appliances.

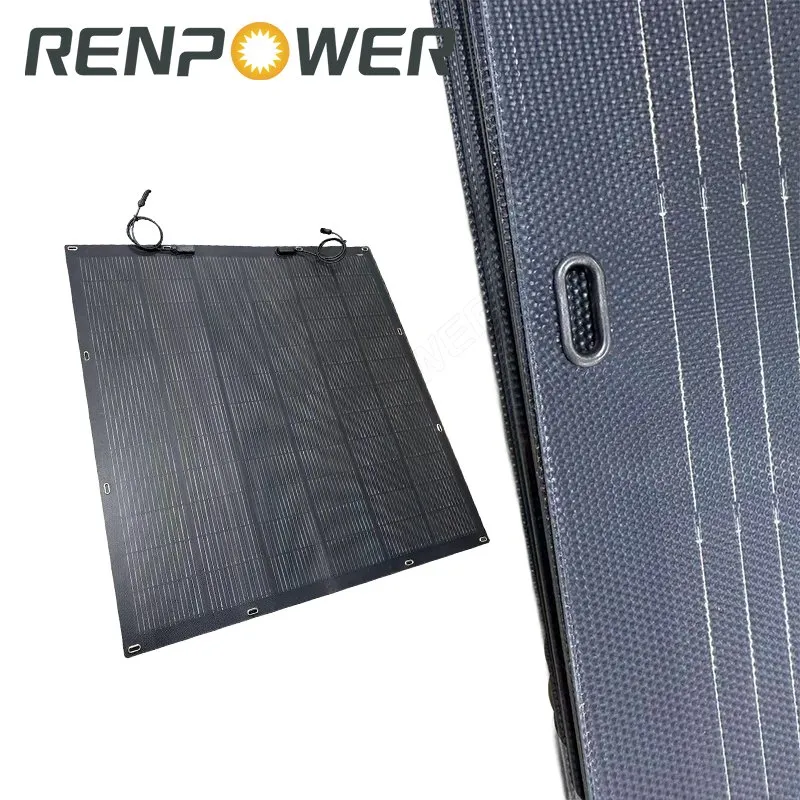

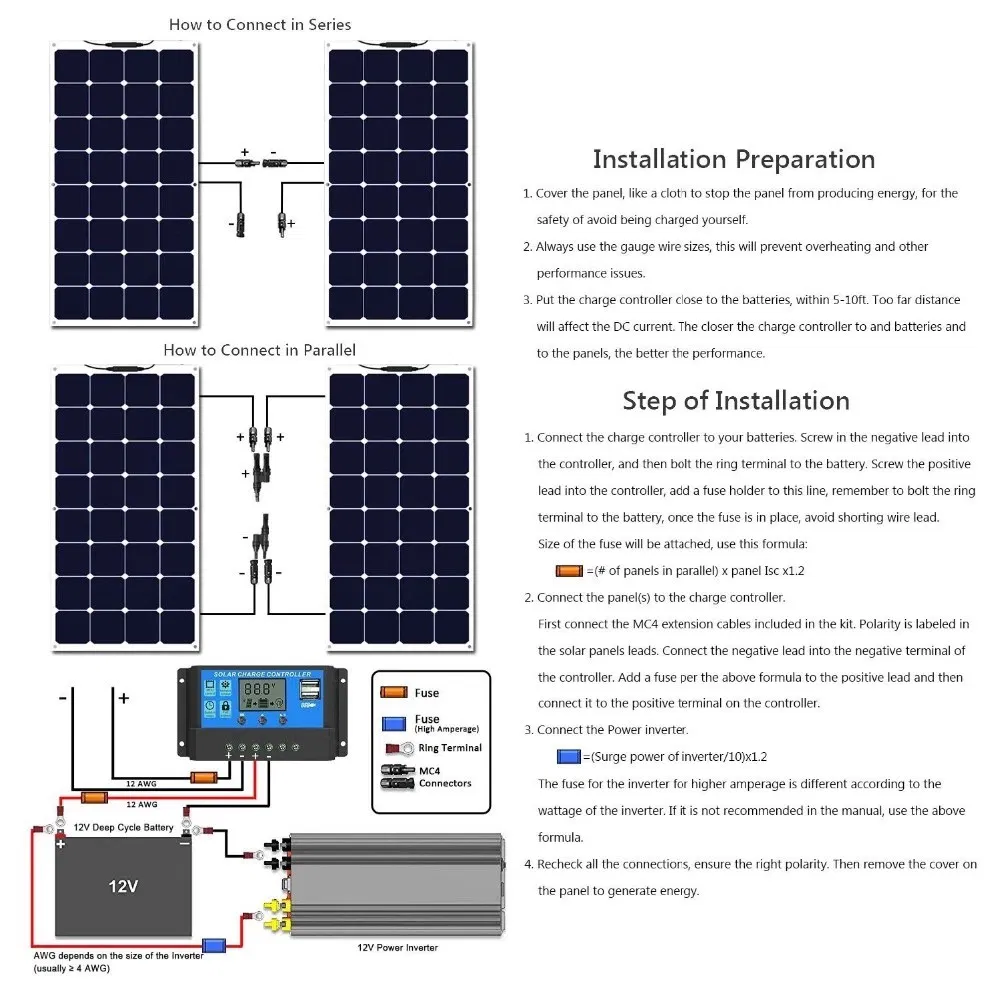

easy installed with clue, adhesive, screw, and also grommet at corner is easy for installation.
The modules can withstand high wind-pressure, snow loads and extreme temperatures.

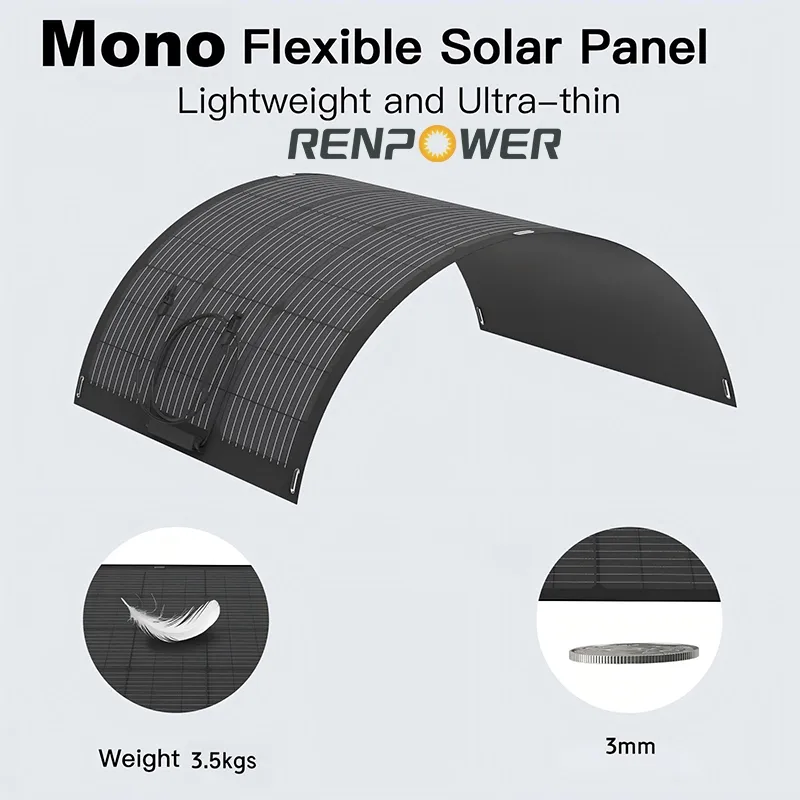

Light weight for easy carrying easy shipment easy installation, really 83% lighter than normal.
| Specification | Details |

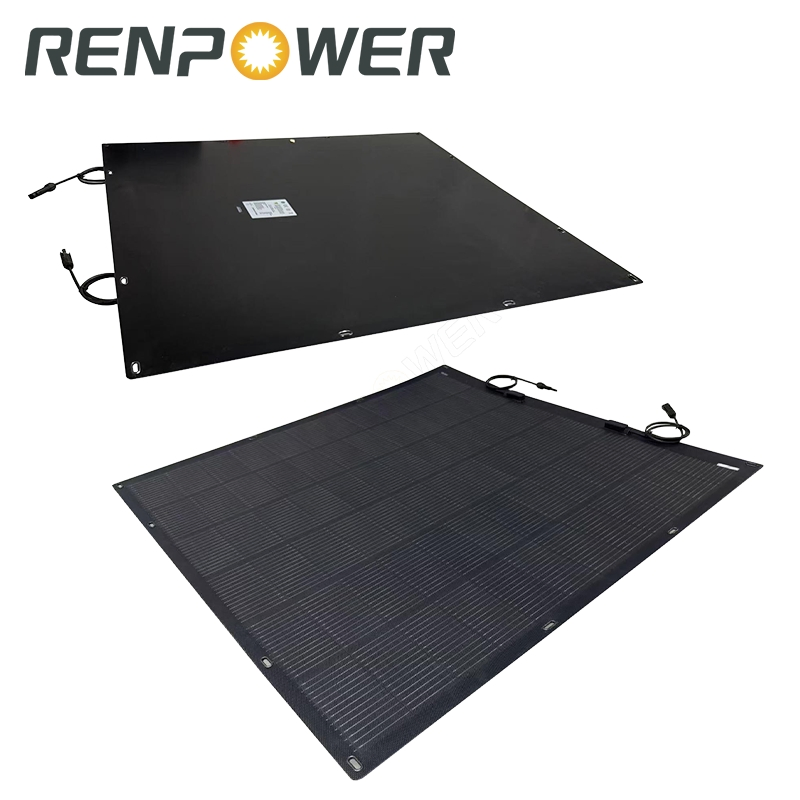

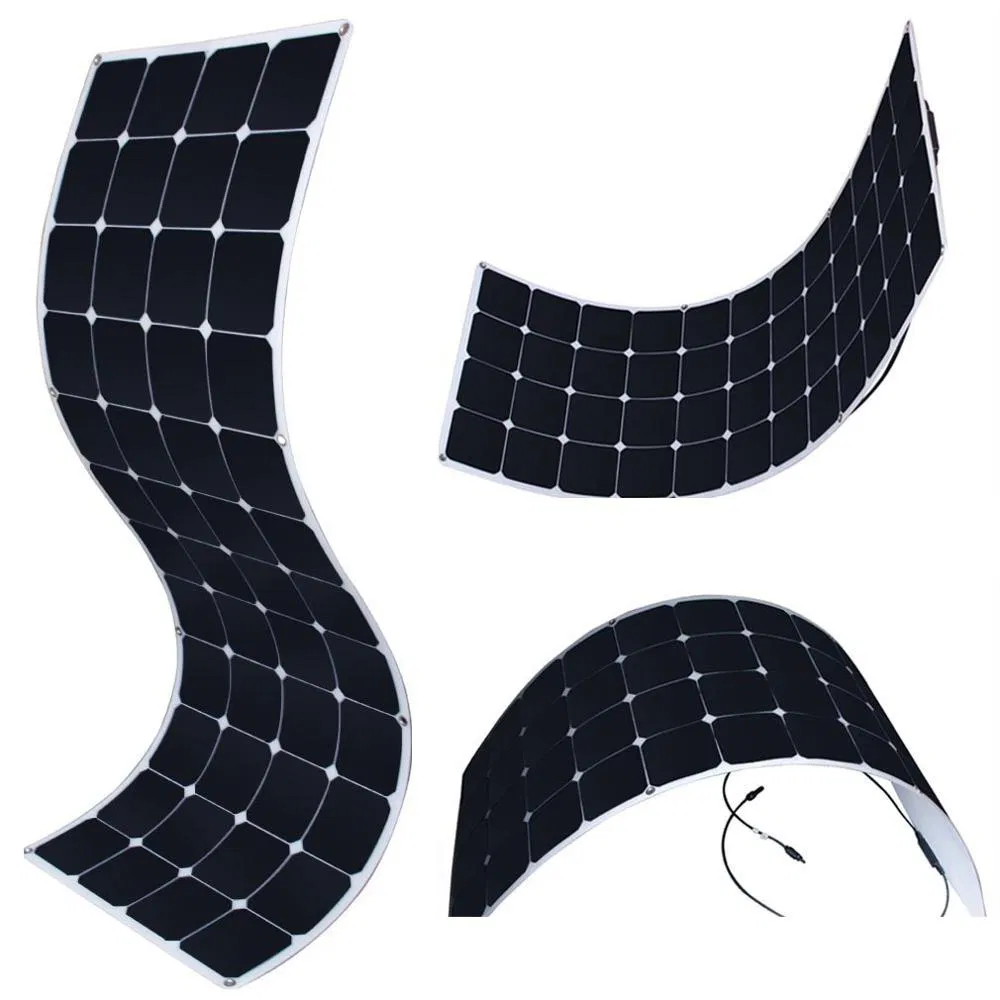

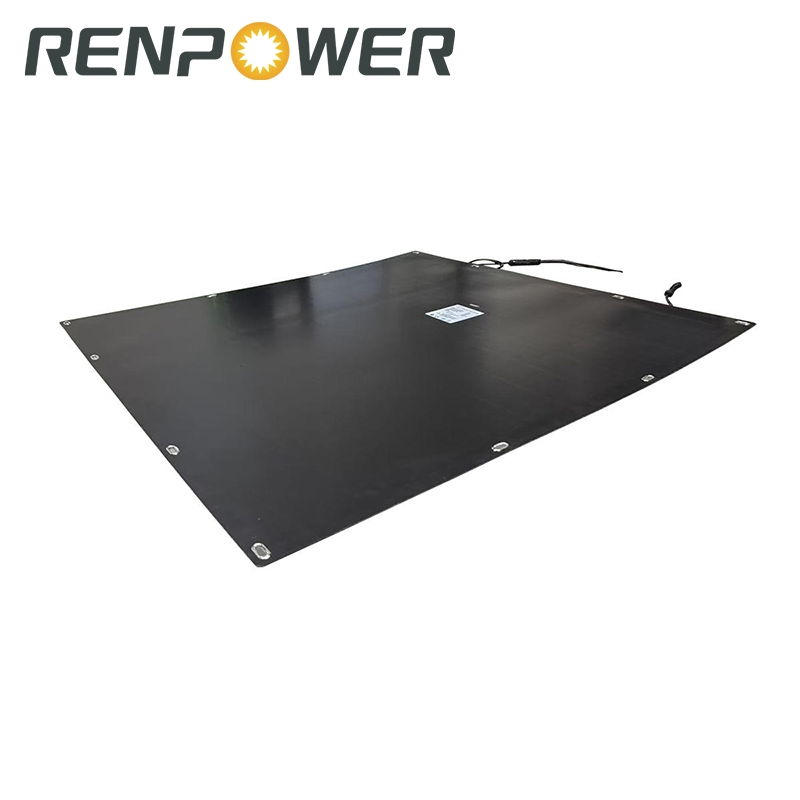

| Type | High efficiency flexible solar panel |
| Cells type | 20% high efficiency Sunpower brand solar cells (Imported from USA) |

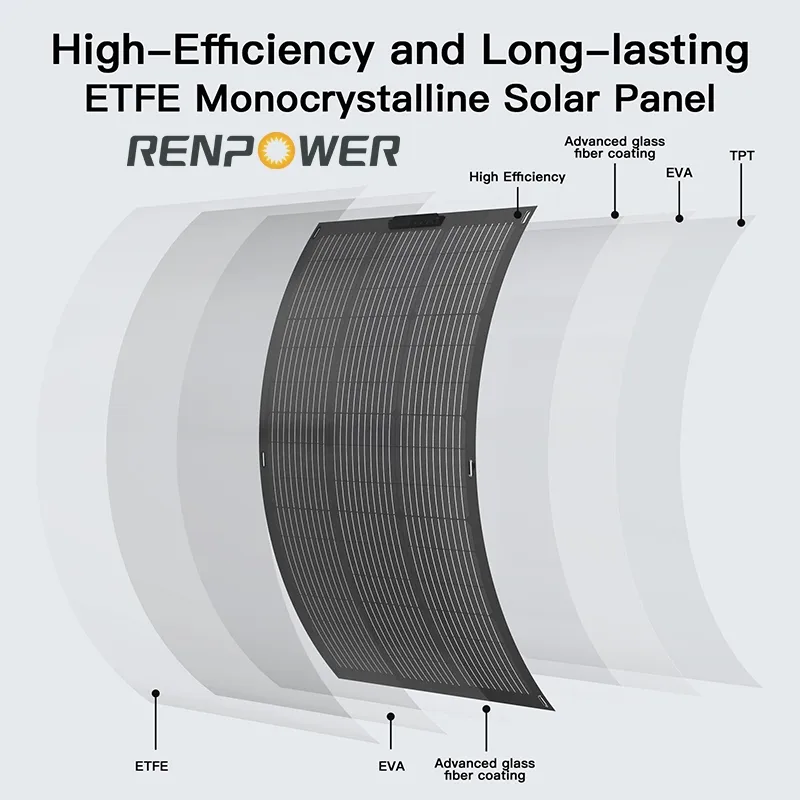

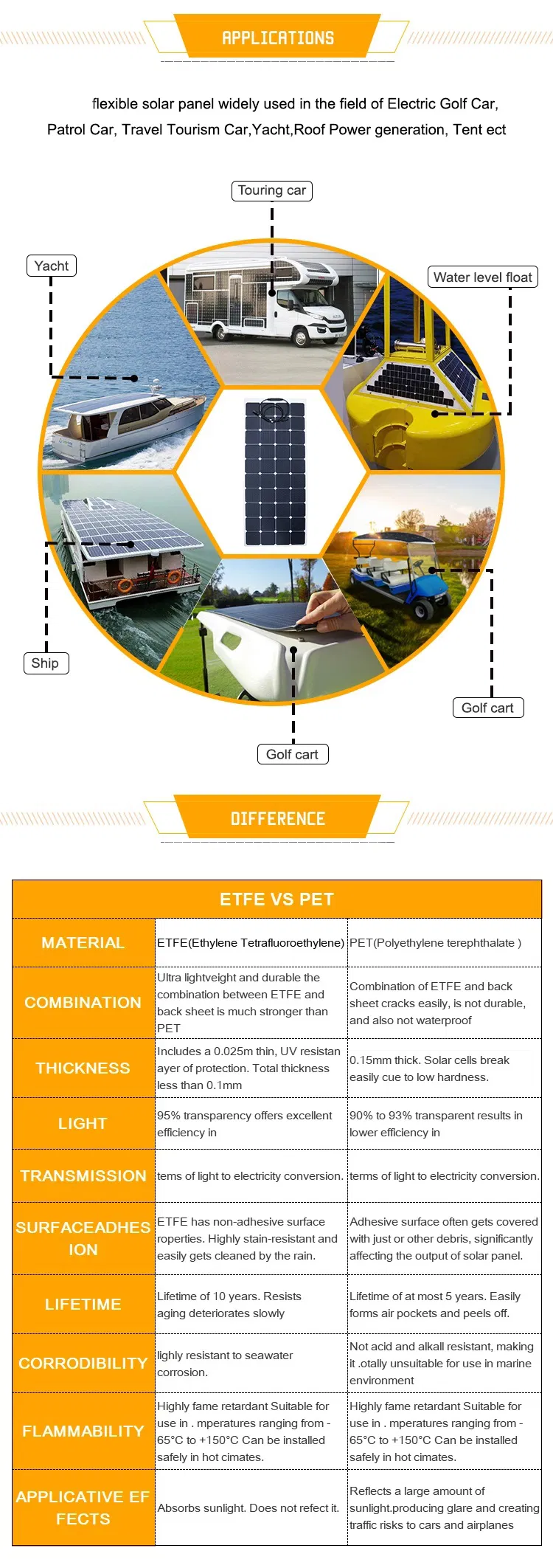

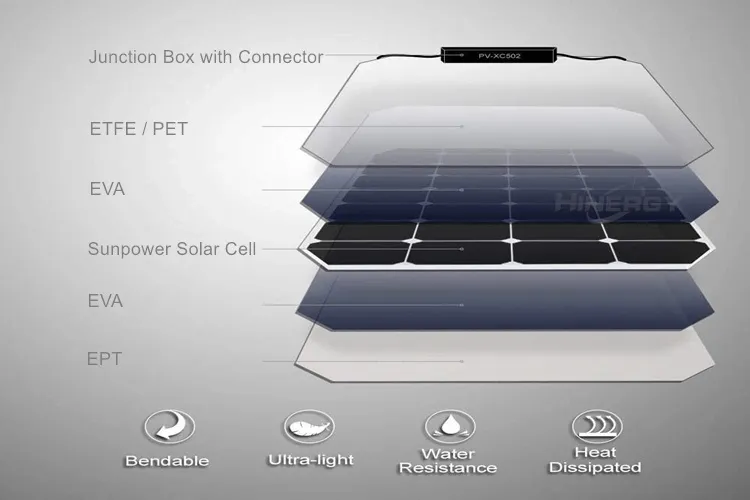

| Top layer type | PET/ETFE |
| Color | White/Black/Transparent |
| Connector | Anderson/DC/Any others |
| Cable length | 0.9m/Customized |
| OEM/Unbranded/Customized service | Available |
